Door Locks and Accessories :Mortice Door Locks :Bathroom Locks
OPERATION. Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by lever handle from either side.
FEATURES
Pierced to accept bolt through furniture.
DIMENSIONS (See link below for key)
64mm A =64, B = 44, C = 102, D = 57, E = 152, F = 22mm
76mm A =76, B = 57, C = 102, D = 57, E = 152, F = 22mm
Dimensions Price : £8.18 £9.61 Including VAT at 17.5%

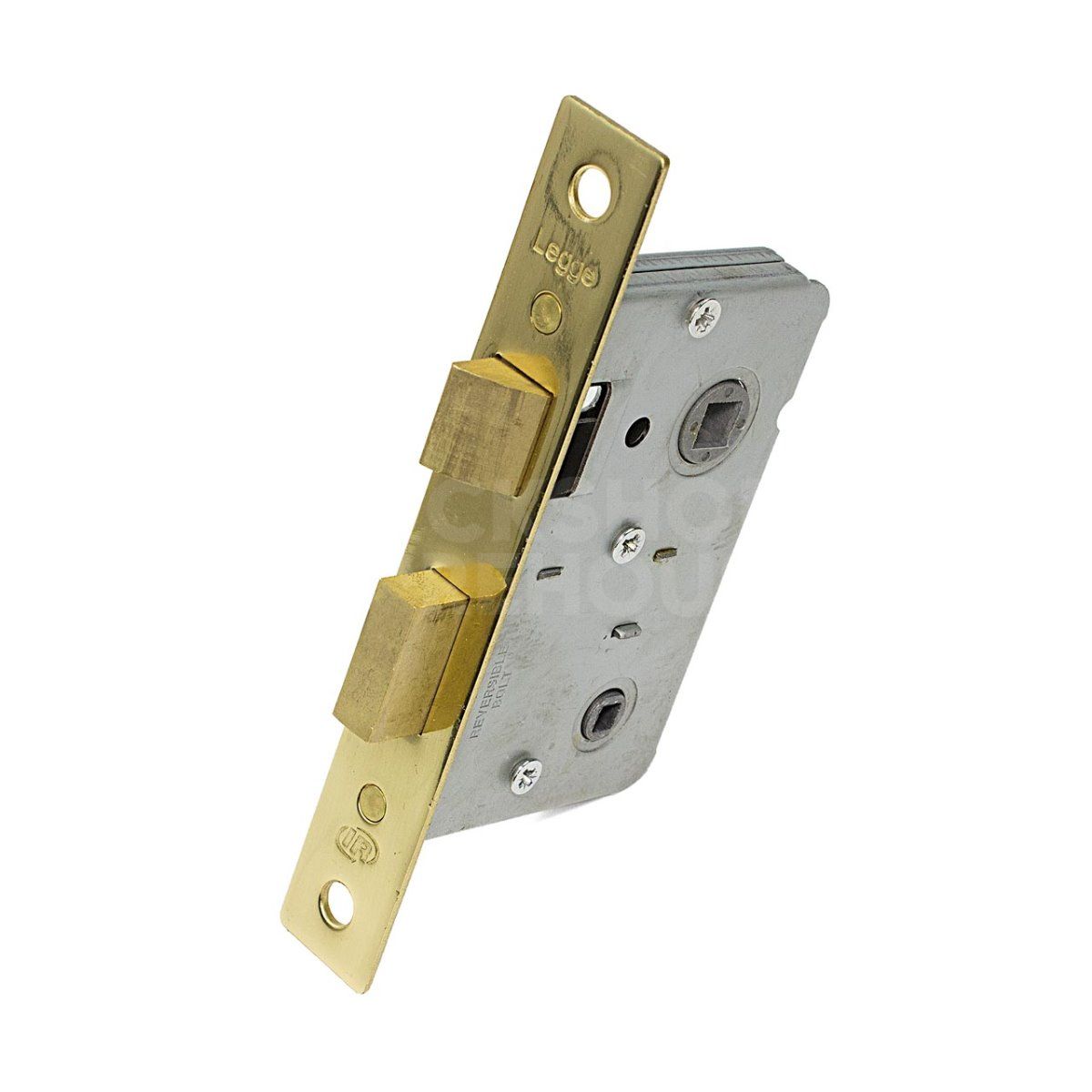

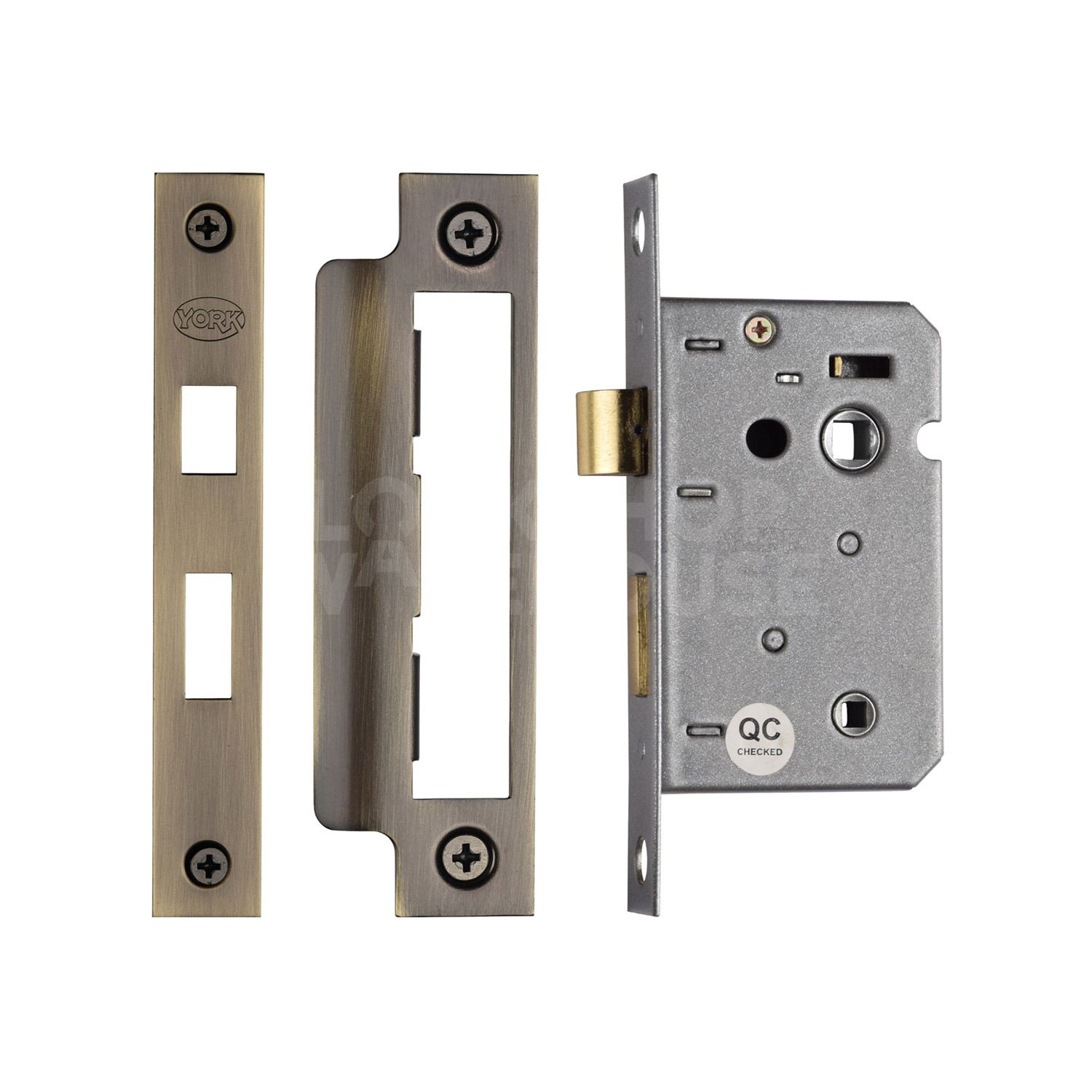

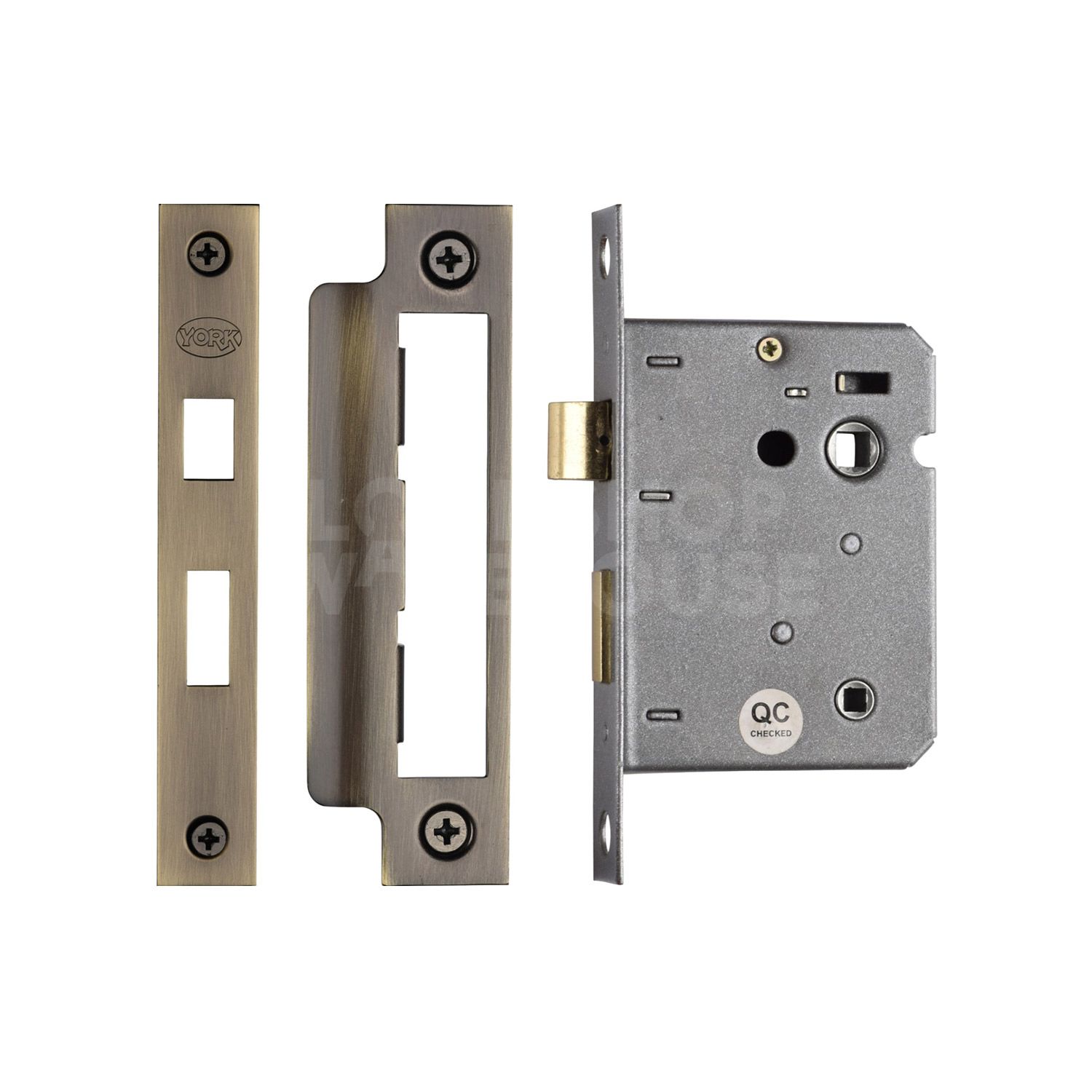

Bathroom lock with 44mm backset. 5mm deadbolt follower and 8mm lever follower.
Suitable for sprung lever furniture with 8mm spindle.
LOCK DIMENSIONS Price : £12.99 £15.26 Including VAT at 17.5%

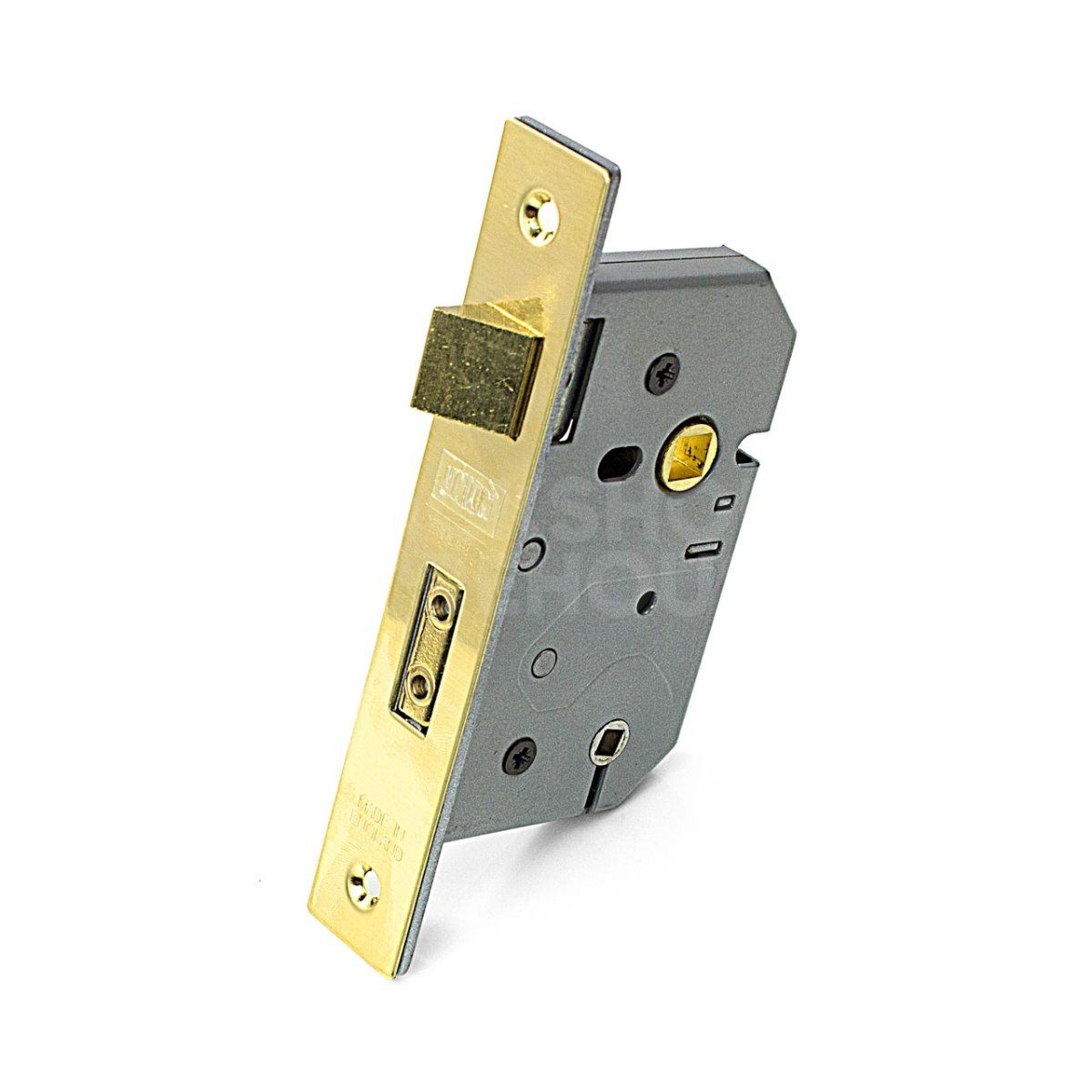

Case Sizes : 64mm, 76mm & 102mm
Follower : 8mm (Latch) 5mm (Dead)
Case Finish : Enamelled Silver
Forend Finish : Brass or Satin Chrome
OPERATION : Deadbolt is locked or unlocked by turn from the inside.Reversible latchbolt withdrawn by lever handle from either side.
FEATURES : Pierced to accept bolt through furniture. Suitable for use with unsprung lever handles.
DIMENSIONS (See dimension link below for key)
64mm A = 64, B = 44, C = 108, D = 57, E = 152, F = 25mm
76mm A = 76, B = 57, C = 108, D = 57, E = 152, F = 25mm
102mm A = 102, B = 82, C = 108, D = 57, E = 152, F = 125mm
NOTE. 102MM LOCK IS £6.25 EXTRA
Dimensions Price : £15.56 £18.28 Including VAT at 17.5%

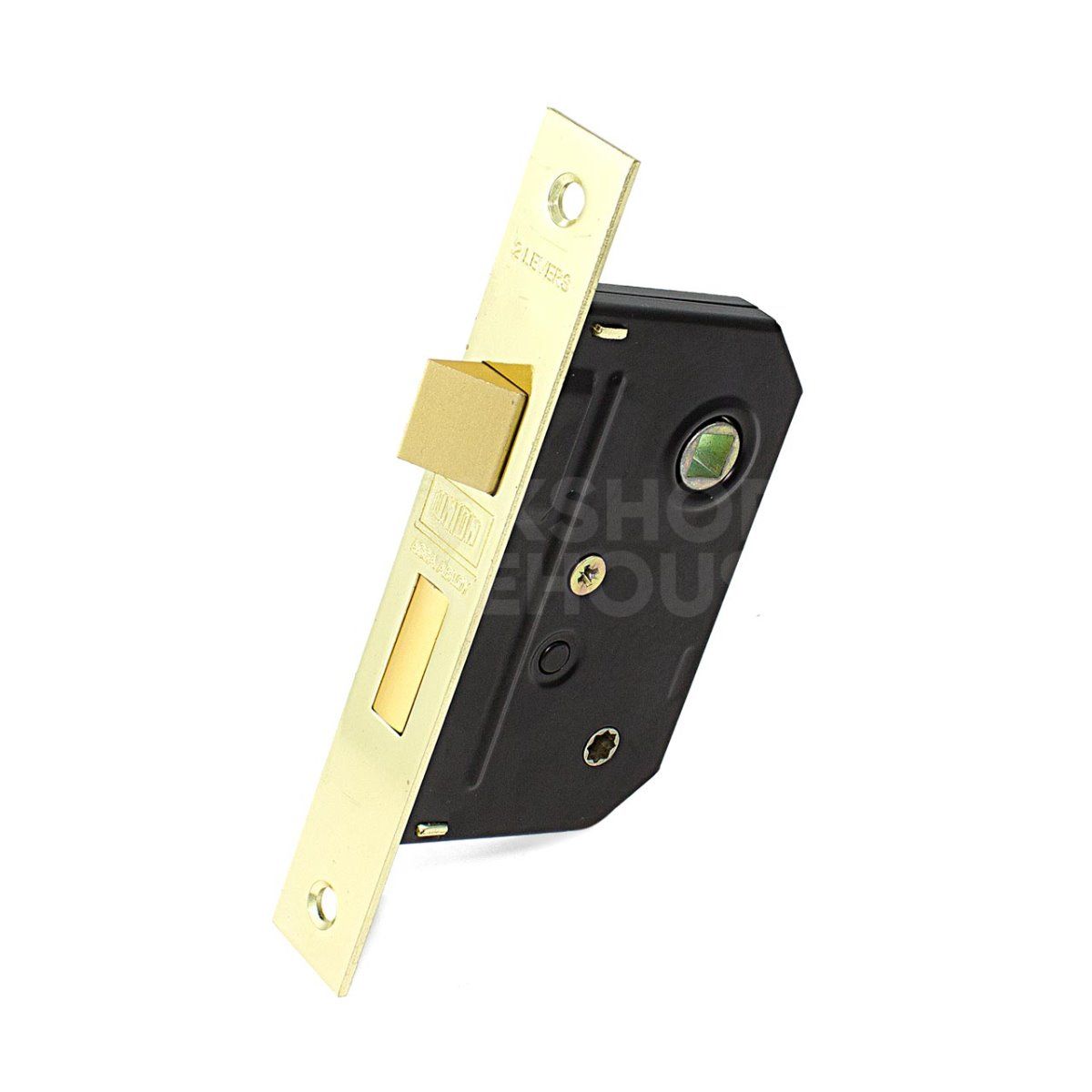

Case Sizes : 64mm & 76mm
Case Finish : Black
Forend Finish : Brass or Chrome
OPERATION: Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by lever handle from either side.
DIMENSIONS (See dimension key below)
64mm A = 64, B = 44, C = 102, D = 57, E = 152, F = 22mm
76mm A = 76, B = 57, C = 102, D = 57, E = 152, F = 22mm
Dimensions Price : £8.33 £9.79 Including VAT at 17.5%

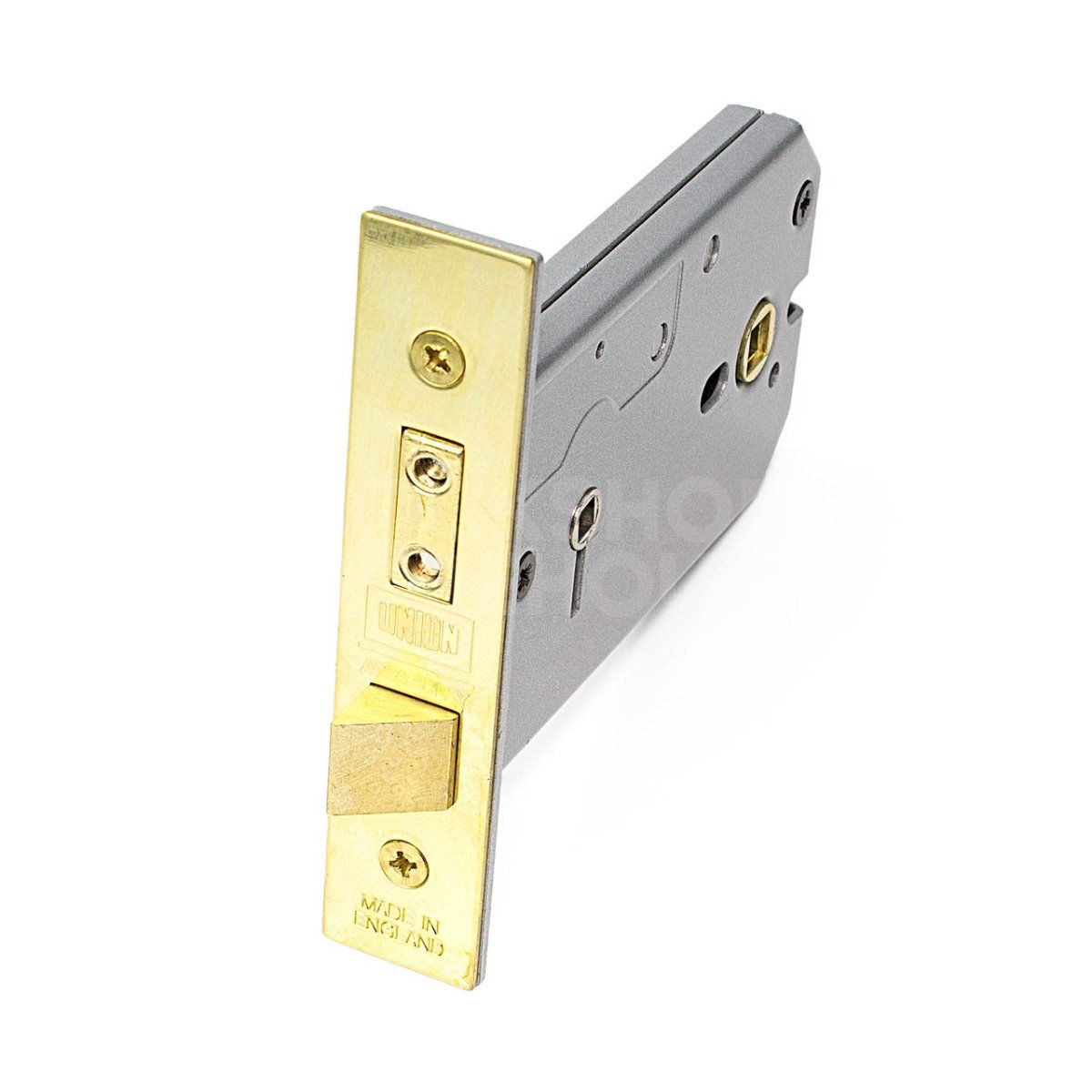

Case Sizes : 127mm & 152mm
OPERATION : Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by knob from either side.
FEATURES: Pierced to accept bolt through furniture.
LOCK DIMENSIONS (See dimensions link below for key)
Please Note. 5mm square drive for the turn is positioned at the top of the key key hole - dimension C.
6 INCH : A = 152mm, B= 127mm, C = 51mm, D= 70mm, E= 121mm, F= 25mm.
5 INCH : A = 127mm, B= 101mm, C= 38mm, D= 70mm, E= 121mm, F= 25mm.
Dimensions Price : £29.27 £34.39 Including VAT at 17.5%

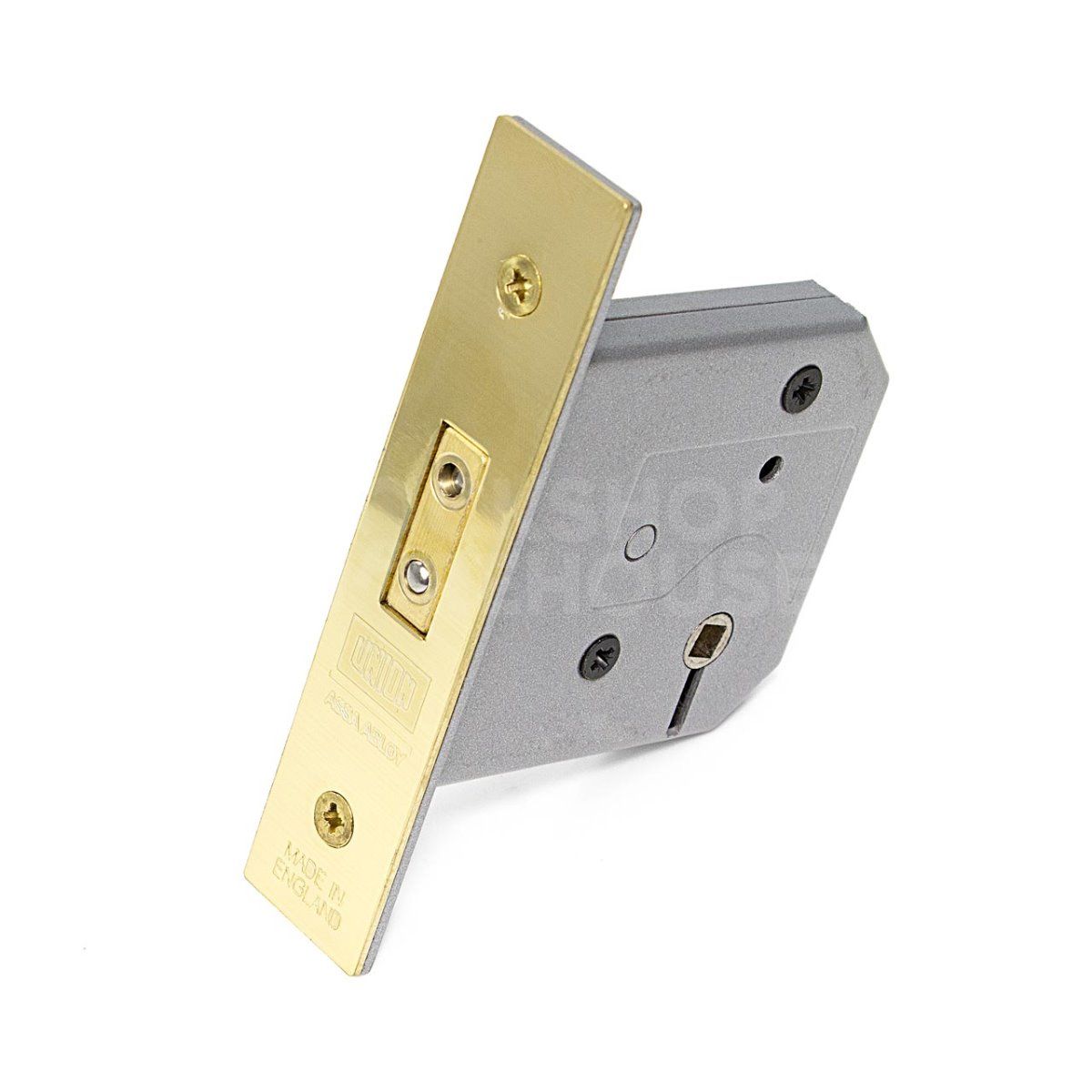

Case Size : 76mm, Follower : 5mm, Case Finish : Enamelled Silver, Forend Finish : Brass or Satin Chrome
OPERATION : Deadbolt is locked or unlocked by turn from the inside.
FEATURES Can be used in conjunction with indicating furniture. See below
DIMENSIONS Price : £21.12 £24.82 Including VAT at 17.5%

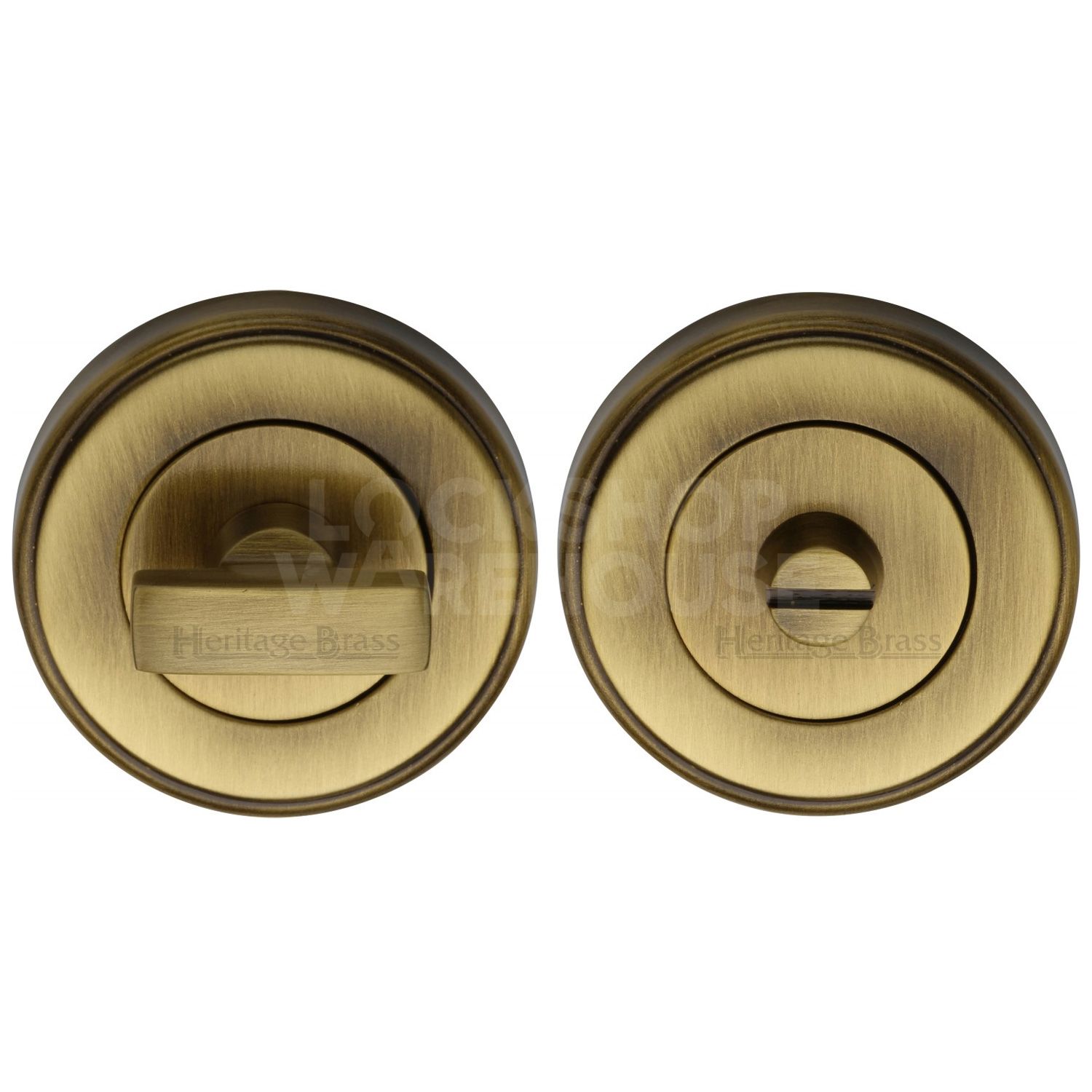

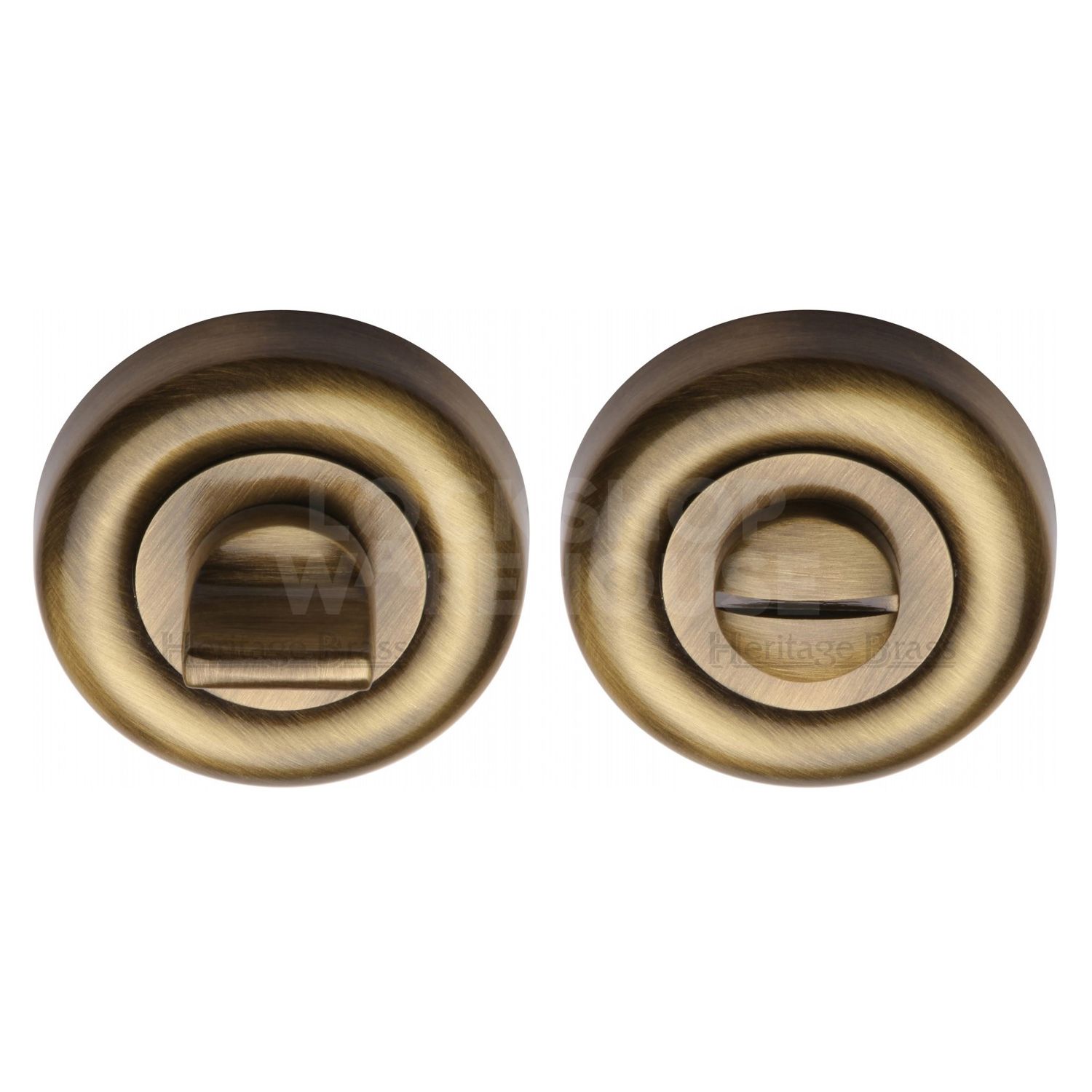

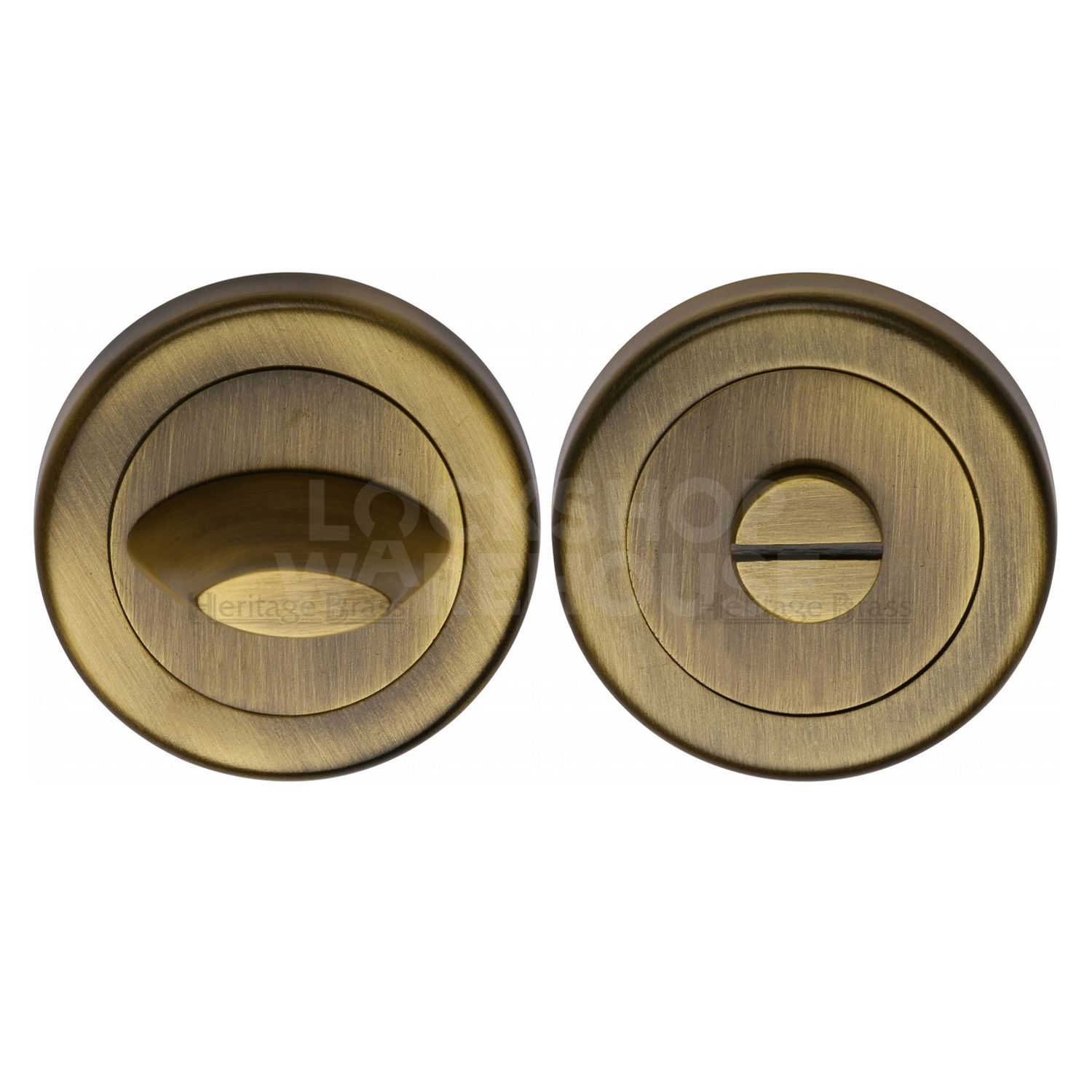

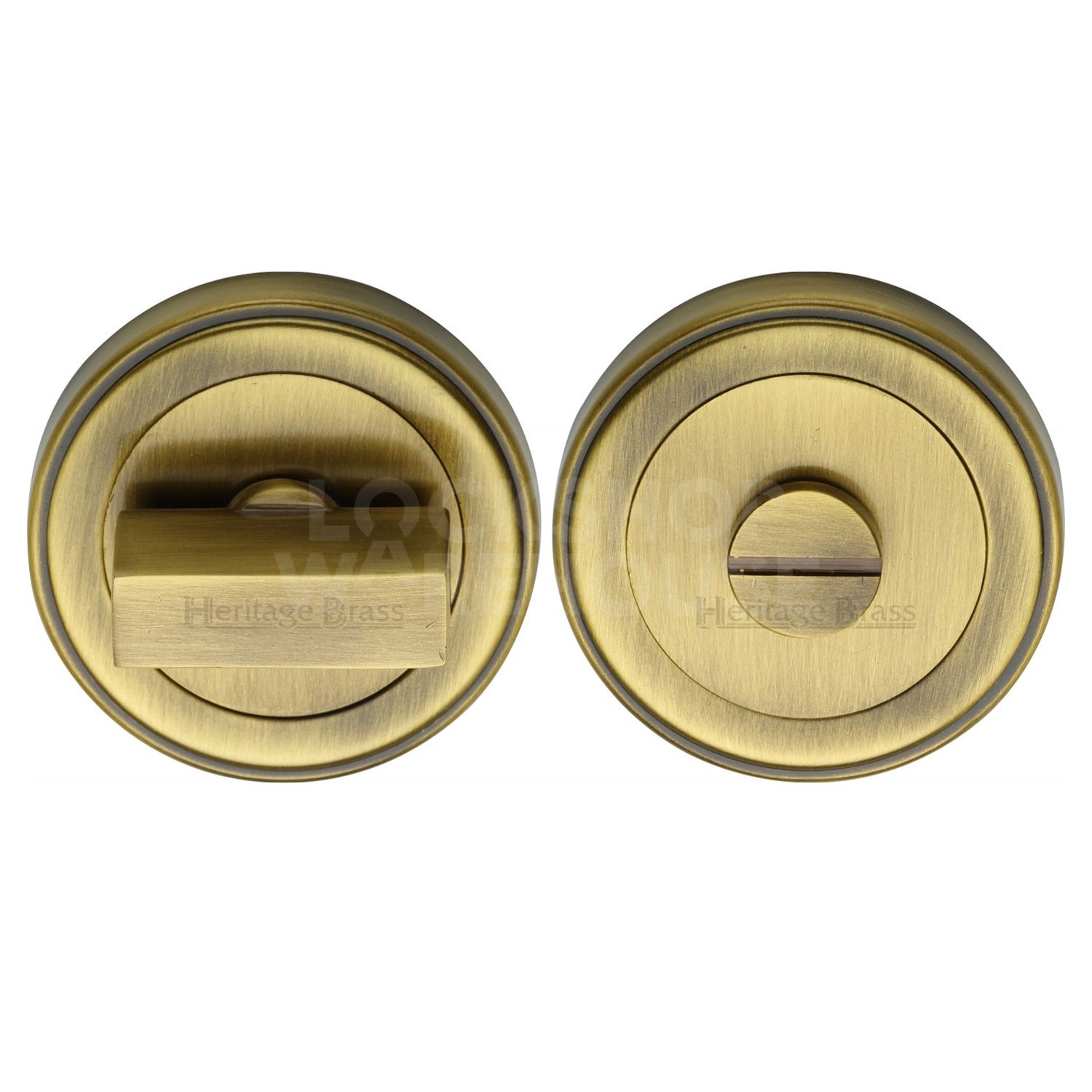

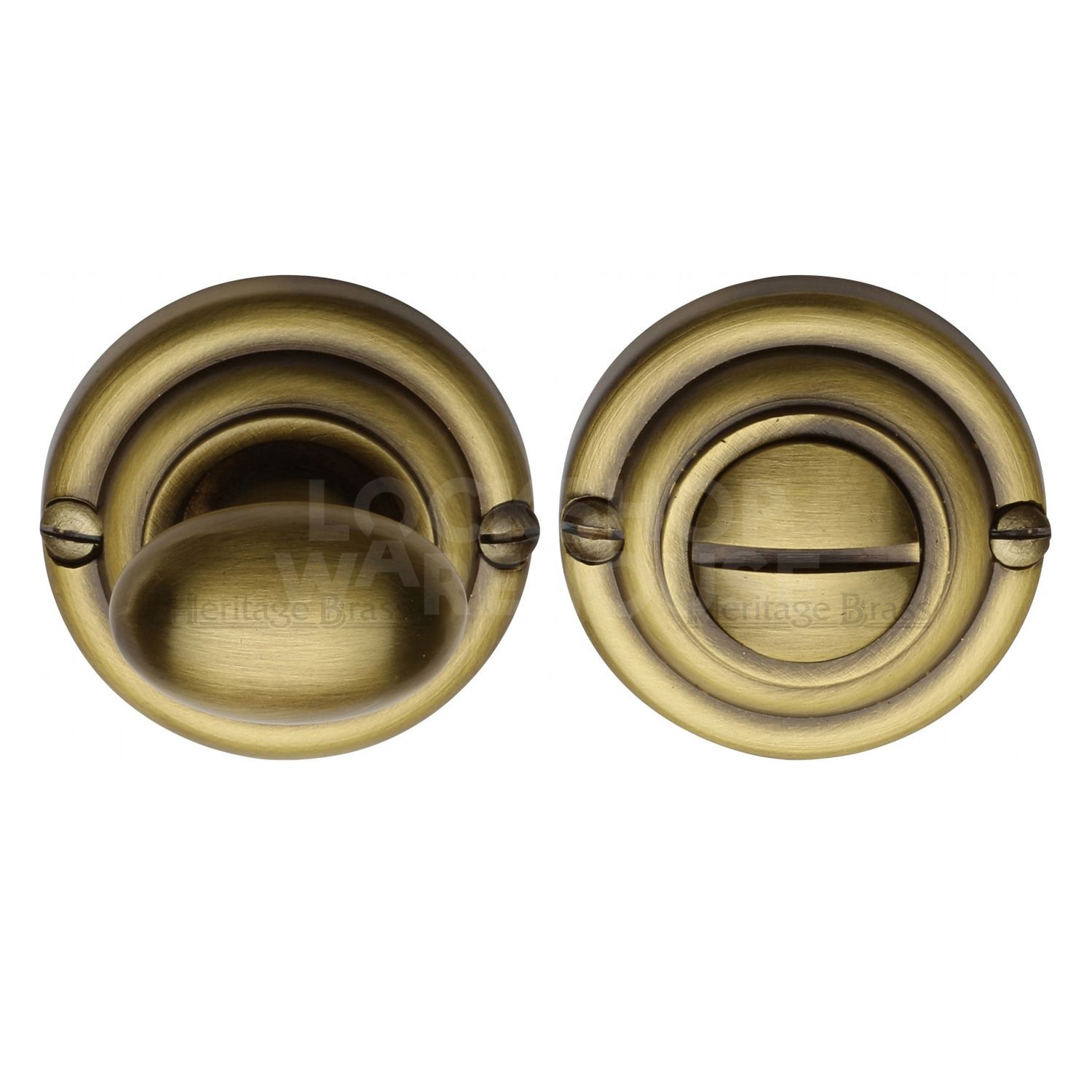

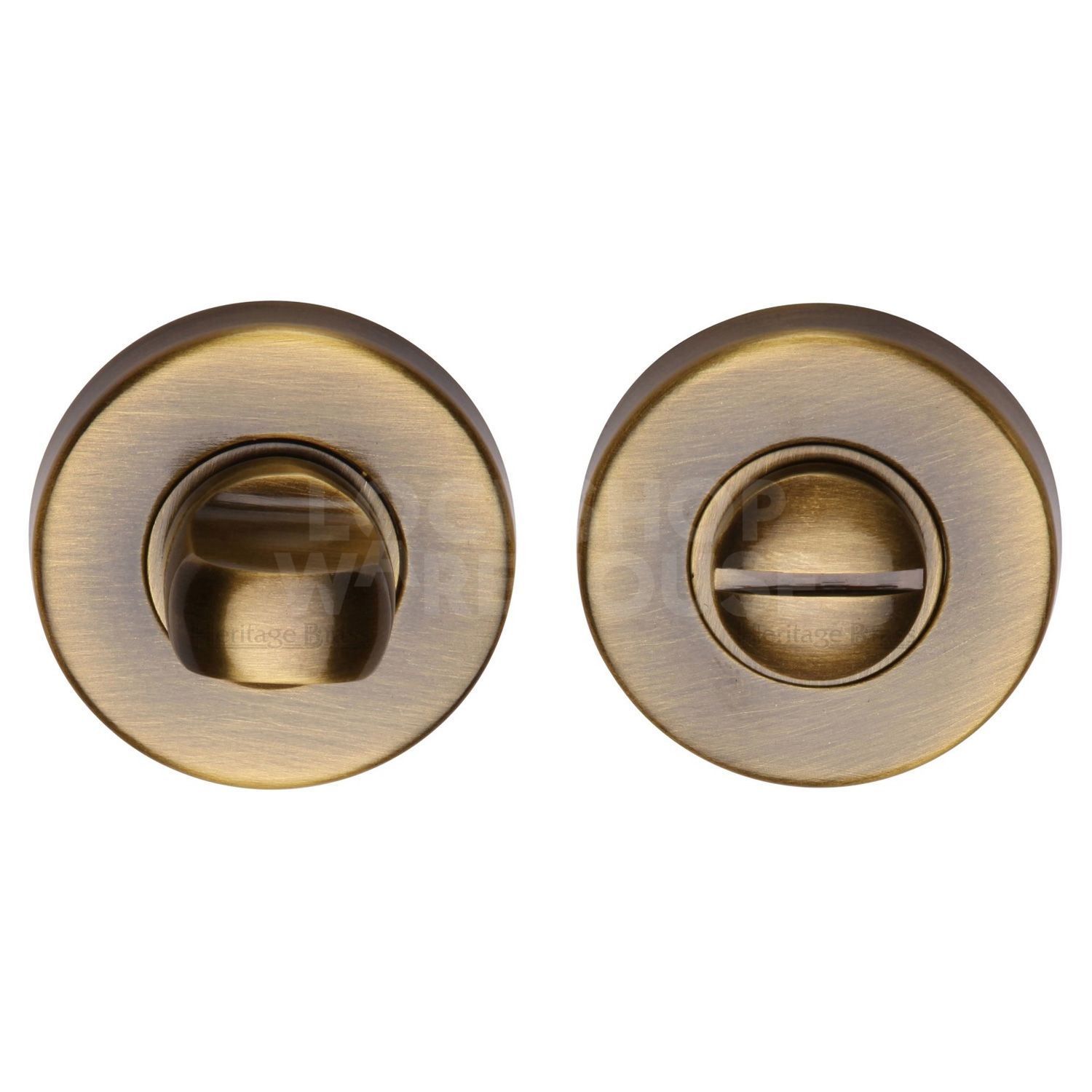

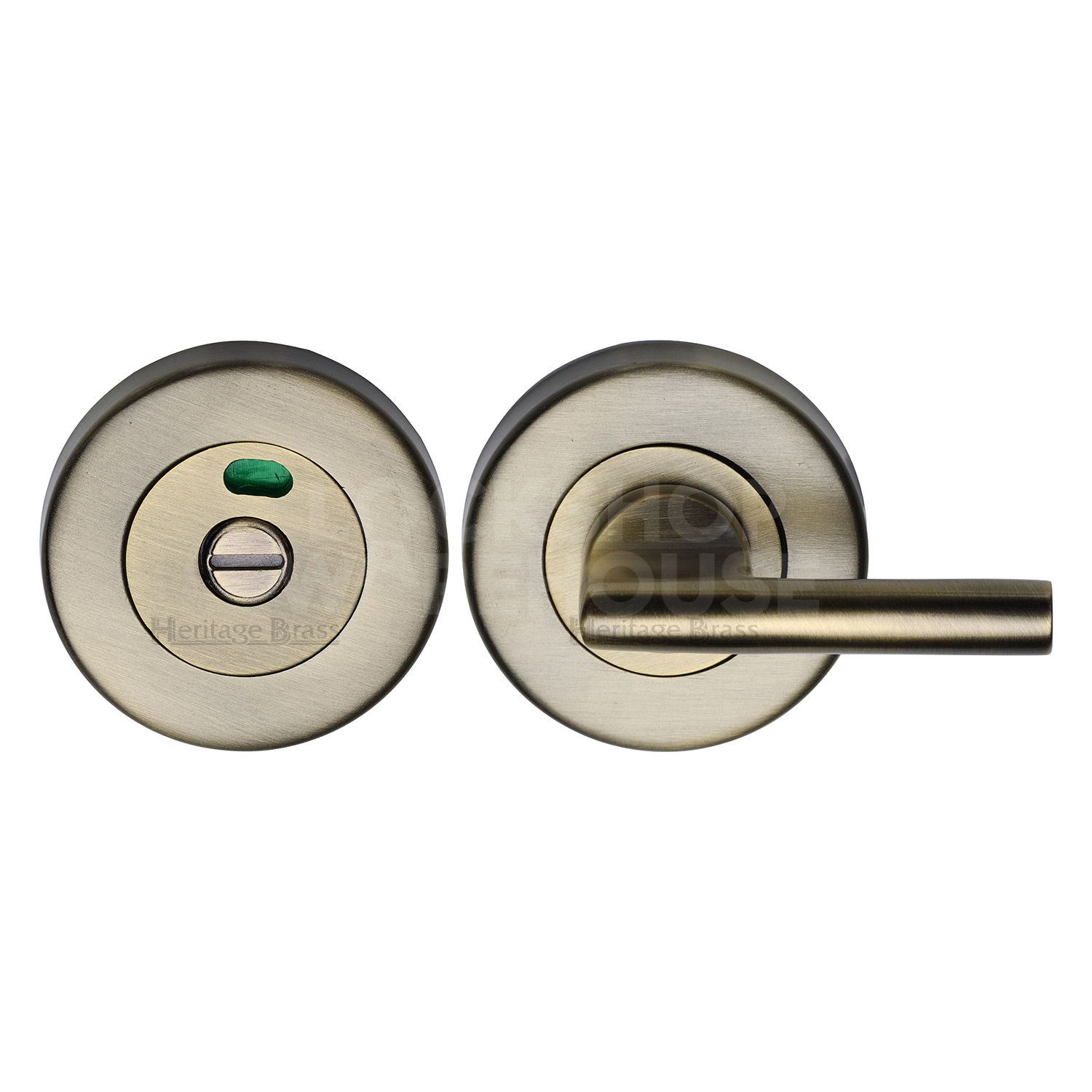

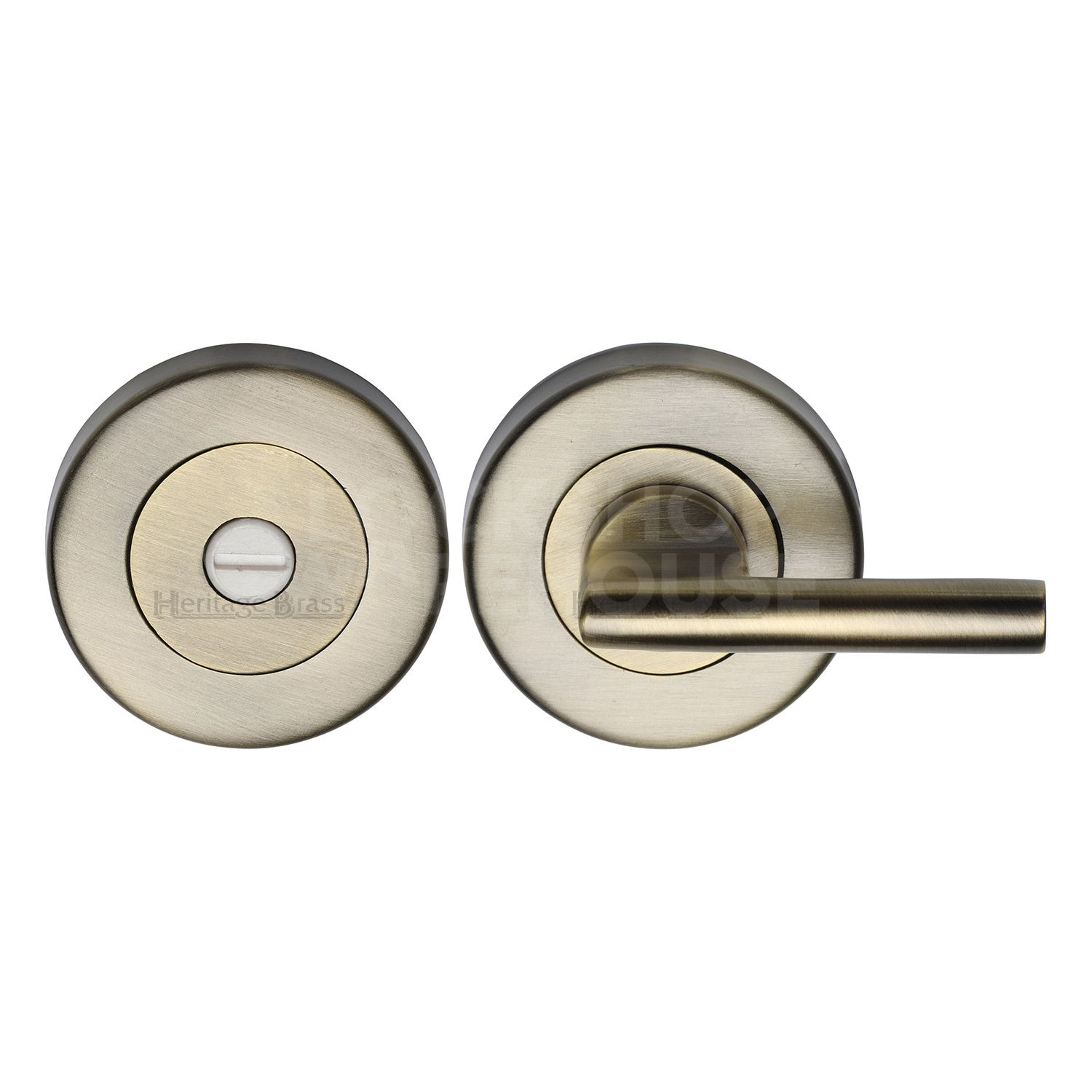

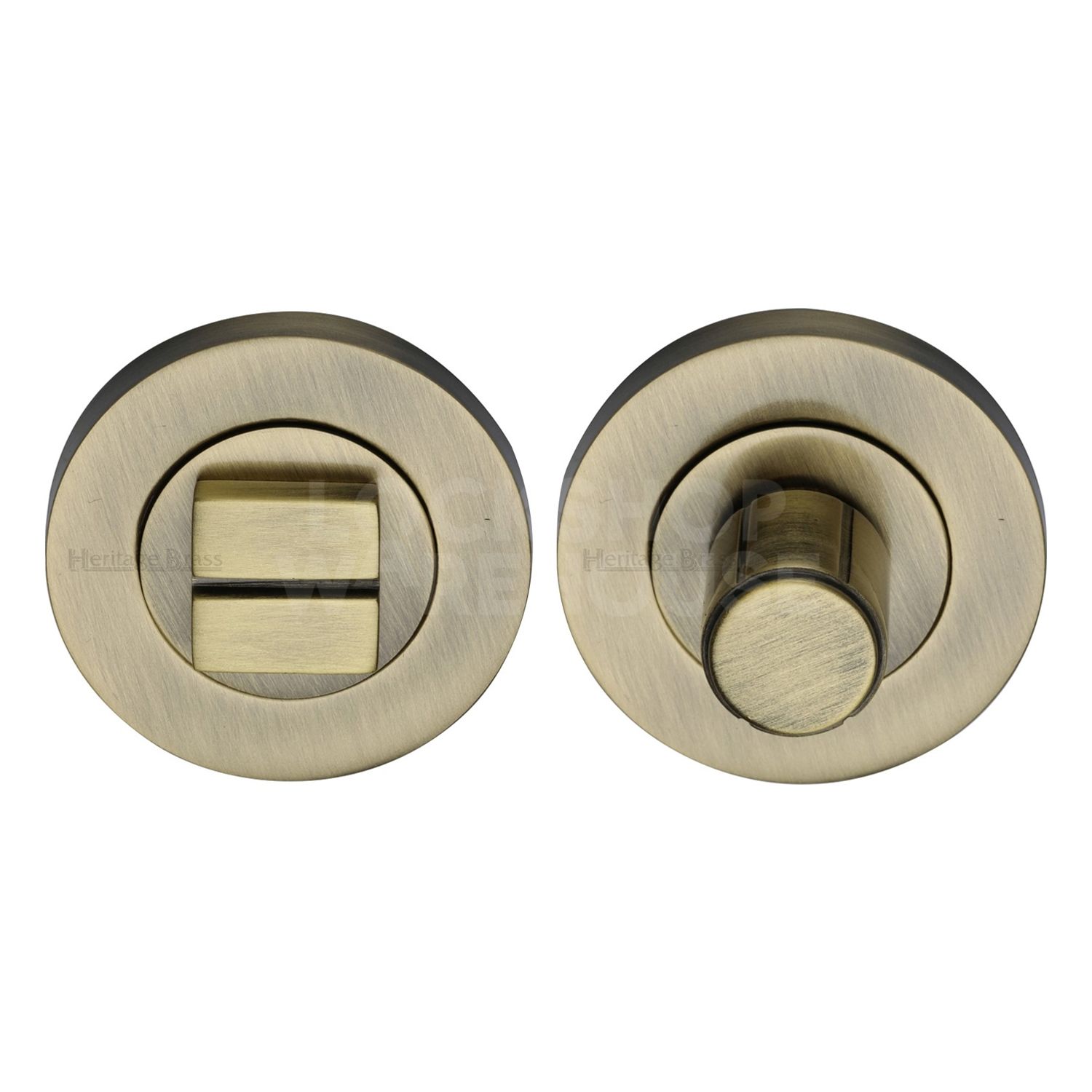

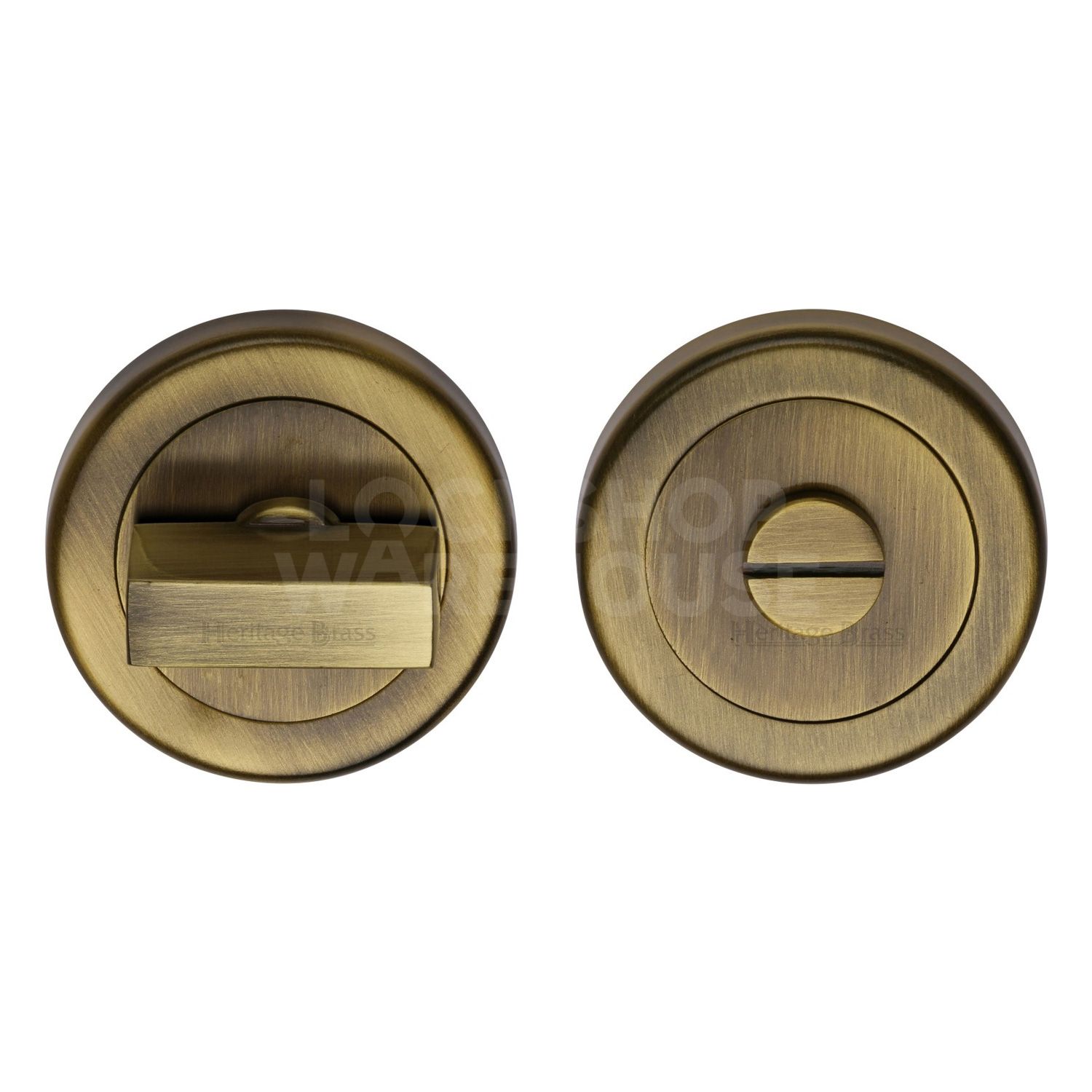

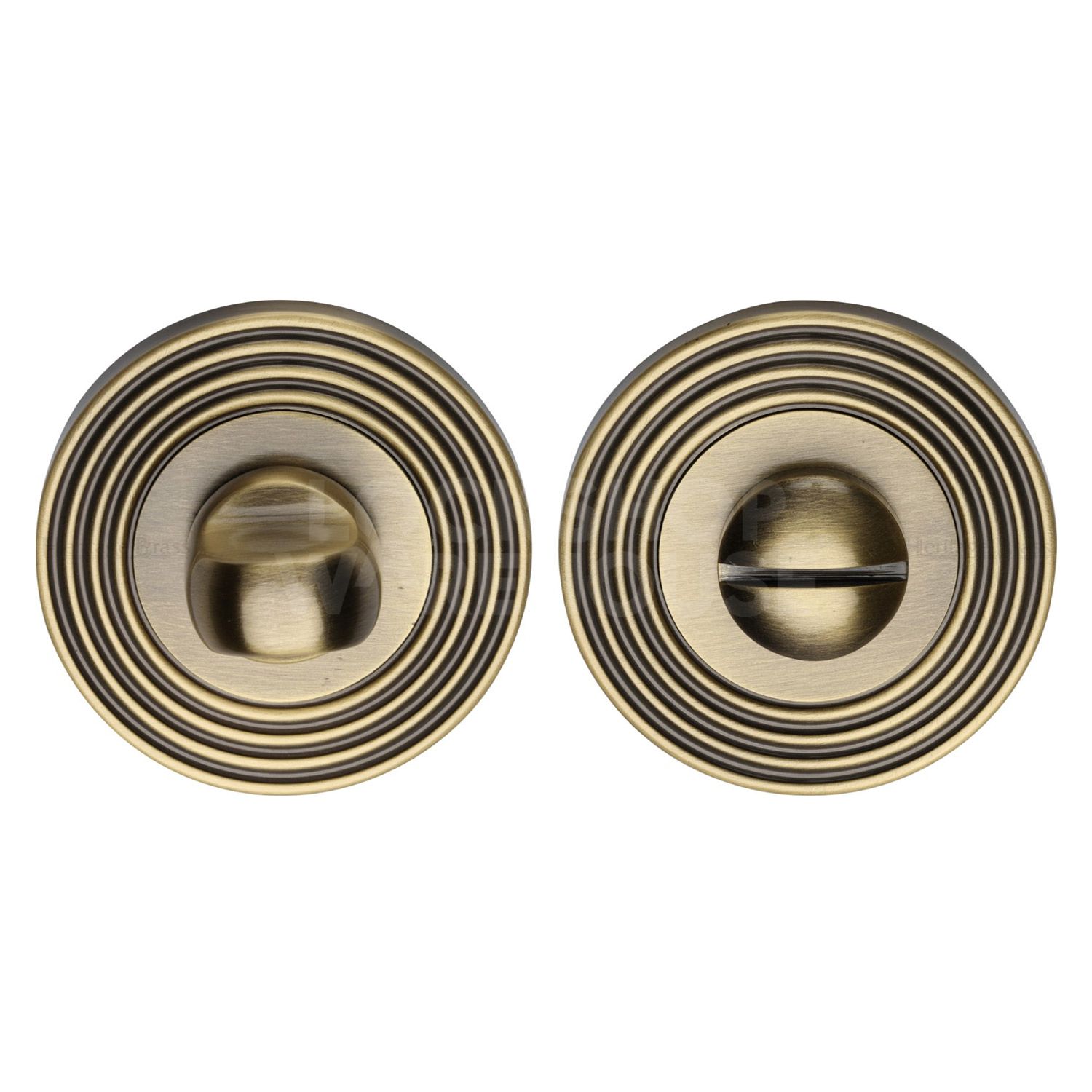

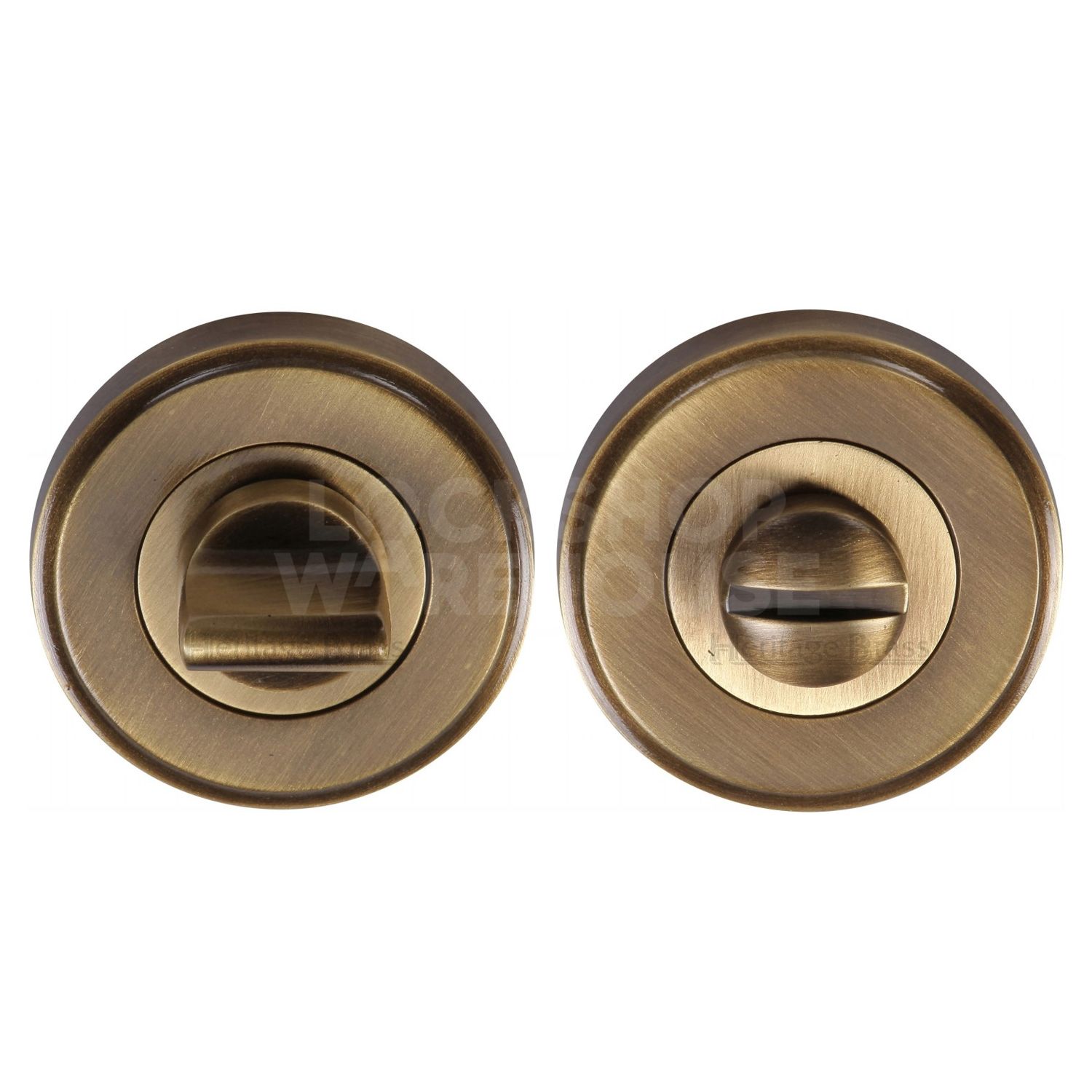

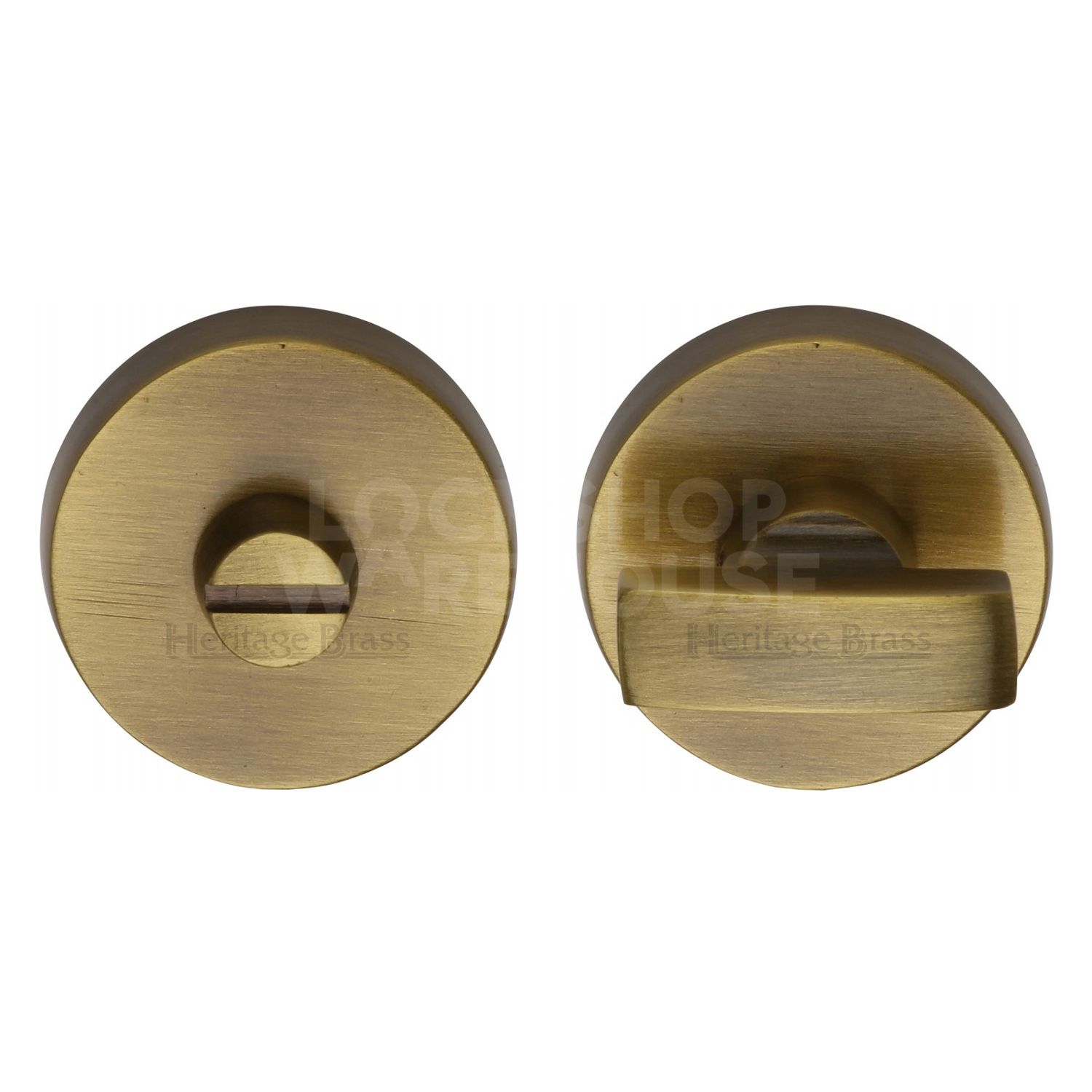

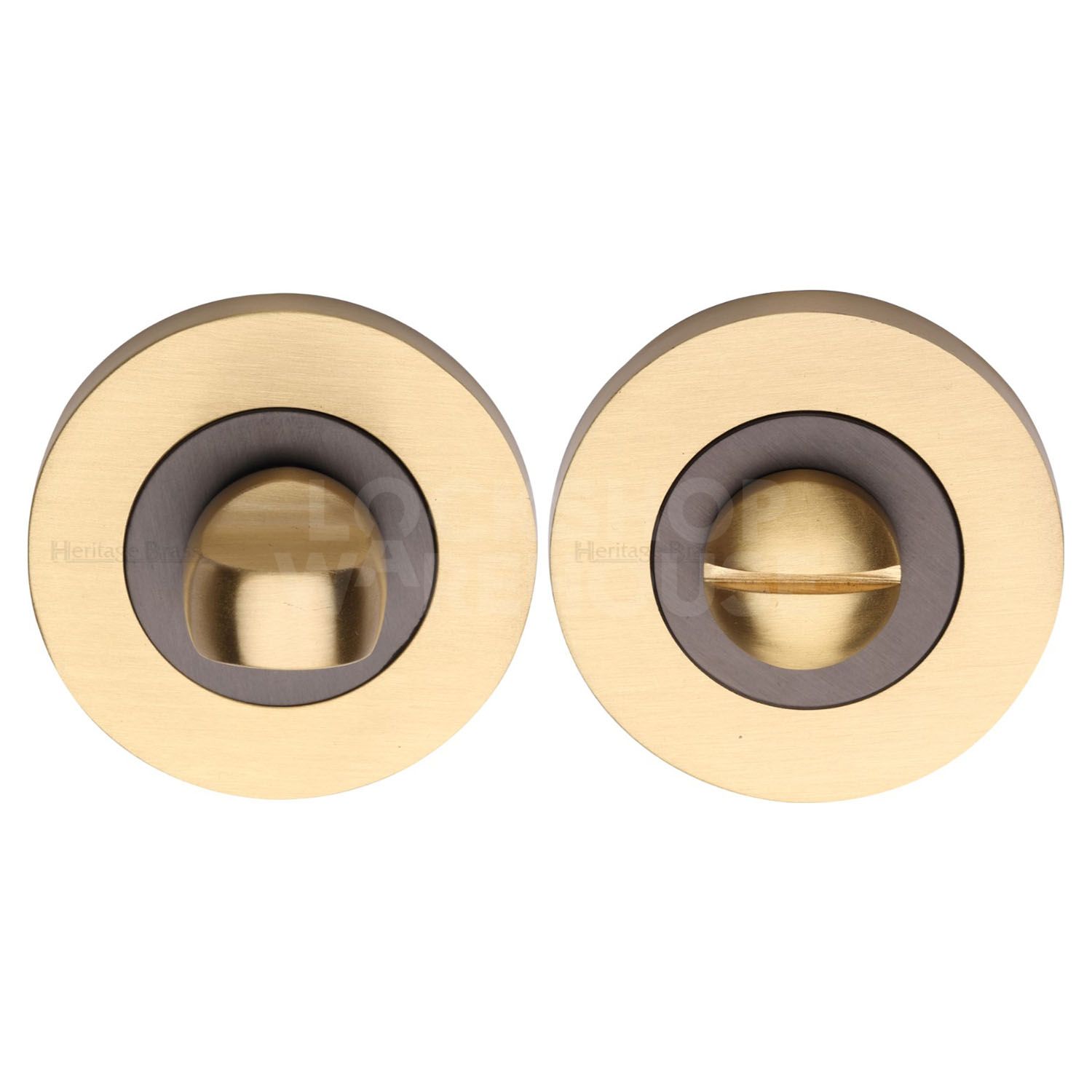

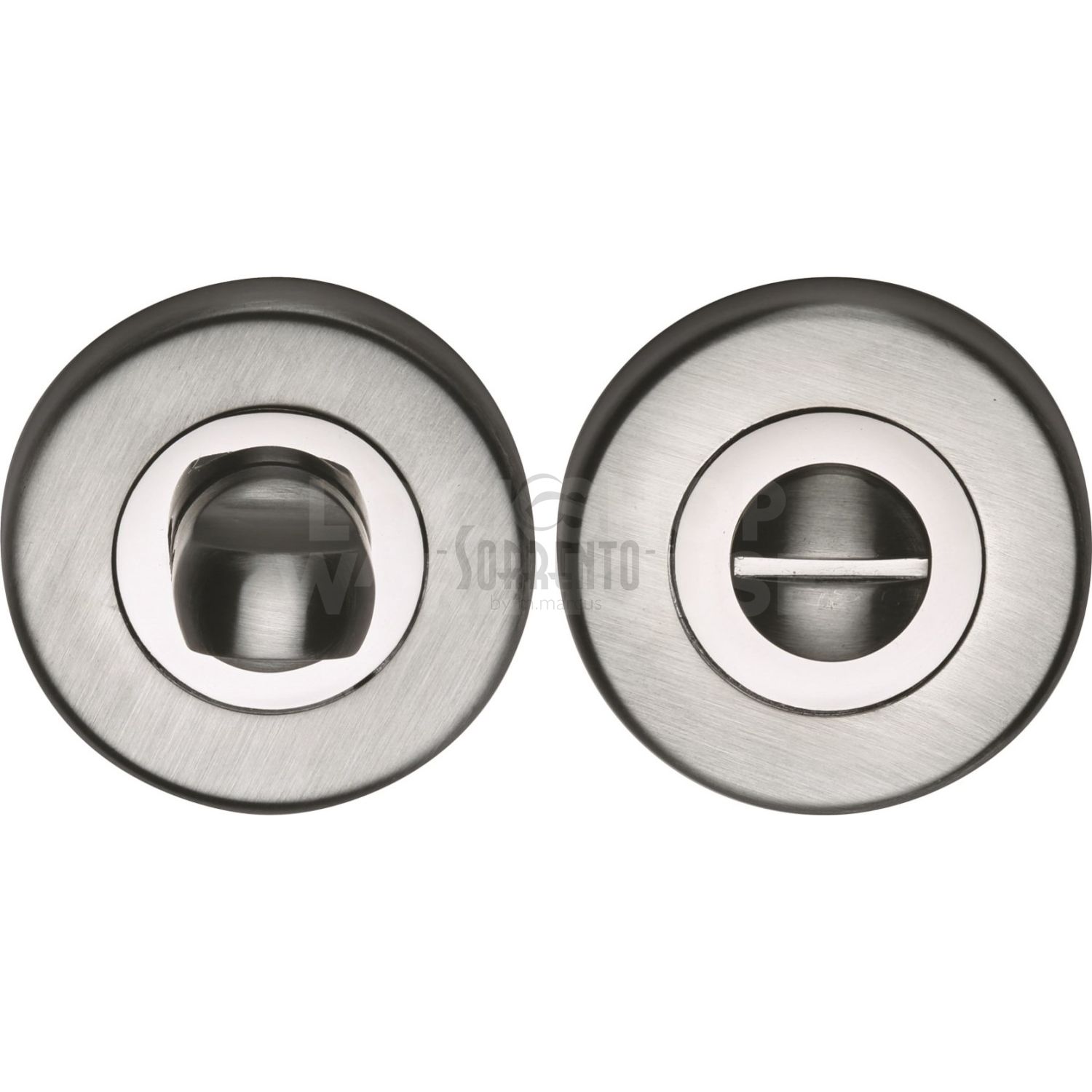

Suitable for use with locks in this section. Rose diameter 51mm. Comes with a 5mm spindle. Price : (1 item) £18.76 £22.04 Including VAT at 17.5% Price : (2 items) £14.76 £17.34 Including VAT at 17.5% Price : (3 items) £13.59 £15.97 Including VAT at 17.5% Price : (4 or more items) £13.01 £15.29 Including VAT at 17.5%

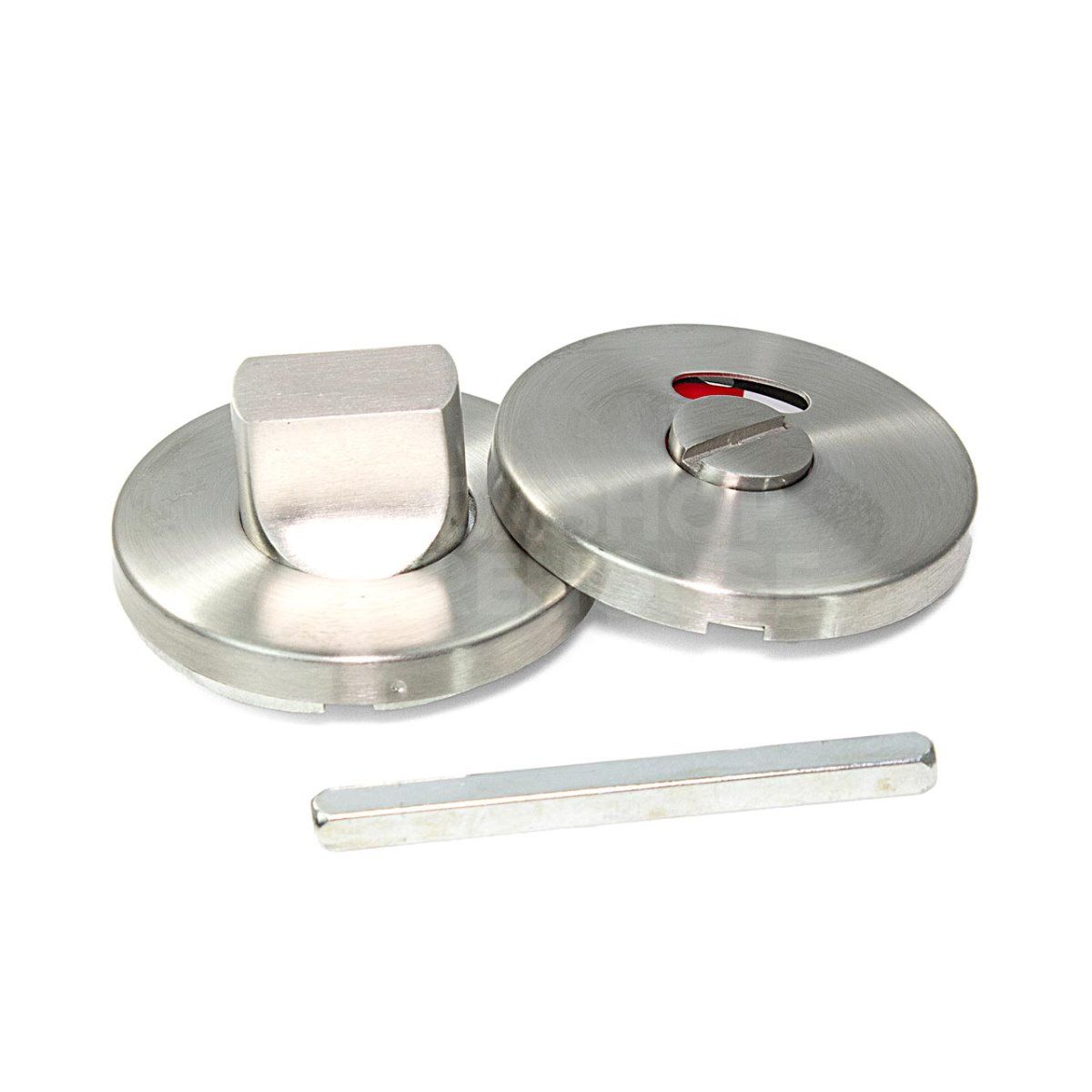

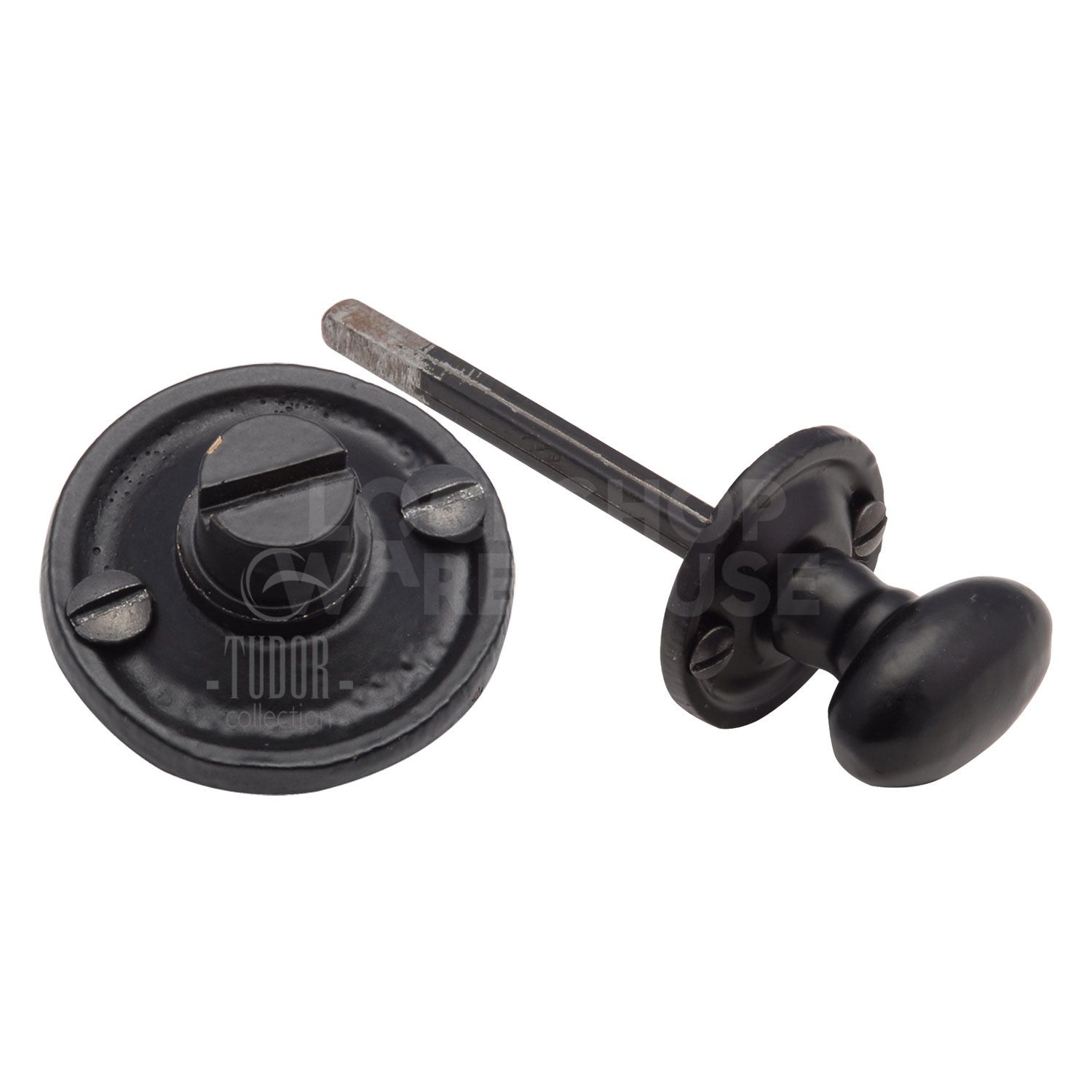

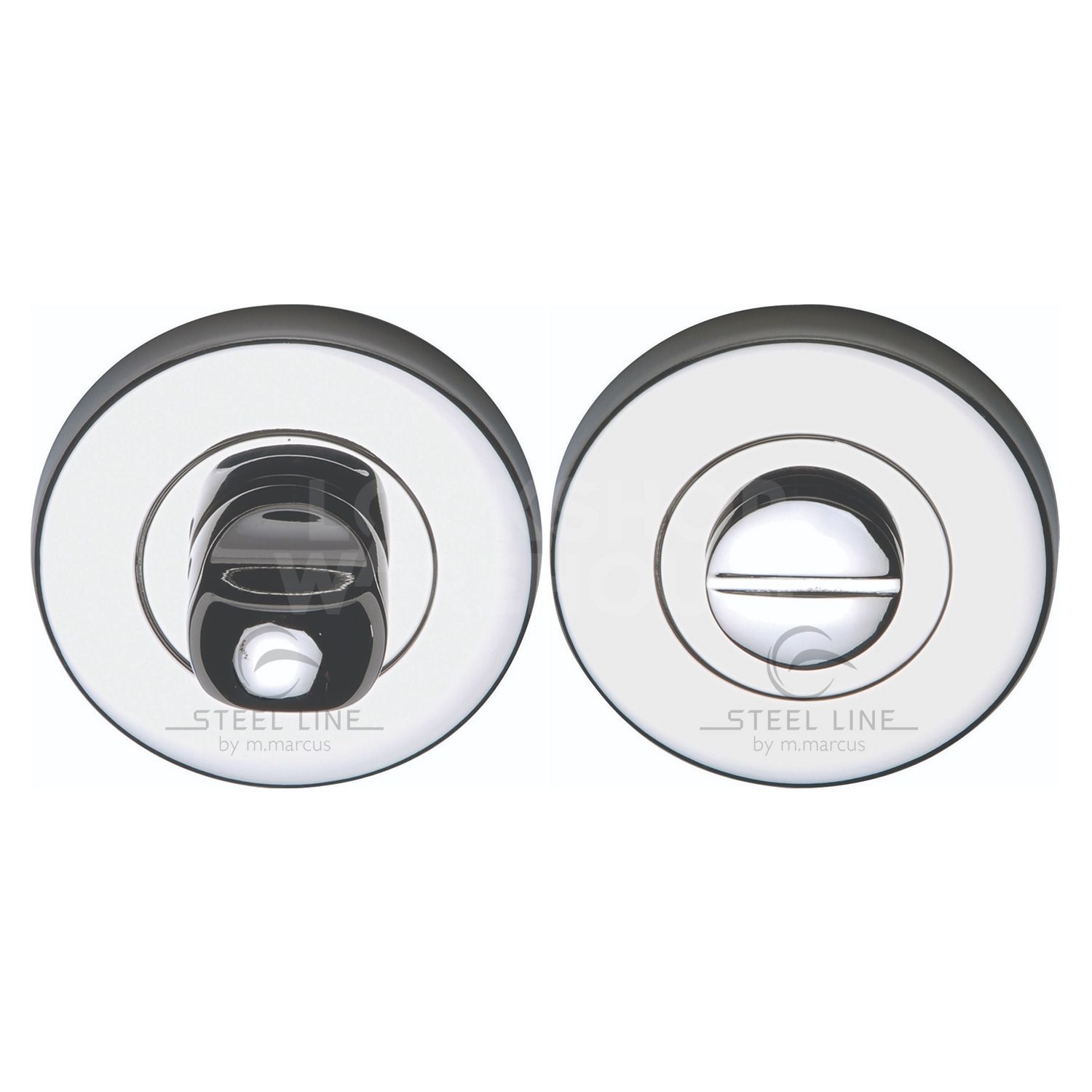

Suitable for use with Privacy Furniture. 5mm Square spindle. Price : (1 item) £11.86 £13.94 Including VAT at 17.5% Price : (2 items) £8.36 £9.82 Including VAT at 17.5% Price : (3 items) £7.19 £8.45 Including VAT at 17.5% Price : (4 or more items) £6.61 £7.77 Including VAT at 17.5%

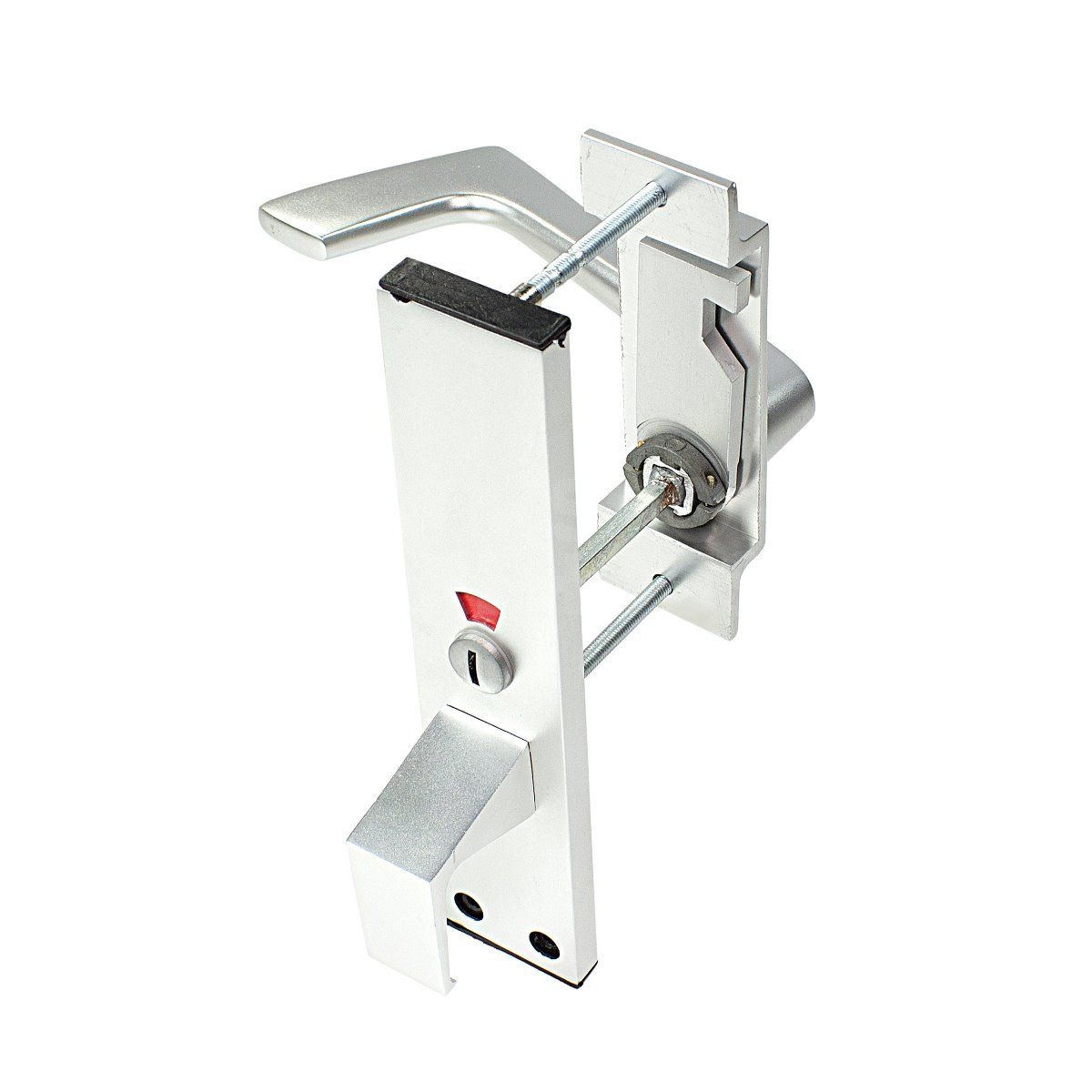

Application:
Suitable for wood doors from 28mm to 48mm thick.
Specification:
Zinc body, handle, bolt and keep.
Zinc indicator case with emergency release feature.
Flat steel spindle.
Finish:
Finish shown in Enamelled Brass
Also available in Satin Chrome
Price : (5 or fewer items) £19.63 £23.07 Including VAT at 17.5% Price : (6 or more items) £19.35 £22.74 Including VAT at 17.5%
