IMPERIAL G7088 Dual-Profile Cylinder Mortice Night Latch with Anti-thrust Bolt - 64mm Case - with Security Escutcheons

IMPERIAL G7088 Dual-Profile Cylinder Mortice Night Latch with Anti-thrust Bolt with Security Euro Escutcheons


Dual profile cylinder mortice night with anti thrust bolt suitable for use on external entrance wooden hinged door providing automatic locking complete with hold back function. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by key from outside and lever handle or turn knob inside using a single cylinder or by key from either side using a double cylinder. When the door is shut the bolt is locked against end pressure. The bolt may be held in the withdrawn position by means of a reverse turn of the key. Use with turn operated cylinders is not recommended. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.

Operation

Latchbolt operated by key from outside and lever handle or turn knob inside using a single cylinder or by key from either side using a double cylinder. When the door is shut the bolt is locked against end pressure. The bolt may be held in the withdrawn position by means of a reverse turn of the key. Use with turn operated cylinders is not recommended

Case

Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture Pierced to accept 20mm centre bolt through fixing escutcheons

Striker Plate

Type W

Latchbolt

Brass, reversible. Projection 12mm

Anti Thrust Slide

SCP, effective at door gaps up to 6mm

Follower

Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture only

Cylinder

Not supplied. May be used with the following cylinders: a) Key outside such as Guardian G9000 b) Key either side such as Guardian G9001 or Oval Cylinders

Rebate Units
To Suit

G3073-13mm G3074-19mm G3075-25mm (Handed)

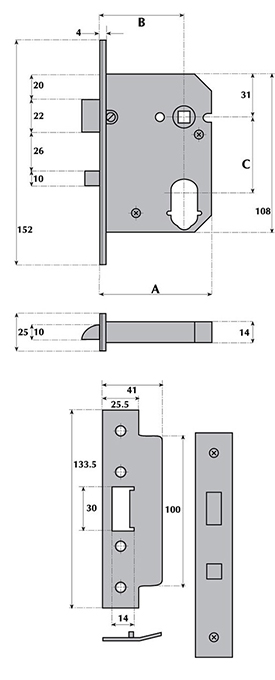

A Lock Case

63mm

B Backset

45mm,

C Centres

EURO 49.5mm OVAL 50mm
