Deadbolt is locked or unlocked by euro profile

single cylinder, double cylinder or cylinder & turn.

Cylinder not supplied.

Deadbolt is locked or unlocked by euro profile

single cylinder, double cylinder or cylinder & turn.

Cylinder not supplied.

Deadbolt is locked or unlocked by euro profile

single cylinder, double cylinder or cylinder & turn.

Cylinder not supplied.

Deadbolt is locked or unlocked by euro profile

single cylinder, double cylinder or cylinder & turn.

Cylinder not supplied.

OPERATION Deadbolt is locked or unlocked from either side by key using euro profile 6 pin double cylinder. Note: British standard does not apply if fitted with any other type of cylinder.

Extra long deadbolt has 20mm throw. Extended box strike for additional strength.

NOTE. *** Picture for Illustration only. Deadcase and box strike only supplied.***

Case Size : 73mm

Case Finish : Silver

Forend Finish : Satin or brass

Dimensions mm

A = 73, B =44, C = 123, D =178, E = 25mm

OPERATION

Deadbolt is locked or unlocked by euro profile single cylinder,double cylinder or cylinder & turn.

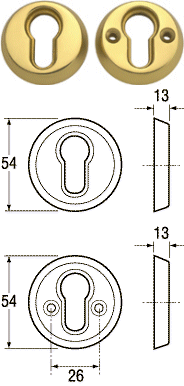

FEATURES, Suitable for use with Chubb high security euro profile mortice lock cases. Provides additional protection against attack. Supplied c/w bolt through fixings and fitting instructions.

Diameter : 54mm

Projection : 10mm

Door Thickness : Up To 50mm

Brass or Satin Chrome

• Manufactured to high security specifications.

• This heavy duty mortice lock case accommodates most euro profile cylinders.

• Easily reversible latchbolt.

• Extra long deadbolt with 20mm throw.

• Case size 67mm only.

PLEASE NOTE - Needs Chubb 3CES Security Escutcheon below to complete.

Application: Wooden doors hinged on the left or right and requiring key operation only. Operation: Deadbolt locked or unlocked by cylinder key from either side. Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. When specified as a non Kitemarked lock case L2144 the lock cylinder can be master keyed with other similar cylinder locks. For BS variants the standard cylinder is suitable for doors up to 54mm. It is recommended that this lock is not fitted to doors less than 44mm thick. Standards: Made in the UK. Kitemarked to BS3621:1998 when supplied as a complete lockset. Finish: Finish shown in Satin Chrome J-212441E-SC-78 Also available in Polished Brass J-212441E-PB-78 Case Size, Material and Finish: 78mm (3"), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Deadbolt: Brass, with hardened steel rollers. Keying Groups: KA6, Masterkeyable, 3 steel keys. Cylinder Type and Finish: Euro Profile, Satin Chrome or Brass cylinder. Other Security Features: Supplied with Security Rose. Other Product Benefits: 2958 rebate sets available to suit

Application: Wooden doors hinged on the left or right and requiring key operation only. Operation: Deadbolt locked or unlocked by cylinder key from either side. Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. When specified as a non Kitemarked lock case L2144 the lock cylinder can be master keyed with other similar cylinder locks. For BS variants the standard cylinder is suitable for doors up to 54mm. It is recommended that this lock is not fitted to doors less than 44mm thick. Standards: Made in the UK. Kitemarked to BS3621:1998 when supplied as a complete lockset. Finish: Finish shown in Satin Chrome J-212441E-SC-78 Also available in Polished Brass J-212441E-PB-78 Case Size, Material and Finish: 78mm (3"), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Deadbolt: Brass, with hardened steel rollers. Keying Groups: KA6, Masterkeyable, 3 steel keys. Cylinder Type and Finish: Euro Profile, Satin Chrome or Brass cylinder. Other Security Features: Supplied with Security Rose. Other Product Benefits: 2958 rebate sets available to suit.

KEYED ALIKE LOCKS ARE £5 EXTRA. SPECIAL ORDER LEAD TIME 4 WEEKS

Application:

Wooden doors hinged on the left or right and requiring key and lever handle operation.

Operation: Deadbolt locked or unlocked by cylinder key from either side. Latchbolt withdrawn by lever handle from either side. Easily reversible latchbolt for use on either left or right hung doors. One simple screw operation. (Supplied left handed). Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. For BS variants the standard cylinder is suitable for doors up to 54mm. It is recommended that this lock is not fitted to doors less than 44mm thick. When specified as a non Kitemarked lock case L2244 the lock cylinder can be master keyed with other similar cylinder locks.

Standards: Made in the UK. Kitemarked to BS3621:1998 when supplied as a complete lockset.

Finish: Finish shown in Satin Chrome Also available in Polished Brass Case Size, Material and Finish: 65mm (2.5"), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Latchbolt: Brass. Deadbolt: Brass, with hardened steel rollers. Follower: Brass, 8mm square. Keying Groups: KA6, Masterkeyable, 3 steel keys. Cylinder Type and Finish: Euro Profile, Satin Chrome or Brass cylinder. Other Security Features: Supplied with Security Rose.

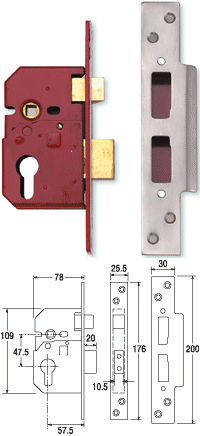

Application:

Wooden doors hinged on the left or right and requiring key and lever handle operation.

Operation: Deadbolt locked or unlocked by cylinder key from either side. Latchbolt withdrawn by lever handle from either side. Easily reversible latchbolt for use on either left or right hung doors. One simple screw operation. (Supplied left handed). Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. For BS variants the standard cylinder is suitable for doors up to 54mm. It is recommended that this lock is not fitted to doors less than 44mm thick. When specified as a non Kitemarked lock case L2244 the lock cylinder can be master keyed with other similar cylinder locks.

Standards: Made in the UK. Kitemarked to BS3621:1998 when supplied as a complete lockset.

Finish: Finish shown in Satin Chrome Also available in Polished Brass Case Size, Material and Finish: 78mm (3"), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Latchbolt: Brass. Deadbolt: Brass, with hardened steel rollers. Follower: Brass, 8mm square. Keying Groups: KA6, Masterkeyable, 3 steel keys. Cylinder Type and Finish: Euro Profile, Satin Chrome or Brass cylinder. Other Security Features: Supplied with Security Rose.

13mm reversible rebate. Available in brass or satin chrome.

Suitable for use with the above 222441E Sashlock.

Application: Wooden doors hinged on the left or right and requiring key and lever handle operation. Operation: Latchbolt withdrawn by lever handle from either side. Easily reversible latchbolt for use on either left or right hung doors. One simple screw operation. (Supplied left handed). Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. It is recommended that this lock is not fitted to doors less than 44mm thick. When specified as a non Kitemarked lock case the lock cylinder can be master keyed with other similar cylinder locks. Standards: Made in the UK. Kitemarked to BS3621:1998 when supplied as a complete lockset.

Finish:Finish shown in Satin Chrome J-L2244E-SC-78Also available in Polished Brass J-L2244E-PB-78 Case Size, Material and Finish:

65mm (21/2"), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Latchbolt: Brass. Deadbolt: Brass, with hardened steel rollers. Follower:

Brass, 8mm square. Keying Groups: A, B, C, Masterkeyable, 3 steel keys.

Cylinder Type: Euro Profile. Other Security Features: Can be used with a patented cylinder system. Other Product Benefits:2968 rebate sets available to suit.

Application: Wooden doors hinged on the left or right and requiring key and lever handle operation. Operation: Latchbolt withdrawn by lever handle from either side. Easily reversible latchbolt for use on either left or right hung doors. One simple screw operation. (Supplied left handed). Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. It is recommended that this lock is not fitted to doors less than 44mm thick. When specified as a non Kitemarked lock case the lock cylinder can be master keyed with other similar cylinder locks. Standards: Made in the UK. Kitemarked to BS3621:1998 when supplied as a complete lockset.

Finish:Finish shown in Satin Chrome J-L2244E-SC-78Also available in Polished Brass J-L2244E-PB-78 Case Size, Material and Finish:

78mm (3"), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Latchbolt: Brass. Deadbolt: Brass, with hardened steel rollers. Follower:

Brass, 8mm square. Keying Groups: A, B, C, Masterkeyable, 3 steel keys.

Cylinder Type: Euro Profile. Other Security Features: Can be used with a patented cylinder system. Other Product Benefits:2968 rebate sets available to suit.

Application: Wooden doors hinged on the left or right and requiring key operation only. 65mm (21/2”) or 78mm (3”) case sizes available. Operation: Extended 20mm deadbolt for secure positive deadlocking and additional resistance against jemmy attack. When specified as a non Kitemarked lock case the lock cylinder can be master keyed with other similar cylinder locks. It is recommended that this lock is not fitted to doors less than 44mm thick.

Finish: Finish shown in Satin Chrome J-L2144E-SC-78 Also available in Polished Brass J-L2144E-PB-78 Case Size, Material and Finish: 78mm (3”), Steel, Red Enamelled. Forend: Stainless Steel, finished to match box strike plate. Striking Plate: Steel, finished to match forend. Deadbolt: Brass, with hardened steel rollers. Cylinder Type: Euro Profile. Other Product Benefits: 2954 rebate sets available to suit.

Description: Euro Profile Key & Turn Cylinder.

Application: For use with Euro Profile lock cases.

Operation: Key access from one side of doors and thumbturn operation from the other.

Finish: Finish shown in Satin Chrome J-26X19-SC-BB Also available in Polished Brass J-26X19-PB-BB

Number of Keys: 3 supplied as standard.

Other Security Features: Drill and pick resistant.

NOTE. Special order delivery 3 weeks

KEYED ALIKE IS AN EXTRA £2.50 per lock

Application: For use with Euro Profile lock cases.

Operation: Key access from both sides of the door

Finish shown in Satin Chrome J-26X18-SC-BB

Also available in Polished Brass J-26X18-PB-BB and Chrome J-26X18-CH-BB

Number of Keys:

3 supplied as standard.

Other Security Features: Drill and pick resistant.

NOTE. Special order delivery 3 weeks

Helps prevent against torque and force attacks.

Only suitable for Union and Yale euro profile locks.

Helps prevent against torque and force attacks. Only suitable for Union Oval profile locks.

Application:

Wooden doors hinged on the left or right and requiring key operation only. 65mm (21/2”) or 78mm (3”) case sizes available. Operation: Deadbolt locked or unlocked by cylinder key or cylinder turn. Various cylinder lengths available. Case Size, Material and Finish: 64mm, 75mm Steel, Silver Enamelled. Deadbolt: Brass, with hardened steel rollers. Cylinder Type: Euro Profile.

Other Security Features: Can be used with a patented cylinder system. Other Product Benefits: 2919 rebate sets available to suit (13, 19 or 25mm sizes).

Also available with Round End Forends.

Various cylinder lengths available. Finish: Finish shown in Satin Chrome J-L2249-SC Also available in Polished Brass J-L2249-PB. Material and Finish: Steel, Silver Enamelled. Striking Plate: Steel, finished to match forend. Latchbolt:

Brass. Deadbolt: Brass, with hardened steel rollers. Follower:

Brass, 8mm square. Cylinder Type: Euro Profile.

Other Security Features: Can be used with a patented cylinder system. Other Product Benefits: 2979 rebate sets available to suit (13, 19 or 25mm sizes). Also available with Round End Forends.

Application: Wooden doors hinged on the left or right and requiring key and lever handle operation. 65mm ,78mm or 103mm case sizes available. Operation: Deadbolt locked or unlocked by cylinder key or cylinder turn. Latchbolt withdrawn by lever handle. Cylinder options - key and turn or key and key. Various cylinder lengths available (Not supplied). Pierced to accept bolt through furniture. Case Material and Finish: Steel, Silver Enamelled. Forend: Stainless Steel, finished to match strike plate. Striking Plate: Steel, finished to match forend. Latchbolt: Brass. Deadbolt: Brass, with hardened steel rollers. Follower: Brass, 8mm square. Cylinder Type: Oval Profile. Other Security Features: Can be used with a patented cylinder system. Other Product Benefits: 2979 rebate sets available to suit (13, 19 or 25mm sizes).

Operation: Deadbolt locked or unlocked by cylinder key or cylinder turn. Latchbolt withdrawn by lever handle. Latchbolt can be withdrawn by key. Suitable for use with narrow plate unsprung lever handles details available upon request.

Finish: Satin Chrome J-L2224-SC-48 Case Size: 47.5mm. Case Material and Finish: Steel, Enamelled, Silver. Forend: Stainless Steel, finished to match strike plate. Striking Plate: Stainless Steel, finished to match forend. Latchbolt: Brass.Deadbolt: Brass with hardened steel rollers. Follower: Steel, 8mm square.

Cylinder Type & Finish: Euro profile - not supplied.

Other Security Features: Can be used with a patented cylinder system.

** STOP PRESS** WHICH MAGAZINE BEST BUY JANUARY 2007 !

Designed to exceed the requirements of BS 3621:2004, 20mm single throw, drill resistant Hook Bolt which hooks into the door frame preventing the door being pulled up or out, Fully enclosed drill resistant tamper proof case, Supplied with Mul-T-Lock Interactive Euro Profile Double Cylinder, Long plate security escutcheons to mask old preparations, Anti jemmy attack, boxed locking plate

Mechanism : Euro Cylinder. Case Size : 50mm. Follower : 8mm. Case Finish : Silver. Forend Finish : Satin Anodised Aluminium.

OPERATION : Deadbolt is locked or unlocked by euro profile single cylinder, double cylinder or cylinder & turn. Reversible latchbolt withdrawn by lever handle from either side.

FEATURES ; Ideal for doors with narrow stile (i.e glazed and French doors).

Mechanism : Euro Cylinder. Case Size : 50mm. Case Finish : Silver. Forend Finish : Satin Anodised Aluminium.

OPERATION : Deadbolt is locked or unlocked by euro profile single cylinder, double cylinder or cylinder & turn.

FEATURES ; Ideal for doors with narrow stile (i.e glazed and French doors).

Double throw, Steel case, Die-cast bolt.

Double throw, Steel case, Die-cast bolt.

Suitable for Euro or Oval Cylinders (Dual cylinder)

Mechanism : Euro or Oval cylinder (Not supplied), Case size 64mm or 76mm, Case Finish Gold.

Features : Ideal for intergration with master-keying systems, Brass deaddbolt has two hardened inserts. Operation : Deadbolt is locked or unlocked by Euro profile or Oval profile single cylinder, double cylinder or cylinder and thumbturn. Union 53043 security rose can be used with these locks.

Suitable for Euro or Oval Cylinders (Dual cylinder)

Mechanism : Euro or Oval cylinder (Not supplied), Case size 64mm or 76mm, Case Finish Gold.

Features : Ideal for intergration with master-keying systems, Brass deadbolt and latchbolt,Brass deaddbolt has two hardened inserts. Operation : Reversible latchbolt is withdrawn by lever handle, Deadbolt is locked or unlocked by Euro profile or Oval profile single cylinder, double cylinder or cylinder and thumbturn. Union 53043 security rose can be used with these locks.
