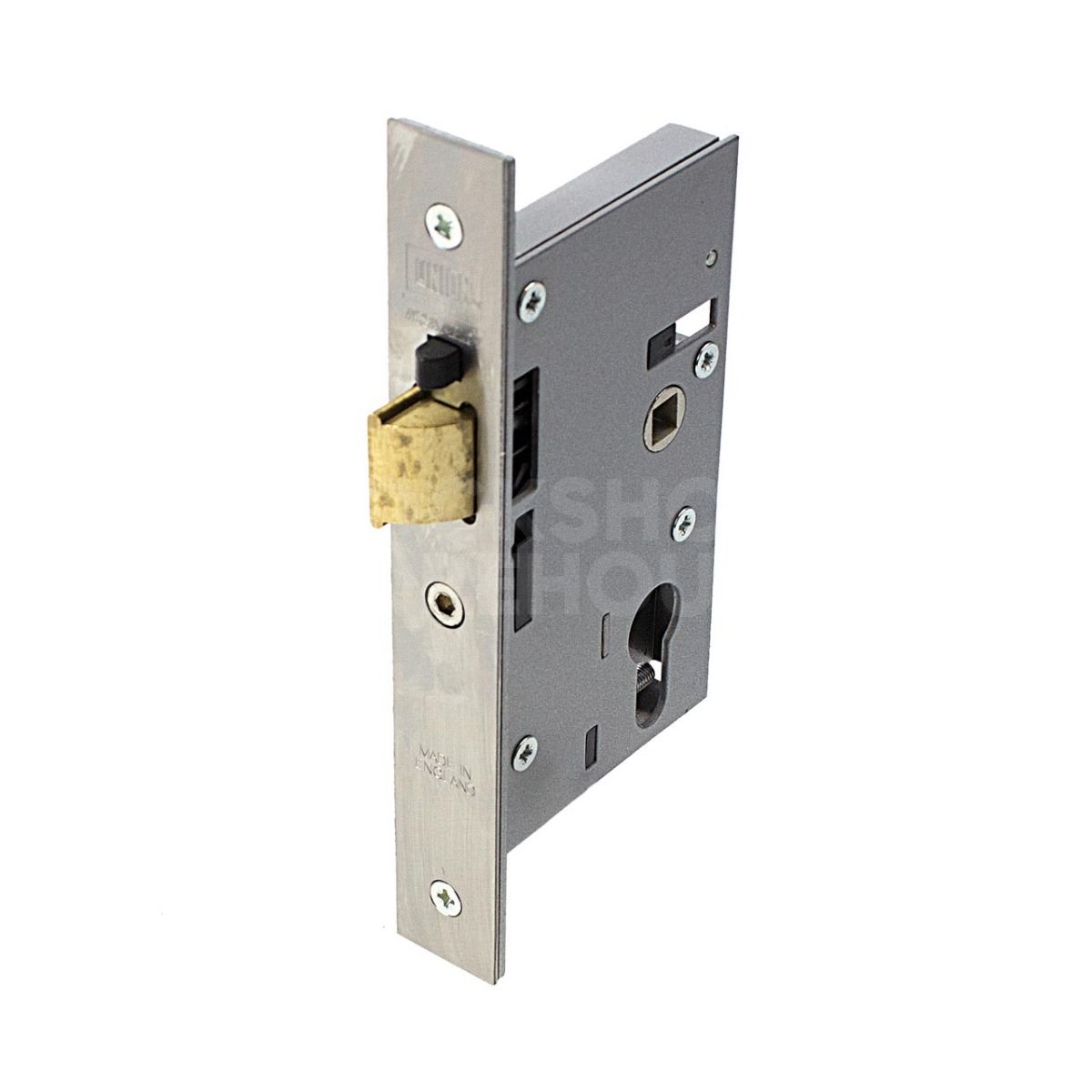

 | Union L2349 Mortice Nightlatch(Reference #UNL2349)
NOTE. Cylinder not supplied. Mechanism : Euro Cylinder Case Size : 77mm, Follower : 8mm (One Way Action) Case, Finish : Enamelled Silver Forend Finish : Brass or Satin Chrome OPERATION : - Latchbolt is withdrawn by single euro profile cylinder from outside and lever handle inside. Door is automatically deadlocked when closed. Latch can be held in withdrawn position by operating a snib in the forend, with the special key supplied. Can be operaled by key from eilher side using double cylinder. FEATURES :- Standard cylinder length is suitable for doors up to 46mm thick. For doors in excess of this thickness, order correct cylinder length accordingly. Latchbolt is easily reversed without opening the lockcase. DIMENSIONS
Price : £23.71 £27.86 Including VAT at 17.5%
|
Finish
Polished Brass Satin Chrome
|
|

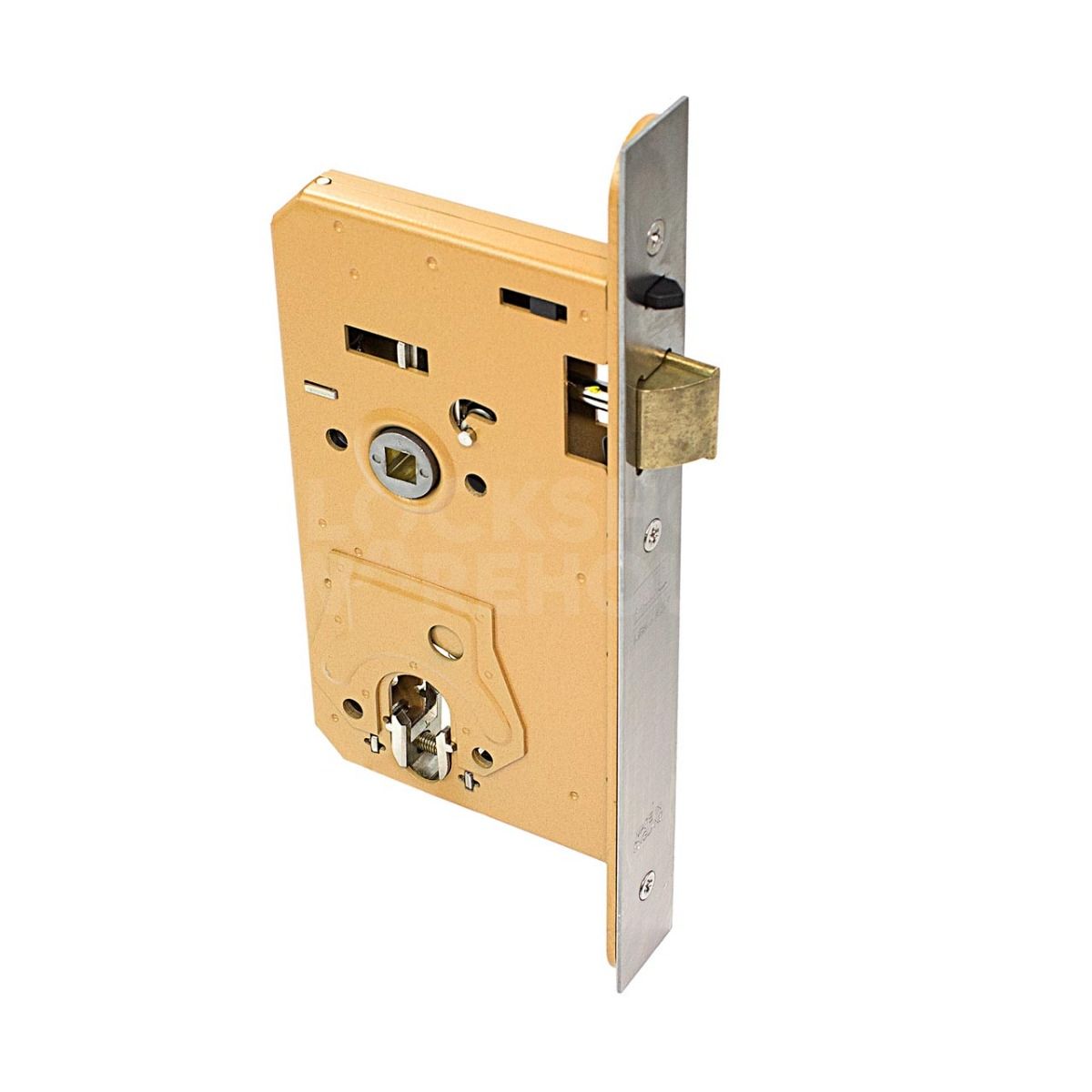

Union L2370 Nightlatch 95mm Satin Chrome(Reference #9139)
NOTE. Cylinder not supplied. Mechanism : Oval or Euro Cylinder Case, Size : 95mm Follower : 8mm (One Way Action) Case, Finish : Enamelled Gold Forend, Finish : Satin Chrome OPERATION : Latchbolt is withdrawn by single euro or oval profile cylinder from outside and lever handle inside. Door is automatically deadlocked when dosed. Can also be operated by key from either side using double cylinder. FEATURES : Pierced to accept bolt through furniture. Latchbolt is easily reversed without opening the lockcase. Suitable for use with unsprung lever handles. DIMENSIONS
Price : £60.56 £71.16 Including VAT at 17.5%
|  |
| |
|

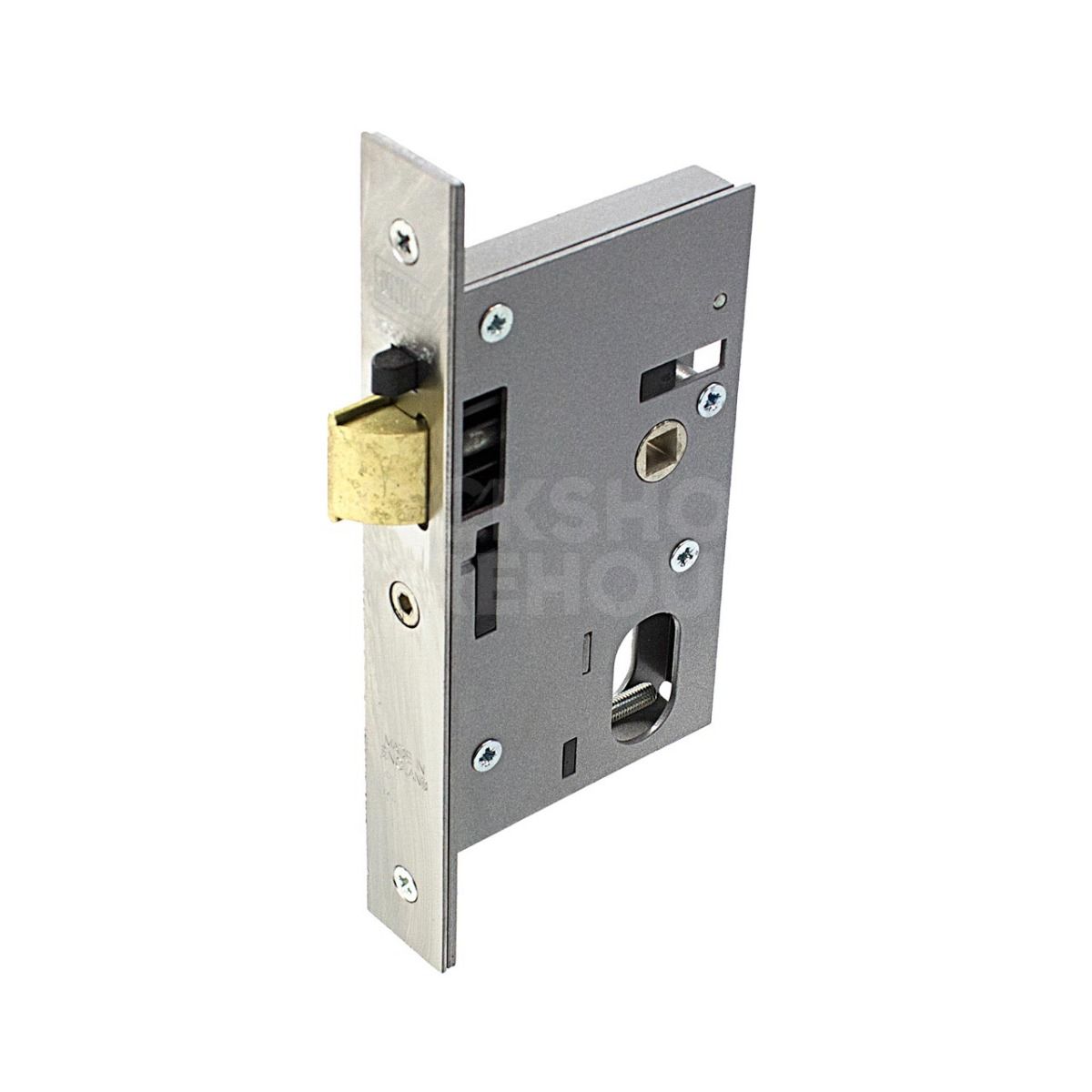

 | Union L2341 Mortice Nightlatch (Oval Cylinder)(Reference #UNL2341)
NOTE. Cylinder not supplied. Mechanism : Oval Cylinder Case Size : 77mm, Follower : 8mm (One Way Action) Case, Finish : Enamelled Silver Forend Finish : Brass or Satin Chrome OPERATION : - Latchbolt is withdrawn by single euro profile cylinder from outside and lever handle inside. Door is automatically deadlocked when closed. Latch can be held in withdrawn position by operating a snib in the forend, with the special key supplied. Can be operaled by key from eilher side using double cylinder. FEATURES :- Standard cylinder length is suitable for doors up to 46mm thick. For doors in excess of this thickness, order correct cylinder length accordingly. Latchbolt is easily reversed without opening the lockcase. DIMENSIONS
Price : £23.71 £27.86 Including VAT at 17.5%
|
Finish
Polished Brass Satin Chrome
|
|
Briton 5250 Dual Cylinder Nightlatch 76mm with Anti-Thrust latchbolt(Reference #L14870/71)
Dual cylinder capability - euro profile and oval profile using conversion plate provided. NOTE. Handle,cylinder and cylinder pull not included - Lockcase only supplied. Application The nightlatch function is operated using a half set of levers, with the lever on the inside used to retract the latchbolt. A single cylinder operates from the outside with a single turn of the key to retract the latchbolt. A catch operated from the lock forend will hold the latchbolt in the withdrawn position. Anti-thrust feature prevents manipulation of the latchbolt when the door is closed. Dimensions
Price : £25.00 £29.38 Including VAT at 17.5%
|  |
Finish
Stainless Steel Brass
|
|

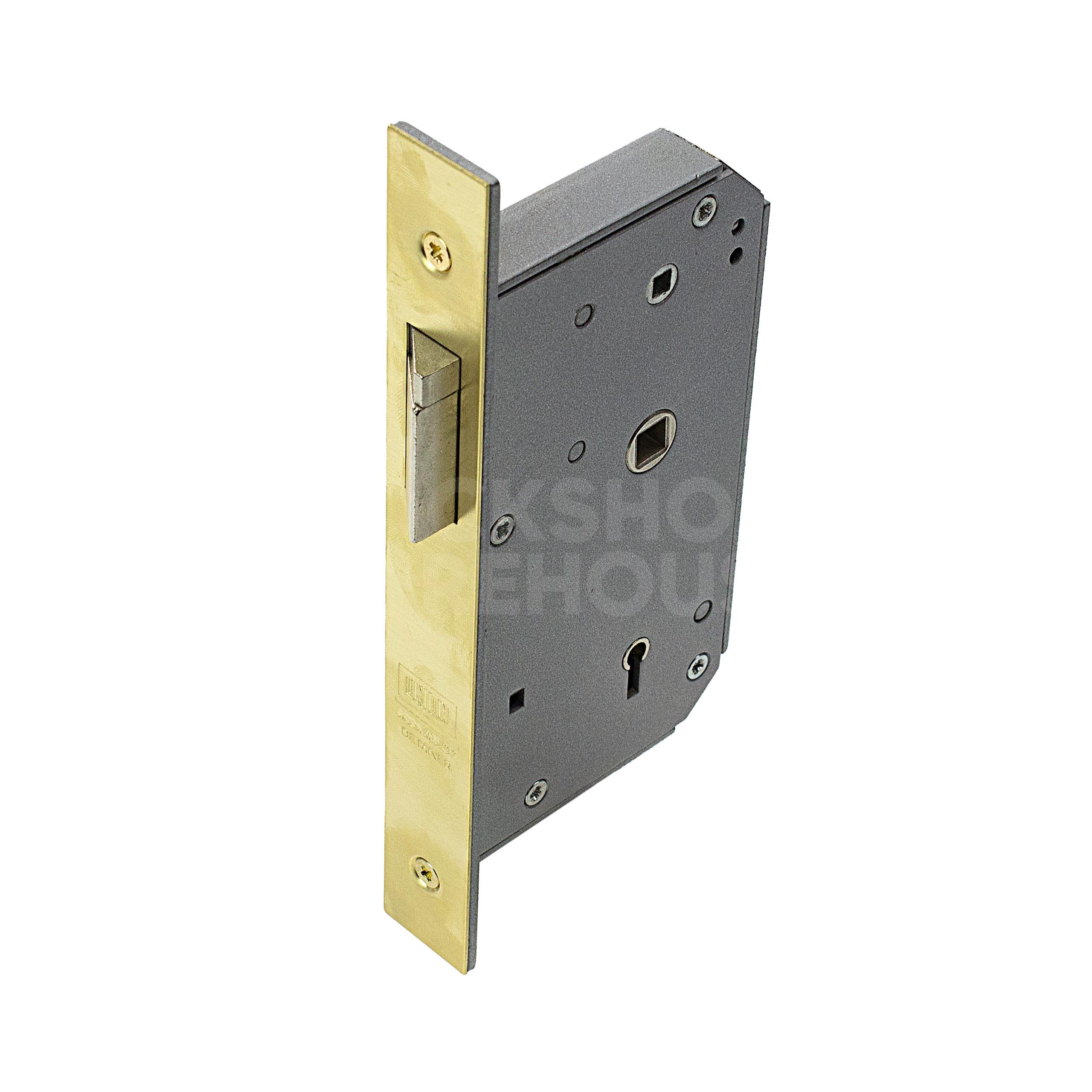

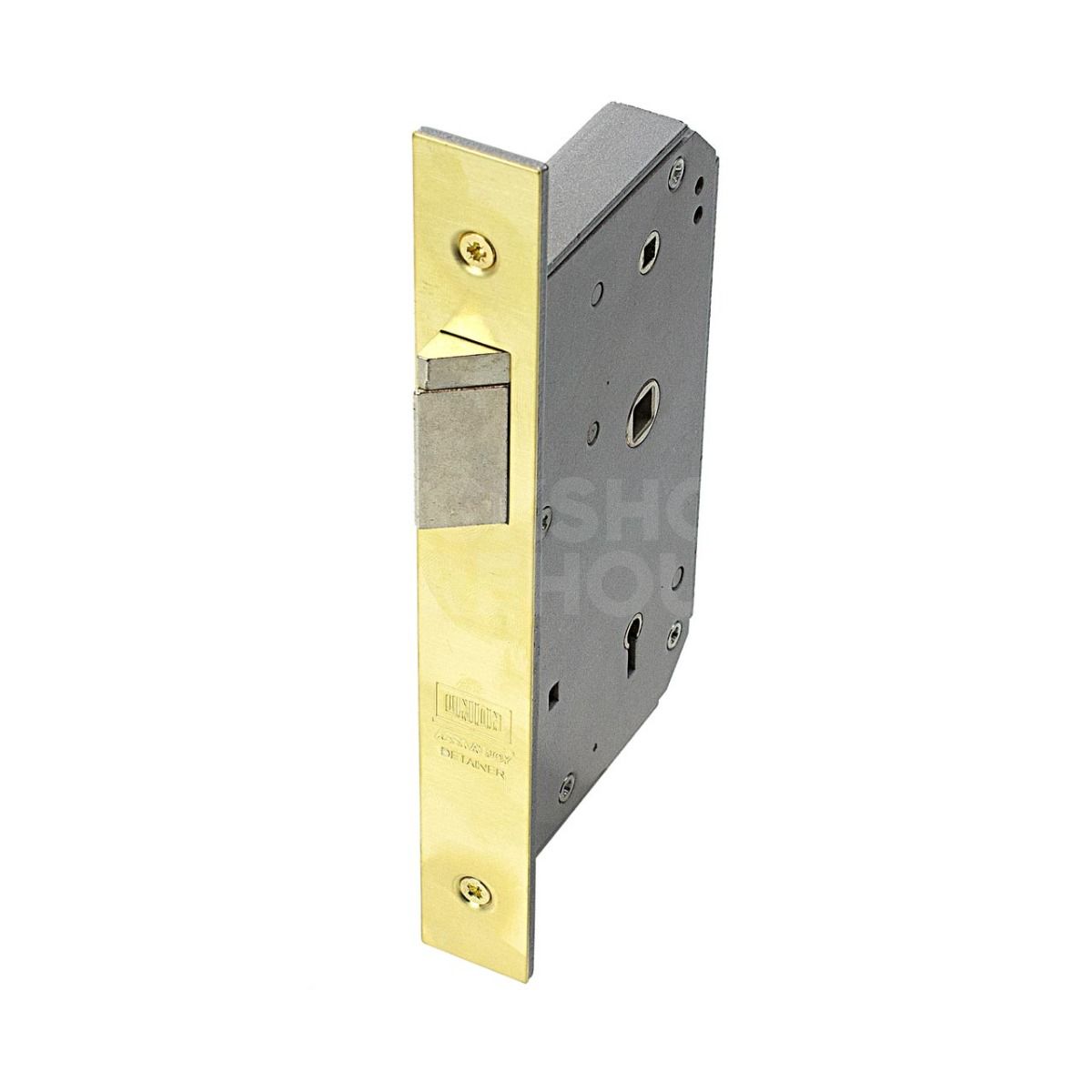

 | Chubb 3R35 Deadlocking Latch RH(Reference #164)
Mechanism : 5 Detainer, Case Size : 80mm, Follower : 8mm, Case Finish : Silver Forend Finish : Brass or satin chrome, Keys Supplied : 2 OPERATION Latchbolt is withdrawn by key from either side and by lever handle from inside. Door is automatically deadlocked when closed, whilst snib can be used to hold the bolt back when it needs to be left ajar. The operating handle on the inside can be secured by key from either side. FEATURES Can be modified for use as a fire escape lock by removing the facility to lock the handle Handing : Right hand in picture. KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price.
Price : £79.90 £93.88 Including VAT at 17.5%
|
Key Configuration
Key to differ
Keyed Alike
Finish
Brass
Satin Chrome
|
|
Chubb 3R35 Deadlocking Latch LH(Reference #169)
As above but left handed.KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price.
Price : £79.90 £93.88 Including VAT at 17.5%
|  |
Key Configuration
Key to differ
Keyed Alike
Finish
Brass
Satin Chrome
|
|
| | Chubb 3R35 Deadlocking Latch RH with Fire Escape Modification(Reference #43)
Modified for use as a fire escape lock. Mechanism : 5 Detainer, Case Size : 80mm, Follower : 8mm, Case Finish : Silver Forend Finish : Brass or satin chrome, Keys Supplied : 2 OPERATION Latchbolt is withdrawn by key from either side and by lever handle from inside. Door is automatically deadlocked when closed, whilst snib can be used to hold the bolt back when it needs to be left ajar. The operating handle on the inside cannot be secured. FEATURES Handing : Right hand in picture. KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price.
Price : £85.00 £99.88 Including VAT at 17.5%
|
Key Configuration
Key to differ
Keyed Alike
Finish
Brass
Satin Chrome
|
|
Chubb 3R35 Deadlocking Latch LH with Fire Escape Modification(Reference #49)
As above but left handed. Modified for use as a fire escape lock. KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price.
Price : £85.00 £99.88 Including VAT at 17.5%
| |
Key Configuration
Key to differ
Keyed Alike
Finish
Brass
Satin Chrome
|
|
| | Internal Handle for Chubb 3R35(Reference #3R35H)
Internal Handle for Chubb 3R35. This handle is needed for the Chubb 3R35 as normal handles may foul the lockcase. It also includes the snib to hold the latch back when required.
Price : £32.00 £37.60 Including VAT at 17.5%
|
Finish
Satin Chrome Brass
|
|
Chubb 13mm Rebate for 3R35 Latch(Reference #111)
Chubb 13mm Rebate for 3K70 Locks. HANDING DETAILS
Price : £15.75 £18.51 Including VAT at 17.5%
| |
Handing
Left Hand
Right hand
Finish
Polished Brass
Satin Chrome
|
|
| | Extra key for Chubb 3R35 Locks(Reference #EXCHK)
Price : (399 or fewer items) £4.00 £4.70 Including VAT at 17.5%
Price : (400 or more items) £3.00 £3.53 Including VAT at 17.5%
|
| |
