Elite Heritage Key Wind Multipoint Lock 3 Deadlocking Latch Bolts

£83.08

(£69.23 ex VAT)

sku: EDLAKWHR-3H2045
  • Key wind operation where bolts and latch are retracted via the cylinder
  • Features three deadlocking latch bolts for enhanced security
  • Designed for use on heritage and traditional timber or composite doors
  • Single spindle configuration suitable for pull handle applications
  • Self-locking elements prevent external manipulation of the latch when closed
  • High corrosion resistance exceeding 480 hours salt spray testing
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Elite Heritage Key Wind Multipoint Lock is a high-security locking system designed specifically for traditional and heritage-style doors. It utilises a key wind mechanism where the latch and deadlocking bolts are engaged and retracted using the cylinder key or thumbturn, making it an ideal choice for doors fitted with fixed pull handles where a lever handle is not required.

This lock is compatible with both timber and composite door systems. It features a central deadbolt alongside three deadlocking latch bolts, providing multiple points of security across the full height of the door. The integration of radius ends on the faceplate ensures a clean, recessed fit within the door preparation during installation or replacement.

Functional benefits include:

  • Self-locking elements that prevent the latch bolts from being bypassed or forced when the door is closed.
  • Advanced surface protection for exceptional durability and corrosion resistance in external environments.
  • A robust single spindle gearbox designed for reliable long-term performance.

This system is frequently used in new installations or as a replacement unit for existing heritage-style locking mechanisms that require a high level of security without compromising on traditional door aesthetics.

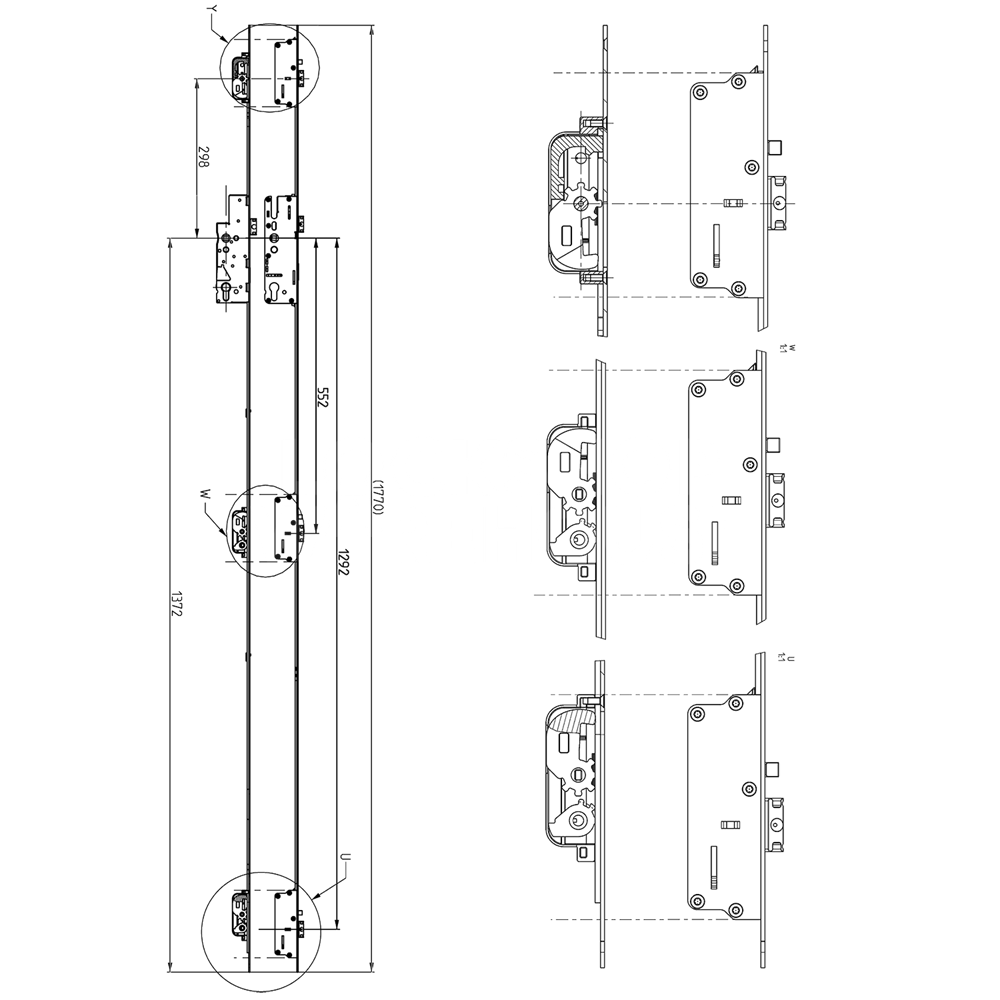

Dimensions Image: Elite Heritage Key Wind Multipoint Lock 3 Deadlocking Latch Bolts
Part Size (mm)
centres 92
Backset 45
Body Length 1770
Case Width 54
Case Height 200
Locking Point Dead Bolt 3

FAQs

The key wind mechanism means that both the latch and the three deadlocking bolts are operated solely by turning the key or thumbturn in the cylinder. This design is specifically intended for doors with fixed pull handles where a moving lever handle is not used to retract the latch.

This multipoint lock is designed for use on:

  • Traditional timber doors
  • Heritage-style composite doors

It features radius ends on the faceplate to ensure a clean, professional recessed fit during installation or replacement.

No, this lock is a single spindle configuration specifically designed for pull handle applications. Because the latch is retracted via the key cylinder rather than a handle, it is not suitable for standard lever-lever or lever-pad handle sets.

The Elite Heritage lock provides high-level security through several integrated features:

  • Three deadlocking latch bolts that provide multiple locking points across the full height of the door.
  • Self-locking elements that prevent the latches from being bypassed or forced from the outside when the door is closed.
  • High corrosion resistance (tested to 480 hours of salt spray) ensuring the mechanism remains reliable in external environments.
