Fuhr 855 Type 3 Key Wind Multipoint Lock

£154.03

(£128.36 ex VAT)

sku: M2352D68SS
  • Key-operated mechanism requiring two full turns of the key to engage or disengage locking points
  • Features two hooks and two rollers for enhanced security and weather sealing
  • Fully reversible latch and deadbolt to accommodate both left and right-handed doors
  • Designed for use with a fixed external pad or pull handle where the key operates the latch
  • Secured by Design and PAS24 accredited for high-specification security requirements
  • Single spindle design compatible with internal lever handle operation
  • Integrated deadbolt and latch system for comprehensive door engagement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Fuhr 855 Type 3 is a high-security key-wind multipoint locking system designed for external doors. Unlike lever-operated locks, this mechanism is engaged by turning the key, making it the standard choice for doors fitted with a fixed pad or pull handle on the outside. From the interior, the latch can still be operated via a traditional lever handle.

This locking unit provides a robust security profile featuring two hooks and two rollers. The hooks provide pull-out resistance and physical security, while the rollers ensure a tight compression seal against the door frame to improve thermal efficiency and prevent bowing. It is PAS24 accredited and meets Secured by Design specifications, making it suitable for both residential and commercial applications where police-approved security is required.

The unit is highly versatile for maintenance and installation, featuring a fully reversible latch and deadbolt. It is typically used as a high-specification replacement part or as the primary locking system in new door fabrications requiring a 16mm faceplate configuration. The key-wind operation ensures the door remains secure without the need for manual handle lifting to throw the bolts.

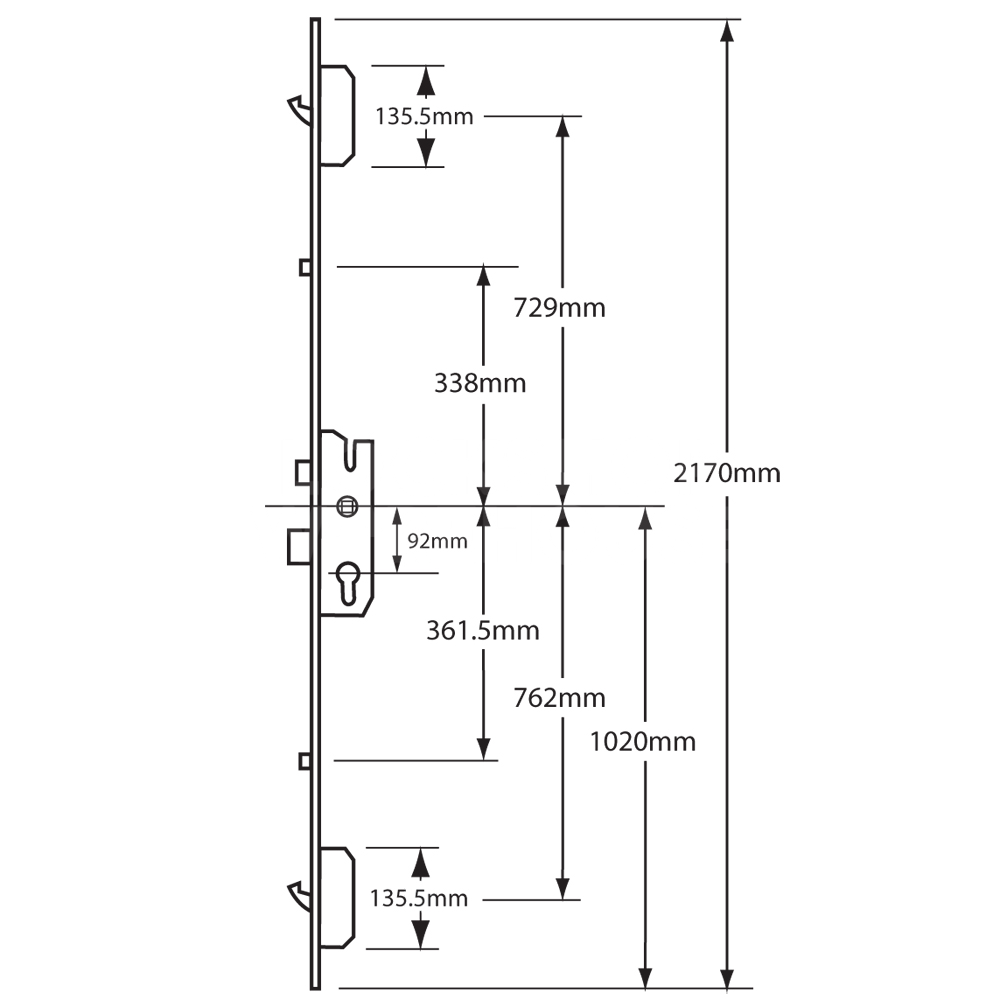

Dimensions Image: Fuhr 855 Type 3 Key Wind Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 210
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The Fuhr 855 Type 3 is a key-operated lock. To engage or disengage the locking points, you must complete two full turns of the key. This design is specifically intended for doors with a fixed external pull handle or pad where the key controls the latch.

This multipoint system uses a combination of two hooks and two rollers to provide maximum performance. The hooks provide physical security and pull-out resistance, while the rollers ensure a tight weather seal against the frame to prevent draughts and door bowing.

Yes. The latch and deadbolt on this unit are fully reversible, allowing it to be installed on doors regardless of which side they are hinged on.

Absolutely. The Fuhr 855 Type 3 is PAS24 accredited and meets Secured by Design specifications, which are the high-specification standards often required for insurance compliance and police-approved security.
