skip to FUHR 856 Type 2 Lever Operated Multipoint Lock

FUHR 856 Type 2 Lever Operated Multipoint Lock

£95.50

(£79.58 ex VAT)

sku: FUHR-0040
  • Full multipoint lock unit featuring a central latch and deadbolt
  • Equipped with 2 mushroom cams and 2 roller cams for secure engagement
  • Lever-operated mechanism requires a lift-lever action to engage locking points
  • Compatible with standard Euro profile cylinders
  • Reversible latch allows for both left and right-handed applications
  • Corrosion-resistant faceplate treatment for extended service life
  • Designed for use in both replacement and new-build installations

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The FUHR 856 Type 2 is a lever-operated multipoint locking system designed for residential door applications. It features a central lock case containing a latch and deadbolt, supplemented by four additional locking points: two mushroom cams and two roller cams. This combination provides enhanced security and effective weather sealing by ensuring the door is pulled tightly against the frame.

Operation is straightforward: the locking cams are engaged by lifting the handle upwards, after which a turn of the Euro profile cylinder locks the central deadbolt and secures the entire mechanism. To retract the cams and the latch, the cylinder is unlocked with a key and the handle is pushed downwards. This system is ideal for high-traffic doors requiring a reliable and intuitive locking action.

The unit is designed for durability and ease of installation. It features a reversible latch, making it suitable for both left and right-handed doors without the need for additional parts. The faceplate is manufactured with a corrosion-resistant surface to ensure longevity and consistent performance. This lock is commonly used as a replacement part for existing FUHR systems or as a primary locking solution in new door assemblies.

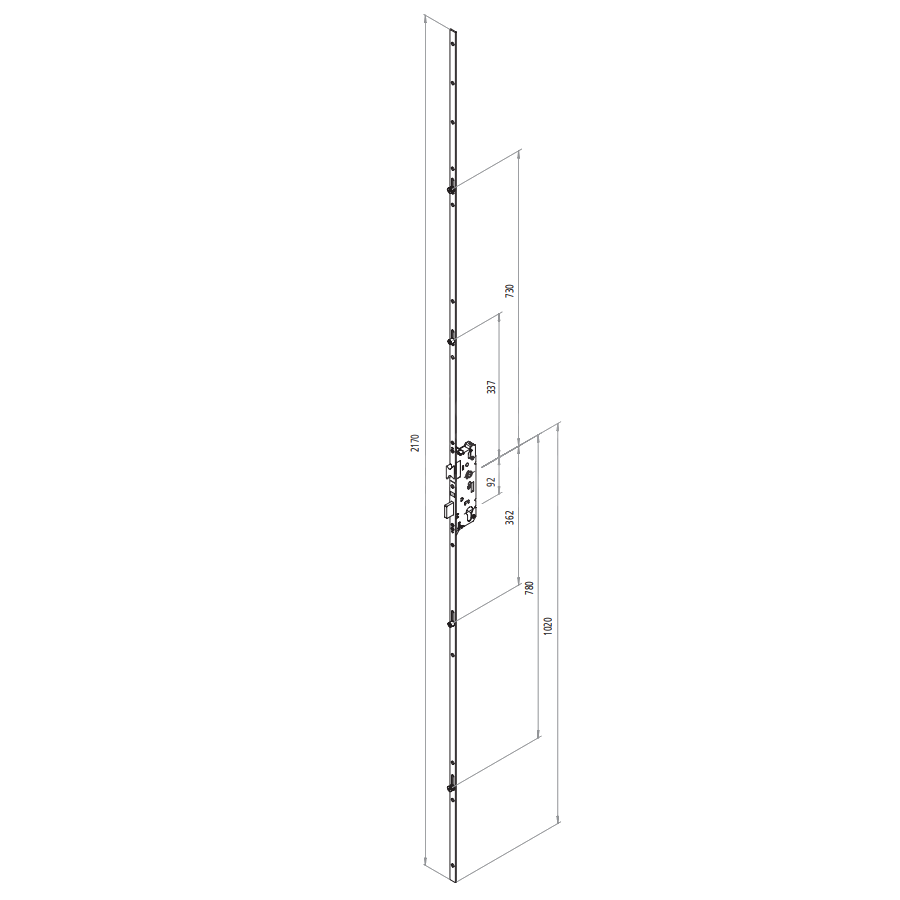

Dimensions Image: FUHR 856 Type 2 Lever Operated Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 30 45
Bolt Length 14 20
Body Length 2170 -
Locking Point Mushroom 2 -
Locking Point Roller 2 -
Faceplate Width 16 -

FAQs

This is a lever-operated mechanism. To engage the four additional cams and the central deadbolt, you must lift the door handle upwards. Once the handle is lifted, turn the key in the Euro profile cylinder to deadlock the entire system and secure the door.

Yes. The FUHR 856 Type 2 features a reversible latch, making it suitable for both left-handed and right-handed door applications. This versatility ensures it can be adapted to your specific installation needs without requiring extra parts.

The central lock case is designed to work with standard Euro profile cylinders. This allows you to easily fit or replace the cylinder with your choice of security level and finish to match your existing hardware.

This unit features a total of six points of engagement to ensure high security and a tight weather seal. These include:

  • A central latch
  • A central deadbolt
  • Two mushroom cams
  • Two roller cams
