skip to Fuhr 856 Type 6 Lever Operated Multipoint Lock

Fuhr 856 Type 6 Lever Operated Multipoint Lock

£132.97

(£110.81 ex VAT)

sku: M6B6507S
  • FUHR multisafe 856 with two hooks and two rollers, latch and central deadbolt
  • Handle lift engages secondary points; the key extends the central deadbolt
  • 35mm backset version
  • Match the correct Euro cylinder, handle and spindle arrangement
  • Compare exact lock, faceplate, routing and frame-keep positions before replacement
Document Icon FUHR multisafe 856: manufacturer operation, spindle and installation guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Fuhr 856 Type 6 Lever Operated Multipoint Lock is a lever-operated multisafe 856 lock with two hooks and two rollers, a central latch and a separately secured deadbolt. Available with a 35mm backset.

Locking: lift the handle to engage the secondary locking points, then turn the cylinder key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points. This is manual lever operation, not automatic locking when the door closes.

The normal 856 lever arrangement operates the latch from either side while the central deadbolt is unlocked. It is not the key-only outside latch function of the 859 split-spindle lock.

Replacement fit: compare the exact supplied reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps. A shared brand or PZ measurement is not a direct-replacement guarantee. The stored manual explains operation and installation precautions; it is not an exact-part dimensioned drawing.

Optional shootbolts: use only the extensions and frame keeps specified for the actual M6B6507S connection and door height. Shootbolt provision does not mean extensions are included or that every FUHR extension fits.

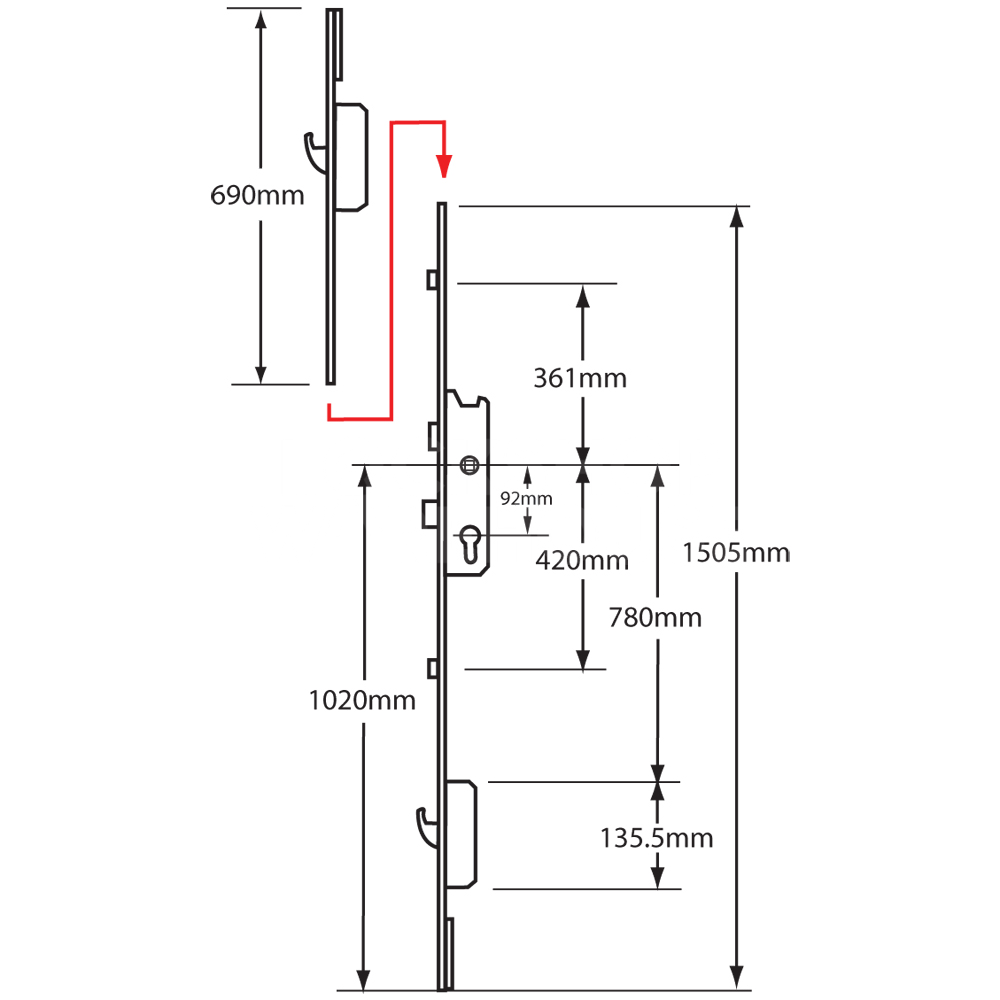

Dimensions Image: Fuhr 856 Type 6 Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 200
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

Lift the handle to engage the secondary locking points, then turn the key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points and latch. The handle lift does not throw the central deadbolt.

Yes, the latch and deadbolt are fully reversible, making it easy to adapt the lock for use on either left-handed or right-handed doors during installation.

The Fuhr 856 Type 6 provides comprehensive security with several engagement points:

  • A central latch and deadbolt
  • Two security hooks
  • Two rollers for a smooth closing action and weather seal
  • Compatibility for adding top and bottom shootbolts

Fit depends on the exact lock reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps, not the door material or FUHR brand alone. Compare the existing lock and the correct dimensioned drawing before replacement.
