skip to Fuhr 859 Type 19 Lever Operated Multipoint Lock

Fuhr 859 Type 19 Lever Operated Multipoint Lock

£111.19

(£92.66 ex VAT)

sku: M9352DQ4S0
  • FUHR multisafe 859 with two hooks and four rollers, latch and central deadbolt
  • Handle lift engages secondary points; the key extends the central deadbolt
  • 35mm backset version
  • Outside latch release needs the key and matching sprung two-piece spindle
  • Compare exact lock, faceplate, routing and frame-keep positions before replacement
Document Icon FUHR multisafe 859: manufacturer operation, spindle and installation guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

The Fuhr 859 Type 19 Lever Operated Multipoint Lock is a lever-operated multisafe 859 lock with two hooks and four rollers, a central latch and a separately secured deadbolt. Available with a 35mm backset.

Locking: lift the handle to engage the secondary locking points, then turn the cylinder key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points. This is manual lever operation, not automatic locking when the door closes.

Split-spindle furniture: the 859 outside lever does not retract the latch; outside latch release needs the key. FUHR specifies its sprung two-piece spindle, with the correct inside/outside orientation and engagement. A generic solid spindle or an offset handle label does not establish equivalent operation. Confirm the spindle length, door thickness and supplied contents.

Replacement fit: compare the exact supplied reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps. A shared brand or PZ measurement is not a direct-replacement guarantee. The stored manual explains operation and installation precautions; it is not an exact-part dimensioned drawing.

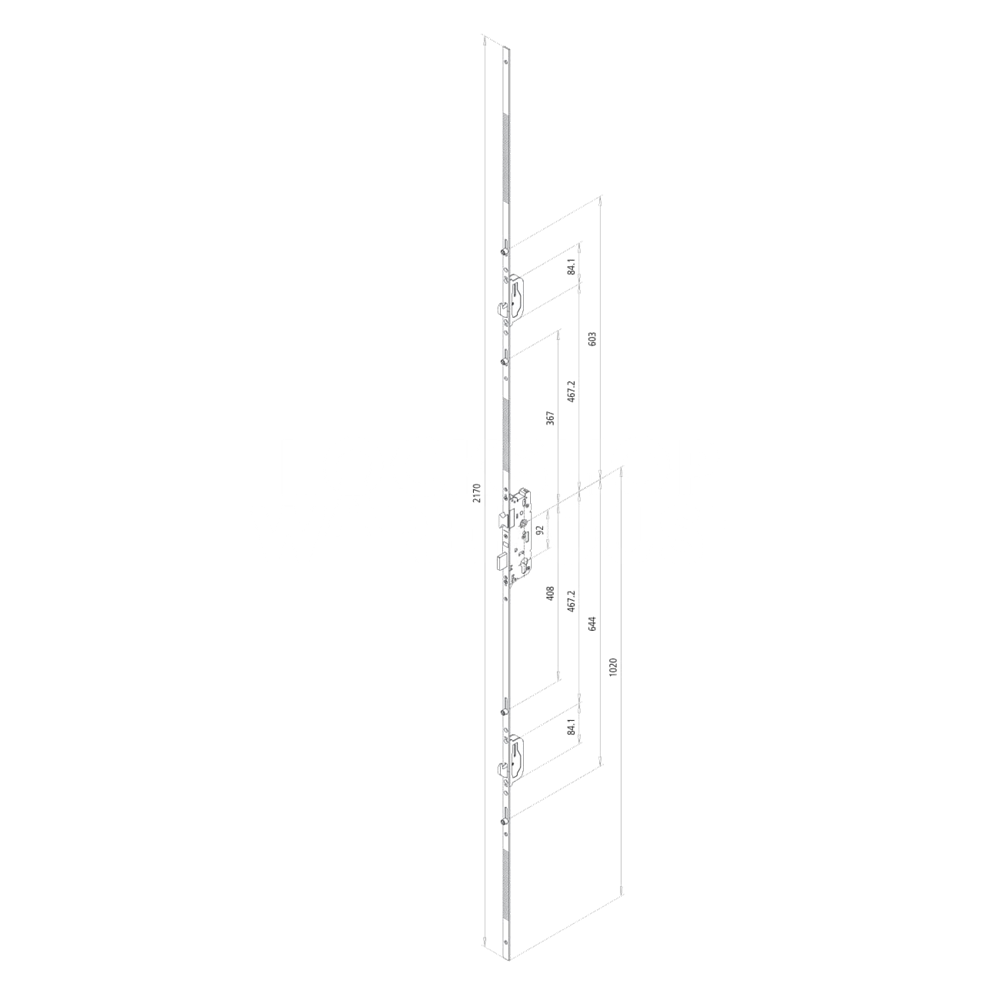

Dimensions Image: Fuhr 859 Type 19 Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Bolt Length 20
Body Length 2170
Locking Point Hooks 4
Locking Point Roller 2
Faceplate Width 16

FAQs

Lift the handle to engage the secondary locking points, then turn the key to extend the central deadbolt. Unlock the deadbolt with the key before lowering the handle to release the secondary points. The inside lever retracts the latch; the outside latch requires the key and the correct sprung two-piece FUHR spindle.

Yes, the FUHR 859 Type 19 is designed for versatility. It features a fully reversible latch, which allows it to be configured for either left-handed or right-handed door installations during the fitting process.

This combination provides a balance of high security and weatherproofing:

  • Security: The two steel hooks deadlock into the frame keeps to provide robust resistance against forced entry.
  • Weather Sealing: The four adjustable rollers help pull the door leaf tight against the weather seals, preventing draughts and improving the door's thermal performance.

Yes. The mechanism has been cycle-tested to 200,000 operations, ensuring it can withstand frequent daily use in both residential and commercial settings. Additionally, the faceplate features a corrosion-resistant finish to maintain performance and appearance over time.
