Fuhr 859 Type 3 Lever Operated 2 Hook Multipoint Lock

£221.42

(£184.52 ex VAT)

sku: M9452M54SJ
  • Lever-operated mechanism for secure engagement of hook bolts
  • Features two hook locking points to improve door security
  • Split spindle gearbox allows for flexible handle operation modes
  • Reversible latch design simplifies installation for left or right-handed doors
  • Central deadbolt for secondary security and weather sealing
  • Compatible with standard Euro profile lock cylinders
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Fuhr 859 Type 3 is a lever-operated multipoint lock designed for residential external doors. This unit incorporates a central latch and deadbolt, supplemented by two hook bolts that engage into the door frame for enhanced security. It is typically installed in PVCu, composite, and timber door systems.

Operation is achieved through a lift-lever action; lifting the handle engages the hooks, which are then deadlocked by a turn of the key in a Euro profile cylinder. The central gearbox features a split spindle design, providing versatility for various handle and access control configurations. The latch is fully reversible, making the lock suitable for both left and right-handed applications.

As a replacement part, this unit is ideal for maintaining the security and functionality of existing door systems where a Fuhr 859 series lock is already fitted. It ensures reliable weather sealing and security through its multiple points of engagement.

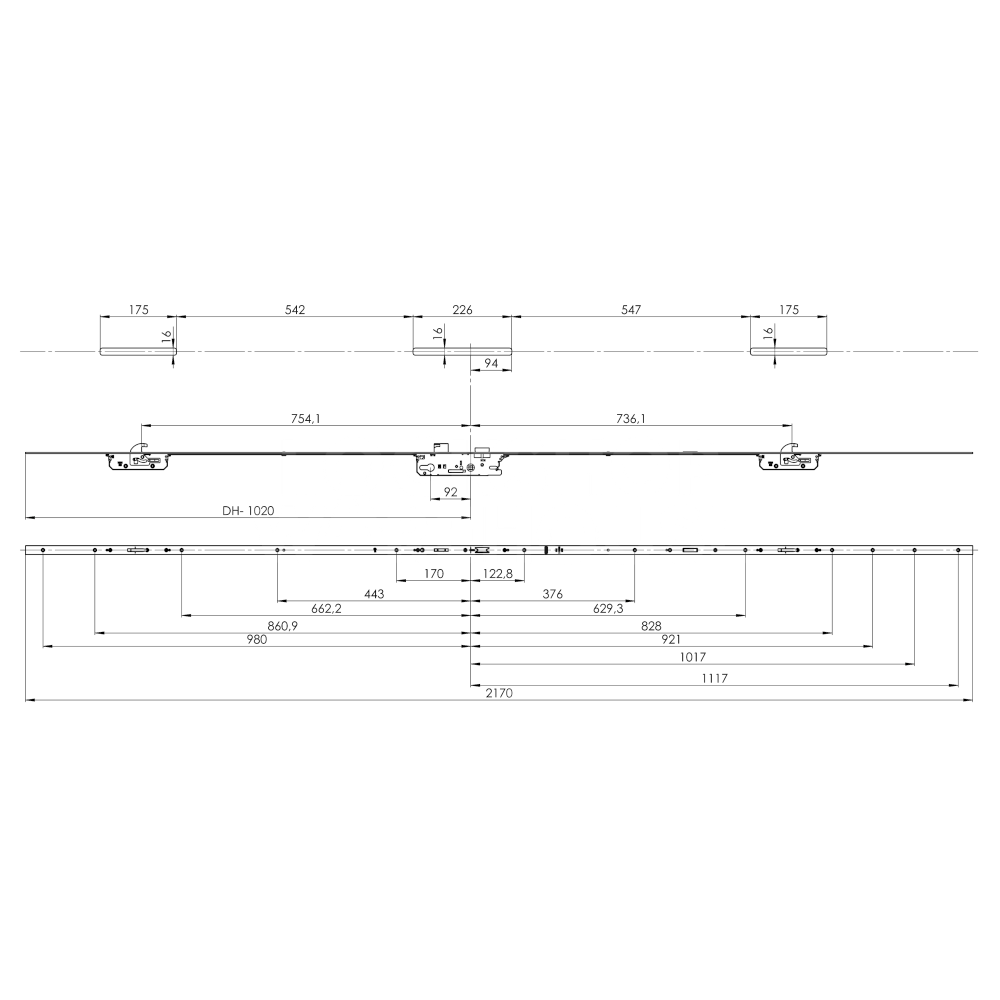

Dimensions Image: Fuhr 859 Type 3 Lever Operated 2 Hook Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Body Length 2170
Locking Point Hooks 2
Faceplate Width 20

FAQs

This lock utilizes a lift-lever action. To engage the two hook bolts and the central deadbolt, simply lift the door handle upwards. Once the hooks are fully engaged, turn the key in the Euro profile cylinder to deadlock the entire system for maximum security.

Yes, the Fuhr 859 Type 3 features a fully reversible latch design. This allows the lock to be easily adjusted to suit either left-handed or right-handed door configurations during installation.

The Fuhr 859 Type 3 is designed for residential external doors and is compatible with several door materials, including:

  • PVCu doors
  • Composite doors
  • Timber door systems

The split spindle design provides flexibility for various handle and access control configurations. It allows for standard lever/lever operation or can be set up for lever/pad operation, where the external handle will not retract the latch without a key.
