Winkhaus AV4-F Heritage Auto Locking Multipoint Lock

£343.06

(£285.88 ex VAT)

sku: WINKH-0106
  • Automatic multi-point locking mechanism engages immediately upon door closure
  • Two solid anti-push back hooks activated by a central magnetic trigger
  • Heritage cylinder position designed for traditional eye-level cylinder pull installations
  • Fully non-handed design suitable for both left and right-hand door applications
  • Compatible with motorised upgrades for electronic access control systems
  • Tested to PAS 24 standards and Secured by Design approved
  • Features a 92mm centre and a 20mm radius faceplate

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
tick PAS 24:2022
tick Latch Only

The Winkhaus AV4-F Heritage is an advanced automatic multi-point locking system specifically engineered for doors requiring a traditional eye-level cylinder position. Unlike standard multi-point locks where the cylinder is located below the handle, the Heritage variant places the locking point higher up the door to replicate the aesthetic of classic timber door pulls while providing modern security performance.

Upon pulling the door closed, two solid anti-push back hooks are automatically deployed via a central magnetic trigger. This ensures the door is securely locked at multiple points without the need to lift a handle, providing consistent security and preventing door bowing. The system is designed with high operational tolerances to ensure smooth engagement even if the door experiences slight movement over time.

Typical applications include new-build or replacement installations on timber or composite doors where a heritage aesthetic is required. The non-handed design simplifies installation by allowing the lock to be used on either side of the door. Furthermore, the AV4-F can be integrated with blueMatic motorised components to enable electronic unlocking via access control systems, making it a versatile choice for both manual and smart home applications.

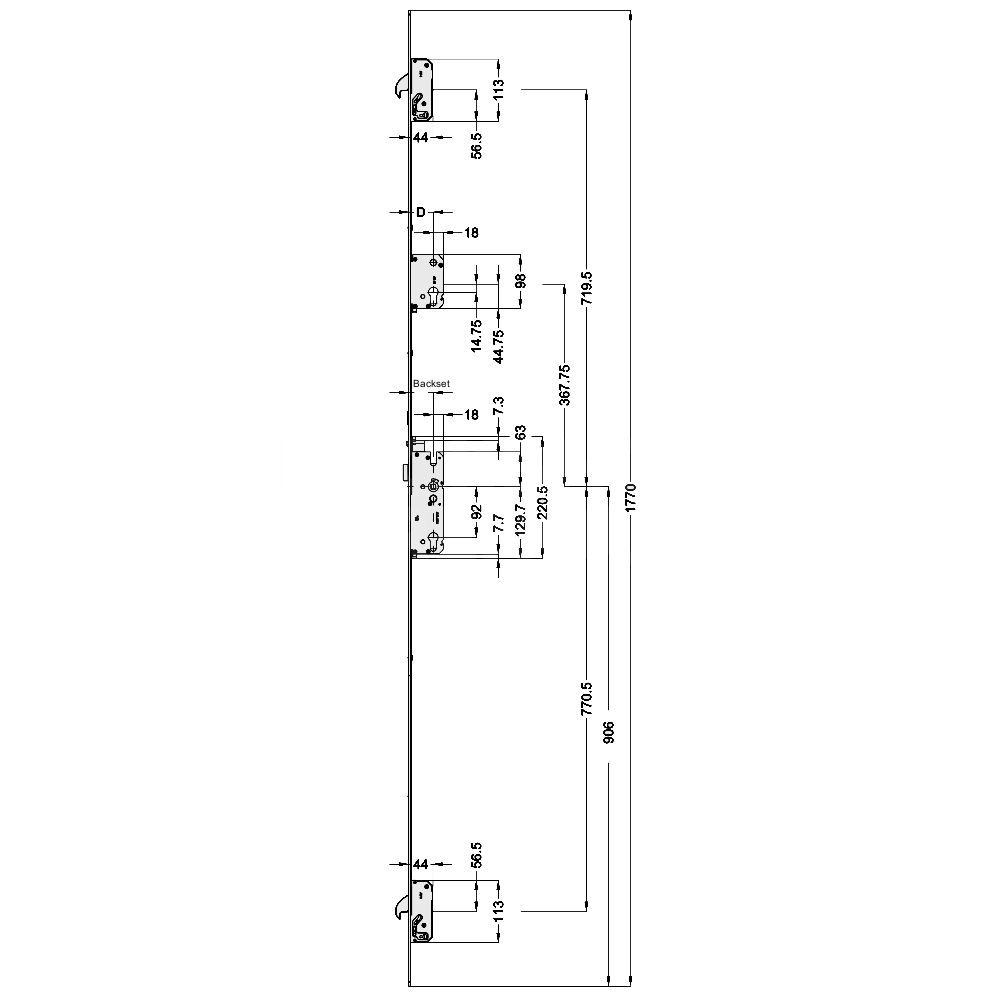

Dimensions Image: Winkhaus AV4-F Heritage Auto Locking Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 45 55
Body Length 1770 -
Case Width 63 73
Case Height 193 -
Locking Point Hooks 2 -
Faceplate Width 20 -

Brand

SKU

WINKH-0106

Certifications

tick PAS 24:2022

FAQs

The AV4-F Heritage model places the locking cylinder at a higher eye-level position to replicate the look of traditional timber door pulls. This design is ideal for projects requiring a classic aesthetic without compromising on modern multi-point security.

The lock uses a central magnetic trigger that detects when the door is closed. This immediately deploys two solid anti-push back hooks into the frame, ensuring the door is secured at multiple points every time it shuts without any manual intervention.

Yes, the Winkhaus AV4-F Heritage features a fully non-handed design. This allows it to be used on both left-handed and right-handed door configurations, making installation more straightforward.

This lock is designed to be compatible with motorised upgrades. By integrating blueMatic motorised components, you can enable electronic unlocking for use with access control systems or smart home applications.
