Evva Euro Knobturn Cylinder
Dimensions Key

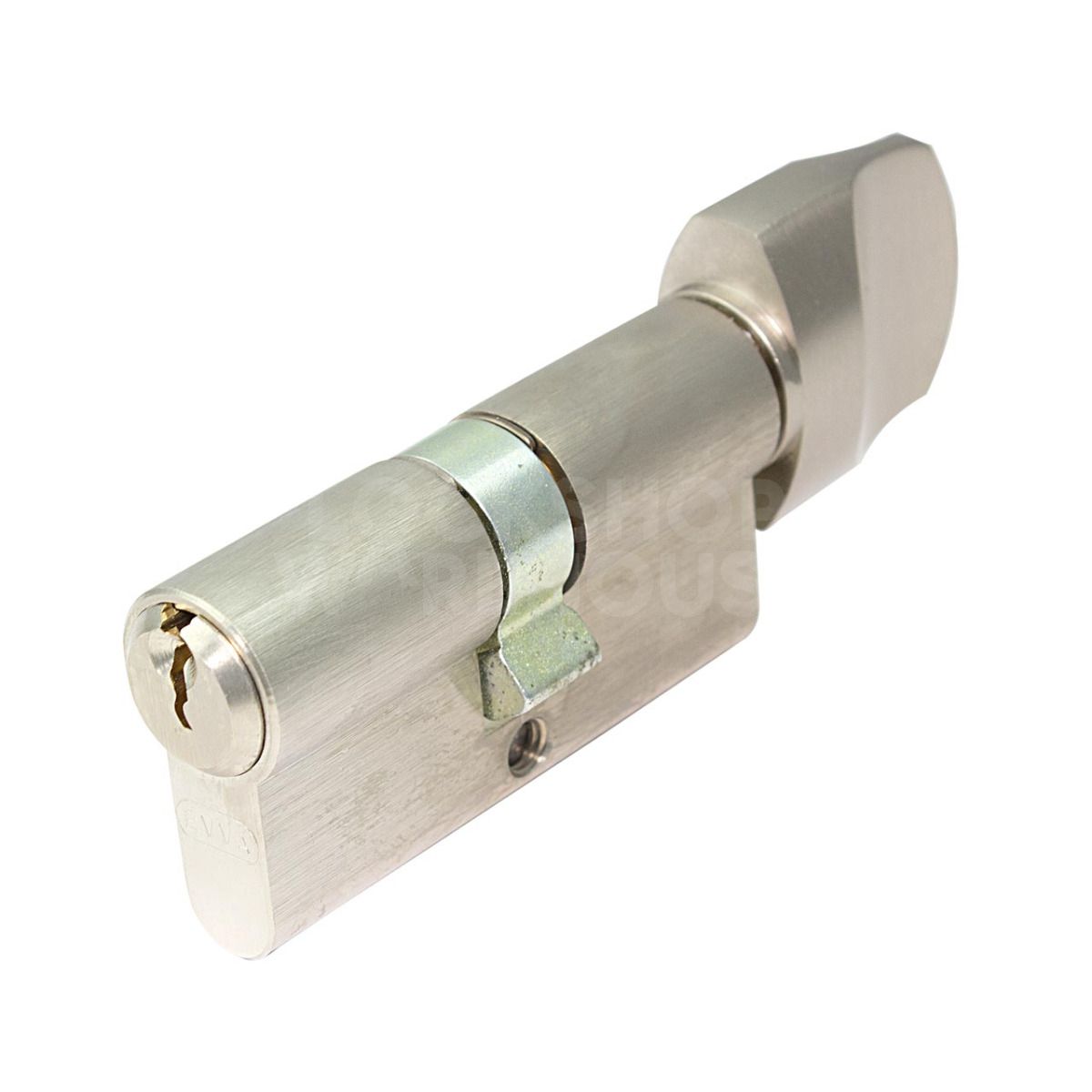

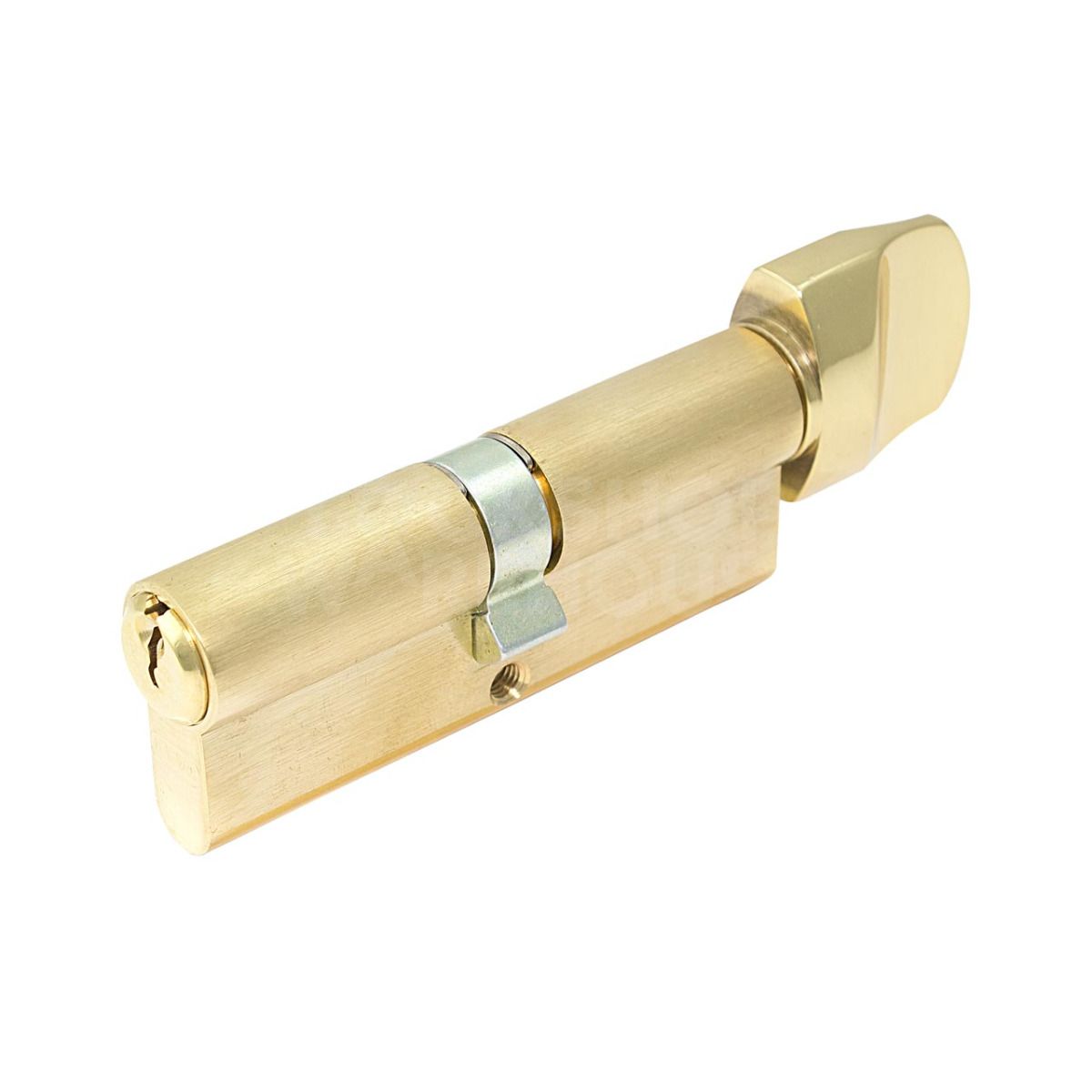

Evva Euro Knobturn Cylinder

Product Code: EVVA-CYL-KT

13.95  (16.74 inc VAT)
16.74  (13.95 ex VAT)
Reliable and high quality 5 Pin Cylinder from Evva. With key locking and a thumb turn on the other side this cylinder is suited to communal access points where ease of use & fire regulations require people to be able to leave unheeded.

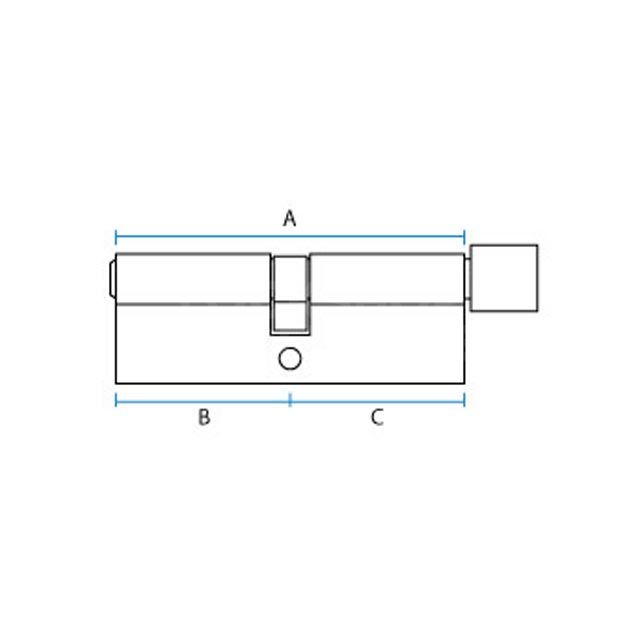

The cylinder is available in a wide variation of sizes which are detailed in the chart below. Please note that dimension C is the knob turn side of the lock.

The dimensions are provided to the centre of the cam from the edge of the lock. This is the important measurement and needs extra attention if you do not have a centrally aligned cam, as you will need to measure both sides of the lock, before determining the cylinder you require.

Finish : Nickel or Brass
Keys Supplied : 3 (Brass) Available master keyed or keyed alike
Differs : 30'000
30 minute fire resistant to 82 degrees celcius
Anti corrosion as standard

Keyed alike cylinders will only be supplied with 3 keys in total.

Size

Finish

Key Configuration ?

Quantity:
  • Reference
  • Name
  • Size (mm)
  • A
  • Cylinder Length
  • 54
  • 58
  • 62
  • 63
  • 67
  • 72
  • 72
  • 82
  • 82
  • 87
  • 92
  • 92
  • 100
  • 112
  • B
  • Cam Centre
  • 27
  • 31
  • 31
  • 27
  • 36
  • 41
  • 36
  • 41
  • 36
  • 41
  • 51
  • 56
  • 60
  • 56
  • C
  • Cam Centre
  • 27
  • 27
  • 31
  • 36
  • 31
  • 31
  • 36
  • 41
  • 46
  • 46
  • 41
  • 36
  • 40
  • 56
Additional Key for Evva Cylinders

Additional Key for Evva Cylinders

Product Code: EVVA-CYL-EXK

3.00  (3.60 inc VAT)
3.60  (3.00 ex VAT)
Works with the range of Evva cylinders we carry (excluding the DPS range).

Enabling the use of multiple cylinder types (double, half, thumb turn etc...) to be keyed alike.

Keys in this section are cut and tested to the cylinders you have purchased in your order. We do not supply uncut blanks unless requested.

Quantity:
Master key for Evva Cylinders

Master key for Evva Cylinders

Product Code: EVVA-CYL-MK

6.00  (7.20 inc VAT)
7.20  (6.00 ex VAT)
This is an additional master key for our range of Evva cylinders.

When purchased alongside a master keyed cylinder we will make it up to the same profile as the existing masterkey allowing it to also operate all locks within that series.
Quantity:
