skip to ABUS H702 with 38mm Diameter Jaws

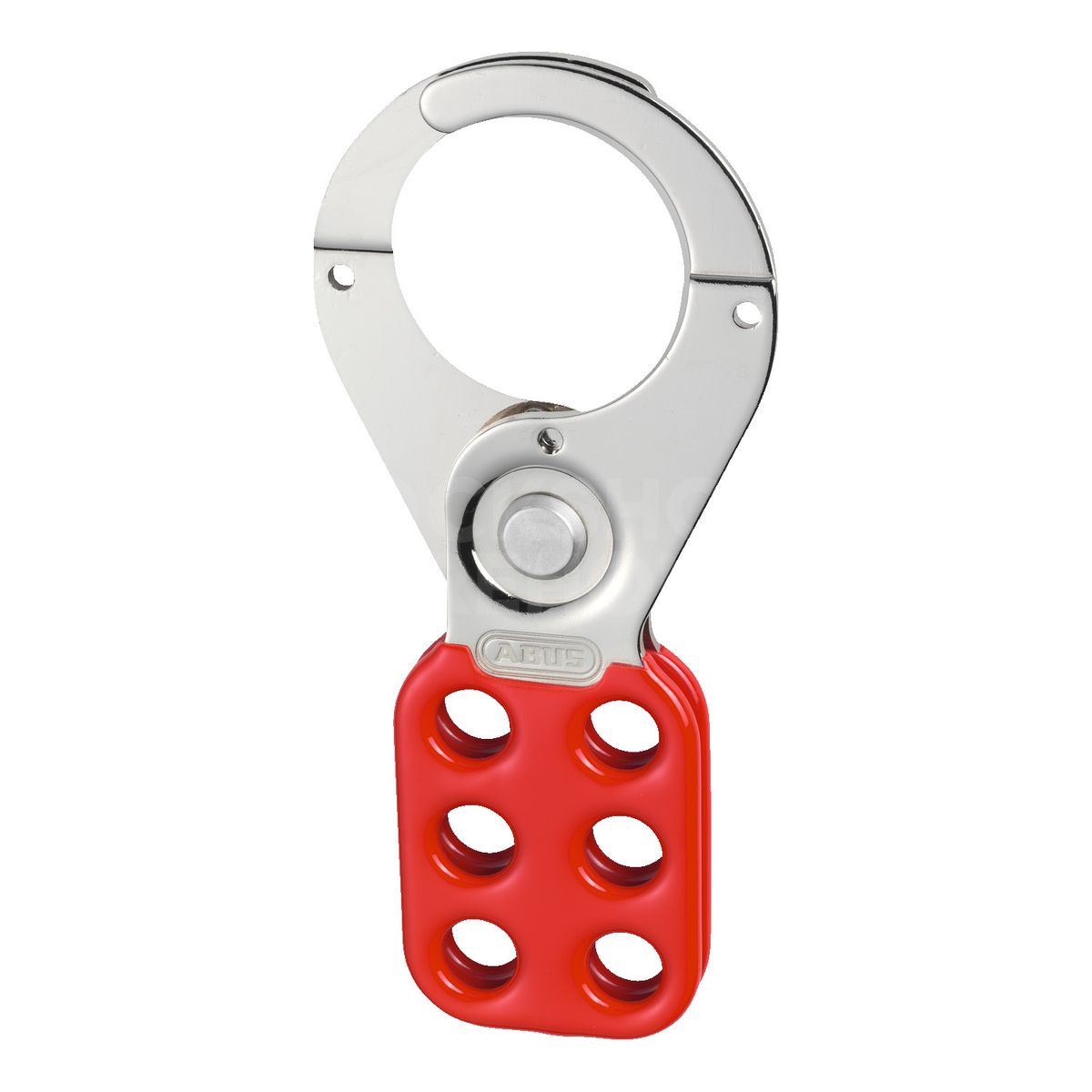

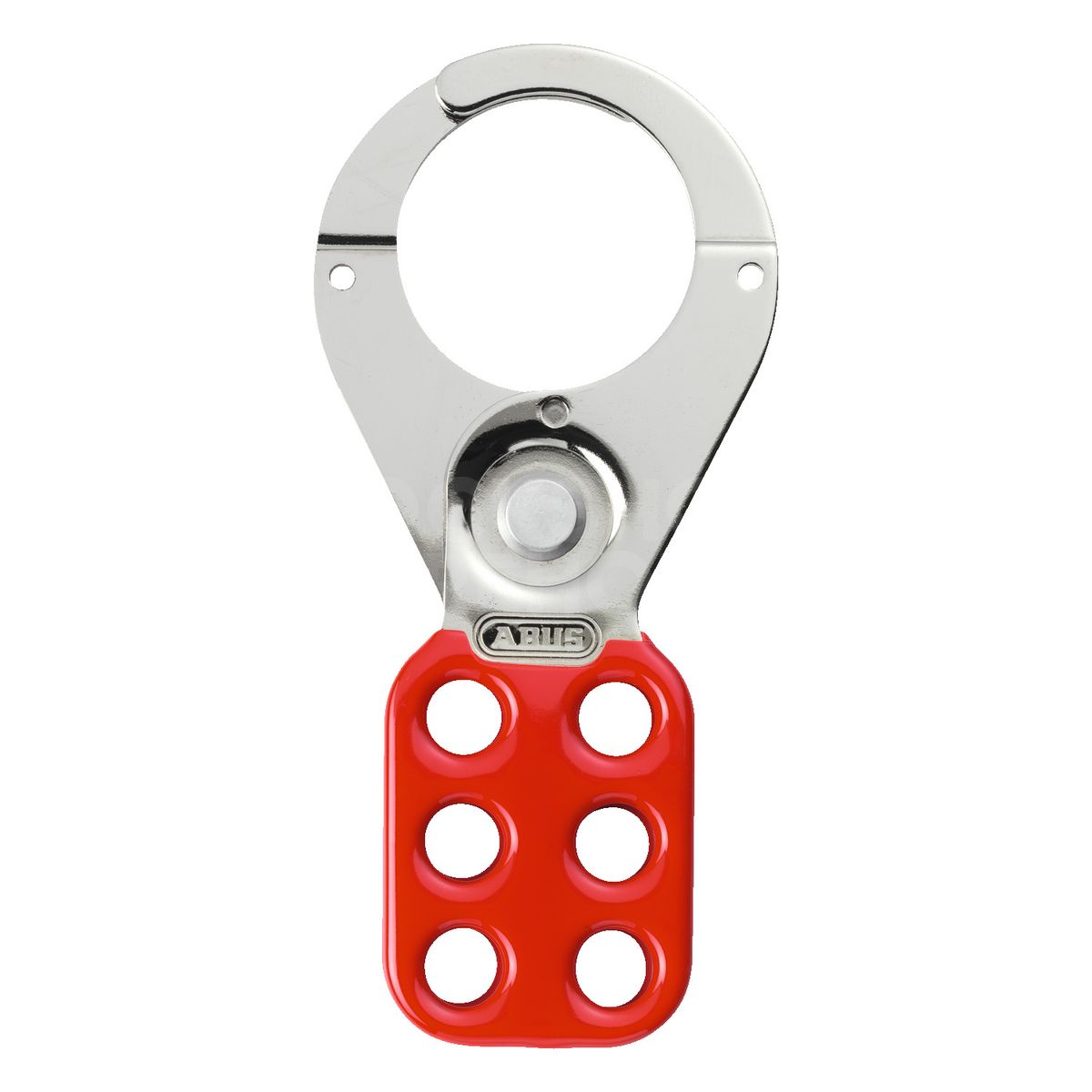

ABUS H702 with 38mm Diameter Jaws

£7.75

(£6.46 ex VAT)

sku: ABU702R
  • 38 mm nominal jaw format.
  • Sheet-steel construction with a coloured coated grip.
  • Up to six personal padlocks at one compatible locking point.
  • Standard jaws; H711 and H712 are the separate interlocking-jaw models.
  • Padlocks are supplied separately.
Document Icon product info Document Icon ABUS Mechanical Lock Out Hasps
ABUS H701 with 25mm Diameter Jaws £ 9.6
ABUS H702 with 38mm Diameter Jaws £ 10.8
ABUS H711 with 25mm Diameter Interlocking Jaws £ 10.8
ABUS H712 with 38mm Diameter Interlocking Jaws £ 11.99

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

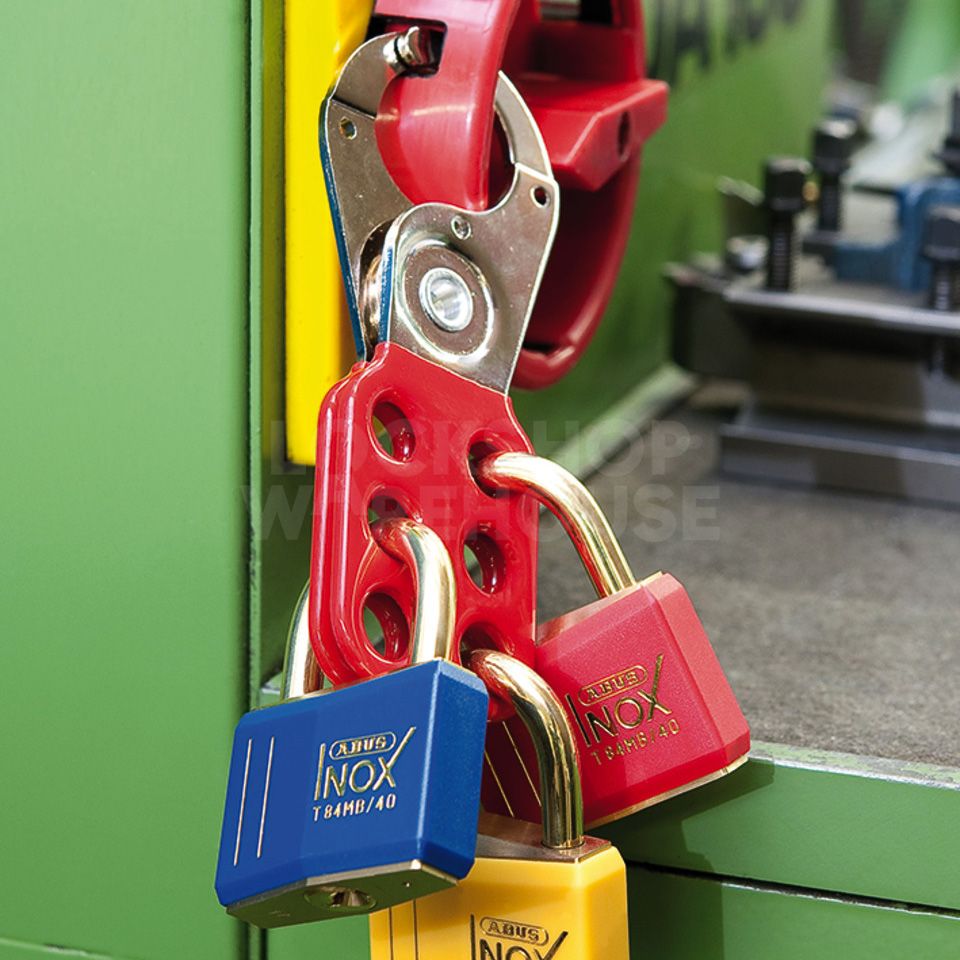

The ABUS H702 multiplies a compatible locking point so several people can attach their own personal padlocks. The equipment remains locked while a padlock is still attached to a correctly fitted hasp.

Check the jaw fit, each padlock shackle and the space around the lock bodies. This model does not have interlocking jaw tabs. Select H711 or H712 if that jaw construction is required. Use within the site's approved isolation and key-control procedure; the hasp does not replace safe-isolation checks.

Part Size (mm)
width 60
Height 128
Depth 10
Horizontal Clearance 38
Vertical Clearance 38

Brand

SKU

ABU702R

Box Contents

Hasp

FAQs

This ABUS H702 hasp is designed to accommodate up to six individual padlocks simultaneously. This allows multiple workers to independently secure an energy source during maintenance, ensuring the device cannot be reactivated until every person has removed their lock.

This specific model features jaws with a 38mm (1.5-inch) diameter. This size is ideal for fitting around various power switches, valves, and other isolation points common in industrial settings.

The H702 is manufactured from high-tensile steel for maximum strength and durability. The handle section is vinyl-coated in bright red, providing both a comfortable grip and high visibility for safety compliance.

H702 has standard jaws, without interlocking tabs. H712 is the separate 38 mm model with interlocking jaw tabs; they are not an optional addition to H702.
