ABUS Locking Bracket

£12.00

(£10.00 ex VAT)

sku: ABU115100
  • Manufactured from 5mm hardened steel for high resistance to physical attack
  • Designed for flush-closing installations where the door leaf and frame are level
  • Accommodates padlock shackles with a diameter of up to 12mm
  • Suitable for use on hinged doors, sliding doors, and roller shutters
  • Pre-drilled for heavy-duty bolt fixings to ensure a secure mounting
  • Supplied as a pair to create a complete locking point for standard padlocks
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

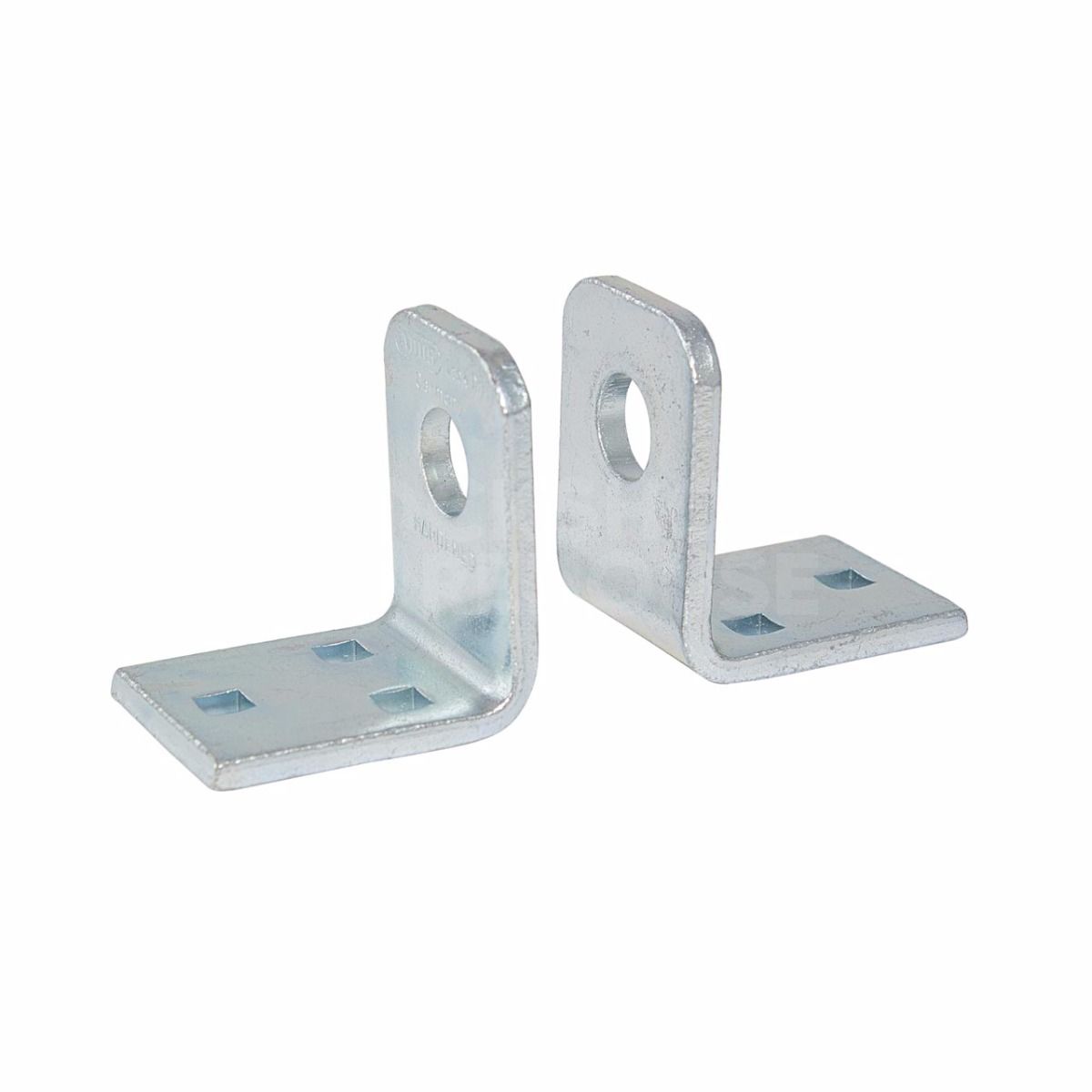

The ABUS Locking Bracket is a heavy-duty security solution designed to provide a robust anchoring point for padlocks. Manufactured from 5mm thick hardened steel, these brackets are engineered to withstand significant force, making them suitable for securing high-value areas such as sheds, garages, and commercial premises.

These brackets are specifically designed for applications where the door leaf and the frame are flush. Their versatile design allows for installation on a variety of entry points, including:

  • Hinged and sliding doors
  • Commercial roller shutters
  • External gates and outbuildings

When installed, the two brackets align to allow a padlock shackle to pass through both, effectively locking the door to the frame. For maximum security, it is recommended that the brackets are secured using heavy-duty bolts. The eyelet is compatible with a wide range of padlocks, provided the shackle diameter does not exceed 12mm, making it a flexible component for both new security installations and system upgrades.

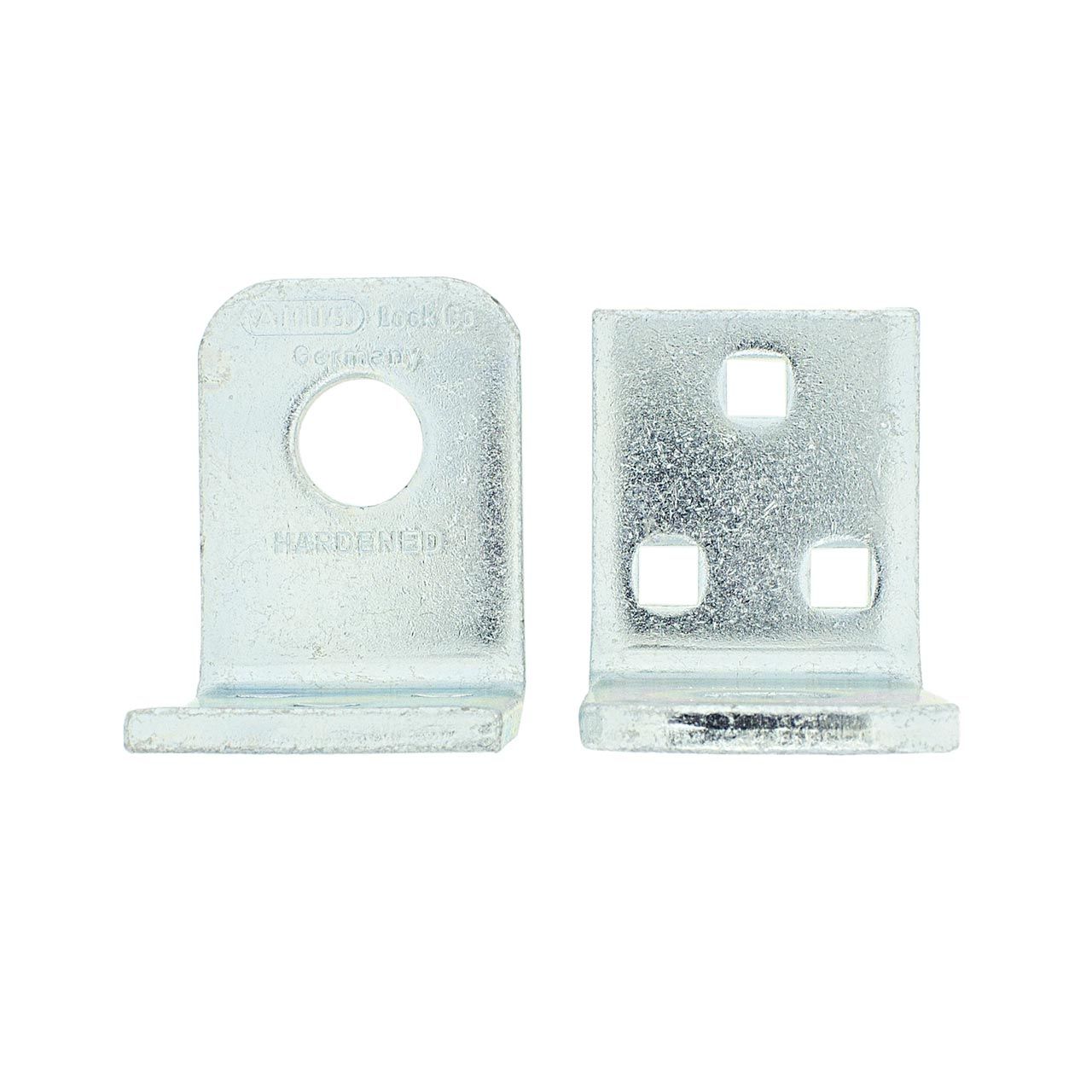

Dimensions Image: ABUS Locking Bracket

Brand

SKU

ABU115100

Box Contents

2x Locking Brackets (Bolts not included)

FAQs

These versatile brackets are designed for a variety of security applications, including:

  • Sliding and hinged doors
  • Shed and garage doors
  • Roller-shutters

They are particularly effective for flush-closing doors where the door leaf and frame are level with each other.

The ABUS 115 Locking Bracket is designed to be used with padlocks that have a shackle or bolt diameter of up to 12mm.

No, heavy-duty mounting bolts are not supplied. Because these brackets are designed for high-security use, we recommend purchasing heavy-duty bolts that are appropriate for the specific material of your door and frame.

Each bracket is manufactured from 5mm thick hardened steel for enhanced security. The fixing base for each part measures 45mm in width and 38mm in height.
