Adams Rite MS2200 Hookbolt

£34.79

(£28.99 ex VAT)

sku: MS2200
  • Hookbolt design specifically suited for aluminium sliding and swing doors
  • Compatible with standard euro profile cylinders for versatile keying options
  • Constructed with a 5-ply laminated steel bolt for enhanced physical strength
  • Features a patented alumina-ceramic anti-saw core to resist forced entry
  • Provides a 20mm hook bolt throw for secure engagement with the strike
  • Designed for integration into narrow stile aluminium door sections
  • Suitable for both new installations and as a high-security replacement part

Backset

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

7/10 Security Rating

The Adams Rite MS2200 Hookbolt is a heavy-duty deadlock engineered to provide maximum security for aluminium door systems. Primarily used in commercial environments, this lock is suitable for both sliding and swing door applications where a high level of physical resistance is required.

The security of the MS2200 is centred around its 5-ply laminated steel bolt, which incorporates a patented alumina-ceramic insert. This anti-saw core is specifically designed to defeat attempts at cutting through the bolt with manual tools. The hookbolt mechanism offers a 20mm throw, ensuring a deep and secure engagement that prevents sliding doors from being lifted or forced out of their track.

This lock case is designed to be operated by a standard euro profile cylinder, allowing for flexible keying arrangements and integration into master key suites. It is intended for mounting within the narrow stile of aluminium door profiles. As a modular system, the faceplates and strike plates are ordered independently to ensure compatibility with specific door frame configurations.

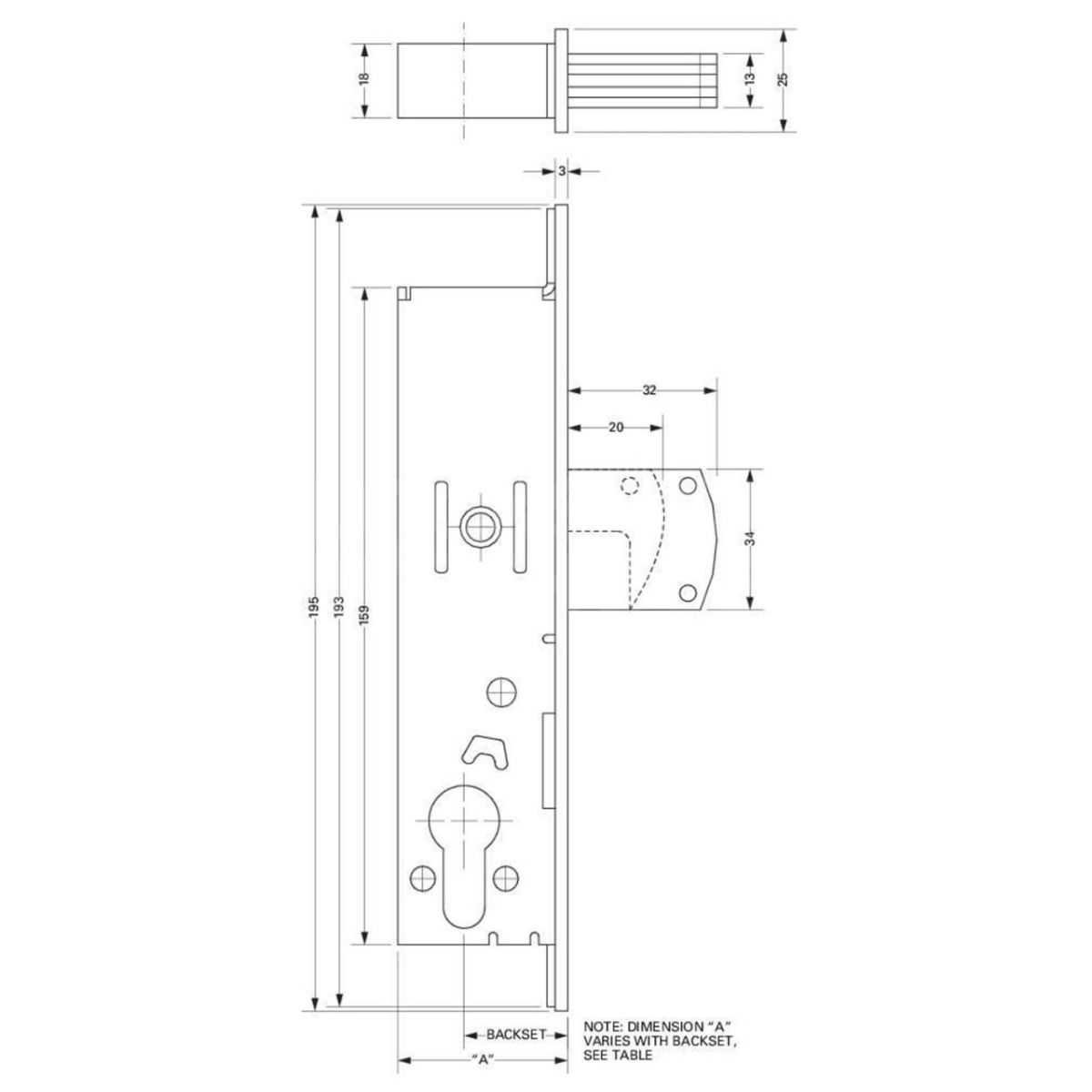

Dimensions Image: Adams Rite MS2200 Hookbolt
Part Min (mm) Max (mm)
Backset 25 40
Case Width 41 56
Case Height 159 -
Forend Width 26 -
Forend Length 195 -

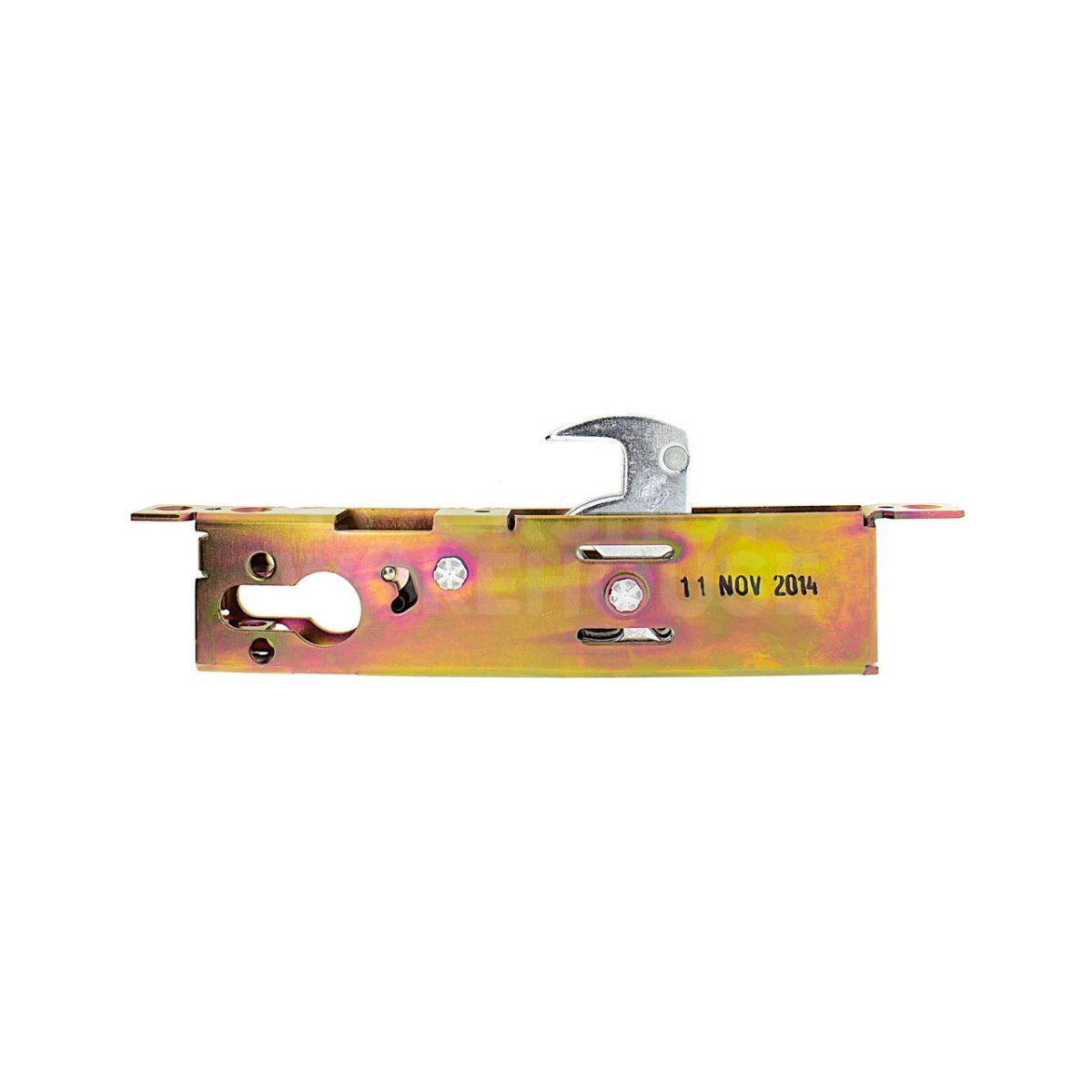

Dimensions Image: Adams Rite MS2200 Hookbolt

Brand

SKU

MS2200

Box Contents

mortice lock

FAQs

Yes, the Adams Rite MS2200 is a versatile deadlock designed for use on both swing and sliding aluminium doors. Its 20mm hook bolt throw makes it particularly effective for securing sliding door applications.

No, all faceplates and strikeplates for the MS2200 must be ordered separately. This allows you to select the specific hardware that best matches your door's configuration and finish.

The lock features a 5-ply laminated steel bolt equipped with a patented alumina-ceramic anti-saw core. This construction provides high-level security by resisting physical attacks and sawing attempts.

The MS2200 is designed to work with a standard euro profile cylinder. This compatibility allows for a wide range of keying options, including keyed-alike or master-keyed systems to suit your security requirements.
