BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset

£41.99

(£34.99 ex VAT)

sku: Brit-5710

The Briton 5710 is a DIN standard euro profile deadlock for use on doors without lever furniture that require locking. It has a 60mm backset with 72mm centres and one turn of a cylinder will throw the bolt 20mm.

The 5710 deadlock has been fire tested to EN 1634-1 for use on fire doors up to 1hr timber / 4hr steel when used with the appropriate intumescent kit (Briton 5000.IP)

Document Icon product info

Forend Shape

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

ce CE Marked
british-standard British Standard - EN 1634-1
british-standard British Standard - EN 12209
fire Certifire

Features

  • EN 1634-1 and Certifire approved when used with the appropriate intumescent kit
  • Reversible
  • Bolt through fixing holes to DIN 18251
  • 20mm single throw bolt
  • Backset: 60mm
  • Centres 72mm
  • Galvanised steel lockcase with satin nickel plating for corrosion resistance
  • Grade 316 stainless steel single piece round or square forend

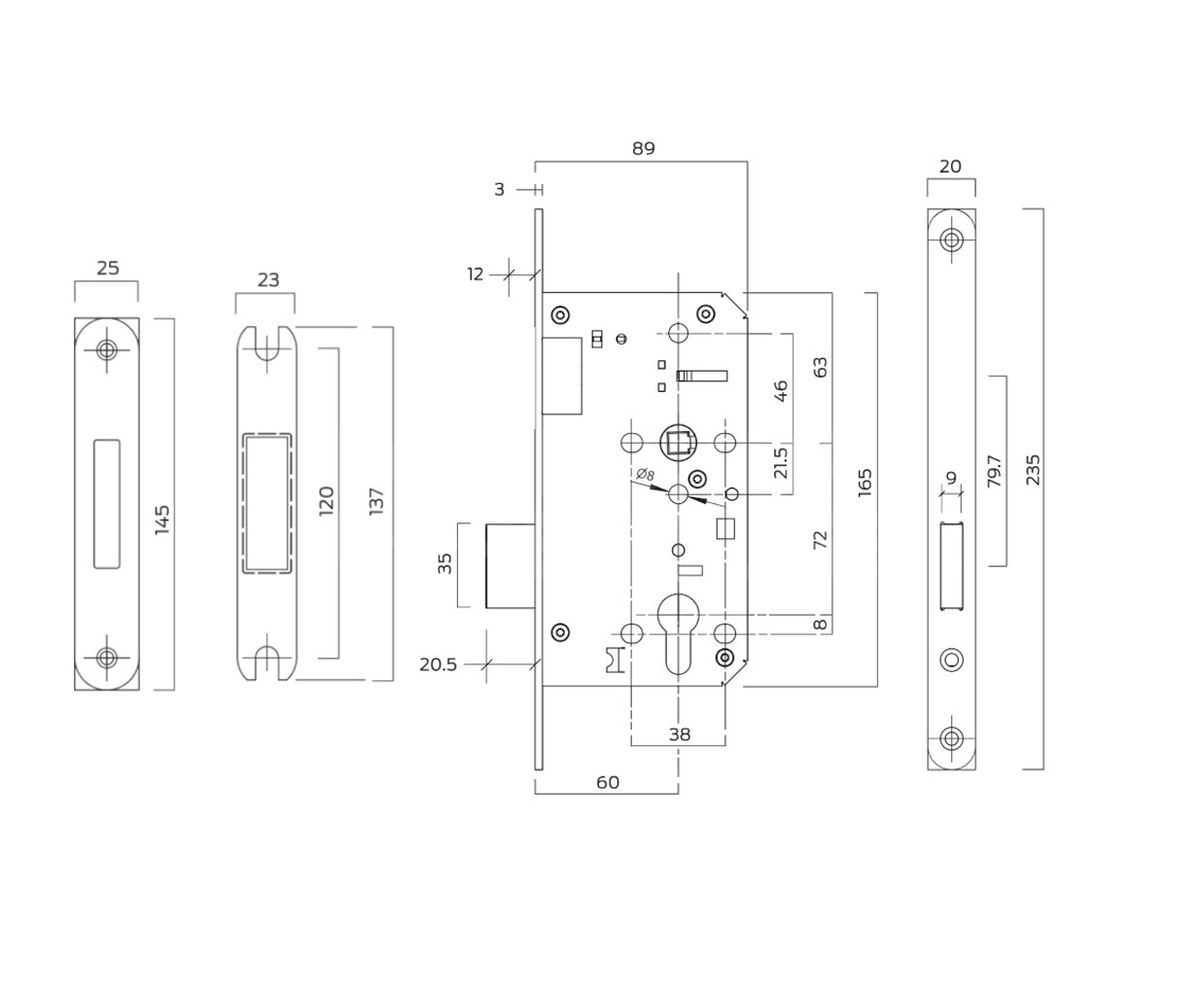

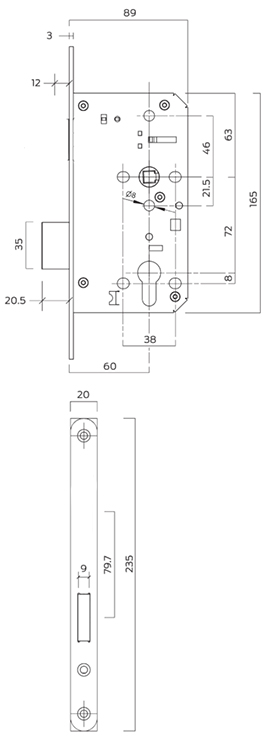

Dimensions Image: BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset

Brand

SKU

Brit-5710

Box Contents

mortice lock

fixing screws

Certifications

ce CE Marked
british-standard British Standard - EN 1634-1
british-standard British Standard - EN 12209

Fire Rating

Certifire

FAQs

The Briton 5710 is a DIN standard deadlock case designed for use with a Euro profile cylinder. It is specifically intended for doors that require a locking mechanism without lever furniture.

Yes, this lock is EN 1634-1 fire tested and Certifire approved. When used with the correct intumescent kit (Briton 5000.IP), it is suitable for timber fire doors for up to 1 hour and steel fire doors for up to 4 hours.

Yes, the Briton 5710 features a reversible design, making it versatile for installation on both left-handed and right-handed door openings. It also includes bolt-through fixing holes to DIN 18251 standards.

This model features a single throw bolt that extends 20mm. A single full turn of the Euro profile cylinder is all that is required to throw the bolt to its full 20mm length.
