BRITON 5730 DIN Bathroom Lock Case 60mm Backset

£46.79

(£38.99 ex VAT)

sku: Brit-5730

The Briton 5730 is a DIN standard mortice bathroom lock suitable for use on bathroom doors and those requiring a privacy function. It has a 60mm backset with 78mm centres and a profiled latch which is reversible. One turn of a thumbturn will throw the bolt 20mm. The 5730 bathroom lock has been fire tested to EN 1634-1 for use on fire doors up to 1hr timber / 4hr steel when used with the appropriate intumescent kit (Briton 5000.IP).

Document Icon product info

Forend Shape

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick British Standard - EN 1634 - 1
tick CE Marked
tick British Standard - EN 12209
tick Certifire

Features

Galvanised steel lockcase with satin nickel plating for corrosion resistance
EN 1634-1 and Certifire approved when used with the appropriate intumescent kit
Reversible
Bolt through fixing holes to DIN 18251
20mm single throw bolt
Profiled latch and forend
Backset: 60mm
Centres 72mm
Quick reversible latch
Grade 316 stainless steel single piece round or square forend

20mm Forend Width

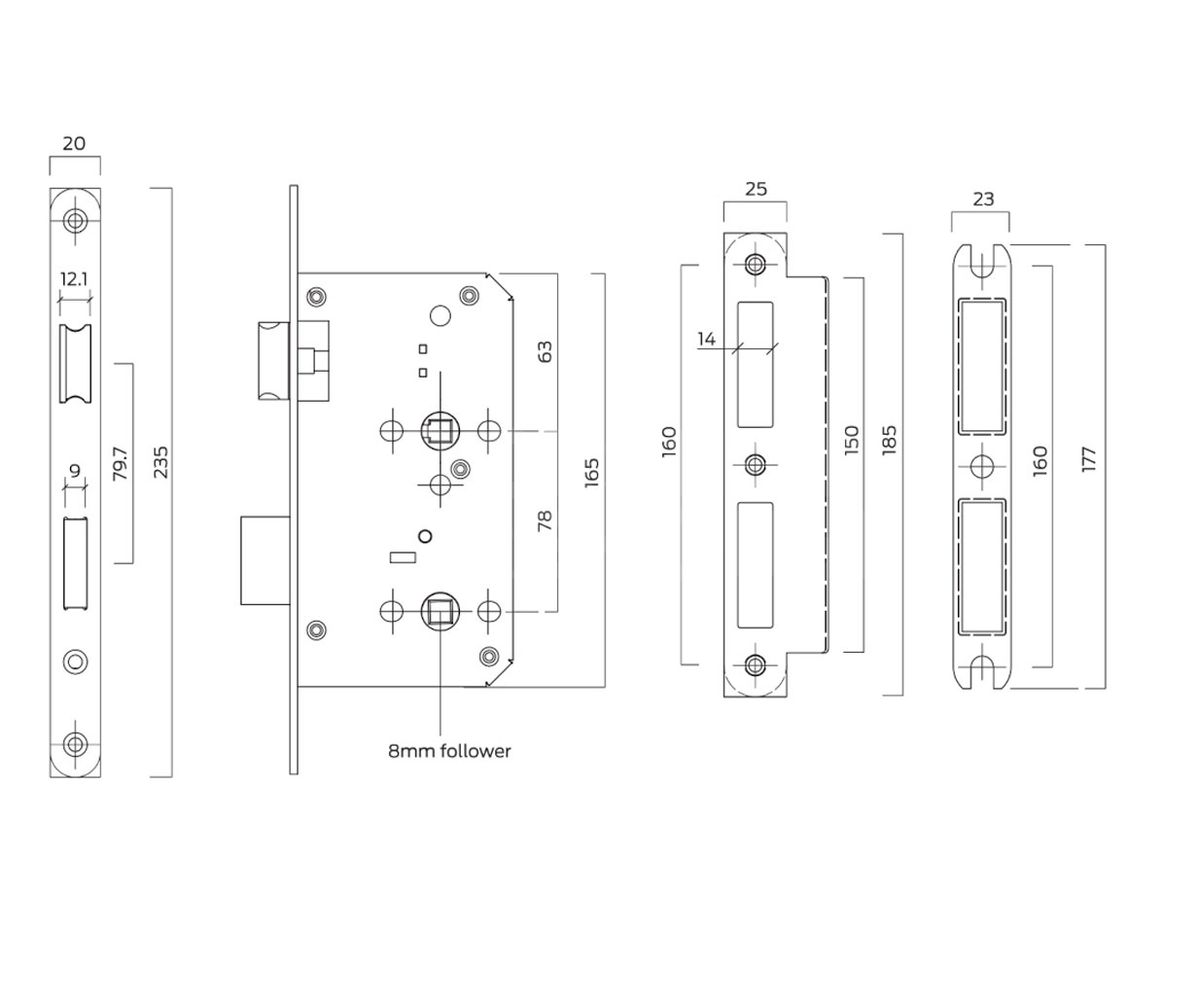

Dimensions Image: BRITON 5730 DIN Bathroom Lock Case 60mm Backset

Brand

SKU

Brit-5730

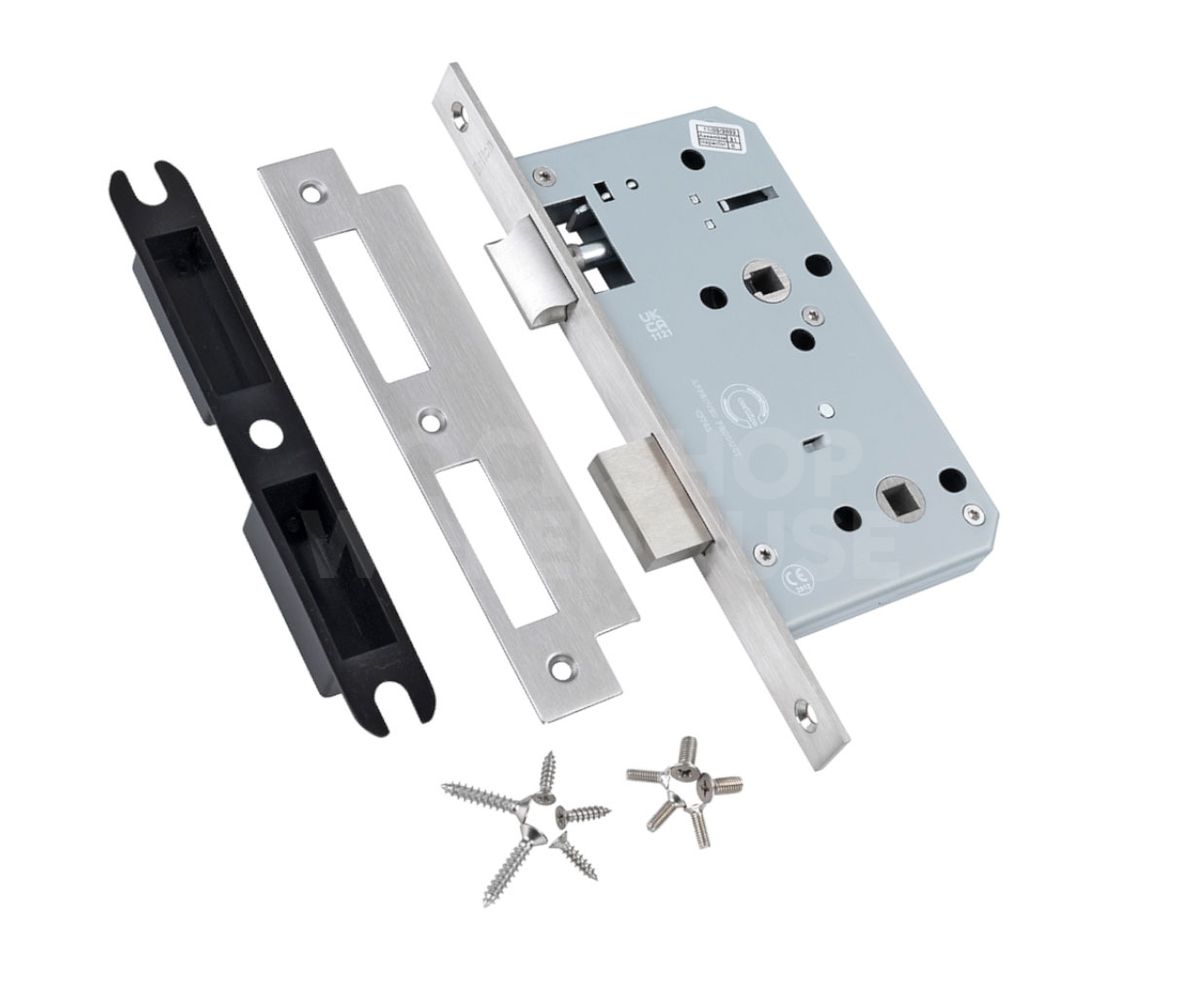

Box Contents

mortice lock

fixing screws

Certifications

tick British Standard - EN 1634 - 1
tick CE Marked
tick British Standard - EN 12209

Fire Rating

Certifire

FAQs

Yes, this lock case is fire tested to EN 1634-1 and is Certifire approved. It is suitable for use on timber fire doors for up to 1 hour and steel fire doors for up to 4 hours, provided it is installed with the required Briton 5000.IP intumescent kit.

Yes. The Briton 5730 features a quick reversible profiled latch, allowing it to be easily adjusted to suit either left-hand or right-hand opening doors during installation.

This DIN standard bathroom lock features the following key measurements:

  • 60mm backset (distance from the door edge to the handle spindle)
  • 78mm centres (distance between the handle spindle and the thumbturn)
  • 20mm wide forend
  • 20mm single throw deadbolt

Yes, it is designed specifically for longevity in bathroom settings. It features a galvanised steel lock case with satin nickel plating and a Grade 316 stainless steel forend to provide excellent corrosion resistance.
