EVVA ICS Euro Thumbturn Cylinder - 1 Star Kitemarked

£78.00

(£65.00 ex VAT)

sku: EVVA-ICS-ETC
  • 1-Star Kitemarked security rating certified to EN1303:2015 standards
  • Integrated thumbturn provides convenient keyless egress from the internal side
  • Patented restricted key system prevents unauthorised key duplication
  • 90-minute fire resistance rating for suitability on fire-rated door sets
  • Advanced internal scanning and picking protection with hidden gates
  • Enhanced resistance to drilling and plug pulling via chrome-vanadium components
  • Track-cut key technology ensures smooth operation and reduces mechanical wear
  • Compatible for use in complex master key suites and multi-lock systems

Cylinder Size

Cylinder Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
weatherproof Weather Resistant
star Recommended
heavy-duty Heavy Duty
9/10 Security Rating
5 Year Guarantee
british-standard-1-star 1 Star Kitemarked
tick EN1303
tick Anti Drill, Pick And Bump
fire Fire Rated: FD90
tick Key Profile: Fully Protected

How to Measure & Change your Euro cylinder

A simple and helpful guide to measuring and replacing your Euro cylinder, ensuring you choose the correct size for a perfect fit on your door.

How to Change a Euro cylinder

The EVVA ICS Euro Thumbturn Cylinder is a high-security locking solution designed for both residential and commercial applications. Combining multiple locking technologies, including a unique track-cut system and a durable length profile, it offers a high level of physical protection against common methods of attack. The internal thumbturn allows for quick and easy locking or unlocking from the inside without the need for a key, making it ideal for exit doors and everyday convenience.

Technical security is a core feature of the ICS range. The cylinder is 1-star Kitemarked and features integrated protection against picking, scanning, and drilling. Its modular SYMO design includes chrome-vanadium pins and a steel rod to specifically resist plug pulling attempts. Additionally, the patented key section is restricted, meaning replacement keys can only be produced with authorised documentation, ensuring total control over the security of the property.

Typical applications include front and back doors, office entrances, and any location where high-frequency use is expected. The 90-minute fire rating ensures the cylinder maintains its integrity in emergency situations. This cylinder is frequently used as a replacement part for existing Euro-profile locks or as part of a new high-security installation, and it can be integrated into master key suites where one key operates multiple locks across a site.

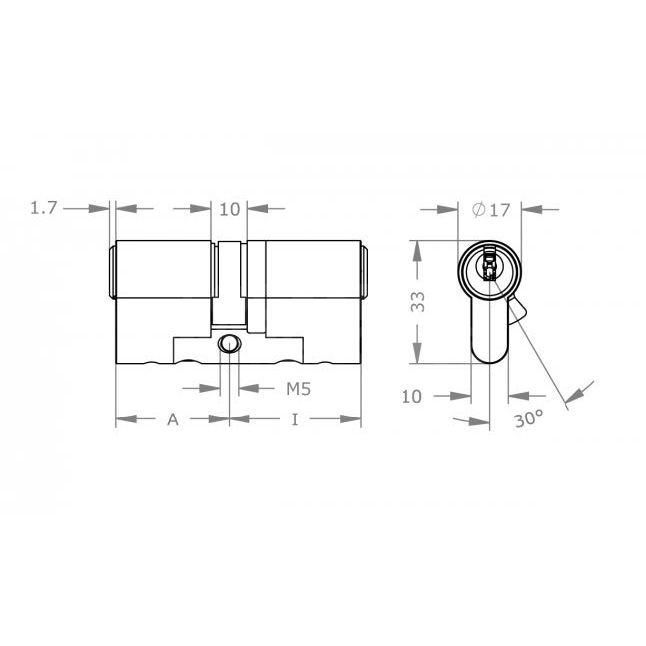

Dimensions Image: EVVA ICS Euro Thumbturn Cylinder - 1 Star Kitemarked

Brand

SKU

EVVA-ICS-ETC

Box Contents

euro cylinder

cylinder screw

2 keys

Certifications

british-standard-1-star 1 Star Kitemarked
tick EN1303
tick Anti Drill, Pick And Bump

Fire Rating

Fire Rated: FD90

Key Profile

Key Profile: Fully Protected

FAQs

The EVVA ICS features a fully restricted key section with a patented design protected until 2038. This provides complete control over key duplication, as copies can only be made through authorised suppliers, preventing unauthorised individuals from cutting spare keys for your property.

This cylinder is 1-Star Kitemarked (EN1303:2015) and offers robust resistance against common attack methods. It includes:

  • Chrome-vanadium elements to protect against drilling and plug pulling.
  • Split scanning elements and hidden gates to prevent lock-picking and scanning.
  • A 90-minute fire rating for enhanced safety.

Unlike standard dimple keys, the ICS uses a track-cut system with internal recesses and a curve system. This design offers a much smoother operation during insertion and removal while providing superior security through multiple layers of locking technology.

Standard cylinders that are keyed differ come with 2 keys each. However, if you order multiple cylinders as a "keyed alike" set (where one key opens all locks), you will receive a total of 2 keys for the entire set. Additional keys can be ordered if required.

Related Products

skip to EVVA ICS Key Cut to Code

EVVA ICS Key Cut to Code

£12.00

(£10.00 ex VAT)

sku: EVVA-ICS-EXK
  • Precision cut to code for seamless operation with existing EVVA ICS cylinders
  • Reversible design allows for easy insertion regardless of orientation
  • Constructed from high-grade nickel silver alloy for enhanced durability and wear resistance
  • 3mm thick blade provides high torsional strength and long-term reliability
  • Integrated security features, including concealed internal cuts, prevent unauthorised 3D duplication
  • Specifically designed for use with Lockshop Warehouse registered key sections
  • Tapered key tip ensures smooth entry into the lock cylinder

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Key Profile: Fully Protected

The EVVA ICS Key Cut to Code is a high-security replacement or additional key designed specifically for the EVVA Internal Code System (ICS). This system utilises a combination of different locking technologies, including a concealed internal track, to provide a high level of protection against unauthorised duplication and picking.

Manufactured from a robust nickel silver alloy, these keys are 3mm thick, ensuring they withstand the rigours of daily use while resisting bending and wear. The reversible design allows the key to be inserted into the cylinder in either orientation, improving user convenience and reducing wear on the internal components of the lock. The specially shaped tip assists with smooth insertion, even in low-light conditions.

These keys are cut using precision computer-controlled machinery to ensure an exact match to the original code provided. They are typically used for residential or commercial properties already fitted with EVVA ICS cylinders that require additional user keys or replacements for lost ones. Please note that these keys are only compatible with locks originally supplied by Lockshop Warehouse on our specific registered key section.

Brand

SKU

EVVA-ICS-EXK

Key Profile

Key Profile: Fully Protected
skip to EVVA Anti-Barricade Clutch Cam

EVVA Anti-Barricade Clutch Cam

£12.00

(£10.00 ex VAT)

sku: EVVA-AT-B

Clutch Cam (Anti-Barricade Function)

Additional add on product for the EVVA ICS Cylinders only - add as many of these as you have cylinders to ensure this feature is added to each lock.

This safety feature disengages the internal thumbturn when a key is inserted from the outside, allowing the door to be unlocked even if the thumbturn is being blocked or held from inside.

  • Available on key & turn cylinders only

  • Ensures external access in emergency situations

  • Ideal for schools, classrooms, or healthcare settings where internal barricading may pose a safety risk

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

skip to EVVA Classroom Feature

EVVA Classroom Feature

£36.00

(£30.00 ex VAT)

sku: EVVA-ClassR

Classroom Function (One-Way Thumbturn)

Only suitable for the EVVA ICS Range - Add this product to each cylinder ordered if required.

The Classroom Function restricts the thumbturn to rotate in only one direction (reversible upon request), allowing the door to be unlocked from the inside, but not locked—a key safety feature in emergency situations.

  • Available on key & turn cylinders only

  • Supplied with SOSE (Special Order Side Engagement) as standard

  • Prevents internal locking, ensuring doors can always be opened from the inside

  • Ideal for classrooms and similar environments where internal locking must be avoided for safety

This function must be specified at the time of order, as it is configured during cylinder manufacturing. We’ll contact you after the order is placed to confirm your requirements.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

skip to EVVA All Weather Protective Cover

EVVA All Weather Protective Cover

£16.20

(£13.50 ex VAT)

sku: EVVA-SaltP

EVVA ICS Add On: All Weather Protective Cover

Only suitable for the EVVA ICS cylinders - Ordered as a single unit so 1 per cylinder ( external side) is usually enough. If you require more you can add more to the order.

The SSW All Weather Cover provides reliable protection for cylinders exposed to harsh outdoor conditions.

  • Features spring-loaded shutter plates that automatically open when a key is inserted and close when removed

  • Permanently mounted on the external side of the cylinder

  • Shields against water, dust, mud, and debris, preventing contaminants from entering the keyway

  • Functions similarly to a vehicle keyhole flap, offering durable and responsive protection

  • Note: Adds 5mm to the overall length of the cylinder

Ideal for environments where weather resistance and keyway protection are essential.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
