Ferco Lever Operated 4 Roller Latch Only Multipoint Lock

£65.66

(£54.72 ex VAT)

sku: FERCO-0004
  • Lever-operated latch-only mechanism
  • Features four roller cams for enhanced door compression
  • Compatible with standard Euro profile cylinders
  • Designed with 70mm centres and a 7mm single spindle
  • Standard 16mm faceplate for versatile door fitting
  • Commonly used as a replacement part for legacy door systems

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch Only

The Ferco Lever Operated Latch Only Multipoint Lock is a functional security solution designed for various door types. Equipped with four roller cams, it provides consistent compression along the edge of the door, helping to maintain a weather-tight seal and prevent warping. This latch-only version is specifically designed for use with lever-lever handles.

Technical specifications include 70mm centres and a 7mm single spindle drive, which are standard for many older door installations. The system is housed behind a 16mm faceplate, making it compatible with a wide range of profile preparations. It is designed to work seamlessly with a Euro profile cylinder for secure locking functionality.

Typically used for maintenance and refurbishment, this lock is an ideal replacement part for existing Ferco installations where the gearbox or roller points have failed. It offers a straightforward restoration of door performance without the need for significant routing or modification.

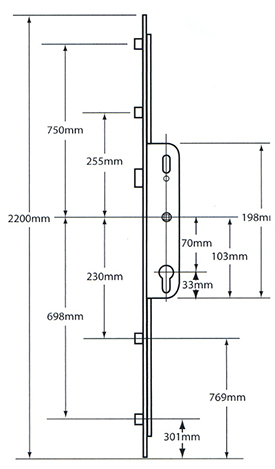

Dimensions Image: Ferco Lever Operated 4 Roller Latch Only Multipoint Lock
Part Min (mm) Max (mm)
centres 70 -
Backset 28 35
Case Width 42 48
Case Height 200 -
Locking Point Roller 4 -
Faceplate Width 16 -

FAQs

The four roller cams are designed to provide consistent compression along the entire edge of the door. This ensures a tight weather seal to prevent drafts and helps to stop the door from warping over time.

To ensure a proper fit, you should verify that your door requires:

  • 70mm centres (the distance between the spindle and the centre of the cylinder)
  • A 7mm single spindle
  • A 16mm faceplate width

This latch-only mechanism is specifically designed for use with lever-lever handles. It is intended for systems with a 7mm spindle drive, which is common in many legacy door installations.

Yes, this lock is frequently used as a replacement part for legacy Ferco installations. It is an ideal solution for maintenance and refurbishment projects, allowing you to restore door performance without needing significant modifications to the door frame.
