Fullex 2 Deadbolts - 1 Hook - Split Spindle : UPVC Multi-Point Locking Mechanism

£107.99

(£89.99 ex VAT)

sku: L15431

The Fullex SL16 is a latch and deadbolt split spindle multipoint lock with 2 dead bolts and 1 hook. It has 68mm centres and a 16mm faceplate.

Spindle Split
Operation A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Alias Brand SL16
Brand Fullex
Backset 35mm
Case Height 193mm
Centres 68mm
Centre Case Latch & Deadbolt
Case Width 47mm
Weight 2.4Kg
Locking Point Distance C 650mm
Locking Point Distance B 650mm
Locking Point Distance A 340mm
Locking Point Hooks 1
Locking Point Dead Bolt 2
Faceplate Width 16mm
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

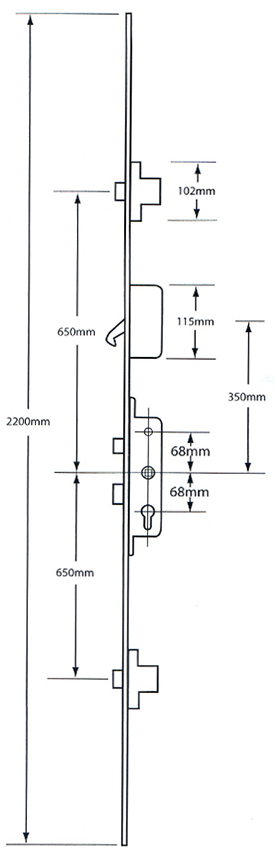

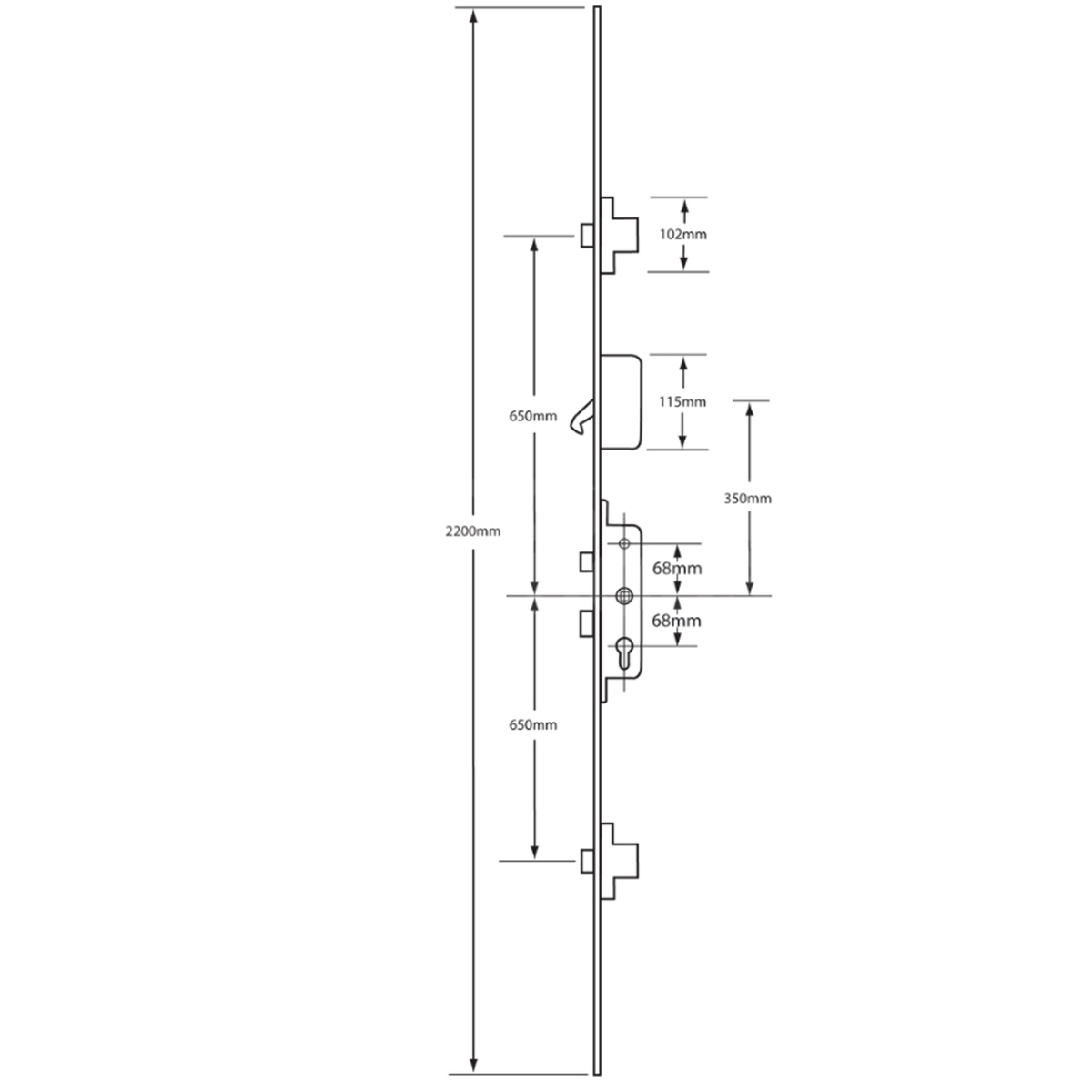

Dimensions Image: Fullex 2 Deadbolts - 1 Hook - Split Spindle : UPVC Multi-Point Locking Mechanism
Part Size (mm)
Height 2200
centres 68
Backset 35
Case Width 47
Case Height 193

Brand

SKU

L15431

Box Contents

Euro Profile Lock Case

Latch & Deadbolt

Split Spindle

Faceplate

2 x Deadbolts , 1 Hook
