skip to Imperial G7000 Sashcase 101mm - Satin Chrome

Imperial G7000 Sashcase 101mm - Satin Chrome

£47.99

(£39.99 ex VAT)

sku: G7000

Imperial Sashcase,

4 inch case depth (101mm) -

Latch is withdrawn by handle set from both sides.

Deadbolt is locked and unlocked with Euro cylinder (not supplied)

Unusual size lock centers - 51mm so standard Euro cylinder handles are not suitable to work with this lock.
These locks need to be used with a Rose handle and Euro escutcheon.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

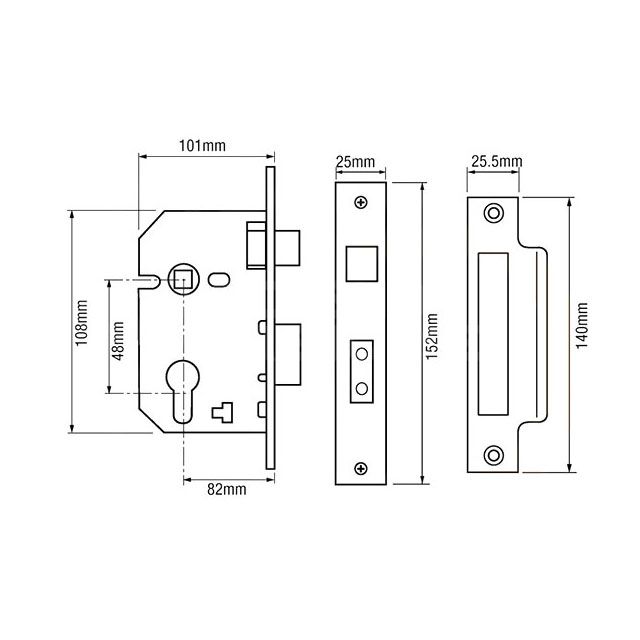

Dimensions Image: Imperial G7000 Sashcase 101mm - Satin Chrome
Part Size (mm)
centres 51
Backset 82
Bolt Length 14
Case Width 101
Case Height 108
Forend Width 25
Forend Length 152
Strike Plate Width 25.5
Strike Plate Length 140

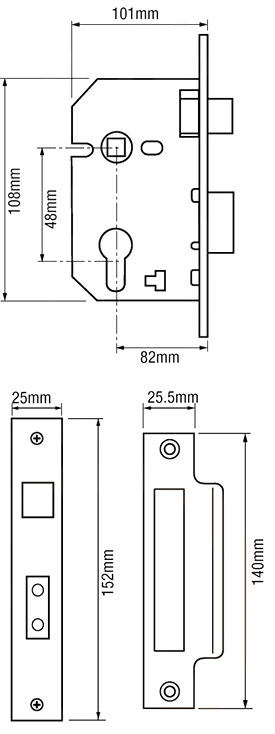

Dimensions Image: Imperial G7000 Sashcase 101mm - Satin Chrome

Brand

SKU

G7000

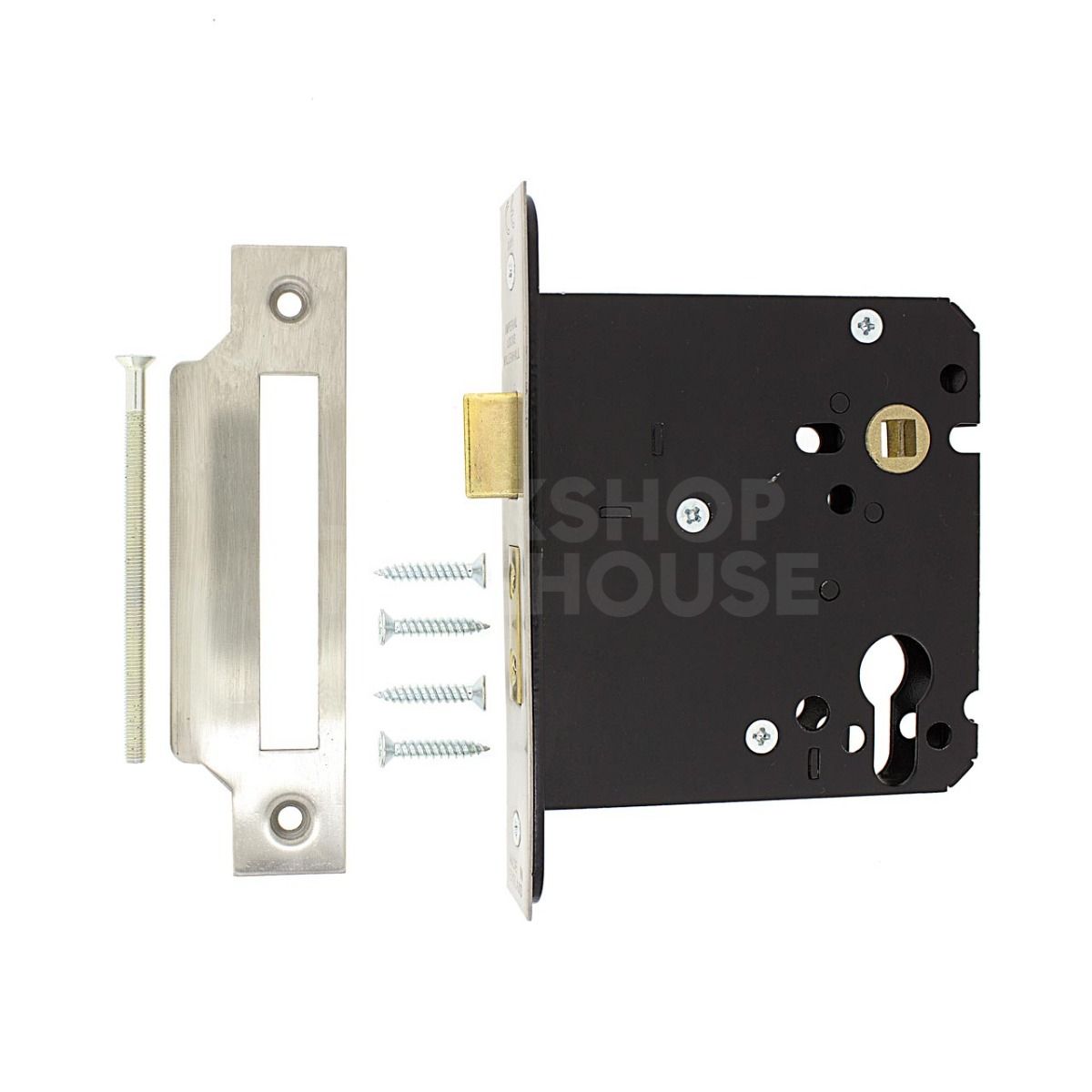

Box Contents

strike plate

fixing screws

instructions

mortice lock
