Long D613 Federal Garage Door Bolts

£36.00

(£30.00 ex VAT)

sku: END613Long
  • 70mm molybdenum-steel bolt throw for enhanced security
  • Double-sided operation allows locking and unlocking from both sides
  • Suitable for garage doors up to 60mm thick
  • High-security four-sided cruciform key profile to resist picking
  • Extended length keys provided for deep-panel installations
  • Hardened steel construction provides resistance against sawing and drilling
  • Complete fitting kit includes coachbolts, escutcheons and rivets
Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

7/10 Security Rating
tick Key Profile: Standard

The Enfield D613 Long Garage Door Bolts are high-security locking units designed to provide robust protection for various garage door types. Engineered for durability, these bolts feature a 70mm molybdenum-steel throw, which offers superior resistance against physical attacks such as sawing or prying. The extended design makes these locks particularly suitable for thicker doors up to 60mm, including insulated sectional panels or heavy timber side-hinged doors.

Functioning as a secondary locking point, these units are typically installed in pairs at the bottom corners of the door to prevent the leaf from being levered or peeled away from the frame. The system is operated via a four-sided cruciform key, a specialized design that provides a much higher level of security than standard cylinders by making the lock significantly harder to pick.

Applications include:

  • Secondary security for up-and-over garage doors
  • Primary or additional locking for timber side-hinged doors
  • Reinforcing doors in workshops or storage units containing high-value items

Each set is designed for versatile use, allowing the bolt to be engaged or disengaged from either the interior or exterior of the building. This makes the D613 an ideal choice for garages that require frequent access from both sides. The kit is supplied with all necessary fixings and extended keys to ensure a straightforward installation on standard and non-standard door thicknesses alike.

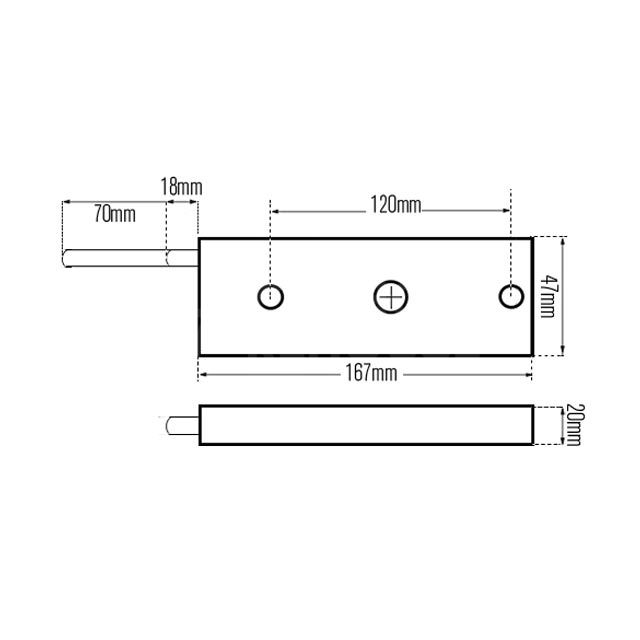

Dimensions Image: Long D613 Federal Garage Door Bolts

Brand

SKU

END613Long

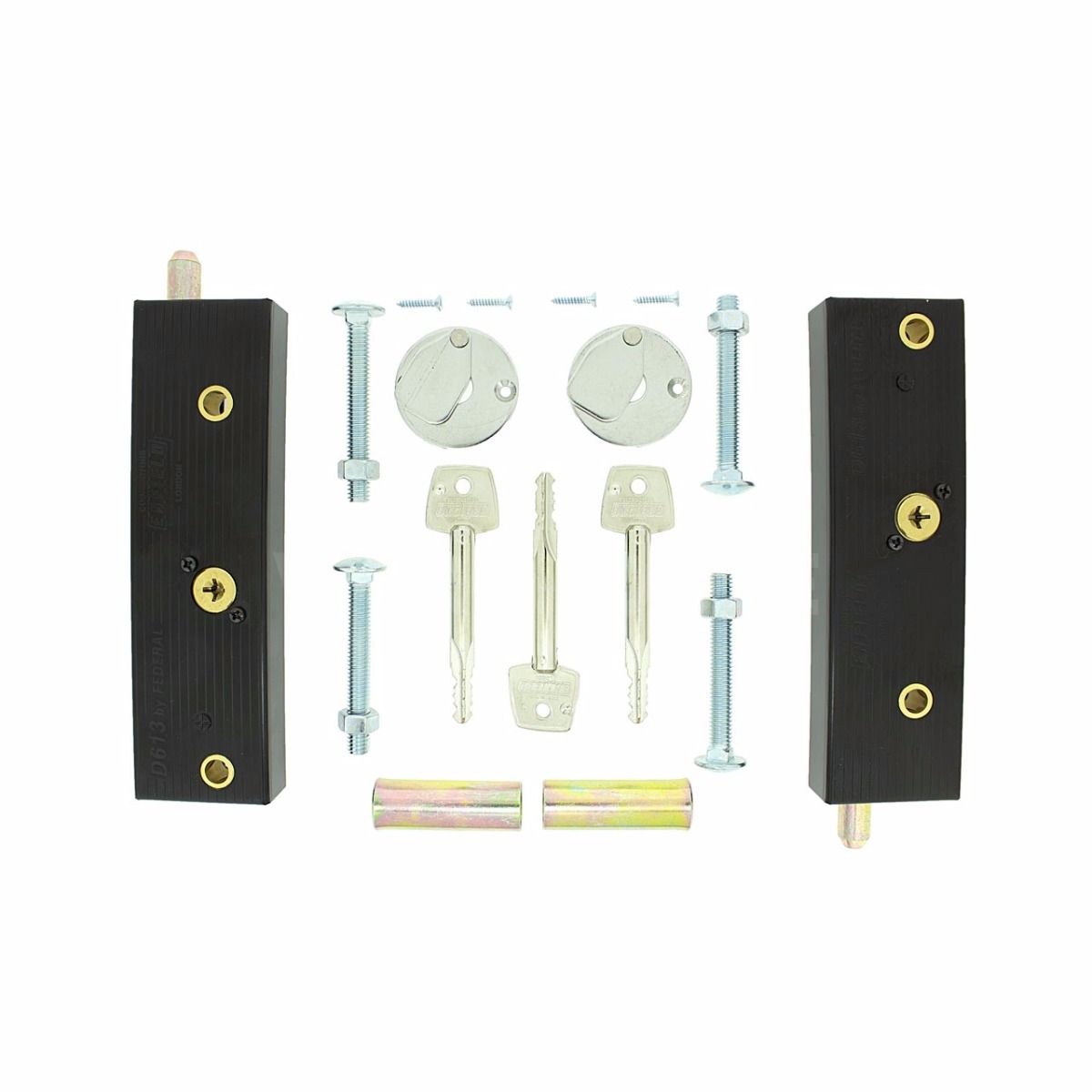

Box Contents

3 keys

fixing screws

instructions

key escutcheons

Key Profile

Key Profile: Standard

FAQs

They are exactly the same product in every way, with the same dimensions and fixing positions etc. The only difference with the Enfield bolts, is that you can purchase them keyed alike for multiple garages. Whereas the ASEC bolts are only available in single pairs, the Enfield bolts can be purchased in pairs, fours, sixes etc, so the same key will operate all the locks if you have 2, 3 or 4 plus garages.

Yes you can, only if you call us before the first order and mention you would like to continue using the same key number in the future. This way, we can pick out a pair of locks for you and issue you with a key profile number, then in the future, you can call us and state you number and we can supply them on the same suite for you.

If you only order a pair to begin with and don’t mention continuing the key suite,

We will dispatch a single pair of locks which have a unique key profile, therefore cannot be keyed alike to in the future.

The Long D613 garage door bolts are specifically designed for thicker installations and are suitable for garage doors with a thickness of up to 60mm.

Yes, these locks are designed for dual-side operation, allowing you to secure or open your garage door from either side for added convenience and security.

The set includes three extended, four-sided "cruciform" keys. These high-security keys are designed with a longer length to ensure they can easily reach through thicker doors to operate the locking mechanism.

Each unit features a 70mm throw bolt manufactured from molybdenum-steel. This material is chosen for its high strength and resistance to cutting, providing a robust physical barrier against intruders.
