skip to Lowe & Fletcher Small locking T Handle

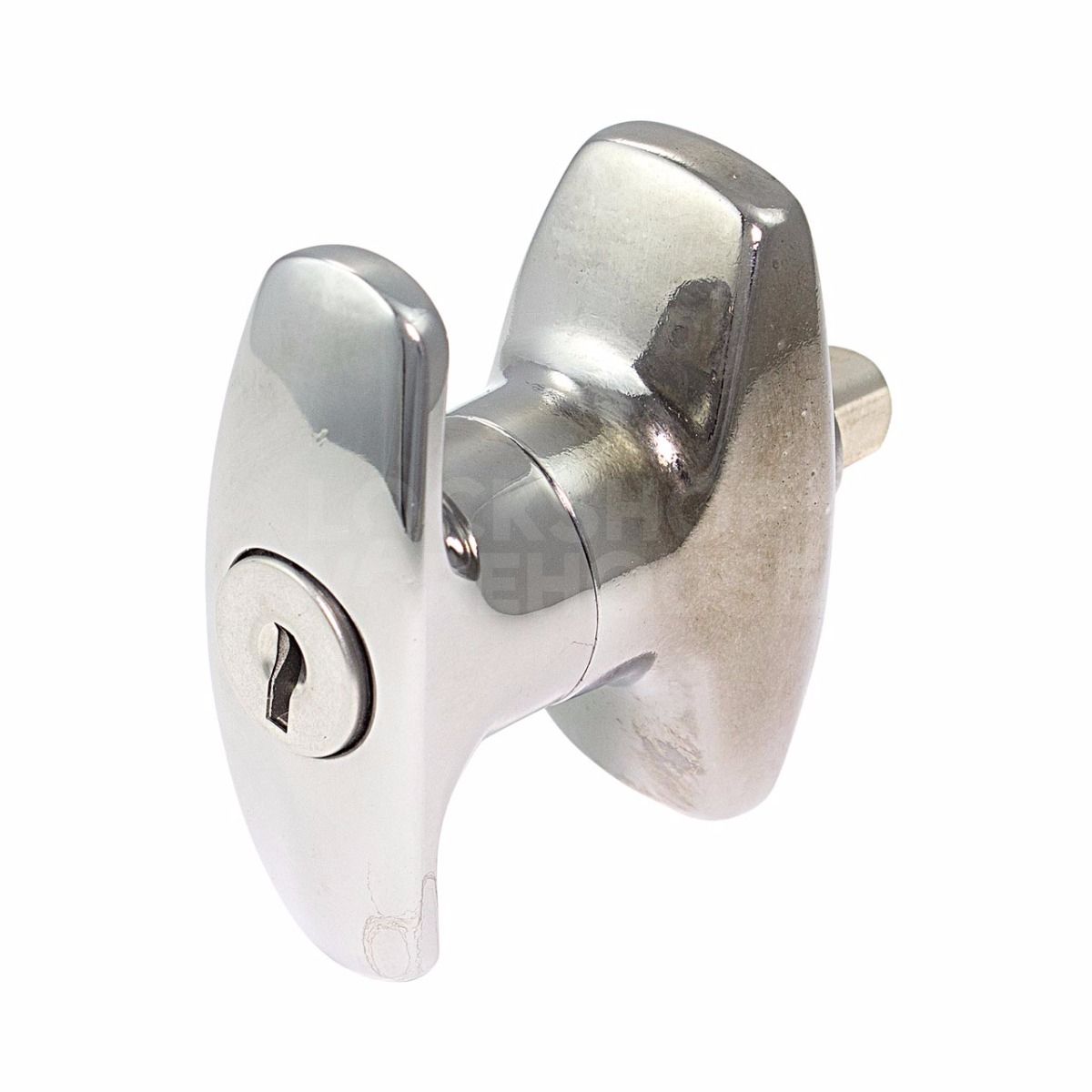

Lowe & Fletcher Small locking T Handle

£23.99

(£19.99 ex VAT)

sku: LF1601-18
  • Key-operated deadlocking mechanism for enhanced security
  • Ergonomic T-handle design ensures ease of operation
  • Standard 38mm bolt fixing centres for versatile installation
  • Compatible with various garage door and enclosure locking systems
  • Provides a secure external interface for internal latches
  • Supplied with two keys as standard

Model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

3/10 Security Rating
tick Key Profile: Standard

The Lowe & Fletcher Small Locking T-Handle is a functional security component designed for garage doors, industrial cabinets, and metal enclosures. It serves as an external interface to operate internal locking mechanisms, providing a secure point of access that is deadlocked by a central key cylinder.

Typically used as a replacement part for worn or damaged handles, this unit is engineered for reliability in both residential and light commercial environments. The T-handle shape allows for high leverage when turning, making it suitable for doors that may require significant force to engage internal latches. Its standard fixing centres ensure it can be retrofitted to many existing door preparations without extensive modification.

  • Functionality: The handle rotates to engage or disengage internal bars or cams, with the key preventing rotation when locked.
  • Applications: Widely used on up-and-over garage doors, side-hinged doors, and secure equipment lockers.
  • Compatibility: Designed to work with standard spindle-driven locking systems, with bolt centres that match common industry patterns.

This handle is an essential part of a complete security setup, offering a robust physical barrier. It is supplied with two keys, allowing for immediate use upon installation.

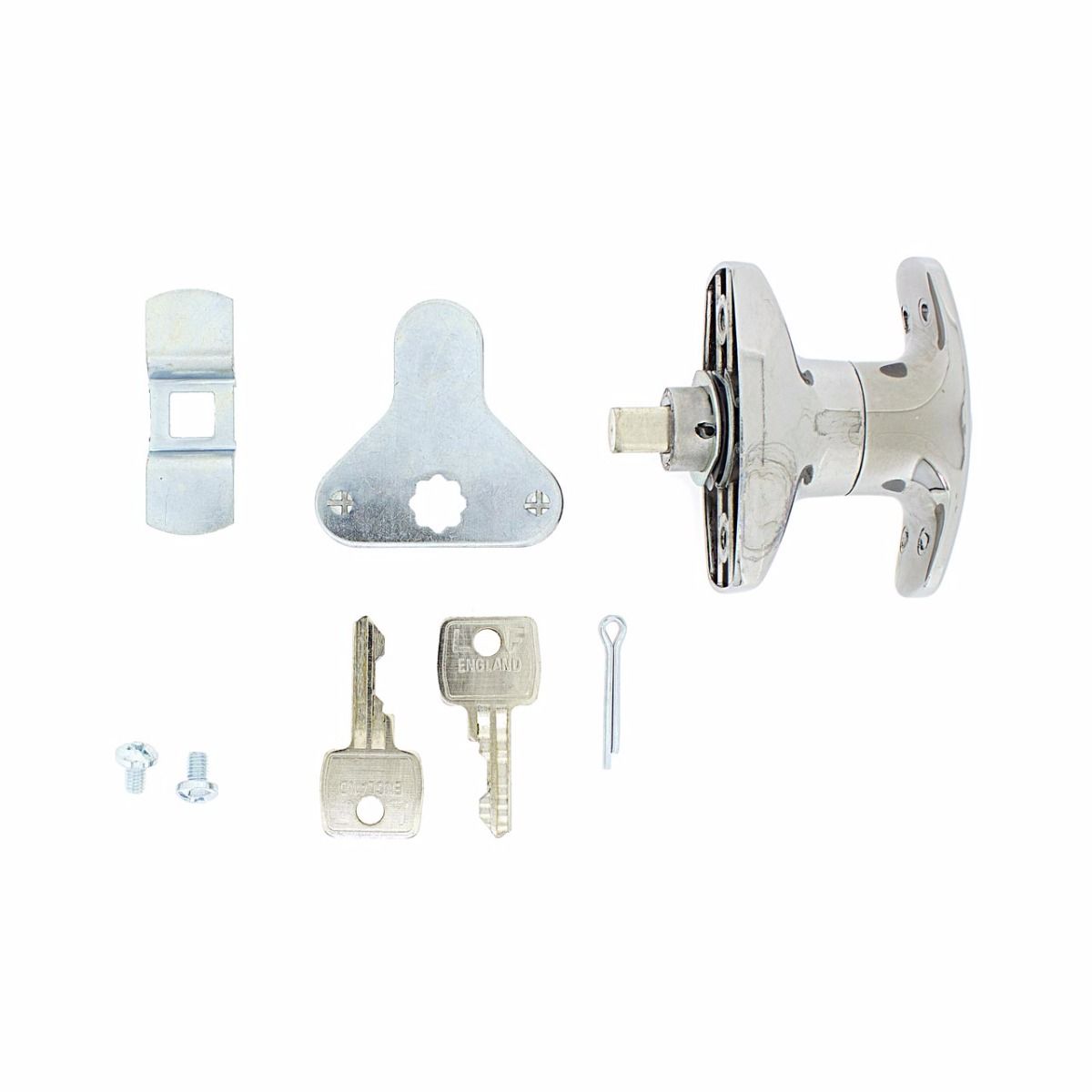

Dimensions Image: Lowe & Fletcher Small locking T Handle

Brand

SKU

LF1601-18

Box Contents

2 keys

handles

Key Profile

Key Profile: Standard

FAQs

The handle size is 60mm x 24mm with a 43mm projection. The mounting backplate measures 58mm x 30mm, and the fixing bolt centres are spaced at 38mm.

The handle is deadlocked using a key, preventing it from being turned when secured. Each unit is supplied with two keys as standard.

This product is available with two different spindle types to match your existing hardware:

  • 1601 model: Features an 8mm square spindle with a 20mm length.
  • 1618 model: Features a 60mm threaded bar and comes complete with a caulking cam.

The handle features a polished chrome-plated finish. This provides a clean aesthetic while offering the necessary resistance for use on garage doors.
