skip to Union CodeGuard 5 digit Codelock - BS8607

Union CodeGuard 5 digit Codelock - BS8607

£419.99

(£349.99 ex VAT)

sku: Un-CodeGuard

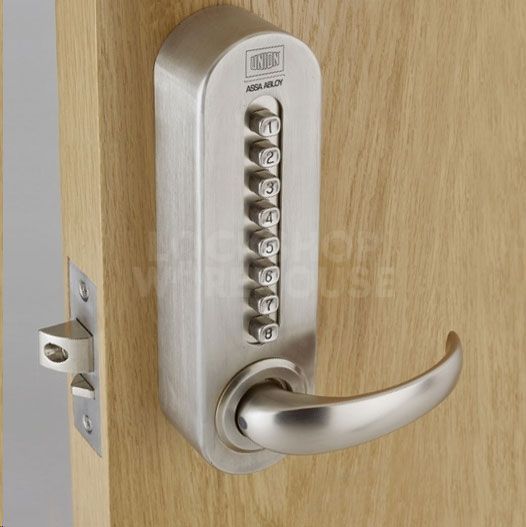

The UNION CodeGUARD 5 is a mechanical push-button lock for controlled entry on suitable timber or metal doors. Its lever handles and supplied deadlocking latch form the assembly tested to BS 8607 Grade 5, rather than relying on an unrelated existing latch.

  • Mechanical shared-code entry with no batteries or wiring
  • Ergonomic lever handles and an automatic deadlocking latch
  • Non-handed arrangement for left- or right-hand doors

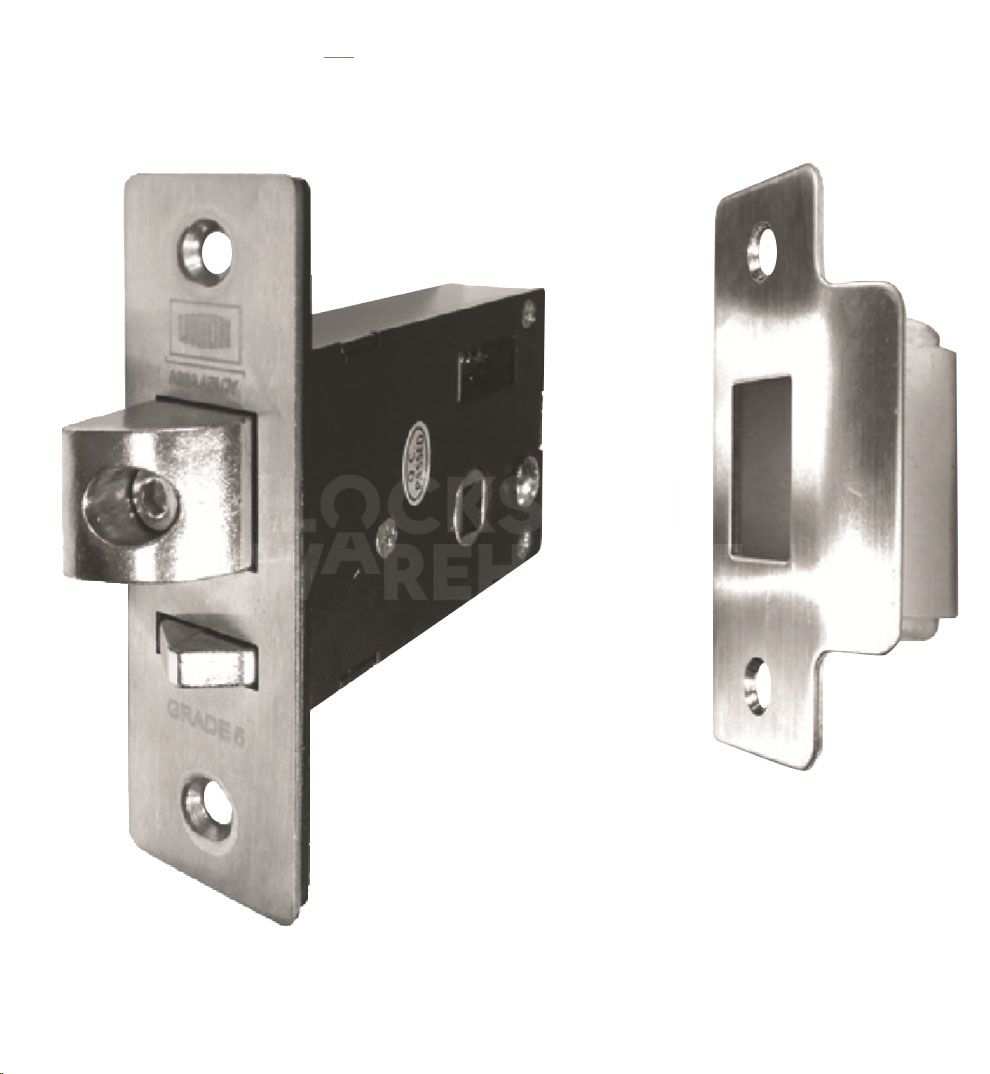

  • Supplied latch, strike plate and through-fixings
  • Secured by Design accreditation and Kitemarked BS 8607 Grade 5 performance

For a fire-door installation, use the applicable assessment and required fitting kit for the complete door assembly.

Document Icon product info
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Weather Resistant
Recommended
Heavy Duty
10/10 Security Rating
3 Year Guarantee
British Standard - EN 1634 - 1
British Standard - EN 12209
BS8607 - Grade 5
Fire Rated: FD60

A tested lock-and-latch assembly

CodeGUARD 5 combines its keypad and automatic deadlocking latch in the BS 8607 Grade 5 tested assembly. That is different from adding a code-operated handle to an unrelated lockcase. For a replacement or fire-door application, match the complete assembly and the appropriate fitting assessment, not just the outside keypad.

Fitting and setup

  • Measure the door thickness, backset and existing fixing positions against the exact model drawing.
  • Set the new code and test the outside control, inside operation and latch engagement with the door open before closing it.

Product support

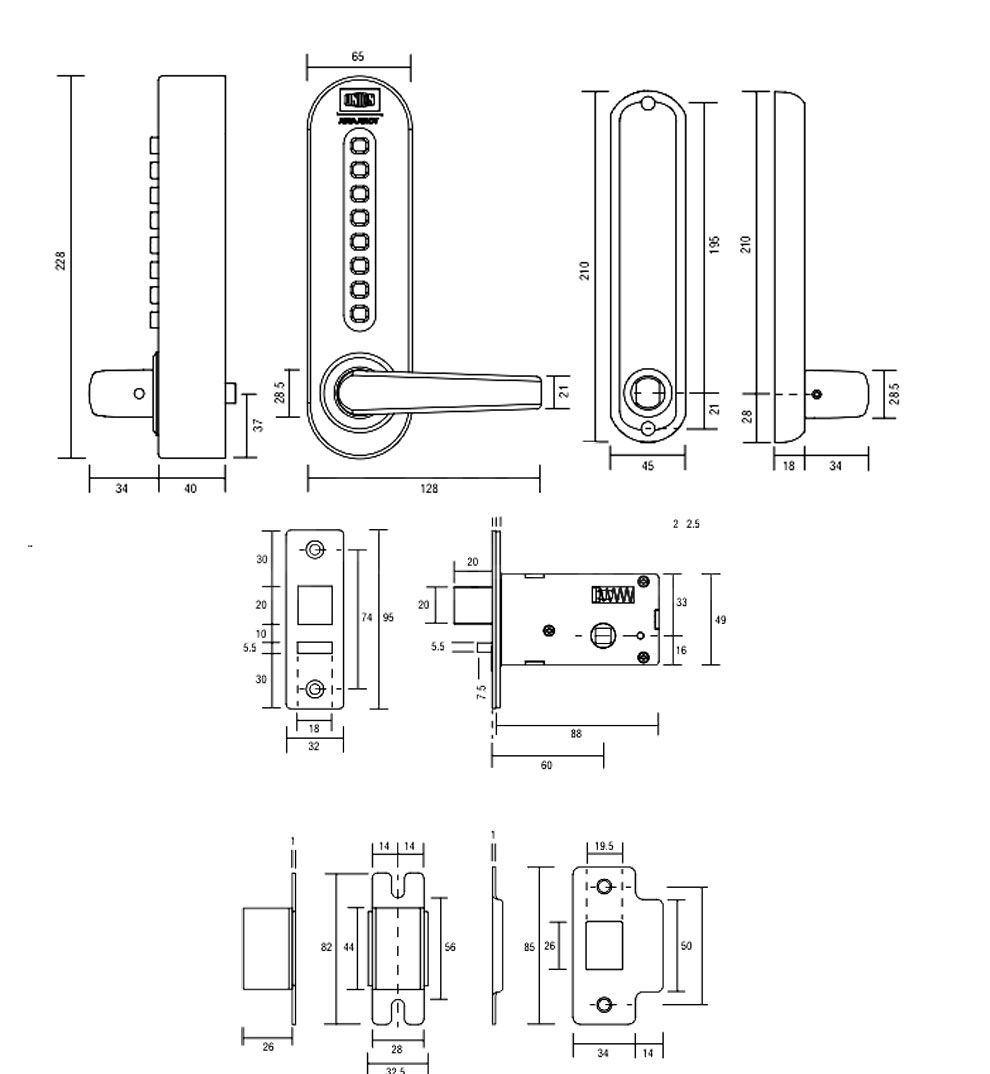

Dimensions Image: Union CodeGuard 5 digit Codelock - BS8607

Brand

SKU

Un-CodeGuard

Certifications

british-standard British Standard - EN 1634 - 1
british-standard British Standard - EN 12209
tick BS8607 - Grade 5

Fire Rating

Fire Rated: FD60

FAQs

Yes, this digital lock is suitable for fire doors, providing 30 and 60 minutes of fire resistance on timber doors and up to 240 minutes on metal doors. Note that an intumescent kit is required when installing on timber fire doors.

The CodeGuard 5 features over 2,000 potential combinations. To enhance security out of the box, each lock is issued with its own individual unique code to deter opportunists before a custom code is set.

CodeGUARD 5 is Kitemarked to BS 8607 Grade 5 for its mechanical push-button lock assembly and has Secured by Design accreditation. BS 8607 is the relevant standard here; it should not be described as BS EN 8607 or as a blanket substitute for a separate BS 3621 requirement.

The CodeGuard 5 is highly versatile and can be installed on both timber and metal doors. It features a non-handed design suitable for either left or right-handed applications and is supplied with all necessary fixings and a latch.
