WINKHAUS AV2 Auto Locking Lever Operated Latch & Deadbolt 20mm Radius - 2 Hook - TIMBER DOORS

Hooks on this lock are automatically engaged as the door is closed without needing to lift the handle. The handle will retract the hooks from the inside and a further turn of the key deadlocks the door.

To transform this multipoint lock into an electronic locking solution, simply attach the 12V DC Winkhaus AV2 motor (available separately) and connect using the Winkhaus AV2 cable to the wide range of Winkhaus access control products available.

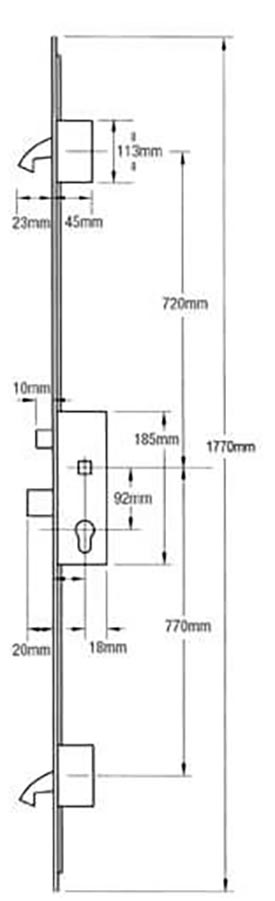

Backset: 35mm 45mm or 55mm.

Centres: 92mm.

Faceplate: Rounded 20mm

Operation: Automatic Locking.

Latch Reversal: Handed - Non Reversible See Attached Handing Chart.

NO KEEPS ARE SUPPLIED WITH THIS LOCK - Keeps purchased below if required.
