skip to Yale X5 Rim Cylinder

Yale X5 Rim Cylinder

£23.99

(£19.99 ex VAT)

sku: YaleX5

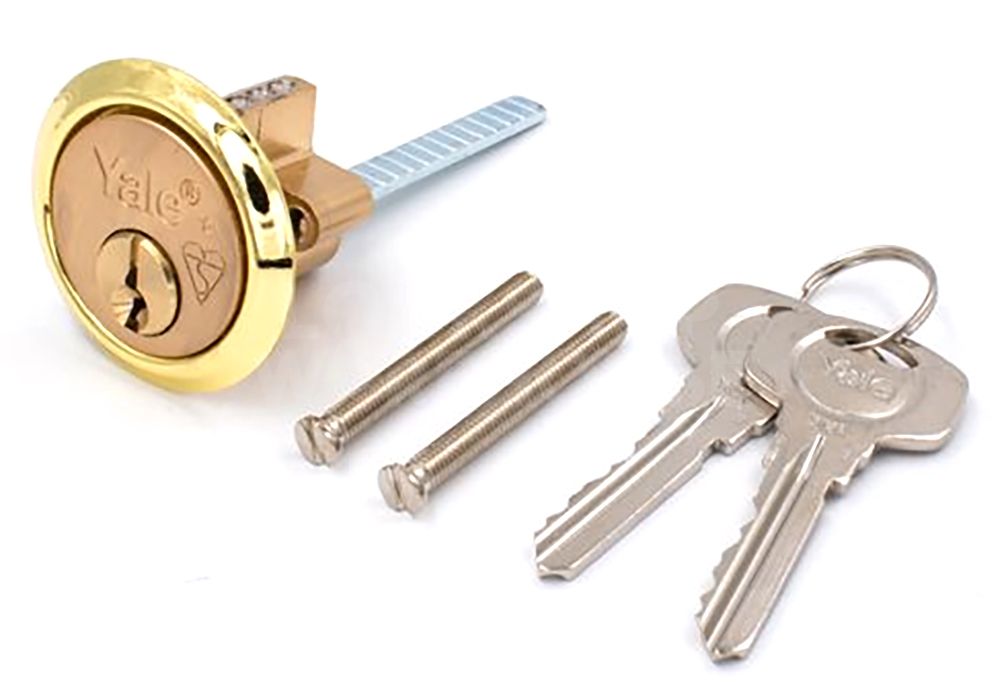

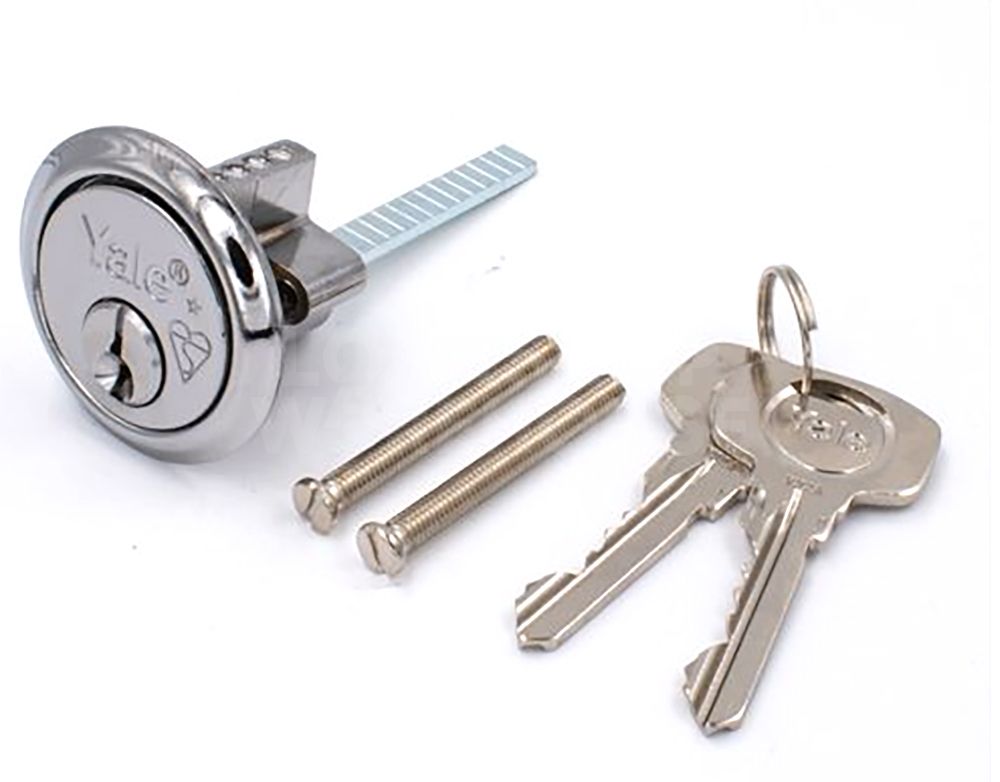

The Yale X5 is a 6 pin replacement rim cylinder with BSI Kitemark, TSA007 1 Star and Secured by Design (Police approved specification). It is suitable for doors between 38mm and 57mm thick and is compatible with any brand of nightlatch.

Key Configuration

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
7/10 Security Rating
british-standard British Standard - KM532920
cen-5 CEN 5
tick TS007-2014
tick Key Profile: 6 Pin
tick Key Profile: Standard

Features

  • Secured by Design (SBD licence held by Yale Door & Window Solutions)
  • BSI Kitemark approved KM532920
  • Anti pick and anti saw features with hardened pins to protect the lock
  • Exceeds Cen5 EN1303: 2005
  • Over 100,000 key combinations
  • 6 pin cylinder

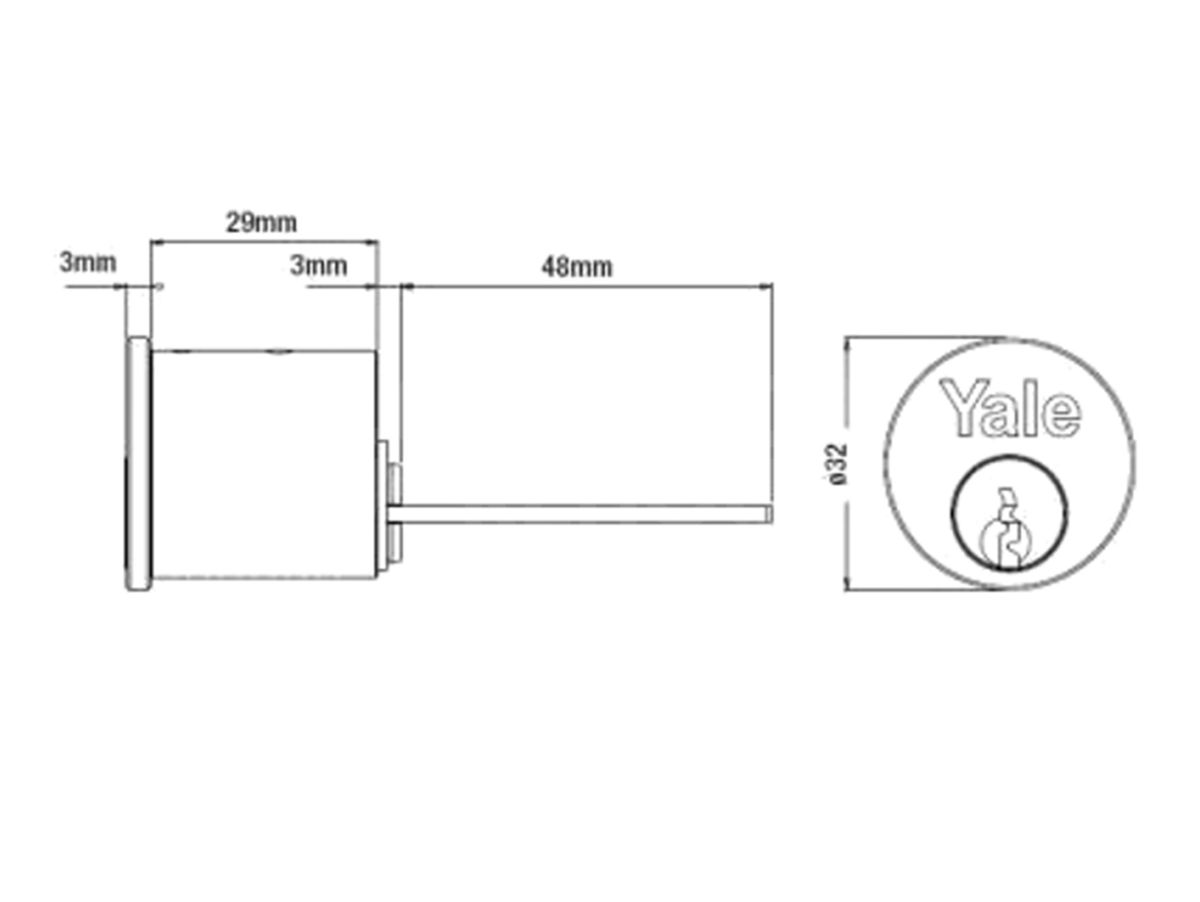

Dimensions Image: Yale X5 Rim Cylinder
Dimensions Image: Yale X5 Rim Cylinder

Brand

SKU

YaleX5

Box Contents

2 keys

fixing screws

rim cylinder

Certifications

british-standard British Standard - KM532920
cen-5 CEN 5
tick TS007-2014

Key Profile

Key Profile: 6 Pin
Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes, the UK rim cylinders are all a standard size and will fit all rim night latch style locks. The only exception is the Ingersoll SC1 cylinder as this is a larger unit with different fixing positions. Most locks will need the tailbar to be chopped down to match the old cylinder tailbar length. If the tailbar is too long it can cause the lock to bind and be tight when turning the key.

Yes, we do sell the finger pulls for these cylinders. They fit in behind the cylinder and act as a finger pull to pull the door closed behind you. If you need one of these you can find it in our door furniture section under pull handles and finger plates.

Yes, the Yale X5 is a universal replacement rim cylinder designed to be compatible with any brand of nightlatch. It is an ideal choice for upgrading the security of your existing door hardware.

This rim cylinder is suitable for standard timber doors with a thickness between 38mm and 57mm.

The Yale X5 is engineered with high-security features to resist common attack methods, including:

  • Anti-pick and anti-saw protection
  • Hardened pins to protect the cylinder mechanism
  • A 6-pin configuration providing over 100,000 key combinations

Yes, the Yale X5 holds the Secured by Design (Police approved specification) license. Additionally, it is BSI Kitemark approved and TSA007 1 Star rated, ensuring it meets high industry standards for home security.
