ABT Gibbons Lever Operated Latch & Deadbolt Centre Case - 32/85-48

£87.36

(£72.80 ex VAT)

sku: ABT31GB
  • Twin spindle latch and deadbolt operation
  • 31mm backset with 85mm and 48mm centres
  • Features an integrated anti-thrust snib for added security
  • Fully reversible latch bolt for flexible door handing
  • Designed for aluminium or steel door multipoint systems
  • Durable Euro profile lock case construction
  • Includes threaded brackets for secure installation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The ABT GIBBONS Lever Operated Latch & Deadbolt Centre Case is a high-performance replacement gearbox designed for multipoint locking systems, commonly found on aluminium and steel doors. It features a 31mm backset with dual 85mm and 48mm centres, providing compatibility with various hardware setups.

This centre case is built with a twin spindle mechanism and a reversible latch bolt. Handing can be easily adjusted by removing the Allen screw on the side of the lockcase, flipping the latch, and re-securing the screw. The inclusion of an anti-thrust snib provides an extra layer of protection against forced entry.

  • Case Height: 146mm
  • Case Width: 48mm
  • Faceplate Width: 20mm
  • Locking Operation: Lift lever to engage mechanisms and turn cylinder to lock.

Engineered for reliability, this Euro profile lock case is an ideal choice for maintaining or upgrading existing commercial and residential door security systems.

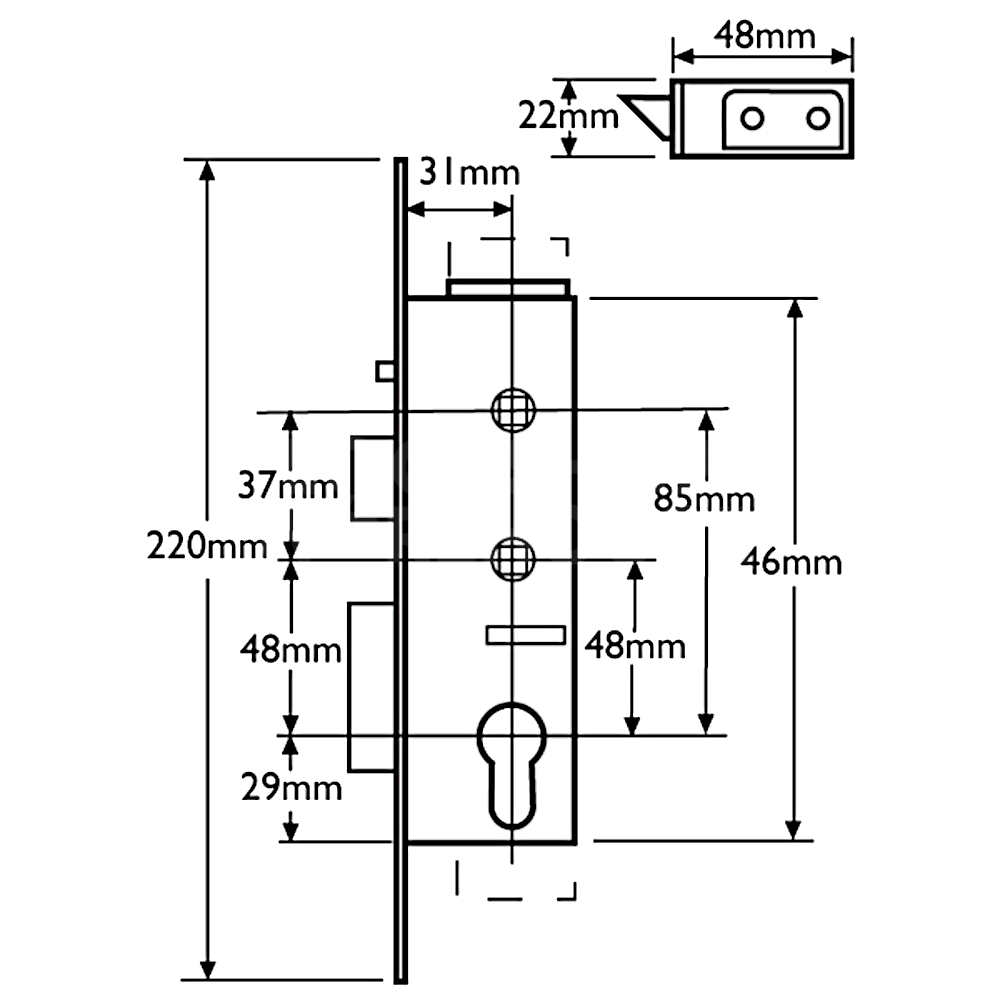

Dimensions Image: ABT Gibbons Lever Operated Latch & Deadbolt Centre Case - 32/85-48
Part Size (mm)
Backset 31
Case Width 48
Case Height 146
Faceplate Width 20

FAQs

The ABT Gibbons Lever Operated Latch & Deadbolt Centre Case is specifically engineered for use with multipoint locking systems on aluminium and steel doors. It is a durable replacement gearbox suitable for both commercial and residential applications.

Yes, this lock case features a fully reversible latch bolt. To change the handing, you simply remove the Allen screw located on the side of the lockcase, flip the latch bolt to the required orientation, and then re-secure the screw.

To ensure this replacement part fits your door, you should verify the following measurements:

  • Backset: 31mm
  • Centres: 85mm and 48mm (twin spindle configuration)
  • Case Height: 146mm
  • Case Width: 48mm

This is a lever-operated gearbox. To engage the locking points, you must lift the door handle upwards. Once the mechanisms are engaged, you turn the key in the Euro profile cylinder to lock the deadbolt and secure the door.
