White

Black

Ajax TurretCam IP Camera in white

Ajax TurretCam IP Camera in black

Weather Resistant

Ajax TurretCam IP Camera

Name: Ajax TurretCam IP Camera
Brand: Ajax
SKU: AJAX-TURRETCAM-5MP-28

£149.95

(£124.96 ex VAT)

sku: AJAX-TURRETCAM-5MP-28

Keep a clear view of your entrance, driveway or workspace in the Ajax app. TurretCam combines a compact design with intelligent detection, so your cameras fit naturally into the wider security system.

5 MP or 8 MP (4K) video, depending on the model
Fixed 2.8 mm wide-angle or 4 mm more focused lens
Recognises people, pets and vehicles
Infrared illumination up to 50 metres
Wired Ethernet with PoE or 12 V DC power

Available in black and white.

Recording storage and a suitable power source are required separately.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Weather Resistant

A clearer picture.
A cleaner design.

TurretCam pairs detailed video with a clean, compact design that feels at home on your property.

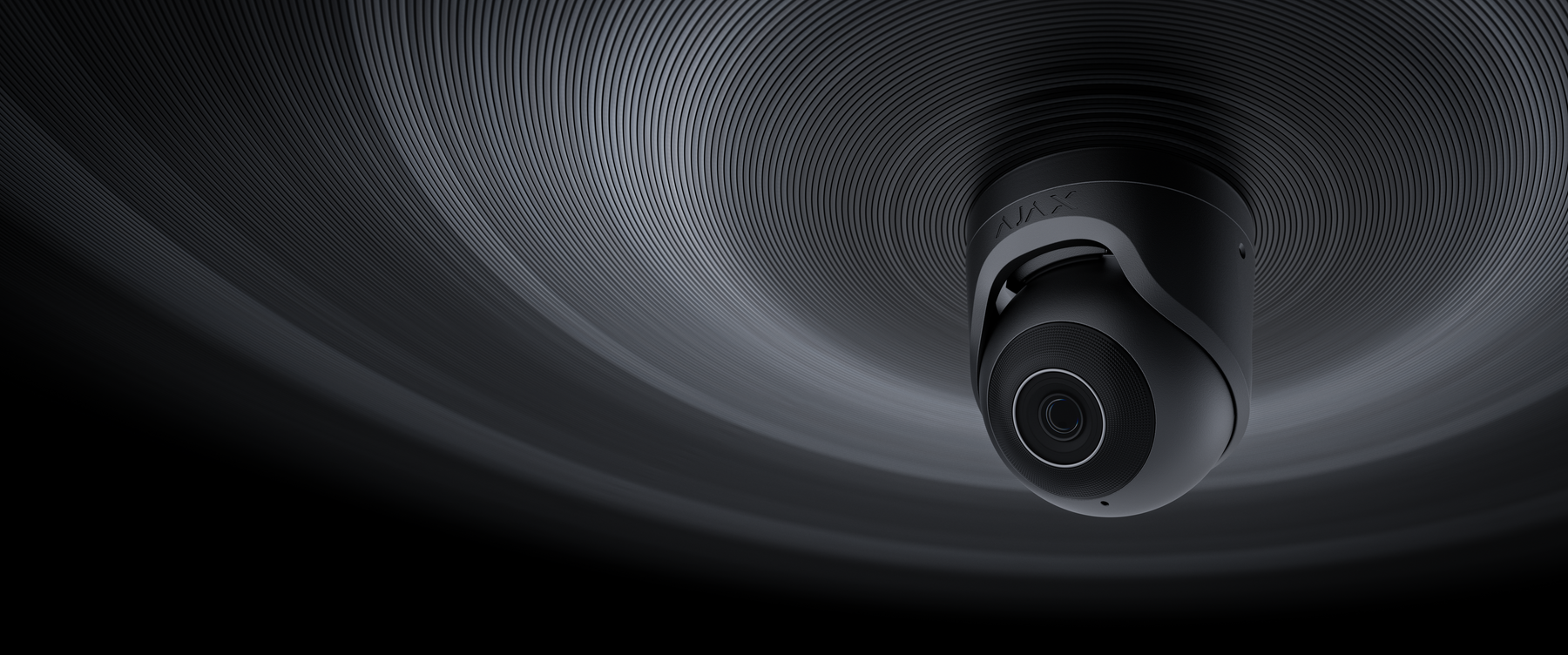

Black Ajax TurretCam mounted against a sculpted ceiling

Your whole property. In one view.

See the front door, driveway and garden together instead of opening each camera in turn. Arrange the Ajax video wall around the views that matter to you, and check them from a compatible phone, computer or TV app.

Detail where you need it.

The 5 MP models capture up to 2880 x 1620 pixels; the 8 MP models record up to 3840 x 2160 pixels (4K). True WDR balances bright and dark areas, helping you see detail around sunlit entrances and shaded doorways.

More pixels can help when examining recorded detail, but lighting, placement and distance still matter. Each model has a fixed lens, not an adjustable optical zoom.

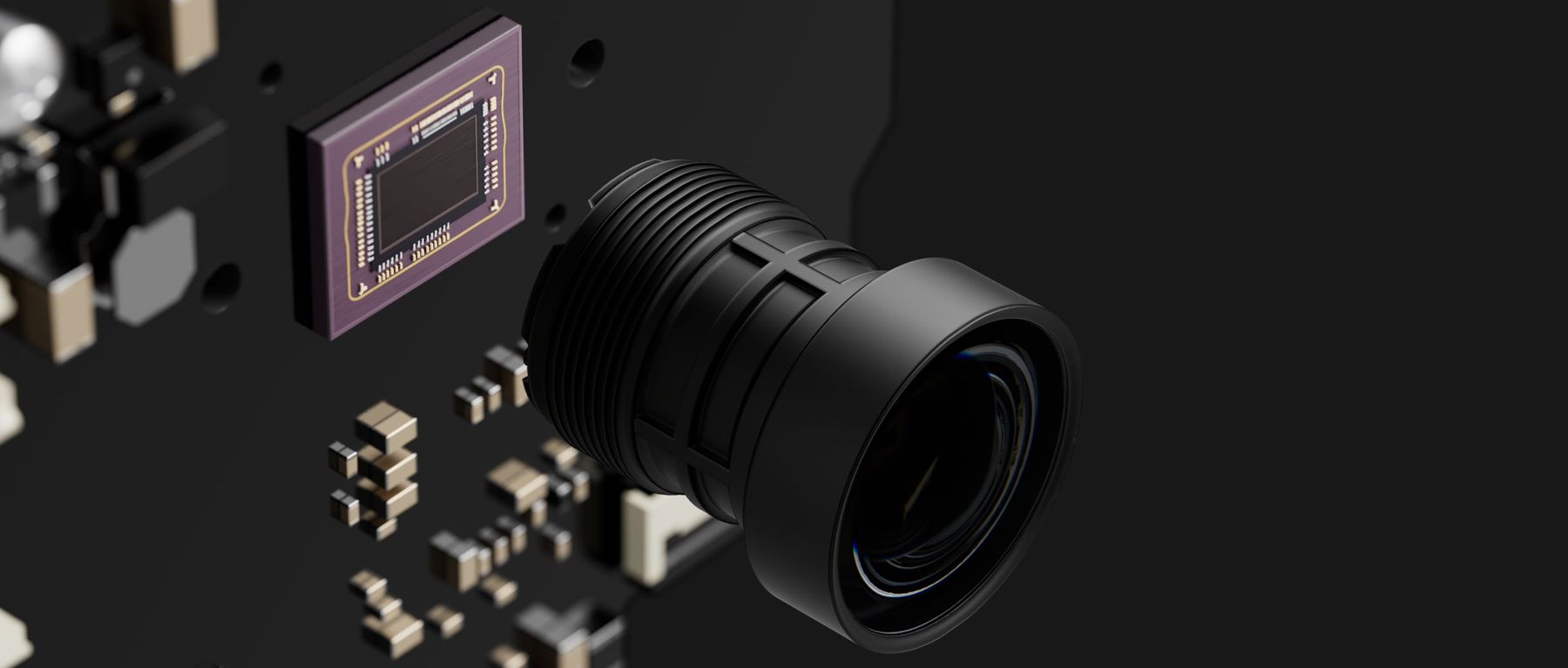

Exploded view of the Ajax TurretCam lens and CMOS sensor

Choose the view, not just the camera.

The 2.8 mm lens covers a broad 100-110 degree horizontal view. The 4 mm lens gives a more focused 75-85 degree view, useful for a gate, path or particular approach. Mounting height and distance affect the detail you can make out.

Ajax's animation compares the fixed lenses across the range. Resolution and lens size are separate choices within each model specification.

Find the right view. Other camera formats.

Ajax TurretCam HL IP Camera

From £184.75

Ajax TurretCam HLVF IP Camera

From £329.95

Ajax BulletCam IP Camera

From £149.95

Ajax DomeCam Mini IP Camera

From £149.95

Keep a clear view after dark.

Infrared illumination reaches up to 50 metres. Smart IR adjusts its intensity to help prevent nearby subjects from looking washed out.

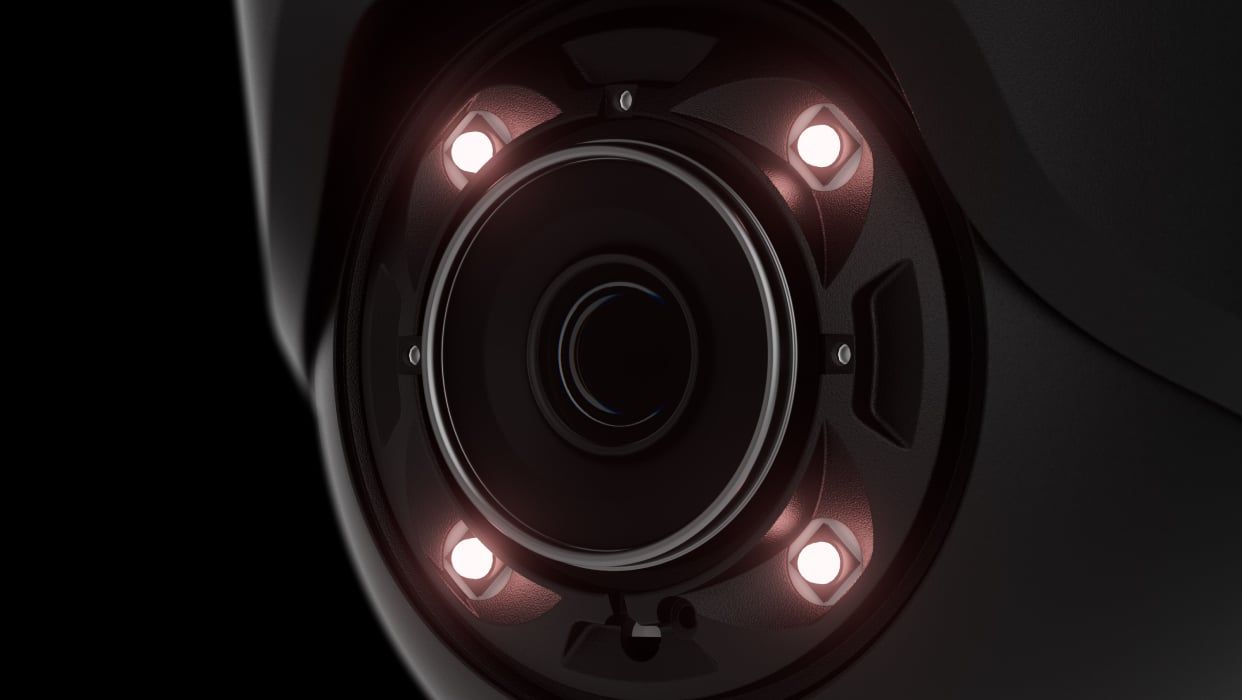

TurretCam infrared emitters around the lens

Find the moment that matters.

People, pets and vehicles can be recognised by the camera. Use event filters and detection areas to focus on activity you care about, with privacy zones to mask parts of the picture.

Watch Ajax's camera demonstration. It covers the wired camera range, including the shared app and recording features.

Keep private areas private.

Mask a neighbouring window or another area you do not want recorded. Privacy zones hide parts of the picture; detection zones separately define where the camera should look for movement.

You control who can view video, recordings and settings. Ajax supports two-factor authentication and session control, while encrypted communication and passwordless camera authentication avoid relying on a factory-default camera password.

Considered on the outside.
Capable on the inside.

The metal enclosure is rated IP66 for weather protection and IK08 for impact resistance. Beneath it are the infrared lighting, microphone and removable recording storage that make TurretCam more than a simple live view.

Wired Ethernet keeps the connection straightforward. Use compatible PoE equipment for power and data over one cable, or a suitable separate 12 V DC, 1 A supply.

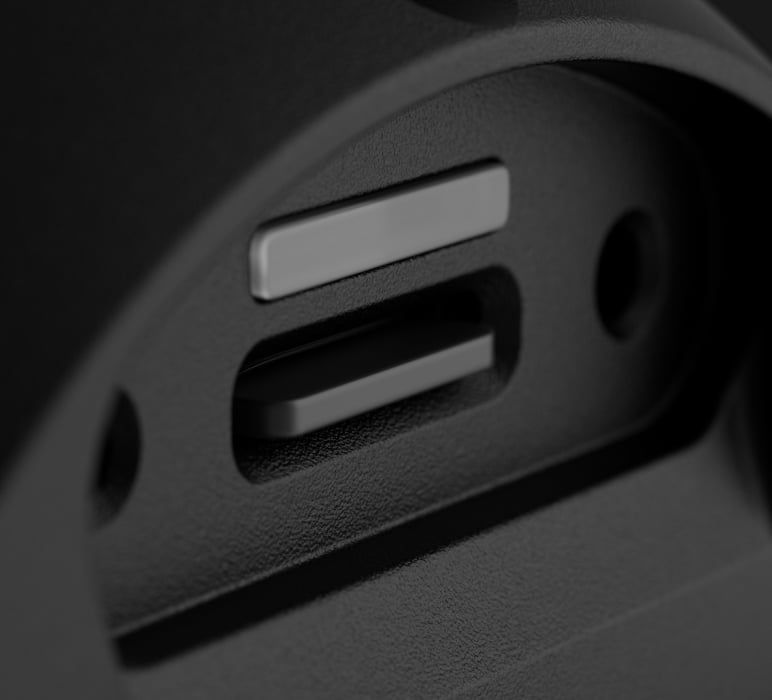

Local storage

Keep recordings close.

Record to a microSD card up to 256 GB, Class V30 or faster, or a compatible Ajax NVR. The memory card and recorder are sold separately.

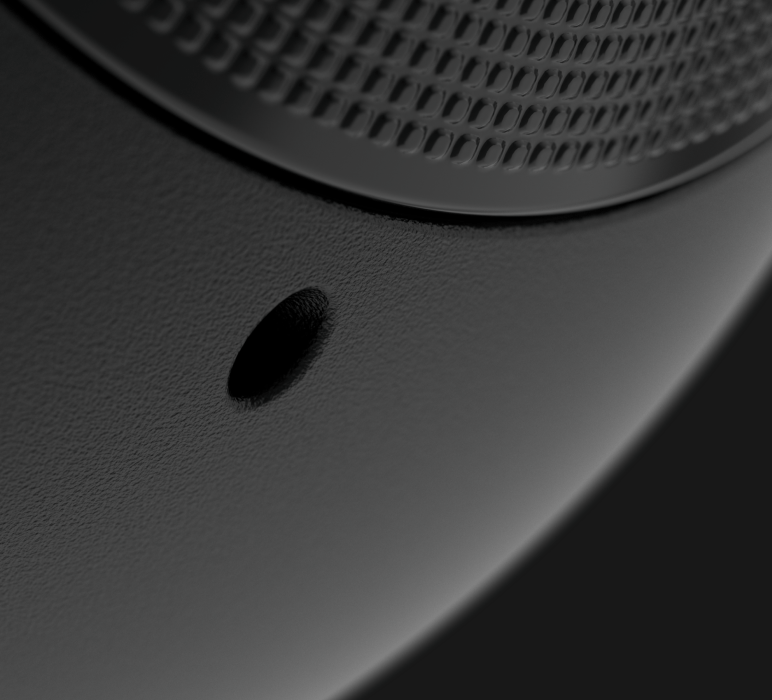

Built-in microphone

Hear what happened.

Enable audio recording to add sound to the scene. TurretCam has a microphone, not a two-way intercom; recording and access settings remain in your control.

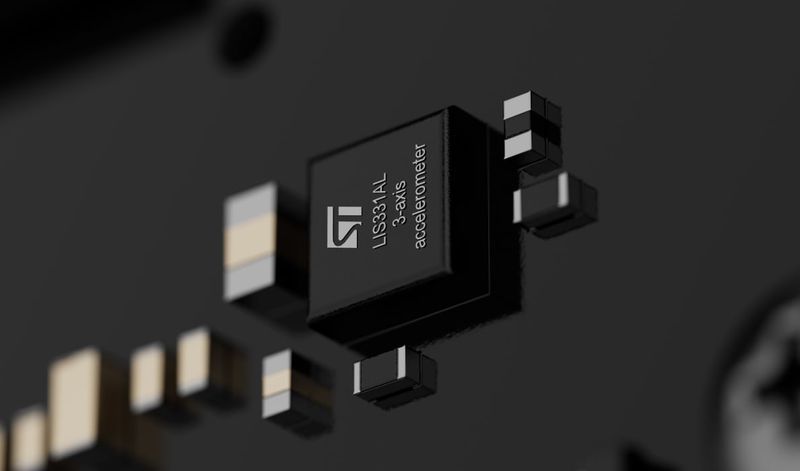

Tamper awareness

Know if it is disturbed.

A built-in accelerometer reports impacts and dismantling attempts, helping you spot interference with the camera rather than relying on the picture alone.

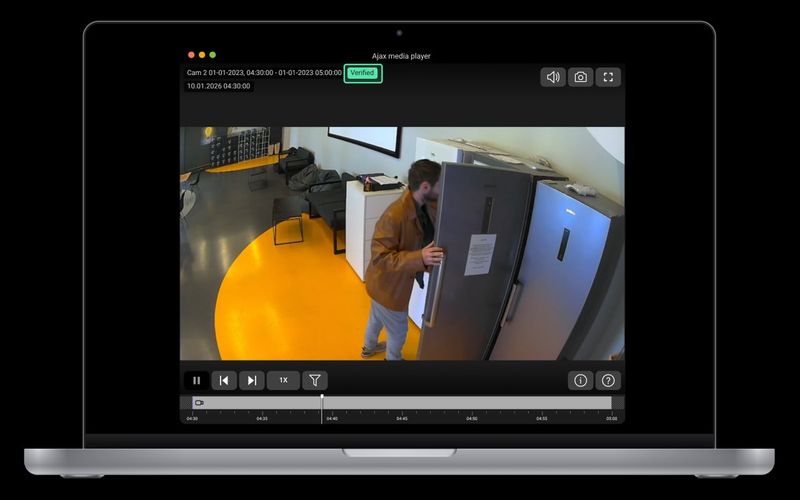

Verified exports

Keep a clip you can verify.

Export the relevant moment from the archive without sharing hours of footage. Ajax digitally signs supported video exports, and Ajax Media Player can check their authenticity and identify modification. This verifies the file rather than guaranteeing its legal admissibility.

Make the recordings useful.

Jump from a detected event to its footage, rather than searching through hours of video. Ajax's JetSparrow technology connects cameras, recordings and the app for responsive live views and archive navigation.

The diagram shows video and account connections, not the physical PoE wiring. Camera power, cabling and storage are covered in the fitting guide below.

Current 5 MP / 2.8 mm specifications Ajax TurretCam user manual Current 5 MP / 4 mm specifications Current 8 MP / 2.8 mm specifications Current 8 MP / 4 mm specifications

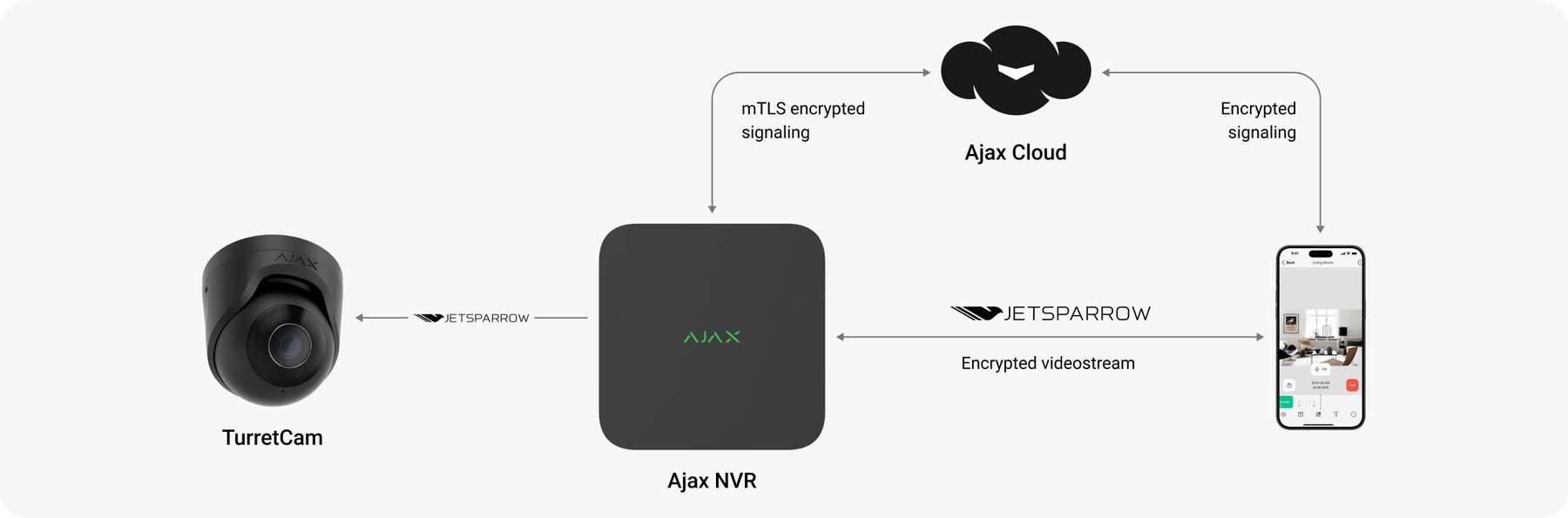

Ajax communication diagram: TurretCam, Ajax NVR, Ajax Cloud and the app, with encrypted video and signalling. Separate PoE power and Ethernet equipment are not shown.

Recording options. Match the way you use them.

These are alternative ways to add a shared video archive, not equipment needed together. Match the choice to local viewing, storage and camera power requirements. Hard drives are supplied separately.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.
	Ajax NVR Network Video Recorder View product	Ajax NVR HAC HDMI Network Video Recorder View product	Ajax NVR H2D Dual-Drive Video Recorder View product
Price Including VAT	From £244.75	From £284.95	From £399.95
Camera channels	8 or 16 channels (model dependent)	8 or 16 channels (model dependent)	8 or 16 channels (model dependent)
Viewing output	Ajax app; no HDMI output	HDMI, up to 1920 x 1080	HDMI; output resolution depends on model and viewing mode
Recording storage	One SATA drive, up to 16 TB; drive not included	One SATA drive, up to 16 TB; drive not included	Two hot-swappable SATA drives, up to 16 TB each; drives not included
Available models	8 Channels 16 Channels	8 Channels 16 Channels	8 Channels / No PoE 16 Channels / No PoE 8 Channels / 8 PoE Ports 16 Channels / 8 PoE Ports 16 Channels / 16 PoE Ports
Recorder power	110-240 V AC	110-240 V AC	110-240 V AC
Network connection	Ethernet up to 1 Gbps	Ethernet up to 1 Gbps	Ethernet up to 1 Gbps
Size (W x H x D)	193 x 47 x 193 (mm)	212 x 64 x 212 (mm)	330 x 44 x 330 (mm)

What you need. Fitting and setup.

Before installation

Plan a Cat6 Ethernet cable run to the back of each camera. For PoE, connect the other end to a compatible PoE NVR camera port or a PoE switch connected to your network. A suitable PoE injector is another option.
Without PoE, the camera needs its specified 12 V DC, 1 A supply as well as the Ethernet connection. Standard Ajax NVR and NVR H recorders do not supply camera PoE power.
For recordings, add a compatible microSD card or a network recorder with a suitable drive. Recording storage, network cabling and power equipment are separate requirements. Recording time depends on the storage capacity and video settings.

Fitting and setup

Check the view and cable route before fixing the camera. Use suitable fixings, protect external connections with the specified waterproof connector and seal cable entries. Add the camera to the Ajax app, adjust its view, configure recording and detection areas, and test day and night coverage.

An Ajax alarm hub is optional for linked alarm features; it does not replace the camera power supply or video recorder.

Power and network equipment

For one camera on an existing non-PoE network, the Grandstream injector provides active PoE+ power: connect the network to its LAN input and the camera to its PoE output. For several cameras, a suitable Uniview or Reyee PoE switch provides powered camera ports and a separate network uplink.

Use one suitable power route, not an injector and a PoE switch for the same camera. Match the camera's PoE requirement and maximum power demand, both per port and against the switch's shared budget. Keep the switch or injector indoors; outdoor cameras still need protected connections and suitable cable routing.

Finish the installation. Power and mounting.

The power options below are alternatives, not equipment needed together. An injector powers one camera; a PoE switch supports several. Mounts and junction boxes are separate optional accessories with model-specific compatibility.

Ajax MountCam Camera Wall Mount

Short- and long-arm wall mounts with model-specific camera compatibility.

Ajax JunctionBox Camera Mounting Box

A neat mounting point and protected cable connection for compatible Ajax wired cameras.

Uniview 4-Port Gigabit Cloud Managed PoE Switch

A compact four-camera network switch with Gigabit connections, a 65W PoE budget and web or cloud management.

Uniview 8-Port Gigabit Cloud Managed PoE Switch

Eight Gigabit PoE camera connections with a 120W shared power budget, web management and copper or SFP uplinks.

Reyee 4-Port Gigabit Smart Cloud Managed PoE Switch

Four Gigabit PoE connections and a 54W shared budget, with Reyee cloud management for compact camera networks.

Grandstream 30W Active PoE+ Injector

Add standards-compliant PoE+ power to a single compatible camera using an existing non-PoE network connection.

Need help choosing the lens, placement or recording setup? Contact our team before ordering. Lockshop Warehouse is an accredited Ajax partner.

Part	Size (mm)
width	98
Height	103
Depth	98

Brand

SKU

AJAX-TURRETCAM-5MP-28

Built - In Microphone

Yes

Lens Focal Length

Fixed 2.8 mm or 4 mm (model dependent)

Infrared Range

Up to 50 m

Network Connection

Ethernet 10/100 Mbps

Object Detection

People, pets and vehicles

Dynamic Range

True WDR, 120 dB

Power Supply

PoE (802.3at/af) or 12 V DC, 1 A

Recording Storage

microSD up to 256 GB (V30 or faster), compatible NVR, or supported cloud service; storage supplied separately

Enclosure Protection

IP66, IK08

FAQs

A fixed lens has a set viewing angle. A motorised varifocal lens allows the focal length to be adjusted within its specified range, helping frame the area being monitored. The available lens range depends on the model.

No. Infrared illumination normally provides monochrome night-time images. Hybrid-light models also offer white-light illumination for colour capture under suitable conditions. Check the exact model's lighting modes and range.

Plan a suitable power supply and supported recording storage. Depending on the camera, this may be a memory card, a compatible NVR or a cloud service. Check the exact camera specification for the available options.

No. This TurretCam uses a wired Ethernet connection. PoE can carry power and data over one cable; alternatively, use Ethernet with a separate suitable 12 V DC supply.

Use a compatible microSD card up to 256 GB (Class V30 or faster), or an Ajax NVR with a hard drive. Storage is separate from the camera. An alarm hub is not a video recorder.

Video and alarm devices can be managed in the same Ajax space and app. Compatible alarm detectors can trigger recording through configured video scenarios. Ask us to check the devices and recording setup for your system.

The 5 MP models record up to 2880 x 1620 pixels; 8 MP records up to 3840 x 2160 pixels (4K). The 2.8 mm lens gives a broad 100-110 degree horizontal view, while the 4 mm lens gives a narrower 75-85 degree view. Resolution affects pixel detail; the fixed lens affects coverage. Placement, lighting and distance matter for both. The model choices show the combinations currently available.

Yes. Infrared illumination is rated up to 50 metres, with automatic intensity adjustment. That is an illumination range, not a guarantee that a face can be identified at that distance.

Yes. Privacy zones mask selected areas of the picture, while motion-detection areas control where movement is monitored. User access to video can also be configured in the Ajax system.

Ajax lists ONVIF Profile G and S conformance and RTSP support. Compatible third-party systems can use those interfaces, but their support for Ajax-specific AI, apps and alarm scenarios varies. Check the complete integration rather than assuming every feature transfers.
