skip to Gatemaster APS Heavy Duty Hydraulic Gate Closer

Gatemaster APS Heavy Duty Hydraulic Gate Closer

£0.00

(£0.00 ex VAT)

sku: GM-APS
  • Hydraulically controlled for smooth, adjustable closing speed
  • Vandal-resistant design mounts discreetly underneath the gate
  • Heavy-duty capacity supports gates weighing up to 150kg
  • No power source required for reliable, maintenance-free operation
  • Integrated design acts as both a closer and a load-bearing hinge
  • Includes a fully adjustable top hinge for perfect gate alignment
  • Self-centering mechanism with 100-degree rotation in both directions
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty

The Gatemaster APS Hydraulic Gate Closer is a premium hardware solution designed for the rigorous demands of school gates, playgrounds, and commercial properties. This kit combines a high-performance hydraulic closer with a durable top hinge to provide a complete and safe closing system.

Built for longevity, the heavy-duty mechanism is mounted beneath the gate, shielding it from potential vandalism and environmental wear. This positioning allows the closer to double as a reliable, load-bearing lower hinge, capable of managing heavy gates up to 150kg. Because it is a purely hydraulic system, no electrical wiring or power supply is required, making installation straightforward and operation highly reliable.

  • Weather Resistant: Engineered with materials that withstand harsh outdoor conditions.
  • Adjustable Positioning: The included top hinge assembly allows for post-installation fine-tuning to ensure the gate hangs perfectly level and closes securely.
  • Safety Focused: Adjustable closing speeds allow for controlled movement, preventing gate slamming and enhancing pedestrian safety.

The APS unit is self-centering and offers a 100° swing in either direction. For installations using the standard model, the use of a physical gate stop is recommended to protect the mechanism from over-rotation beyond its design limits.

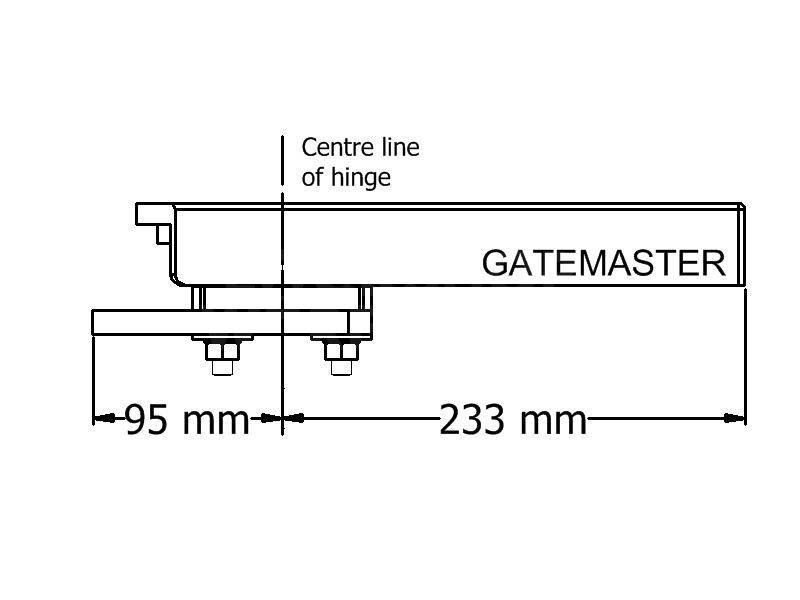

Dimensions Image: Gatemaster APS Heavy Duty Hydraulic Gate Closer

FAQs

The Gatemaster APS is a heavy-duty hydraulic closer capable of supporting gates weighing up to 150kg. Because it is designed to mount underneath the gate, it effectively doubles as a robust, load-bearing lower hinge.

No, this is a purely hydraulic system. It requires no electrical wiring or power supply, providing reliable operation even in remote locations and making it easier to install on existing metal gates.

Yes, the hydraulic mechanism allows for adjustable closing speeds. This ensures a smooth, controlled movement that prevents gate slamming, which is particularly important for safety in environments like schools or public playgrounds.

Yes, the APS unit features a self-centering mechanism with 100-degree rotation in both directions. To ensure the longevity of the closer, it is recommended to install a physical gate stop to prevent the gate from being pushed beyond its 100-degree design limit.
