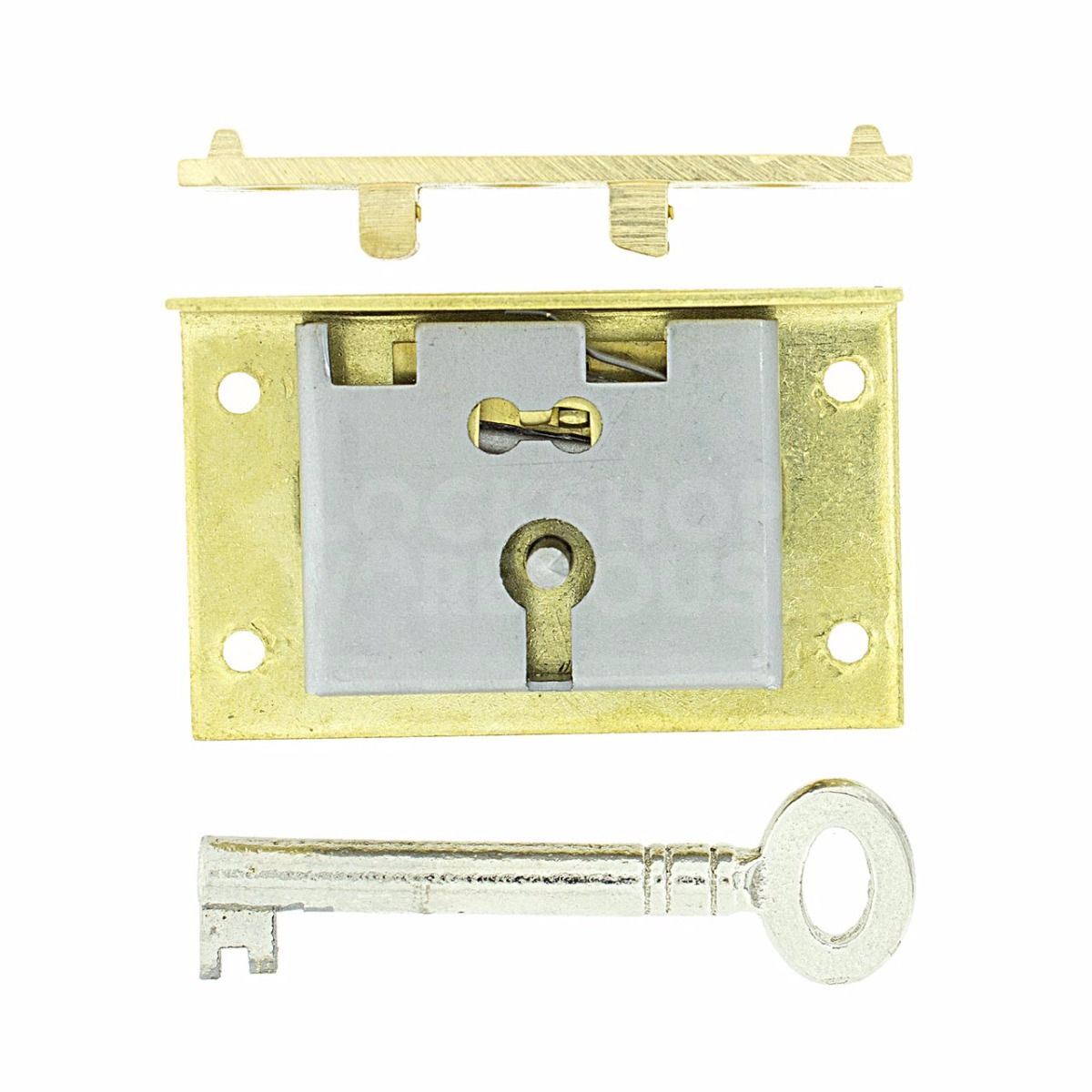

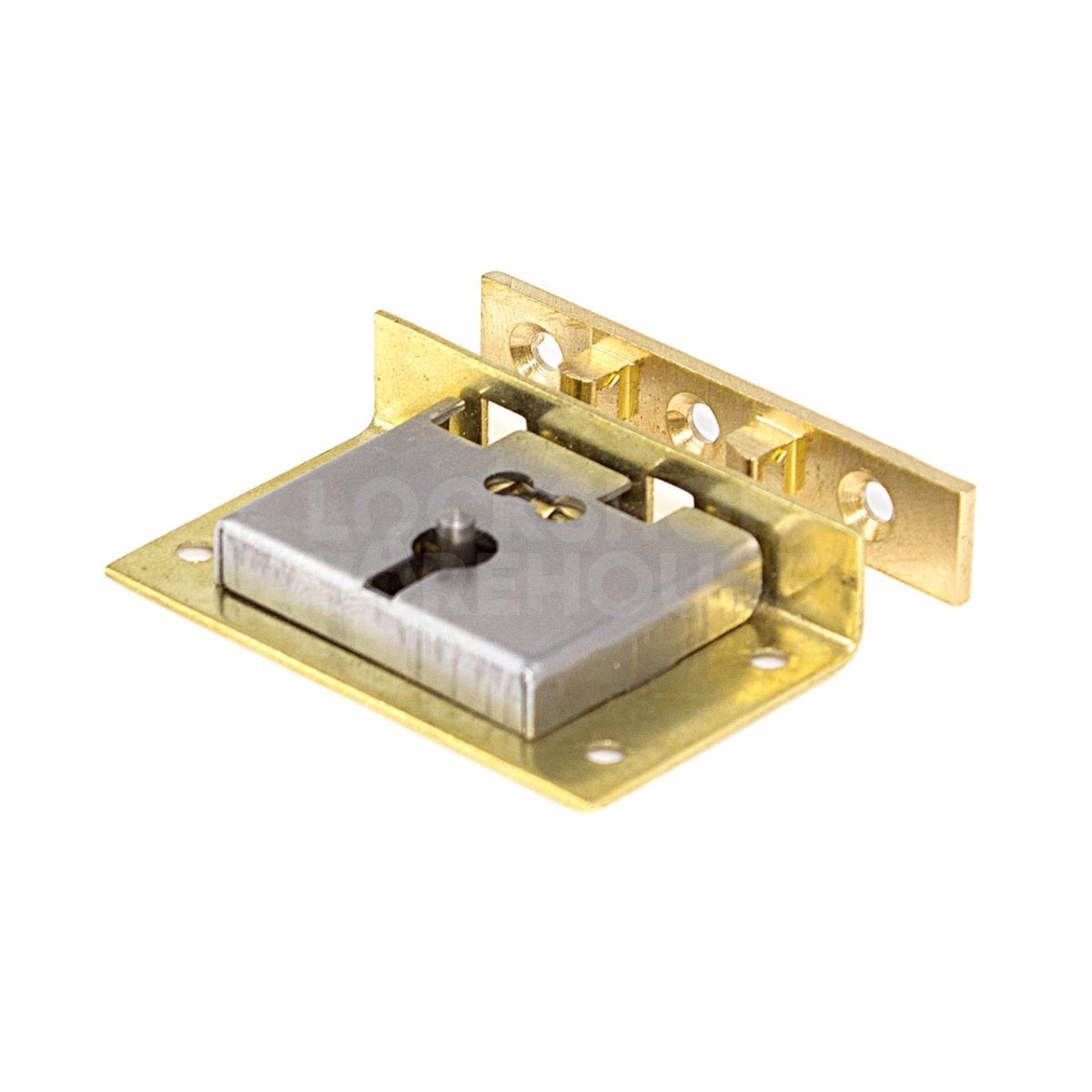

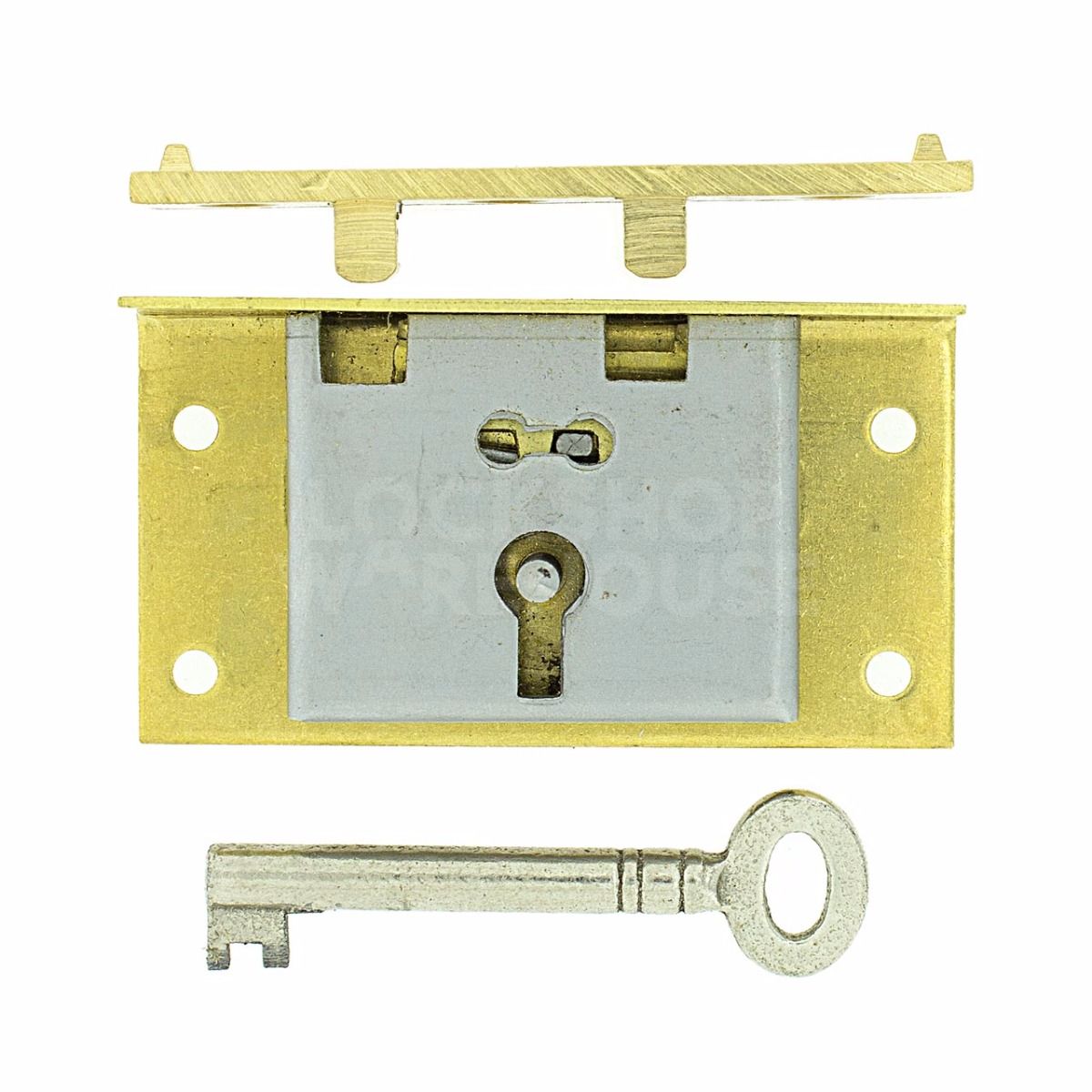

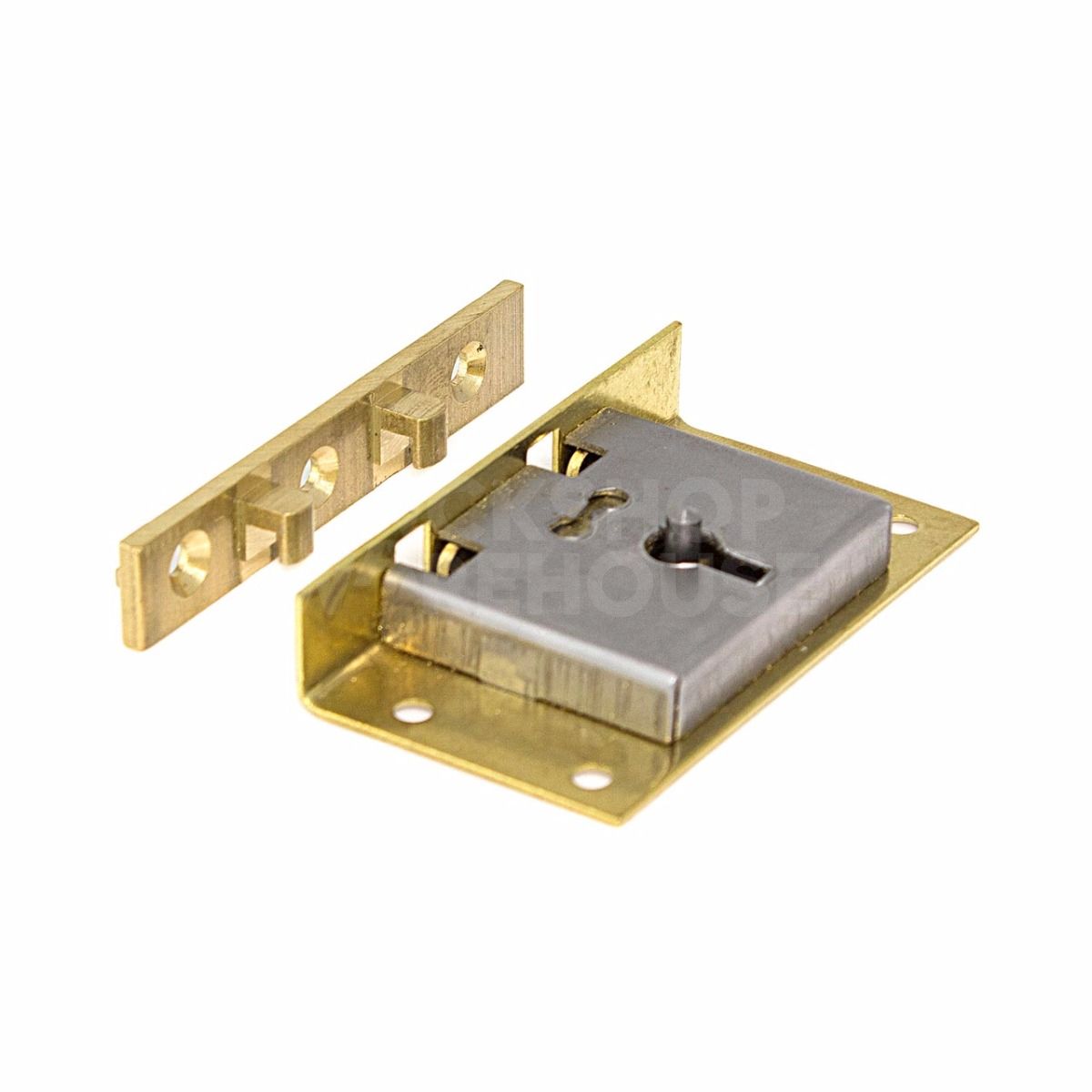

ASEC 1 lever Box Lock

£19.80

(£16.50 ex VAT)

sku: AS6500-1
  • Designed for internal mounting within boxes and storage chests
  • Features a single lever mechanism for simple keyed operation
  • Specifically compatible with flap-top lid configurations
  • Supplied with a matching strike plate for the box lid
  • Operates via a traditional keyed locking system for basic privacy
  • Ideal for decorative furniture and hobbyist woodworking projects

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

3/10 Security Rating

The Asec 1 Lever Box Lock is a traditional security solution designed specifically for small storage units such as chests, jewellery boxes, and vanity cases. This internal lock mechanism provides a basic level of security, ideal for keeping lids securely closed and contents private.

Operation is straightforward: the main lock case is mounted to the inner front of the box, and the provided strike plate is fitted to the underside of the flap lid. When the lid is closed and the key is turned, the bolt engages with the strike plate to secure the unit. Typical applications include:

  • Replacement of existing cabinet or box locks
  • New installations on handmade timber chests
  • Securing flap-top storage furniture

As a single lever mechanism, this lock offers a reliable yet low-security closure, making it a popular choice for decorative furniture where ease of installation and traditional operation are priorities. It is designed to be fitted onto the inside of the box, ensuring a discreet finish that does not detract from the external appearance of the chest.

Part Min (mm) Max (mm)
Backset 19 21
Case Width 50 64
Case Height 30 35
Case Depth 9 -

FAQs

This lock is specifically designed for flap top boxes. It is installed on the inside of the box, with the included strike plate mounted onto the lid to keep it securely closed.

No, this is a 1-lever lock which offers a very low level of security. It is best used for basic closure and privacy rather than protecting high-value items.

Each ASEC 1 lever Box Lock is supplied with one key as standard. If multiple people need access, additional keys would need to be sourced separately.

The lock features a compact profile with a case depth of 9mm. Depending on the specific model chosen, case widths are available in 50mm or 64mm, with corresponding case heights of 30mm or 35mm.
