ASEC 3 star Kitemarked Euro Double Cylinders

£65.99

(£54.99 ex VAT)

sku: AS3KIT
  • TS 007 3 Star security rating for high-level protection
  • BSI Kitemarked to BS EN 1303:2005 standards
  • Sacrificial anti-snap cut prevents forced entry through cylinder snapping
  • Integrated anti-pick, anti-drill and anti-bump mechanisms
  • Supplied with three keys as standard
  • Suitable for residential external doors including PVC-u, composite and timber

Finish

Cylinder Size

Key Option

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

heavy-duty Heavy Duty
9/10 Security Rating
british-standard-3-star 3 Star Kitemarked
tick Key Profile: Standard

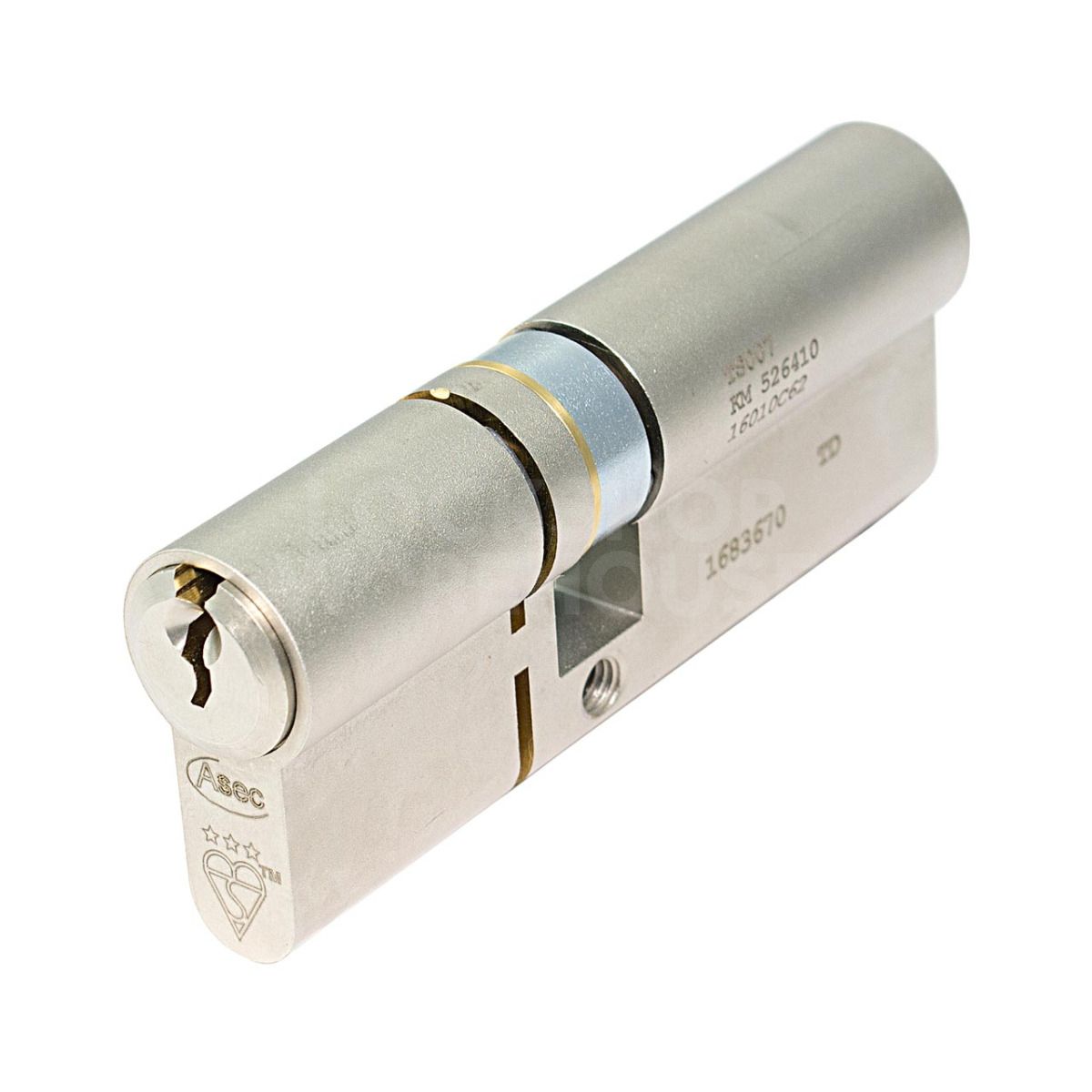

The Asec Kite Elite Euro Double Cylinder is a high-security locking solution designed to meet the TS 007 3 Star standard. This cylinder is an ideal choice for upgrading security on external residential doors without the requirement for additional security handles or reinforcements.

Functioning as a key-operated lock from both sides, it features advanced anti-snap technology. The design incorporates a sacrificial break point; in the event of a snapping attack, the external portion of the cylinder shears off while the internal locking mechanism remains secure and inaccessible. This ensures the door stays locked even after a forced entry attempt.

  • Resistance: Purpose-built pins and driver profiles provide protection against lock picking and bumping.
  • Drill Protection: Internal hardened steel components resist drilling attempts.
  • Compatibility: Designed to fit standard euro-profile mortice locks and multipoint locking systems.

When installing, it is essential to ensure the designated anti-snap side is facing the exterior of the property to maintain the 3 Star security rating. It is a common replacement part for existing euro cylinders that do not meet modern security requirements.

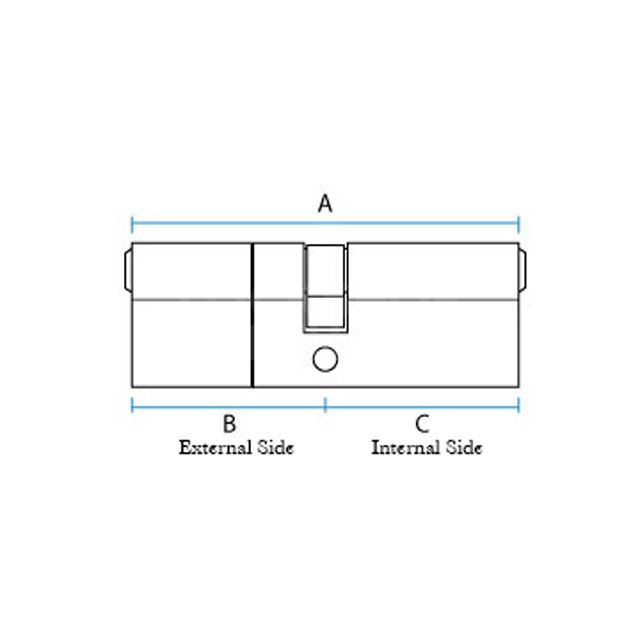

Dimensions Image: ASEC 3 star Kitemarked Euro Double Cylinders
Dimensions Image: ASEC 3 star Kitemarked Euro Double Cylinders

Brand

SKU

AS3KIT

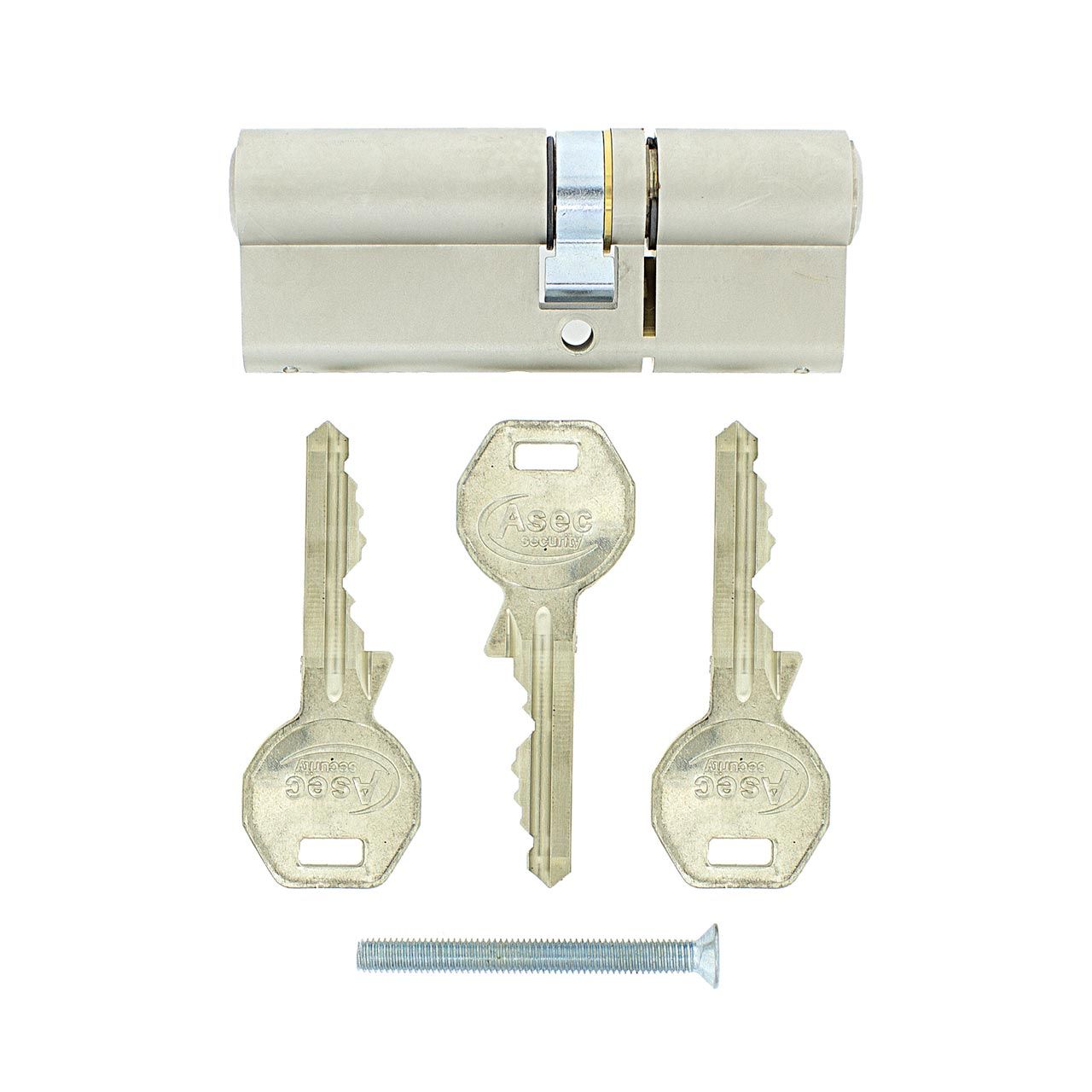

Box Contents

3 keys

cylinder screw

euro cylinder

Certifications

british-standard-3-star 3 Star Kitemarked

Key Profile

Key Profile: Standard

FAQs

This is the most important point to get right so you don't leave your home vulnerable to attack. The best way to get the correct size is to remove the cylinder from the door. (see the help page for instructions to do this). Once you have the cylinder out the door you need to measure from one side of the cylinder to the center of the fixing screw hole and then the same from the other side. Make a note of which is the inside measurement and which is the outside. Once you have this you need to match the size to the sizes available online. You want to get this as exact as possible. The cylinder sizes go up in increments of 5mm.

Yes this is possible. We offer the ABUS Pfaffenhain range of padlocks and also we can purchase Euro Cylinder to a Kitemarked level and Rim cylinders which can all be keyed alike or Masterkeyed.

No unfortunately not, the cylinders internals need to be changed to operate with a thumbturn so you have to replace your lock with a new cylinder. Sometimes we can offer you the same key as you already have on the new cylinder but only if its a brand we stock and can assemble for you.

Yes, this is called keyed alike. We build the cylinders for you to match 1 x set of keys. Please note you will only get 1 x set of keys with however many cylinders you order. So if you order 5 x Cylinders keyed alike you will only get 1 x set of keys. We can make you additional keys to match the cylinder at the same time.

The cylinders we can offer have different features, some are low basic security for internal doors to student bedrooms and others are for external doors which need to be more secure with all the high security features. The amount of pins is a good indication of security. 5 pins are the basic and 6 pins is better. The best external cylinders are kitemarked cylinders, the ABS or KABA GEGE 3 star are the top level and then we have an ABUS 1 star kitemarked cylinder with our restricted key section. Most insurance companies will now require you to have a kitemarked cylinder on the UPVC or Composite doors to give the best security.

It depends on what suits you, however, there are situations where one would be better suited for the job.

If you are using the lock on a house of multiple occupancy, you would need access for fire safety, therefore a Thumbturn would need to be fitted. This ensures that in the event of a fire, you are able to escape without having to search for a key before exiting the building. If the cylinder is for a residential property, the same fire safety can be applied, but it's not essential to have a thumb turn lock fitted. You can still fit the euro double cylinder, but it's always a good idea to keep your keys in a safe place where every member of the household knows where they are.

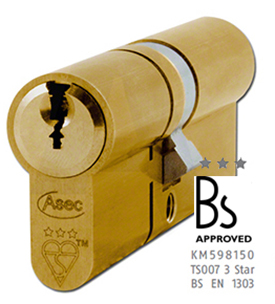

The Asec Kite Elite cylinder carries a TS 007 3-star rating and is BSI Kitemarked, meaning it meets the BS EN 1303:2005 and TS007 2012 security standards for high-level home protection.

No, the anti-snap protection is located on only one side of the cylinder. It is essential that the side with the anti-snap break-away section is installed facing the outside of the door to ensure your property is properly secured.

Yes, the Asec Kite Elite range is specifically designed to resist several common attack methods, including:

  • Lock snapping
  • Lock bumping
  • Lock picking (via a special driver profile)
  • Drilling

Each Asec 3-star Kitemarked Euro Double Cylinder is supplied with 3 keys as standard.
