Asec Euro Profile Sashcase

£16.79

(£13.99 ex VAT)

sku: AS-11334
  • Compatible with all standard Euro profile cylinders
  • Reversible latchbolt allows for installation on both left and right-handed doors
  • Deadbolt features two hardened steel inserts for enhanced anti-saw protection
  • Ideal for integration within master-keying systems for commercial or residential use
  • Operated by lever furniture for latch retraction and cylinder for deadbolt security
  • Accepts single, double, or cylinder-and-thumbturn variants
  • Designed for new installations or as a replacement for existing mortice sashlocks

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

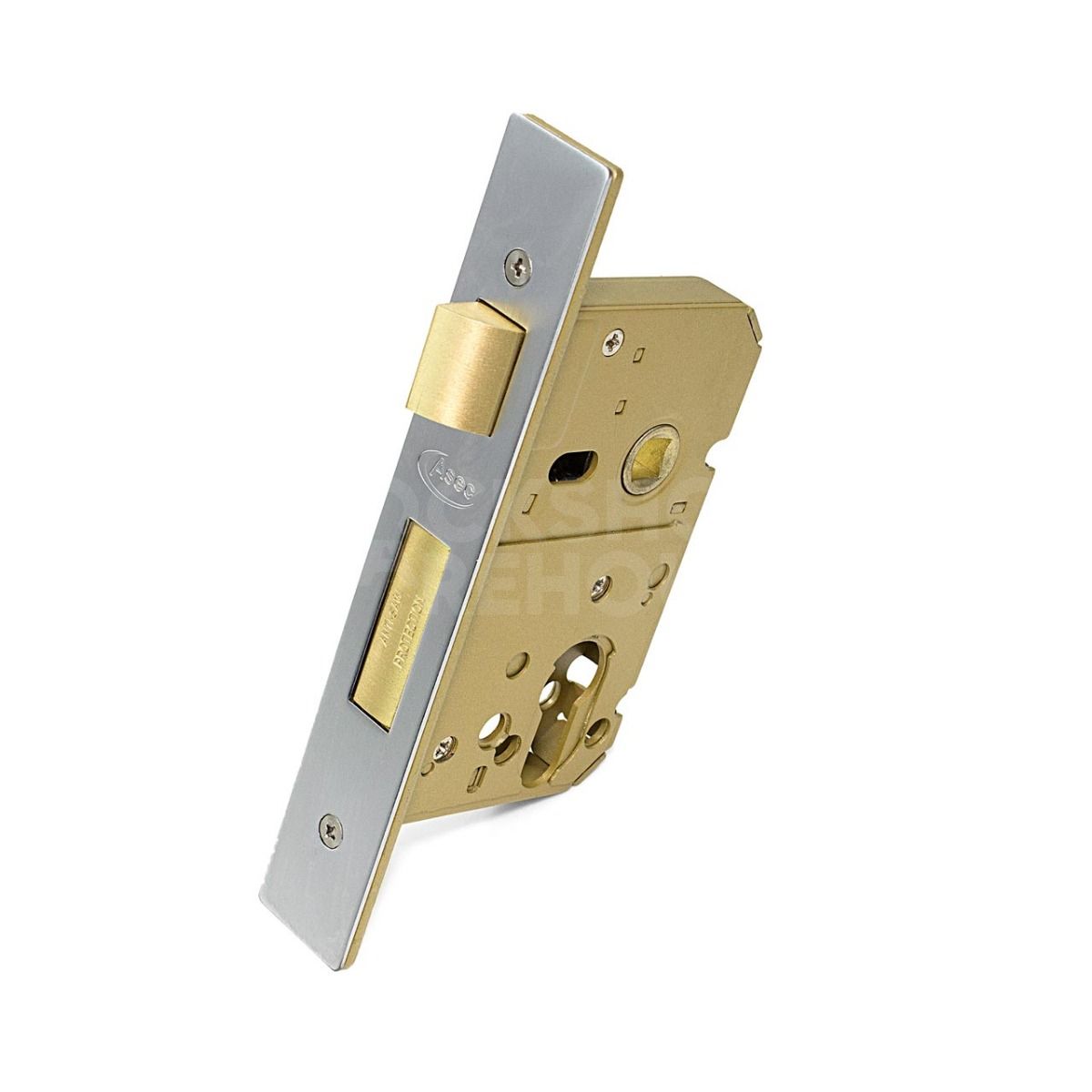

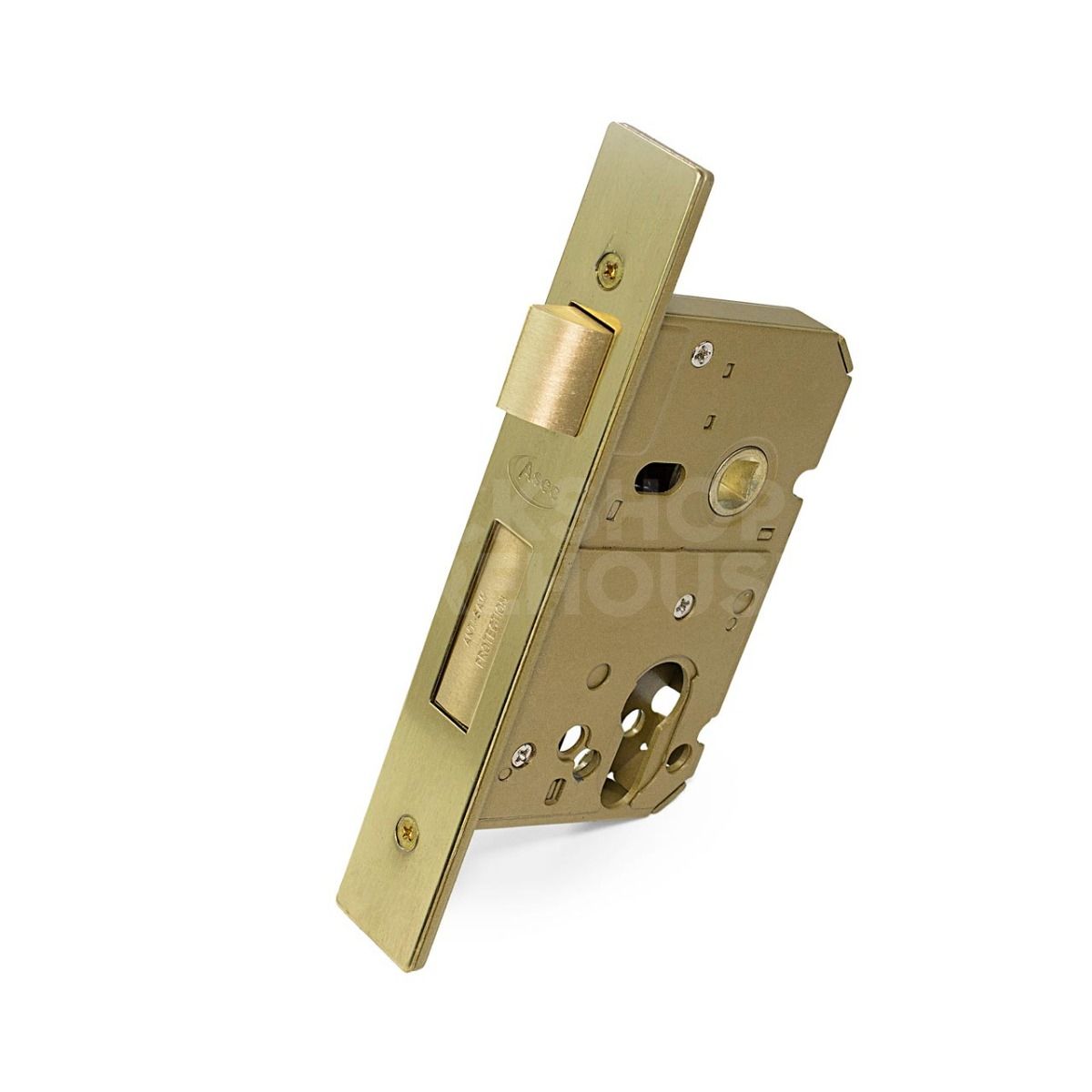

The Asec Euro Profile Sashcase is a versatile mortice lock body designed to be used in conjunction with a Euro profile cylinder and lever furniture. It provides a dual-locking mechanism, featuring a spring-loaded latch for day-to-day door closure and a deadbolt for secure locking. This sashcase is an ideal solution for timber doors where flexible security and ease of use are required.

Constructed for durability, the deadbolt is reinforced with two hardened steel inserts to provide resistance against sawing. The latchbolt is fully reversible, allowing the unit to be configured for any door handing without the need for complex tools or dismantling the case. Its design makes it particularly suitable for environments using master-key systems, as the locking logic is determined by the cylinder installed within the case.

Typical applications include residential front and back doors, as well as internal commercial doors. It is compatible with standard security roses and escutcheons, offering a reliable choice for both new architectural hardware installations and the maintenance of existing locking systems.

Part Min (mm) Max (mm)
centres 48 -
Backset 44 57
Bolt Length 14 -
Case Width 64 76
Case Height 108 -
Forend Width 25 -
Forend Length 165 -
Strike Plate Width 25 -
Strike Plate Length 177 -

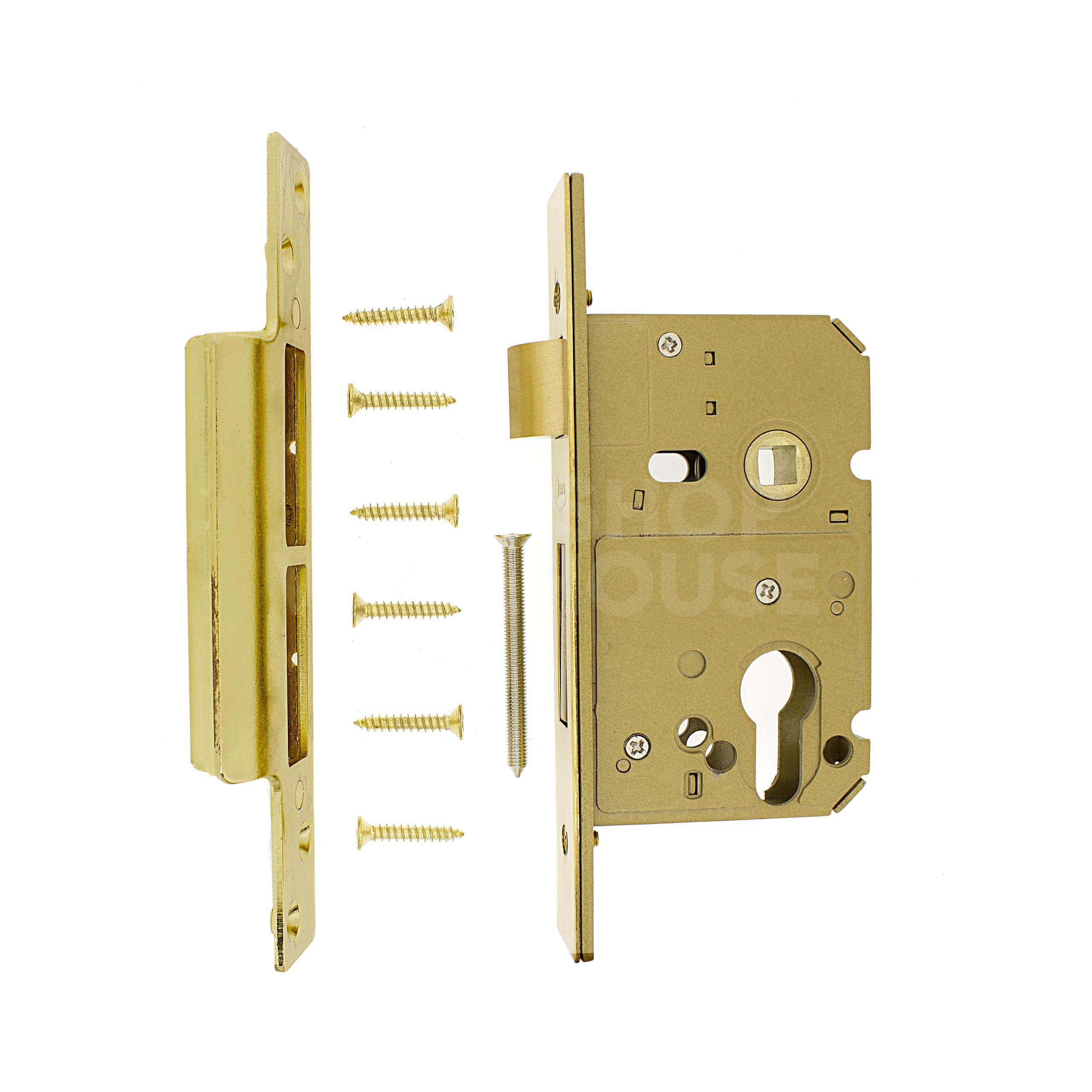

Dimensions Image: Asec Euro Profile Sashcase

Brand

SKU

AS-11334

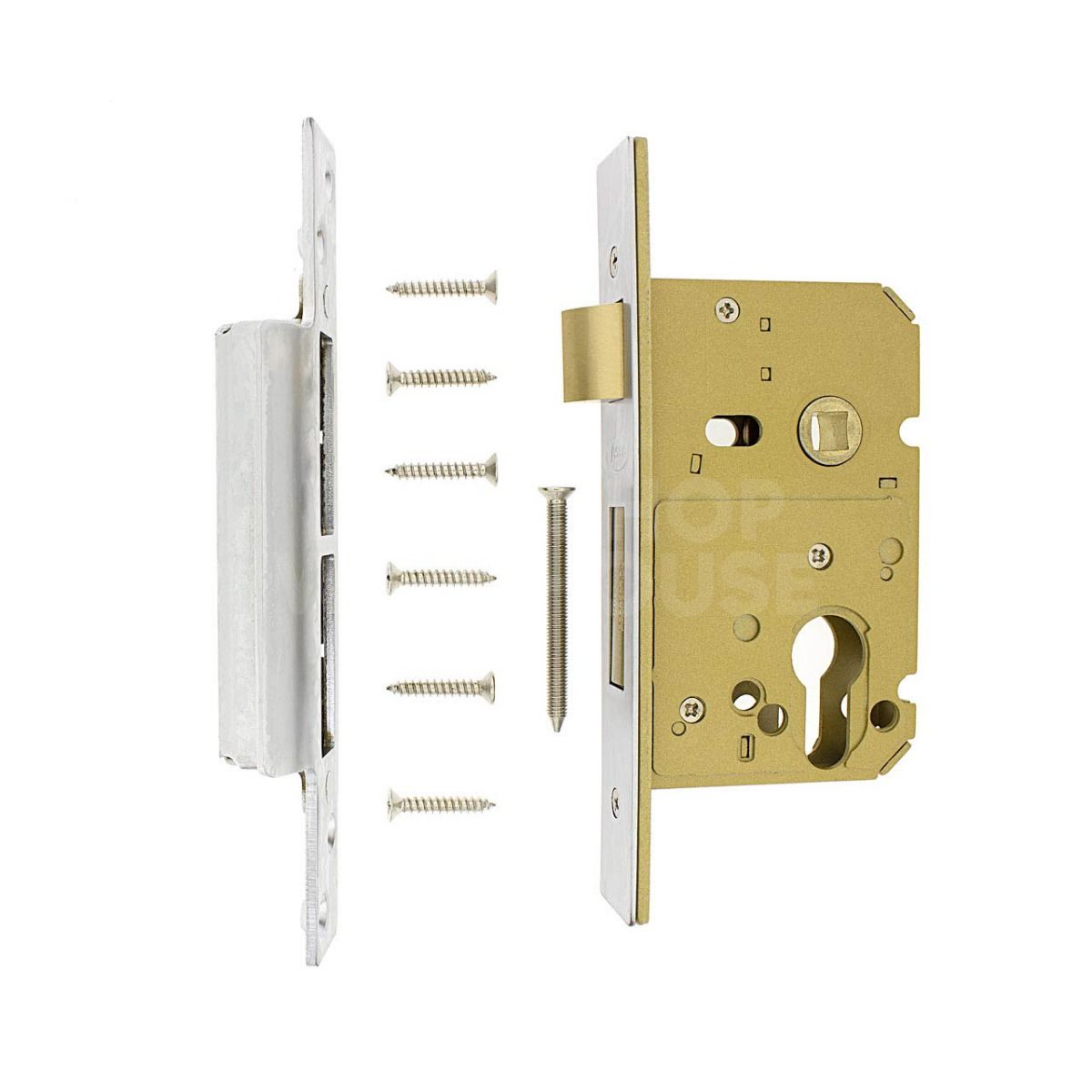

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

The Asec Euro Profile Sashcase is compatible with Euro profile or Oval profile cylinders. You can use single cylinders, double cylinders, or cylinder and thumbturn options depending on your security needs. Please note that cylinders are not included with the sashcase.

Yes, the lock features a reversible latchbolt, making it suitable for installation on both left and right-handed doors.

This sashcase is available in two standard depths: a 64mm case and a 76mm case, allowing for flexible installation depending on your door's backset requirements.

The solid brass deadbolt is designed with two hardened steel inserts to provide anti-saw protection, helping to prevent forced entry through cutting.
