skip to Asec Electric Rim Release A1C/A95C

Asec Electric Rim Release A1C/A95C

£33.60

(£28.00 ex VAT)

sku: AsecA1C-95C
  • Compatible with most standard surface-mounted rim night latches
  • Enables remote door unlocking via intercom or access control systems
  • Surface-mounted design simplifies installation on the door frame
  • Suitable for use on timber or metal frame applications
  • Ideal for managing access to low to medium traffic internal doors
  • Maintains manual key override functionality when paired with a compatible latch

Power

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Asec Electric Rim Release is an access control solution designed to integrate with standard surface-mounted rim night latches. By replacing the existing strike plate on the door frame, this device enables a door to be unlocked electronically while maintaining the physical security provided by the primary latch.

This release is commonly used in commercial offices, residential blocks, and secure entry points where remote operation via a keypad or intercom is required. The surface-mounted nature of the unit makes it particularly suitable for installations where morticing into the door frame is not practical or desired, providing a versatile solution for timber or metal frames.

Technical Functionality

When triggered by an electrical signal, the internal mechanism of the release moves to allow the latch bolt to pass through, granting entry without manual handle operation. It is an essential component for upgrading existing manual door hardware to a modern electronic security system with minimal disruption to the door furniture.

  • Designed for use with rim-mounted latches
  • Facilitates remote entry management
  • Compatible with common door frame materials
  • Ideal for retrofit security upgrades

FAQs

The Asec Electric Rim Release is designed to work with most standard surface-mounted rim night latches. It effectively replaces the standard box strike plate on your door frame to enable electronic access control.

This unit is designed as a fail-secure device, meaning it remains locked in the event of a power cut. Access can still be gained using a physical key from the outside or the manual handle from the inside.

The Asec A1C/A95C series typically operates on a 12V AC or DC power supply. It is important to ensure your transformer or door entry system provides the correct voltage to ensure reliable operation.

Yes, this rim release features a non-handed design, making it suitable for both left and right-handed inward opening doors. It is designed for surface mounting directly onto the door frame.

Related Products

skip to Yale 88 Nightlatch 60mm

Yale 88 Nightlatch 60mm

£28.80

(£24.00 ex VAT)

sku: Y88NL
  • 60mm backset suitable for standard timber door installations
  • Internal snib function allows the latch to be deadlocked or held back
  • Exterior operation via a 5-pin rim cylinder for reliable security
  • Compatible with outward-opening doors when used with a separate striking plate
  • Suitable for use on both internal and external residential doors
  • Designed for integration with BS3621 mortice deadlocks for enhanced security
Document Icon product info Document Icon product info

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

The Yale 88 Nightlatch is a traditional surface-mounted rim lock designed for use on timber doors. It provides a convenient slam-to-lock action, making it an ideal choice for main entrance doors or internal rooms requiring controlled access.

This 60mm backset nightlatch features a versatile internal snib mechanism. This allows the user to either deadlock the bolt from the inside, preventing the key from being used externally, or to hold the bolt in the retracted position to allow free passage without the door locking. This makes it highly functional for various domestic and commercial environments.

Typically used as a secondary security measure, the Yale 88 is best paired with a BS3621 mortice deadlock on external doors to meet insurance requirements. It is suitable for both left and right-handed doors and can be adapted for outward-opening applications with the addition of a reverse bolt striking plate. Whether used for a new installation or as a direct replacement for an existing unit, this nightlatch offers a time-tested solution for door security.

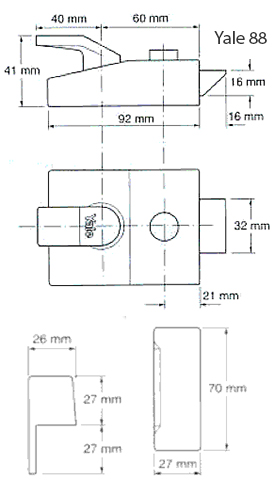

Dimensions Image: Yale 88 Nightlatch 60mm
Dimensions Image: Yale 88 Nightlatch 60mm

Brand

SKU

Y88NL

Box Contents

2 keys

strike plate

fixing screws

instructions

cylinder screw

rim cylinder

nightlatch

rosette
