Asec Lockmaster Copy Single Spindle Latch & Deadbolt Gearbox

£15.72

(£13.10 ex VAT)

sku: ASEC-1861
  • Direct replacement for Lockmaster centre cases
  • Suitable for UPVC and composite doors
  • Available in 35mm or 45mm backset with 92mm centres
  • Single spindle operation for latch and deadbolt
  • Fully reversible latch to suit left or right-handed doors
  • Compatible with standard Euro profile cylinders

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox is a precision-engineered solution designed for the repair and maintenance of UPVC and composite doors. As a direct replacement for the original Lockmaster centre case, it offers a cost-effective alternative to replacing the entire multi-point locking mechanism.

This gearbox features a single spindle setup with standard 92mm centres and is available in either a 35mm or 45mm backset. The 228mm high case is designed for durability and smooth operation. It is fully reversible, allowing for quick adjustment to suit both left and right-handed applications by simply removing a screw to flip the latch.

  • Operation: Lift the lever to engage locking points, then turn the cylinder one full turn to lock.
  • Handing: Easy-to-reverse latch for versatile installation.
  • Compatibility: Designed specifically for use with Euro profile lock cylinders.

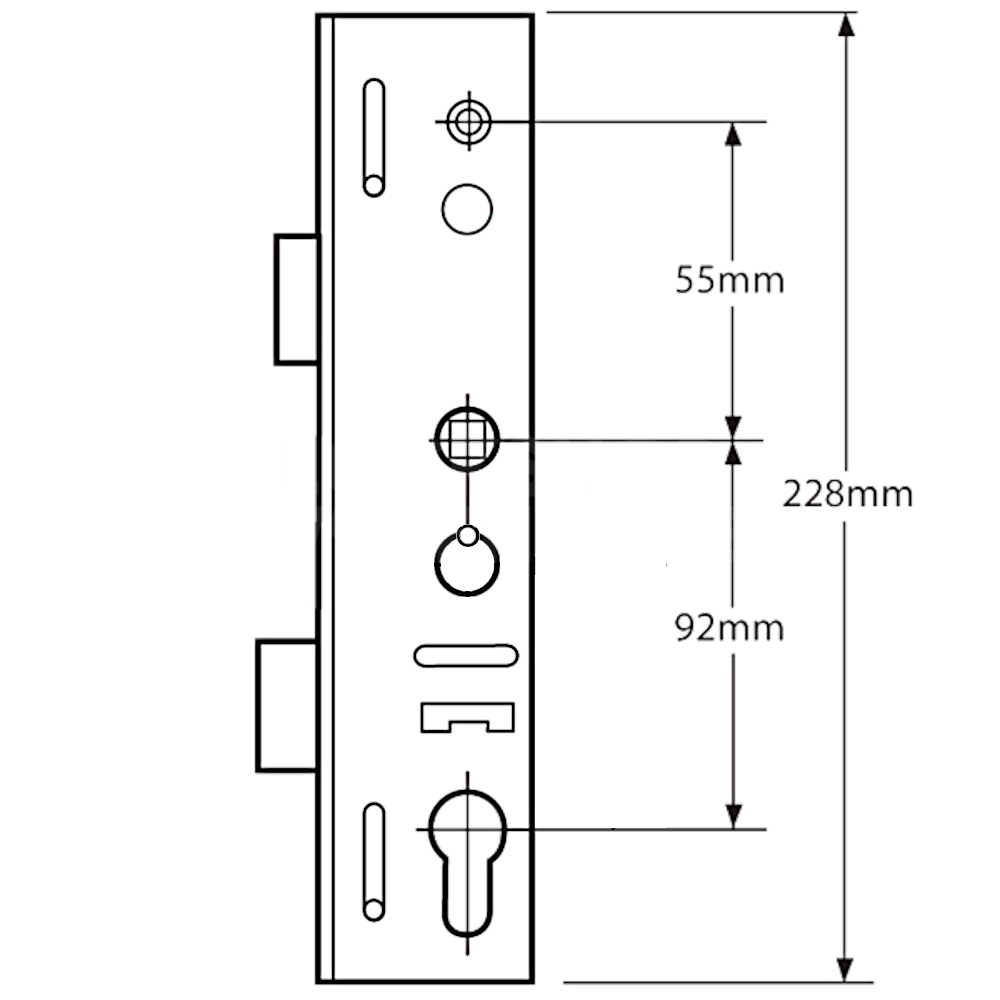

Dimensions Image: Asec Lockmaster Copy Single Spindle Latch & Deadbolt Gearbox
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Case Width 47 57
Case Height 228 -

FAQs

Yes, this Asec gearbox is designed as a precision-engineered direct replacement for Lockmaster centre cases. It provides a cost-effective way to repair UPVC or composite doors without the need to purchase an entire new multi-point locking mechanism.

The latch is fully reversible to accommodate any door handing. To change the orientation, simply remove the screw holding the latch in place, flip the latch head to the required side, and then re-insert and tighten the screw.

To ensure a correct fit, you should verify the following measurements on your existing lock:

  • Centres: 92mm (the distance between the centre of the handle spindle and the centre of the key cylinder).
  • Backset: Either 35mm or 45mm (the distance from the front of the lock faceplate to the centre of the handle spindle).

This is a lever-operated gearbox. To engage the locking points, you lift the lever handle upwards. Once the points are engaged, turn the Euro profile cylinder one full turn to secure the deadbolt and lock the door. To open, reverse the process by turning the key and then pushing the lever down.
