Asec Lockmaster Copy Twin Spindle Latch & Deadbolt Gearbox

£15.67

(£13.06 ex VAT)

sku: ASEC-1862
  • Direct replacement for Lockmaster latch and deadbolt centre cases
  • Suitable for use on both UPVC and composite door types
  • Features twin spindles with 92mm and 62mm centres
  • Available in 35mm or 45mm backset options
  • Fully reversible latch to suit left or right-handed doors
  • Compatible with standard Euro profile lock cylinders
  • Sturdy 228mm case height for reliable long-term security

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Asec Lockmaster Copy Lever Operated Latch & Deadbolt Twin Spindle Gearbox is a professional-grade replacement unit designed specifically for Lockmaster multipoint locking systems. This centre case gearbox is an ideal, cost-effective solution when only the central mechanism has failed, eliminating the need to replace the entire multipoint lock assembly.

Engineered for versatility, this gearbox features a twin spindle configuration with 92mm and 62mm centres. It is available in two common backset sizes—35mm and 45mm—ensuring compatibility with a wide range of UPVC and composite doors. The unit has a standard case height of 228mm and a case width of either 47mm or 57mm depending on the chosen backset.

Key Features:

  • Reversible Latch: Easily adjusted to suit both left and right-handed doors by simply removing a screw and flipping the latch.
  • Euro Profile Compatible: Designed to work seamlessly with standard Euro profile cylinders.
  • Durable Construction: Built to withstand the rigours of daily use, providing secure latching and deadbolt operation.
  • Dual Spindle Operation: Supports lever/lever or lever/pad handle sets for enhanced access control.

To operate, simply lift the lever to engage the locking points and turn the cylinder one full turn to secure the deadbolt. Unlocking is achieved by turning the key and pushing the lever down. This robust gearbox restores your door's security with precision and ease.

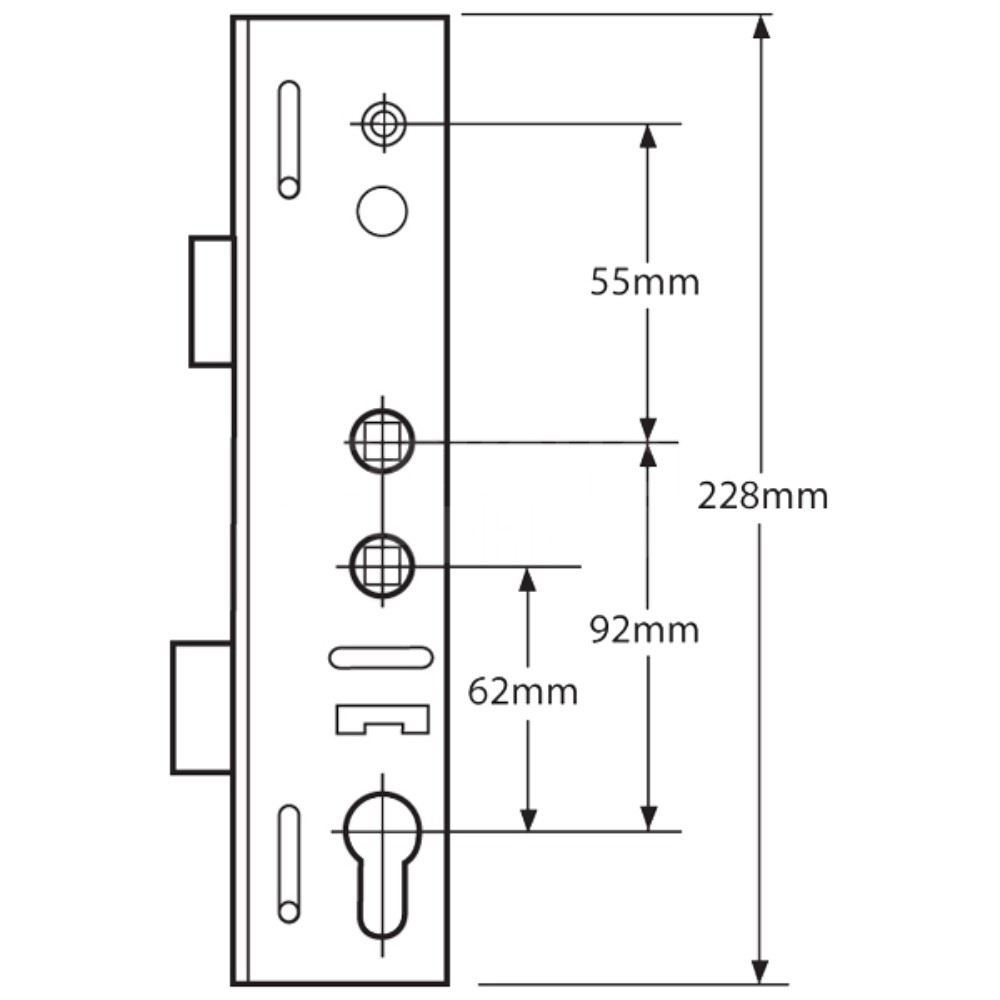

Dimensions Image: Asec Lockmaster Copy Twin Spindle Latch & Deadbolt Gearbox
Part Min (mm) Max (mm)
Backset 35 45
Case Width 47 57
Case Height 228 -

FAQs

Yes, this Asec gearbox is designed as a direct replacement for original Lockmaster latch and deadbolt centre cases. It is suitable for use on both UPVC and composite doors, allowing you to restore your door's locking mechanism without replacing the entire full-length strip.

The twin spindle features both 92mm and 62mm centres, giving you versatility in how your door handles operate. This configuration supports:

  • Standard lever/lever handles
  • Lever/pad handle sets for enhanced access control

Yes, this gearbox features a fully reversible latch. You can easily change the orientation to suit either left or right-handed doors by removing the screw on the latch, flipping the latch over, and refastening the screw.

This gearbox is available in 35mm and 45mm backset options. To ensure a correct fit, measure the distance from the front of the lock faceplate to the centre of the handle spindle hole before ordering.
