Asec Mila Copy Latch Only Replacement Gearbox

£30.59

(£25.49 ex VAT)

sku: ALDRI-0017
  • Asec aftermarket copy for matched old-style Mila latch-only locks
  • 25mm and 35mm backset choices with 92mm PZ centres
  • Single-spindle, latch-only centre case; not a complete multipoint strip
  • Reversible latch for the correct left- or right-hand installation
  • Unthreaded fixing points require the specified self-tapping screws
  • Inline connectors; older offset/cranked connections need an exact fitting check
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch Only

The Asec Mila Copy Latch Only Replacement Gearbox is an aftermarket centre case for compatible old-style Mila latch-only locks. It is not a genuine Mila-manufactured part. The choices offered here have 25mm or 35mm backset, 92mm PZ centres and a single spindle.

The supplier specifies a reversible latch, a 234mm case height and unthreaded attachment points requiring the correct self-tapping screws. Compare the selected case width, routing, fixing positions and connecting mechanism with the original lock. This product replaces the centre case only, not the full strip.

Older connector arrangements: these replacements have inline connectors. The supplier describes an adaptation for some older offset or cranked connections. That is a conditional repair procedure, not a universal fitting guarantee or an invitation to file an arbitrary lock component. A competent fitter should confirm that the exact original strip and replacement are covered by the appropriate instructions before any modification.

In the compatible complete lock, the supplier describes lifting the lever to engage the secondary locking points and turning the cylinder key to secure the mechanism. Have the complete assembly checked for free operation after fitting.

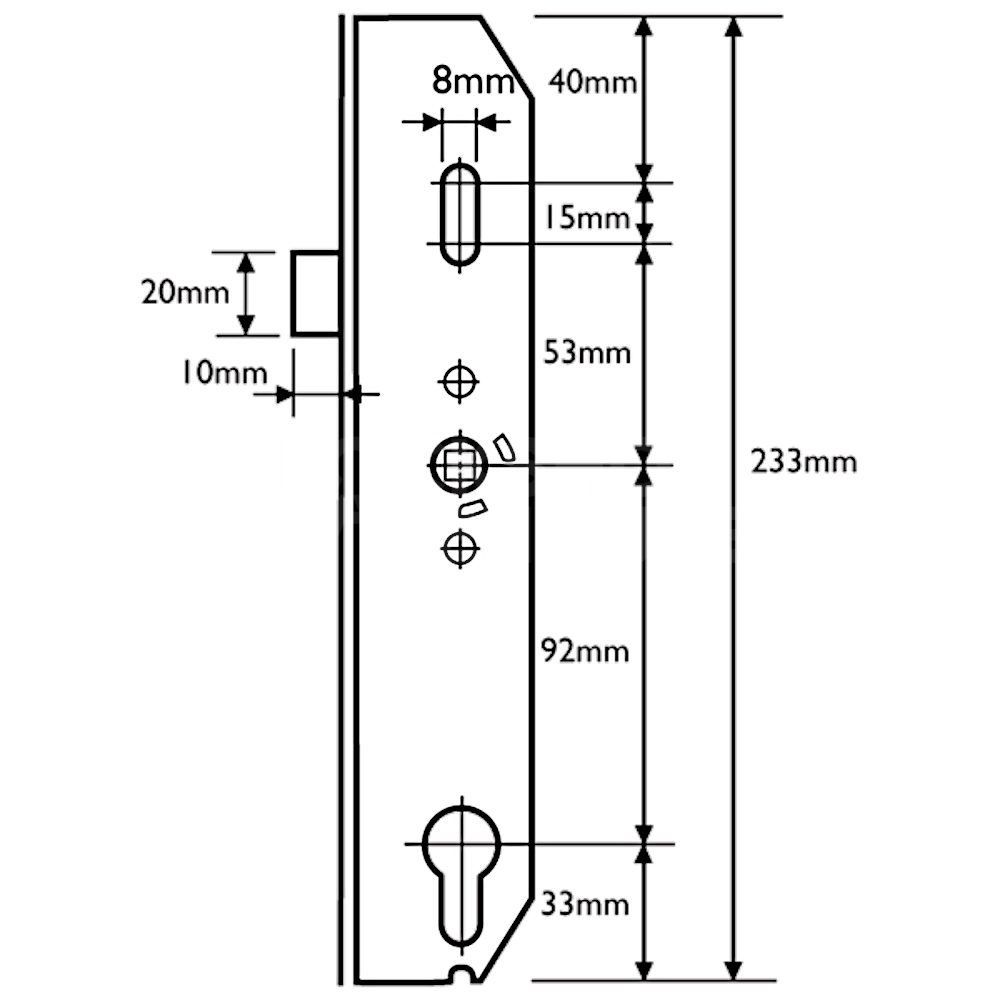

Dimensions Image: Asec Mila Copy Latch Only Replacement Gearbox
Part Min (mm) Max (mm)
centres 92 -
Backset 25 35
Case Width 40 50
Case Height 234 -

FAQs

This case has 92mm PZ centres, but that measurement alone does not confirm either handle or gearbox compatibility. Match the spindle, fixings, door thickness, original case, backset and connector arrangement. The current choices are 25mm and 35mm backsets.

The latch is fully reversible to suit both left and right-hand opening doors. To reverse it, simply remove the screw located on the side of the case, flip the latch head over, and refit the screw securely.

The supplier specifies unthreaded attachment points requiring the correct self-tapping screws. Screw size, case fit and connector engagement must be checked for the actual locking strip. Have a competent fitter assess the replacement and follow the appropriate instructions rather than treating it as a universal screw-in part.

The replacement uses inline connectors. The supplier describes adapting some older offset/cranked connections, but this must be confirmed for the exact original lock and replacement by a competent fitter. Do not assume that filing a connector makes an otherwise incompatible case suitable; obtain the correct version-specific instructions before modifying the original mechanism.
