skip to Asec Modular Repair Lock Extension Set 2 Hook & 2 Roller

Asec Modular Repair Lock Extension Set 2 Hook & 2 Roller

£57.05

(£47.54 ex VAT)

sku: ASEC-0882
  • AS10311 Long and AS10310 Short extension options
  • AS10298 Blue and AS10299 Yellow options listed with keeps
  • Listed for a matching ASEC modular repair assembly
  • Confirm contents, cutting limits and door/frame preparation for the selected option

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

These are extension components, not complete multipoint locks. Compare the selected reference, drive connections and locking-point positions with the required modular assembly before cropping.

The Blue and Yellow options are explicitly listed with keeps. Do not assume the Long and Short options have identical contents, or that the original door keeps can be retained. Match the keep profile and centre case to the exact extension version.

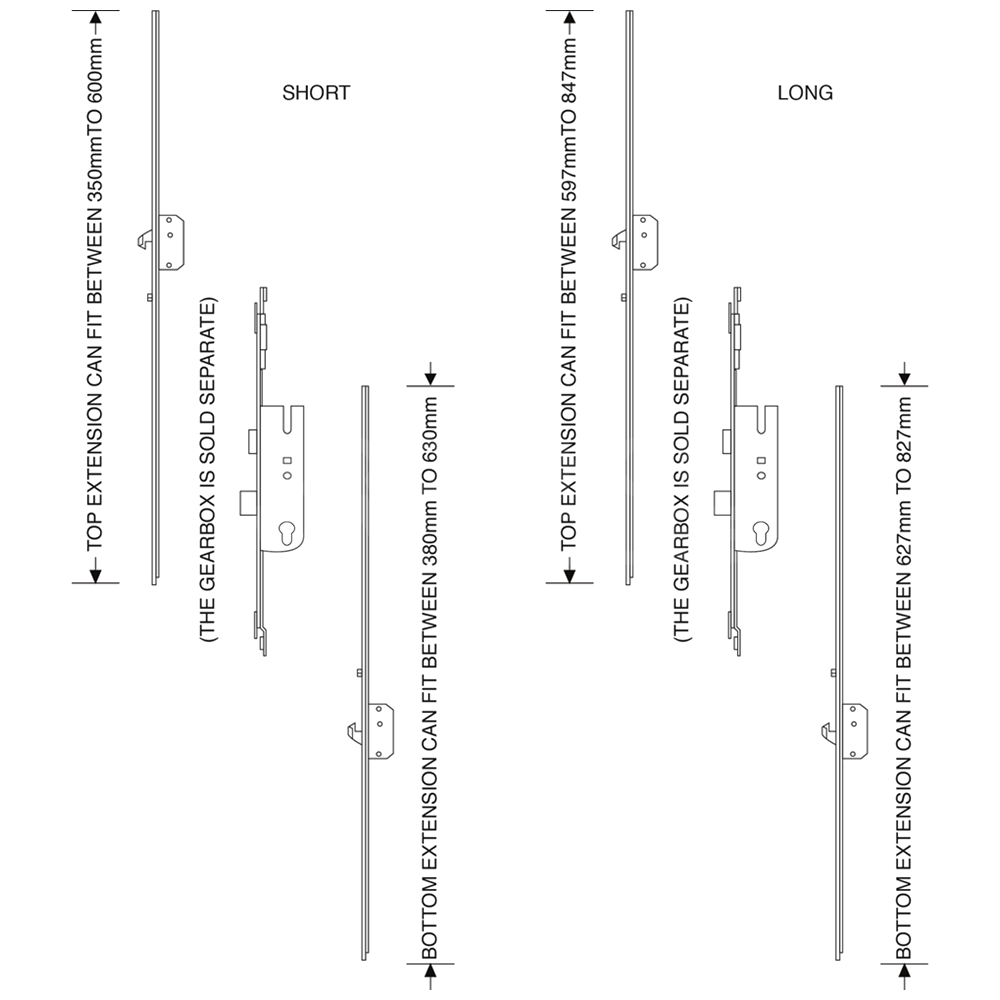

Dimensions Image: Asec Modular Repair Lock Extension Set 2 Hook & 2 Roller
Part Size (mm)
Body Length 1000
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16
