Asec Modular Repair Multipoint Lock Centre Case

£71.30

(£59.42 ex VAT)

sku: ASEC-0878
  • AS10316: listed 28mm backset
  • AS10317: listed 30mm backset
  • AS10318: listed 40mm nightlatch version
  • Separate case options, not a universal gearbox or handle conversion

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

These centre cases belong to the ASEC modular repair system. Confirm the exact article, case outline, follower arrangement and drive connections before fitting it to an existing assembly. Do not assume the original lock's extensions can be retained.

The brand's model table identifies the 40mm case as a nightlatch version; this does not establish the same function for the other backsets. Furniture and spindle requirements must match the selected case. Use its own handing and operating instructions.

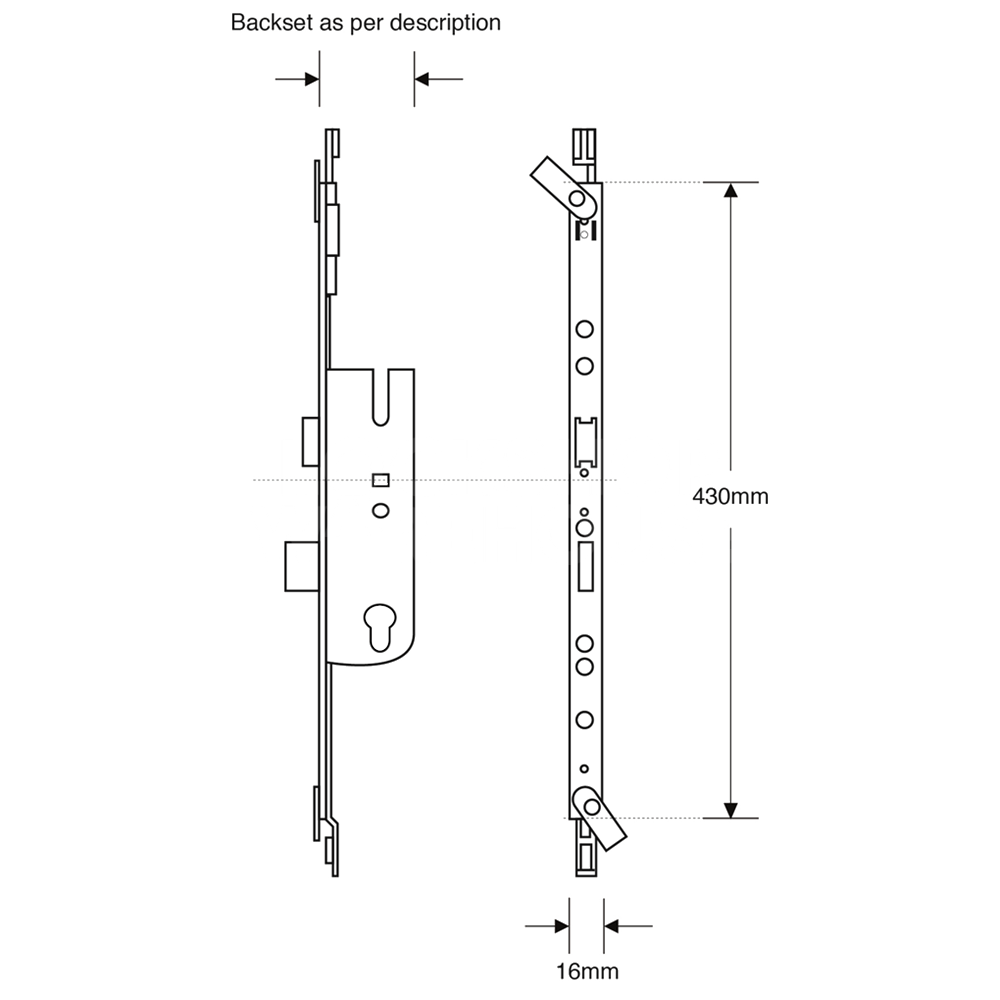

Dimensions Image: Asec Modular Repair Multipoint Lock Centre Case
Part Min (mm) Max (mm)
centres 92 -
Backset 28 40
Case Width 43 55
Case Height 195 202
Faceplate Width 16 -
