skip to ASEC Single Panic Bolt

ASEC Single Panic Bolt

£132.00

(£110.00 ex VAT)

sku: AS3100
  • Compliant with BS EN 1125:2008 standards for emergency exit hardware
  • Integrated anti-thrust device prevents unauthorised retraction of the bolts
  • Automatic top catch ensures the bolt returns to a secure position upon door closure
  • Fully reversible design suitable for both left and right-handed applications
  • Operated by a horizontal push bar to facilitate swift egress during emergencies
  • Suitable for use on both single doors and the active leaf of double door sets
  • Designed for doors with a maximum mass of up to 200kg
Document Icon product info

Handing

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

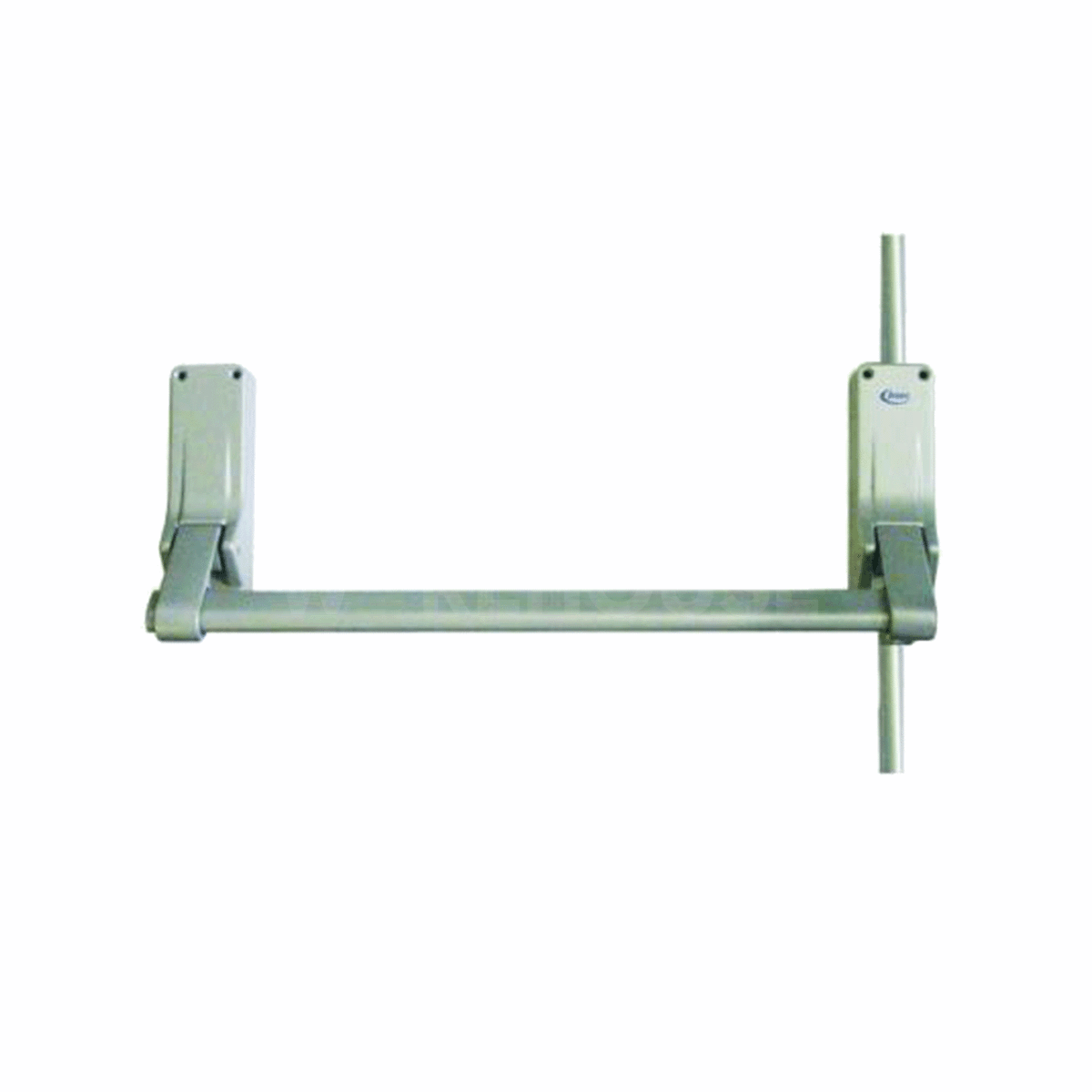

The Asec Single Panic Bolt is a robust emergency exit device designed to facilitate safe and rapid egress from buildings. Engineered to meet BS EN 1125 standards, it is intended for use in public environments where occupants may not be familiar with exit routes, ensuring intuitive operation under pressure.

This hardware functions via a horizontal push bar that, when depressed, disengages the vertical bolts to allow the door to open immediately. It features an anti-thrust device, which provides a security benefit by preventing the bolts from being manipulated or forced from the outside. The inclusion of an automatic top catch ensures that once the door is closed, the bolts are reliably guided back into their secure, locked position.

Designed for versatility, the unit is self-handing and can be installed on either left or right-handed doors. It is suitable for application on single doors or the active leaf of double door configurations. This system is typically specified for new installations or as a direct replacement for existing exit hardware in commercial, educational, and healthcare settings where building regulations necessitate certified emergency solutions.

Brand

SKU

AS3100

Box Contents

instructions

Fixing Kit

Panic Bolt

FAQs

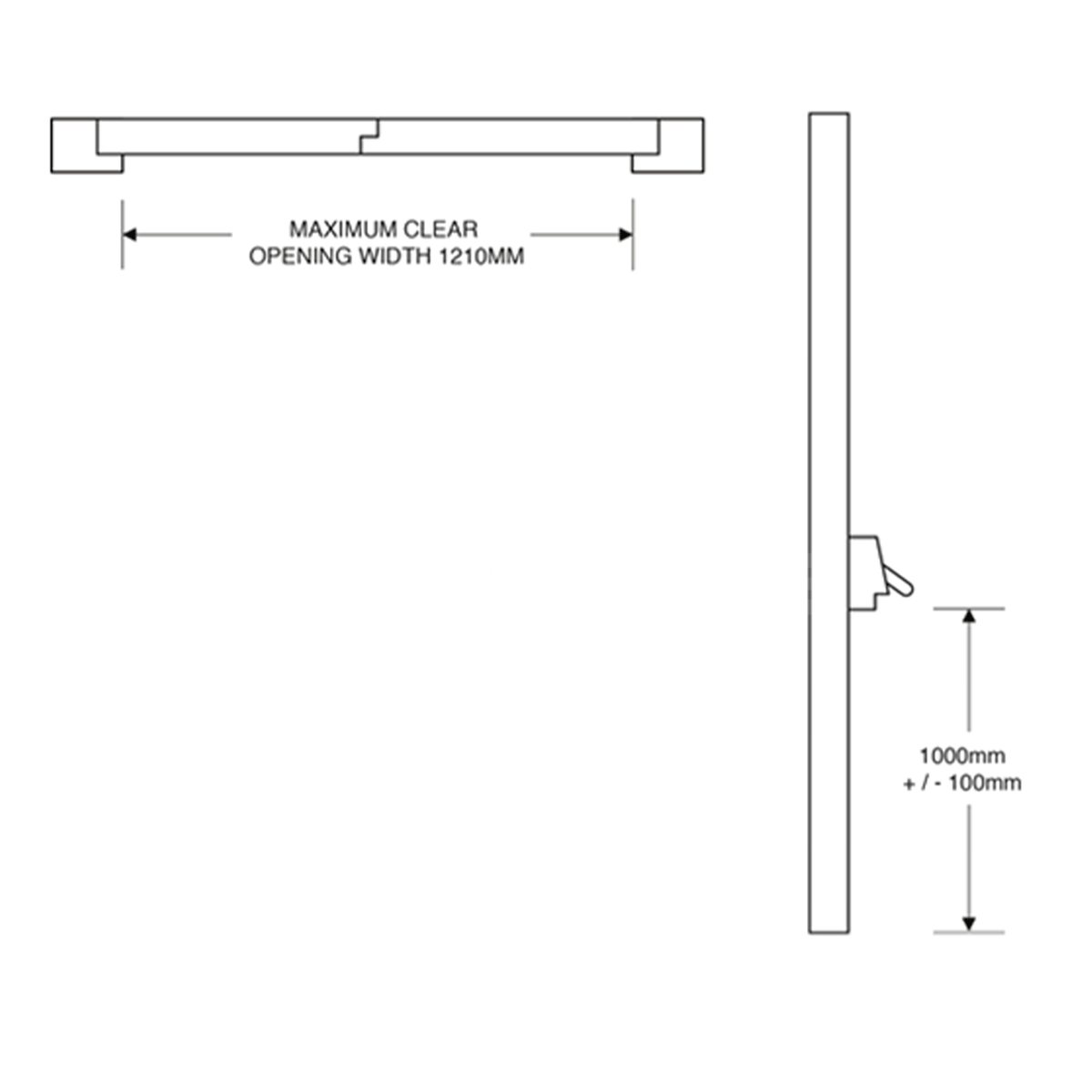

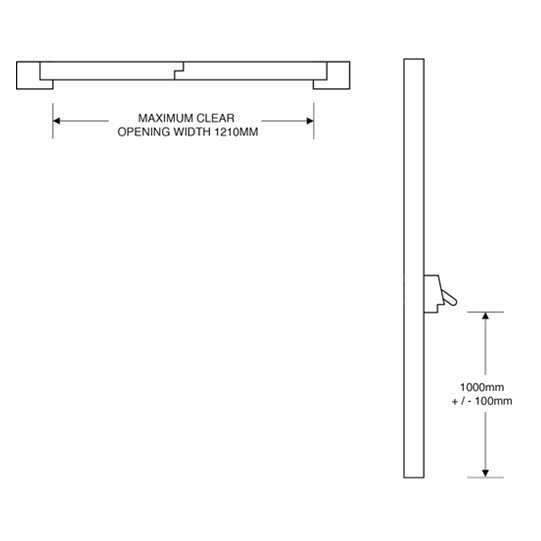

This panic bolt is designed for doors with a maximum height of 2500mm and a maximum width of 1300mm. It can support doors weighing up to 200kg.

Yes, the unit is self-handing and fully reversible. This makes it suitable for use on both single and double door applications regardless of the door's orientation.

Yes, the Asec Single Panic Bolt is manufactured to meet the BS EN 1125:2008 standard, which is the European safety requirement for panic exit devices operated by a horizontal bar.

The device features an anti-thrust mechanism and an automatic top catch. These components work together to ensure that the bolt is automatically pushed into its secure, locked position as soon as the door closes.
