Avocet 35/92 2 Hook 2 Roller Twin Spindle Multipoint Lock

£57.55

(£47.96 ex VAT)

sku: DBAV352HB
  • 35mm backset with 92mm centres for standard multipoint door compatibility
  • Features two opposing hooks for enhanced security against forced entry
  • Two roller cams ensure smooth operation and optimal weather compression
  • Twin spindle lifter mechanism supports both lever-lever and lever-pad configurations
  • Reversible latchbolt allows for easy installation on both left and right-handed doors
  • Endurance tested to 100,000 cycles for long-term operational reliability
  • Designed with extension ports to accommodate optional shootbolts
  • Lever-operated latch and deadbolt centre case for robust locking performance
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Avocet 35/92 2 Hook 2 Roller Twin Spindle multipoint lock is a robust security solution designed for use on uPVC and composite doors. This lever-operated mechanism features a latch and deadbolt centre case, providing a secure locking point at the middle of the door, while the auxiliary hooks and rollers provide additional security and weather protection.

This unit is equipped with two opposing hooks that pull into the keeps to resist jemmying and forced separation of the door from the frame. The two roller cams are designed to provide enhanced compression, pulling the door tightly into the weather seals to prevent draughts and improve thermal efficiency.

A key feature of this lock is the twin spindle lifter mechanism. This allows the unit to be used with standard lever-lever handles or lever-pad handles (where the external handle operates the latch only when the key is turned), providing flexibility for different access requirements. The latchbolt is fully reversible, making it suitable for both clockwise and anti-clockwise opening doors without the need for specialist tools.

Commonly used as a direct replacement for failed Avocet mechanisms, this lock is endurance tested to 100,000 operations, ensuring mechanical longevity. It can also be fitted with additional shootbolts at the top and bottom for maximum security on taller door sets.

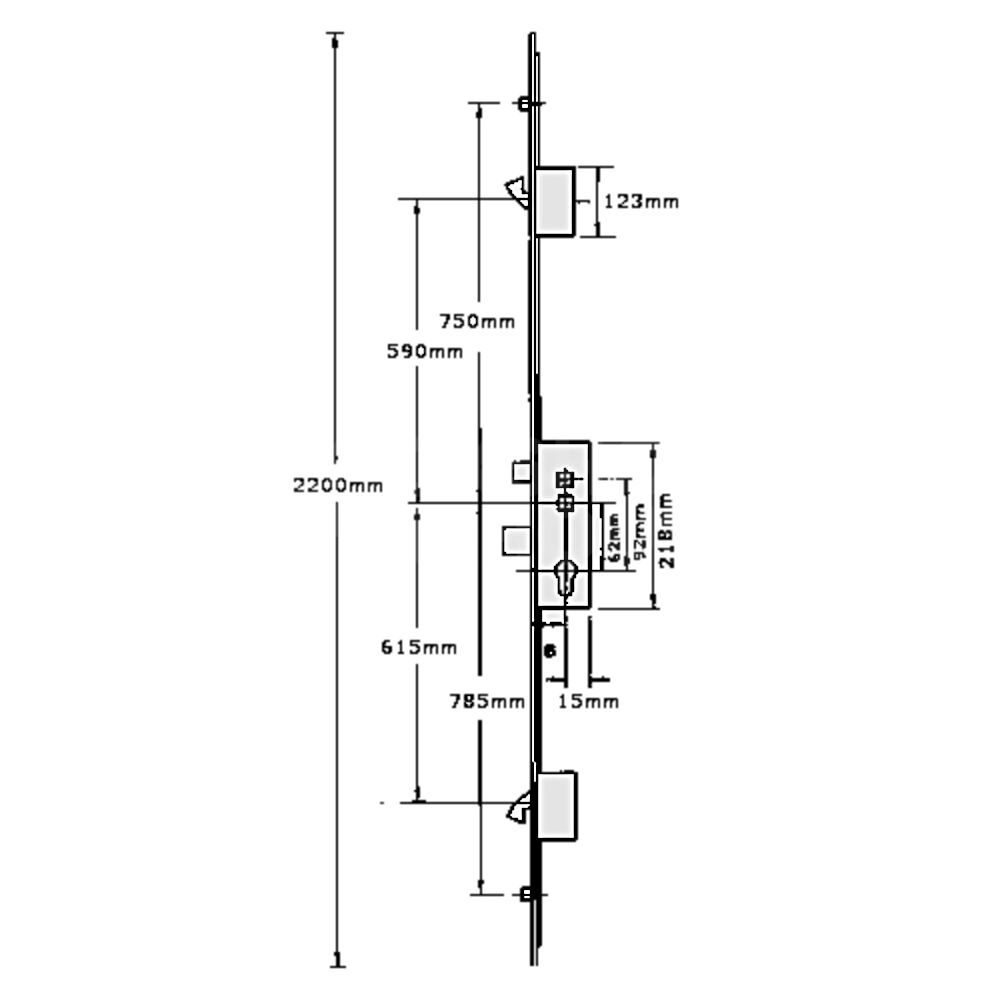

Dimensions Image: Avocet 35/92 2 Hook 2 Roller Twin Spindle Multipoint Lock
Part Size (mm)
centres 62
Backset 35
Body Length 2200
Case Height 218
Locking Point Hooks 2
Locking Point Roller 2

FAQs

To ensure this lock fits your door, you should check that your existing mechanism has a 35mm backset (the distance from the faceplate to the centre of the spindle) and 92mm centres (the distance between the centre of the spindle and the centre of the cylinder). These are standard dimensions for many uPVC and composite doors.

The twin spindle lifter provides flexibility for your door handles. It allows the lock to be used with:

  • Standard lever-lever handles for normal operation.
  • Lever-pad handles, which can prevent the door from being opened from the outside without a key, even when the door is unlocked.

Yes, the latchbolt is fully reversible. This design allows you to easily adjust the lock to suit either left-hand or right-hand opening doors during installation without the need for any specialist tools.

This lock features two opposing hooks that pull into the keeps to provide robust resistance against jemmying and forced entry. Additionally, two integrated roller cams ensure that the door is pulled tightly into the weather seals when locked, helping to eliminate draughts and improve thermal efficiency.
