Avocet Lever Operated 2 Hook 4 Roller Multipoint Lock

£55.30

(£46.08 ex VAT)

sku: DLPN352H4RT
  • Central latch and deadbolt with two opposing hooks
  • Four roller cams along the strip
  • Exact DLPN352H4RT layout identified in Avocet's Pioneer catalogue
  • Lever/lever and lever/pad applications described by Avocet
  • Handed full-length keeps listed for this specific model
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Avocet DLPN352H4RT combines a central latch and deadbolt with two opposing hooks and four roller cams. Avocet's older Pioneer catalogue identifies this exact RT model and lists it without a sash lifter.

The hooks and rollers need to engage with the correct keeps. The catalogue lists handed full-length keeps DKPN352H4RLT and DKPN352H4RRT for this model; they should not be substituted with a keep for a different hook-and-roller layout.

Avocet describes lever/lever and lever/pad applications and a reversible centre latch. Match the handles, spindle arrangement and handing procedure to the installed lock. These range descriptions are not a guarantee of key-only outside entry or direct fit.

Compare the complete strip layout, centre-case preparation, fixing positions and door profile before replacement. Roller engagement is part of the closing and sealing arrangement, but fitting this lock does not guarantee weather sealing or improved thermal performance.

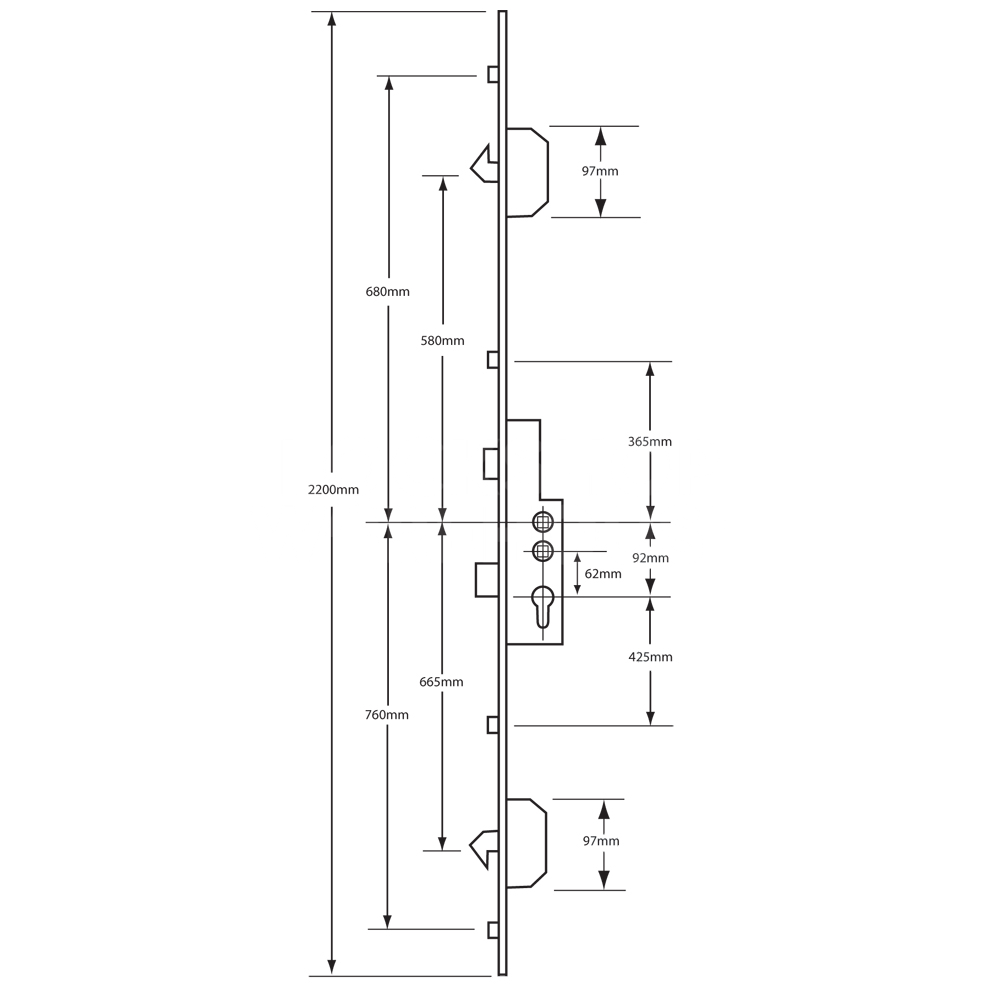

Dimensions Image: Avocet Lever Operated 2 Hook 4 Roller Multipoint Lock
Part Size (mm)
Backset 35
Case Width 50
Case Height 220
Locking Point Hooks 2
Locking Point Roller 4
Faceplate Width 16

FAQs

Avocet describes DLPN352H4RT for lever/lever and lever/pad applications. The handles and spindle arrangement must match the exact lock and intended function. The twin-spindle description alone does not guarantee key-only entry from outside.

It has a central latch and deadbolt, two opposing hooks and four roller cams. These are different components rather than eight equally rated security bolts. Their keeps, fixings and alignment are also important to the complete installation.

Door material alone cannot establish compatibility. Match DLPN352H4RT's complete strip layout, centre case, fixing positions, handles and keeps to your existing installation. A matching faceplate width does not make it a direct replacement for every PVCu or composite door.

The rollers form part of the closing and sealing arrangement and engage with the matching keeps. The result also depends on door alignment and the condition of the seals. Four rollers do not, by themselves, guarantee a draught-free or more thermally efficient door.
