skip to Avocet Pioneer Caravan Multipoint Door Lock

Avocet Pioneer Caravan Multipoint Door Lock

£56.80

(£47.33 ex VAT)

sku: DLPNE353DBT
  • Designed specifically for caravan doors with a 1565mm overall faceplate length
  • Twin spindle configuration supports both lever/lever and lever/pad operation
  • Features three deadbolt locking points for enhanced security across the door height
  • Reversible latch mechanism allows for installation on both left and right-handed doors
  • High-security 20mm deadbolt throw ensures robust engagement into the keeps
  • Endurance tested to 100,000 operations for long-term mechanical reliability
  • Certified to BS EN 1670:2007 Grade 4 for high corrosion resistance
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick BS EN 1670:2007 - Grade 4
tick Latch & Deadbolt

The Avocet Pioneer Caravan Multipoint Lock is a specialised security solution engineered for the specific requirements of caravan and leisure vehicle doors. With a 35mm backset and a 92/62mm twin spindle arrangement, this unit provides versatile operation, allowing for the use of both lever/lever and lever/pad handle configurations.

This lock functions as a comprehensive security system, featuring a central latch and deadbolt along with two additional deadbolts positioned on the faceplate. The 20mm deadbolt throw provides deep penetration into the door frame keeps, offering increased resistance against forced entry. The latch is fully reversible, making it compatible with various door openings and simplifying the installation process.

Commonly employed as a direct replacement for existing caravan multipoint locks, the Pioneer series is built for durability in demanding environments. It has undergone rigorous endurance testing to 100,000 cycles and meets BS EN 1670:2007 Grade 4 standards, ensuring reliable performance and protection against the elements. This makes it an ideal choice for maintaining or upgrading the security of entry doors on static or touring caravans.

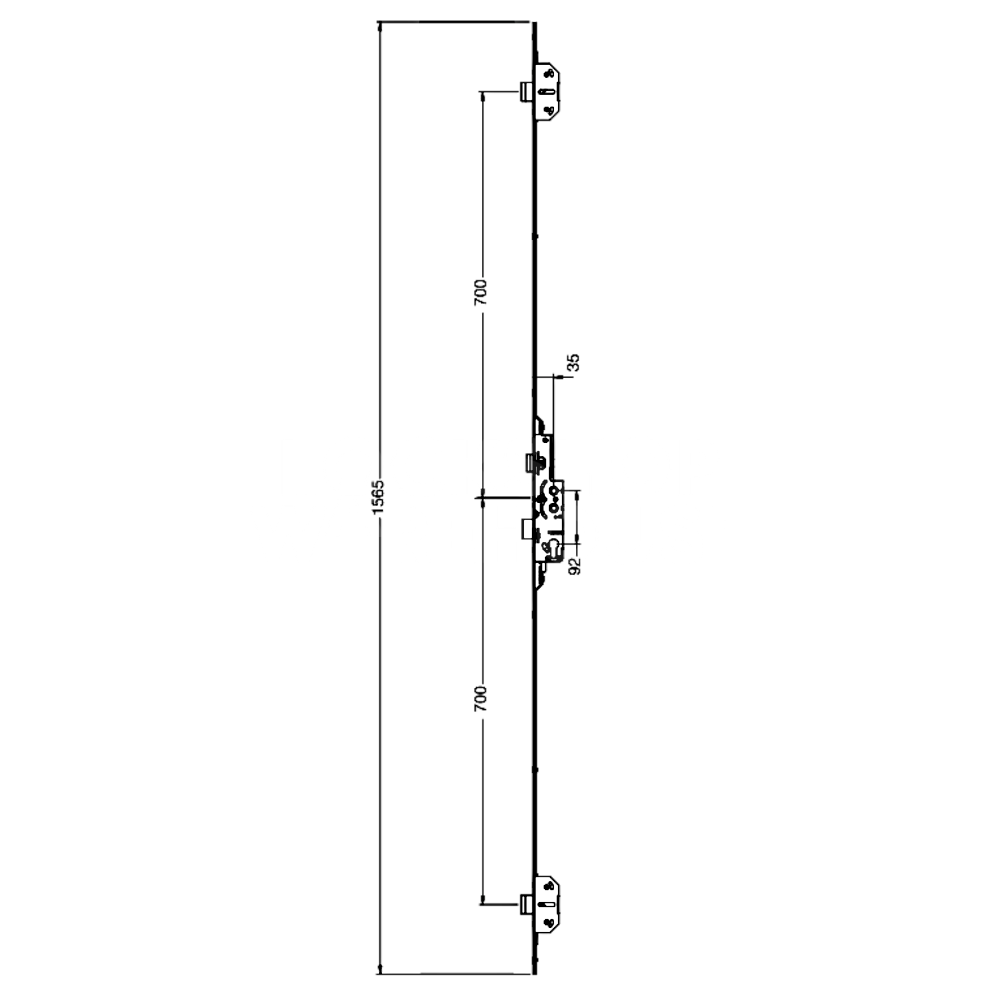

Dimensions Image: Avocet Pioneer Caravan Multipoint Door Lock
Part Size (mm)
centres 92
Backset 35
Body Length 1565
Case Width 50
Case Height 220
Locking Point Dead Bolt 2
Faceplate Width 16

Brand

SKU

DLPNE353DBT

Certifications

tick BS EN 1670:2007 - Grade 4

FAQs

The Avocet Pioneer is specifically engineered for caravan and leisure vehicle doors. It features a 1565mm faceplate length and a 35mm backset. We recommend checking these measurements against your current lock to ensure it is a suitable replacement.

The 92/62mm twin spindle configuration supports two main handle types:

  • Lever/Lever: Both handles operate the latch and deadbolts.
  • Lever/Pad: Commonly used to restrict external entry without a key.

Yes, this lock is suitable for both. It features a fully reversible latch mechanism, allowing you to easily adjust the orientation to match the handing of your door during the installation process.

This lock provides high-level security with three deadbolt locking points and a 20mm throw for deep engagement into the door frame. It is built for durability, tested to 100,000 cycles, and certified to BS EN 1670:2007 Grade 4 for high corrosion resistance.
