Avocet Pioneer Twin Spindle Multipoint Door Lock 2 Hook 2 Roller

£51.43

(£42.86 ex VAT)

sku: DLPN352H2RT
  • Central latch and deadbolt with two opposing hooks
  • Two roller cams
  • Original DLPN352H2RT catalogue layout has no sash lifter
  • Lever/lever and lever/pad applications described by Avocet
  • Model-specific handed full-length keeps listed in the original catalogue
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Avocet DLPN352H2RT has a central latch and deadbolt, two opposing hooks and two roller cams. Avocet's older Pioneer catalogue identifies this exact RT model and lists it without a sash lifter. It should not be confused with the RSS sash-lifter version.

The catalogue describes lever/lever and lever/pad applications. The handle and spindle arrangement must match the intended function; twin-spindle construction alone does not establish key-only outside entry.

The original model table lists full-length keeps DKPN352H2RLT and DKPN352H2RRT. Check the handed keep, profile packing, complete strip layout, centre case and fixing positions before replacement. The same brand or faceplate width is not enough to establish compatibility.

The hooks and rollers engage with their matching keeps. The performance of the complete door also depends on its frame, alignment, seals and installation; no blanket forced-entry, weather-sealing or thermal-performance guarantee is implied.

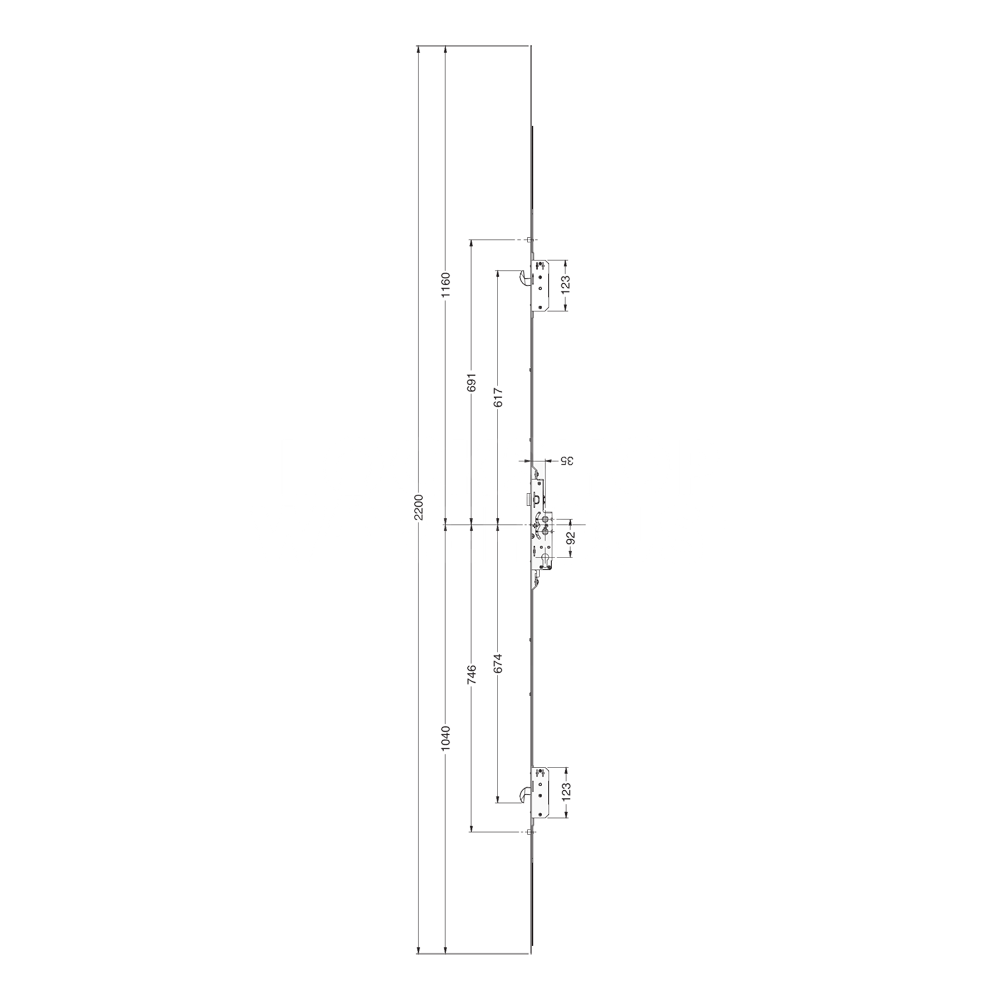

Dimensions Image: Avocet Pioneer Twin Spindle Multipoint Door Lock 2 Hook 2 Roller
Part Size (mm)
Backset 35
Case Width 50
Case Height 220
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

Avocet describes DLPN352H2RT for lever/lever and lever/pad applications. Select the handle and spindle arrangement that matches the exact lock and required function. Those application descriptions do not guarantee that every setup requires a key for outside entry.

The mechanism has a central latch and deadbolt, two opposing hooks and two roller cams. The hooks and rollers engage with matching keeps, but their presence alone is not a guarantee against forced entry or of improved insulation. Door construction, alignment, fixings and seals all matter.

Only after the exact model and complete layout have been matched. The older DLPN352H2RT catalogue layout has no sash lifter and is distinct from the RSS sash-lifter version. Check the centre case, fixing positions, handles and model-specific handed keeps as well as the faceplate.

This is listed as a Euro-profile lock case. Check the cylinder length, cam, fixing and required function against the exact lock, handles and door hardware. Do not assume that every Euro-profile, thumb-turn or higher-security cylinder option will suit the installation.
