skip to Avocet Twin Spindle Multipoint Door Lock 4 Roller

Avocet Twin Spindle Multipoint Door Lock 4 Roller

£37.58

(£31.32 ex VAT)

sku: DLPN354RT
  • Lever-operated mechanism for secure latch and deadbolt engagement
  • Equipped with four adjustable roller cams for enhanced weather sealing
  • Twin spindle design supports both lever/lever and split spindle handle operation
  • Standard 92mm and 62mm centres for versatile door handle compatibility
  • Durable 16mm faceplate designed for uPVC and composite door systems
  • Compatible with standard Euro profile cylinders
  • Smooth operation facilitates easy locking and unlocking for end users
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Avocet Twin Spindle Multipoint Door Lock is a robust security solution specifically engineered for uPVC and composite door systems. It combines a central latch and deadbolt with four compression rollers located along the 16mm faceplate to ensure a secure, weather-tight seal and multiple locking points.

This mechanism features a twin spindle gearbox with 92mm and 62mm centres. This configuration offers flexibility in hardware choice, allowing for standard lever/lever operation or a split spindle function. When used with a split spindle handle set, the external lever will not retract the latch without a key, providing an additional layer of perimeter security for residential properties.

Typically used as a high-quality replacement part for existing door systems, the Avocet lock is designed for longevity and smooth operation. The lever-operated system requires the user to lift the handle to engage the rollers and deadbolt before the key is turned to secure the door.

  • Function: Lever-operated latch, deadbolt and four rollers
  • Compatibility: Designed for doors with a 16mm euro-groove
  • Spindle: Twin spindle (92/62mm) for varied handle configurations
  • Application: Ideal for both replacement and new-build installations

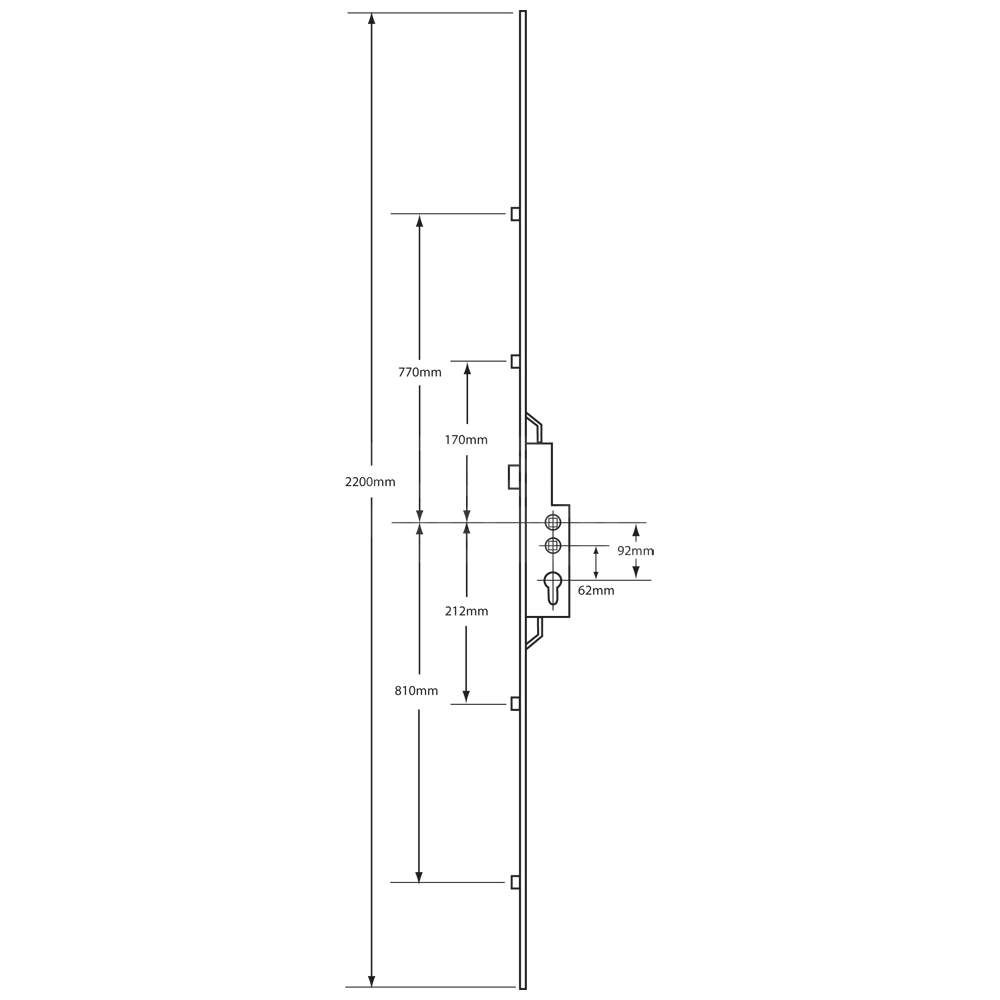

Dimensions Image: Avocet Twin Spindle Multipoint Door Lock 4 Roller
Part Size (mm)
Backset 35
Case Width 47
Case Height 220
Locking Point Roller 4
Faceplate Width 16

FAQs

The twin spindle design features two handle positions with 92mm and 62mm centres. This allows you to choose between standard lever/lever operation or a split spindle function. With a split spindle handle, the external lever will not retract the latch without a key, enhancing your home's security.

This multipoint lock provides six secure points of contact:

  • 1 Central Latch
  • 1 Central Deadbolt
  • 4 Adjustable Roller Cams for weather sealing

The Avocet Twin Spindle lock is designed for doors with a 16mm faceplate and is compatible with standard Euro profile cylinders. It is a common replacement part for uPVC and composite doors using a lever-operated system.

To secure the door, lift the handle upwards; this action engages the four rollers and the deadbolt. Once the handle is in the upward position, turn the key to lock the mechanism in place.
