Avocet Twin Spindle Multipoint Lock 2 Deadbolt 4 Roller

£48.32

(£40.27 ex VAT)

sku: DLPN353D4RT
  • Central latch and deadbolt with two additional deadbolts along the strip
  • Four roller cams
  • Exact DLPN353D4RT layout identified in Avocet's Pioneer catalogue
  • Lever/lever and lever/pad applications described by Avocet
  • Matching centre, deadbolt and roller keeps required
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Avocet DLPN353D4RT has a central latch and deadbolt, two additional deadbolts and four roller cams. Avocet calls this a three-deadbolt, four-roller model because its deadbolt count includes the central deadbolt.

The older Pioneer catalogue identifies DLPN353D4RT separately from the shorter DLPNE353DBT model. Their layouts are not interchangeable simply because both have additional deadbolts.

Avocet describes lever/lever and lever/pad applications and a reversible centre latch. Match the required handles and spindle arrangement to the existing installation; these descriptions do not establish key-only outside entry or a universal reversal procedure.

Replacement requires the exact strip layout, centre case, fixing positions and complete keep arrangement. The rollers form part of the door's closing and sealing arrangement, but the condition of the keeps, alignment and seals determines the finished result. No airtightness or draught-elimination guarantee is implied.

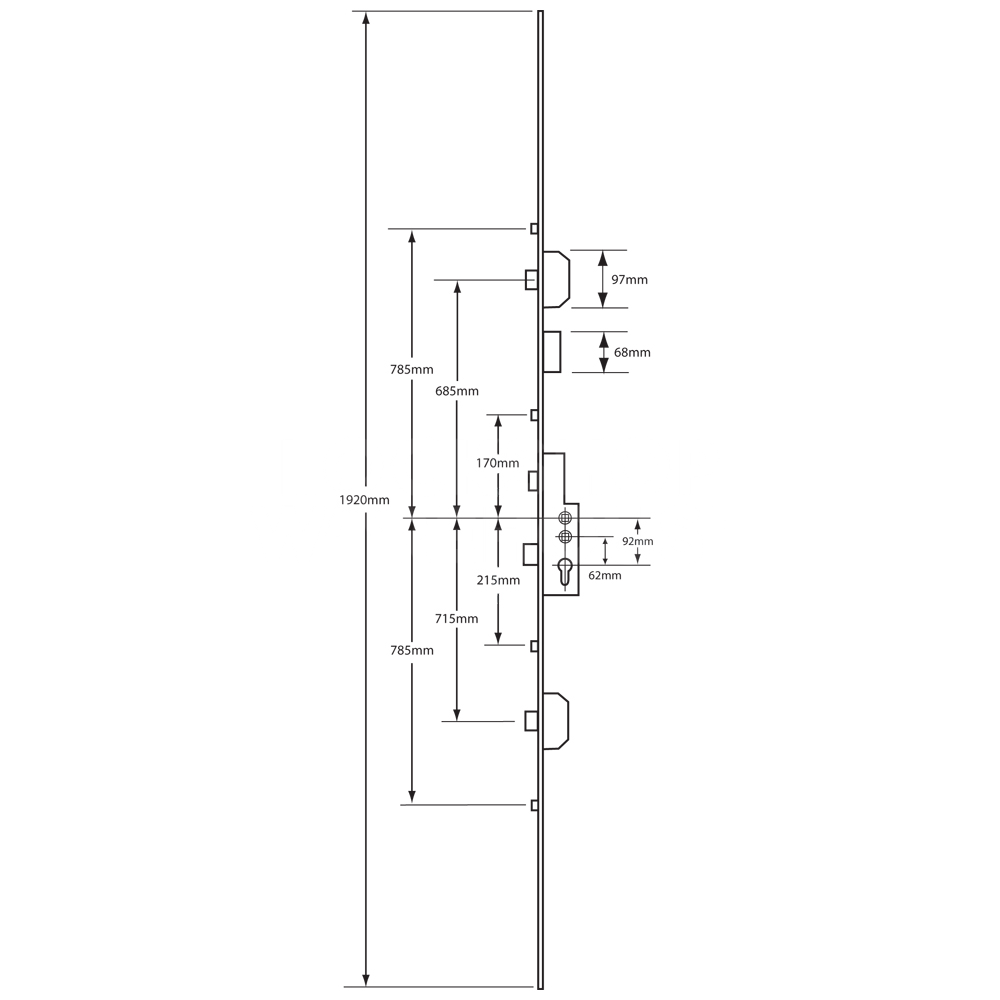

Dimensions Image: Avocet Twin Spindle Multipoint Lock 2 Deadbolt 4 Roller
Part Size (mm)
Backset 35
Case Width 50
Case Height 220
Locking Point Dead Bolt 2
Locking Point Roller 4
Faceplate Width 16

FAQs

Avocet describes this model for lever/lever and lever/pad applications. The correct handle and spindle arrangement needs to be checked for the exact installation. Twin-spindle construction alone does not establish that a key is always required to enter from outside.

The mechanism has a central latch and deadbolt, two additional deadbolts and four roller cams. Avocet's catalogue describes three deadbolts in total, including the centre one. A combined count of unlike components is not a security rating.

The roller cams are part of the closing and sealing arrangement. Effective sealing also depends on the matching keeps, door alignment and the condition of the seals. Replacing the lock alone does not guarantee the removal of draughts or an airtight closure.

This is listed as a Euro-profile lock case. Check the cylinder's length, cam, fixing and required operating function against the exact lock and door hardware. Cylinder profile or faceplate width alone does not establish that the complete lock is a direct replacement.
