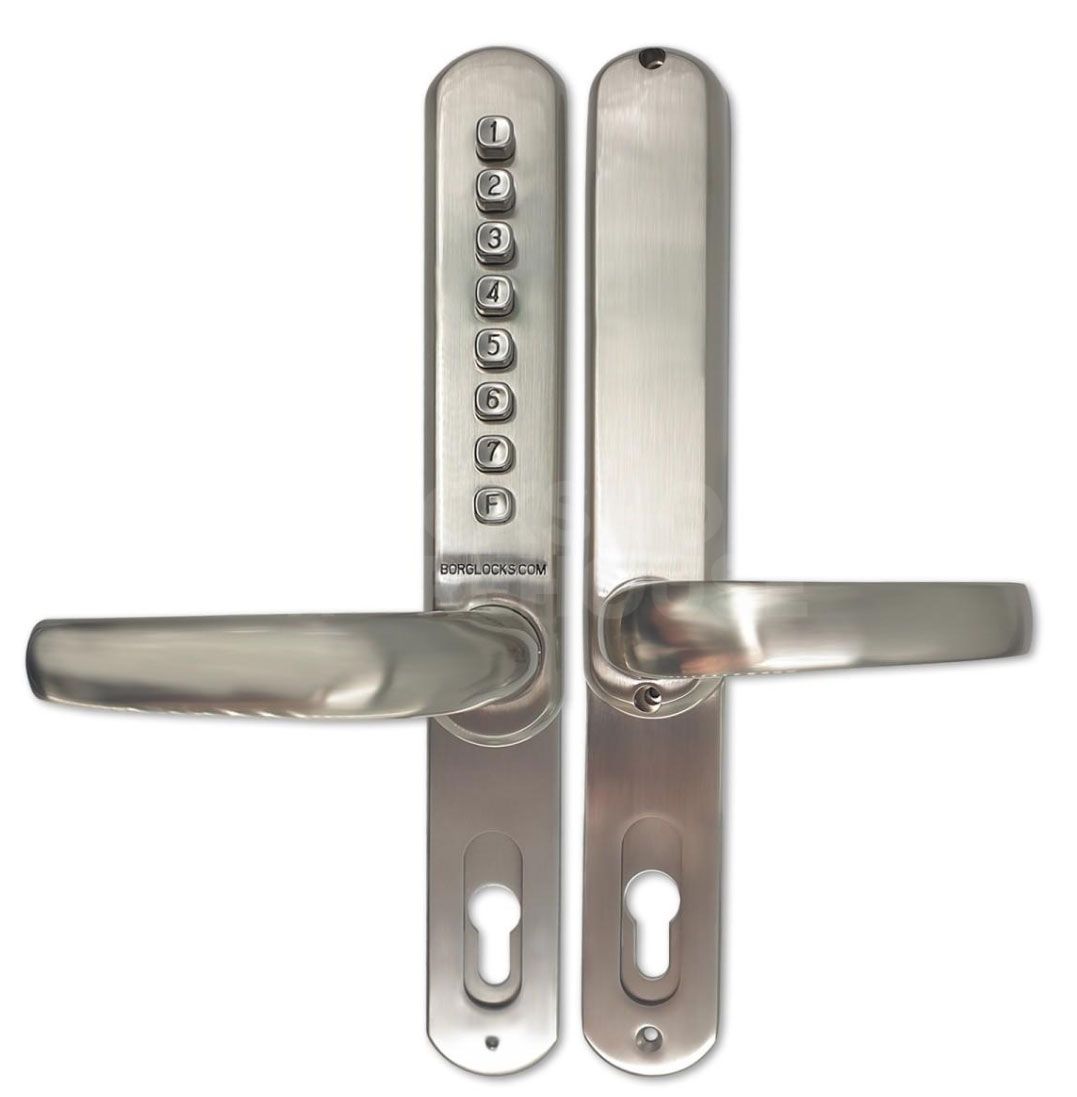

BL6100 Narrow Stile Mechanical Lock

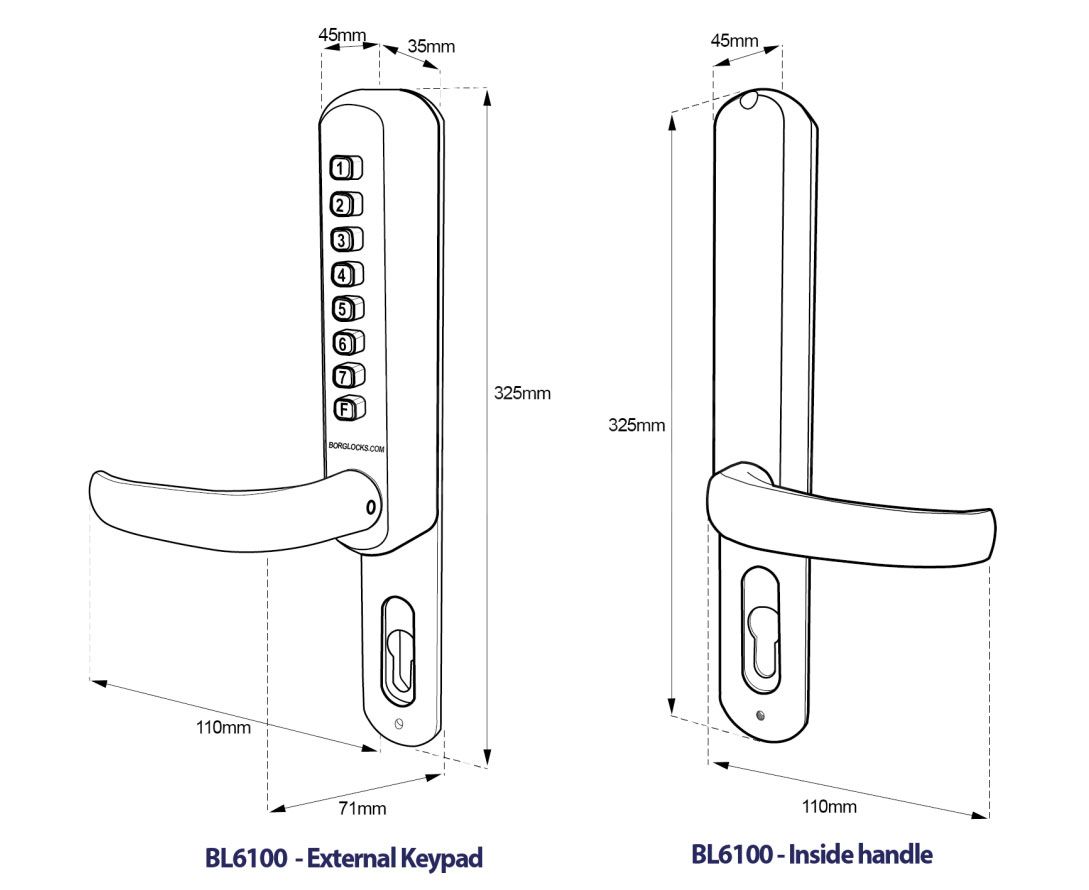

The BL6100 is a uniquely designed mechanical lock developed to meet the growing demand for narrow stile applications—especially where standard locks won't fit. With a slim 45mm-wide body, it's the ideal solution for tight spaces such as UPVC, aluminium, composite, or wooden doors with limited surface area.
This model includes a 325mm-long extension plate, pre-installed behind both the keypad and internal handle. This plate adds 113mm to the total length, making the BL6100 fully compatible with 90mm and 92mm-centred multi-point locks, while also helping to cover existing holes in retrofit installations.

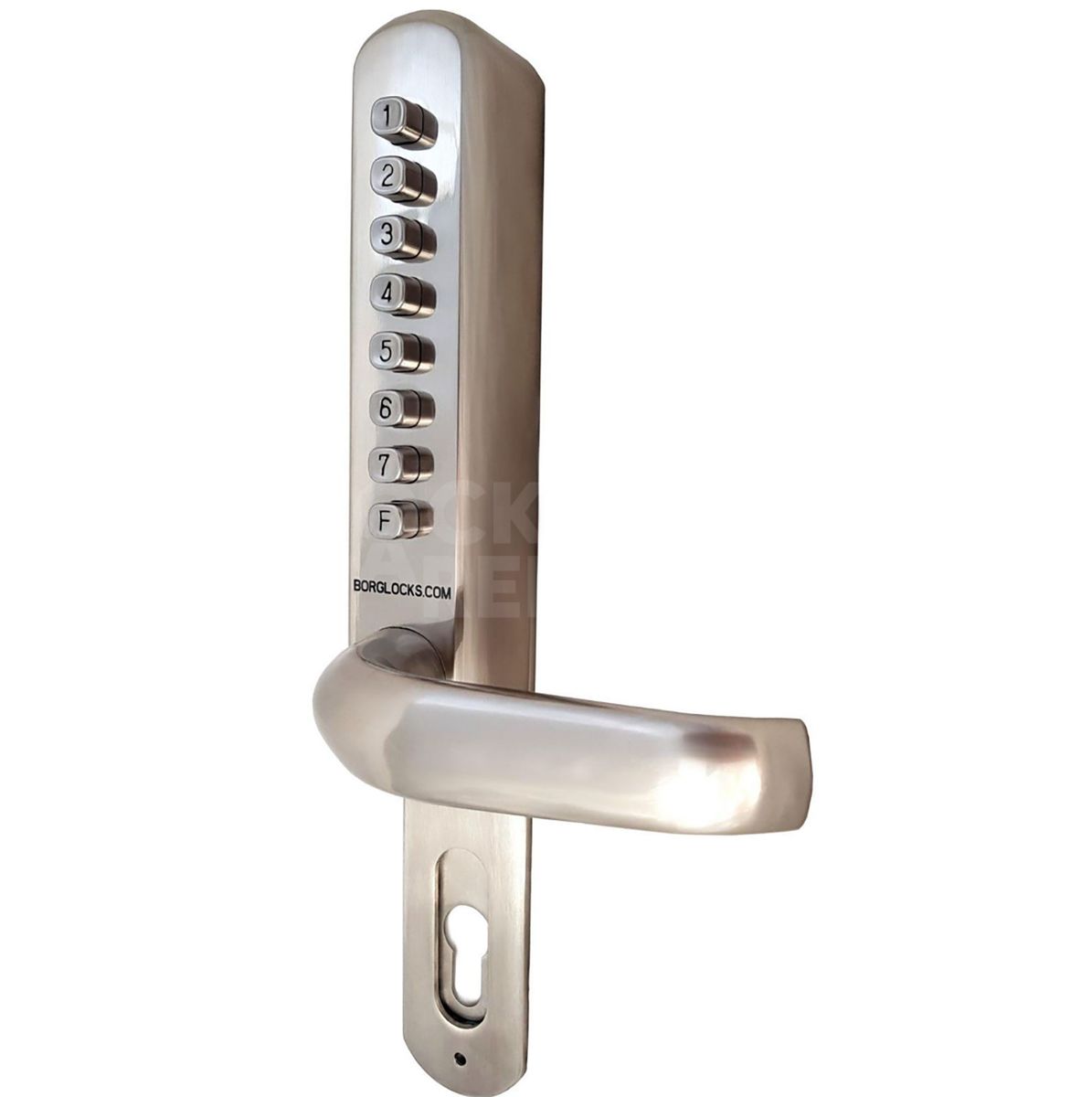

The keypad features a single column of 8 buttons, supporting a double-press system, allowing digits to appear more than once within a code. A clutched, free-turning handle ensures the handle rotates freely when the correct code is not entered—enhancing security and preventing force attacks.
A Free Passage Mode is also included, enabling the lock to be temporarily used without a code—ideal for high-traffic periods. This mode is optional and can be fully disabled if not required.
The BL6100 is supplied without a latch, making it suitable for integration with an existing setup or a third-party latch. Its rotating handle is perfectly suited for multi-point latch systems.
Suitable For:
-

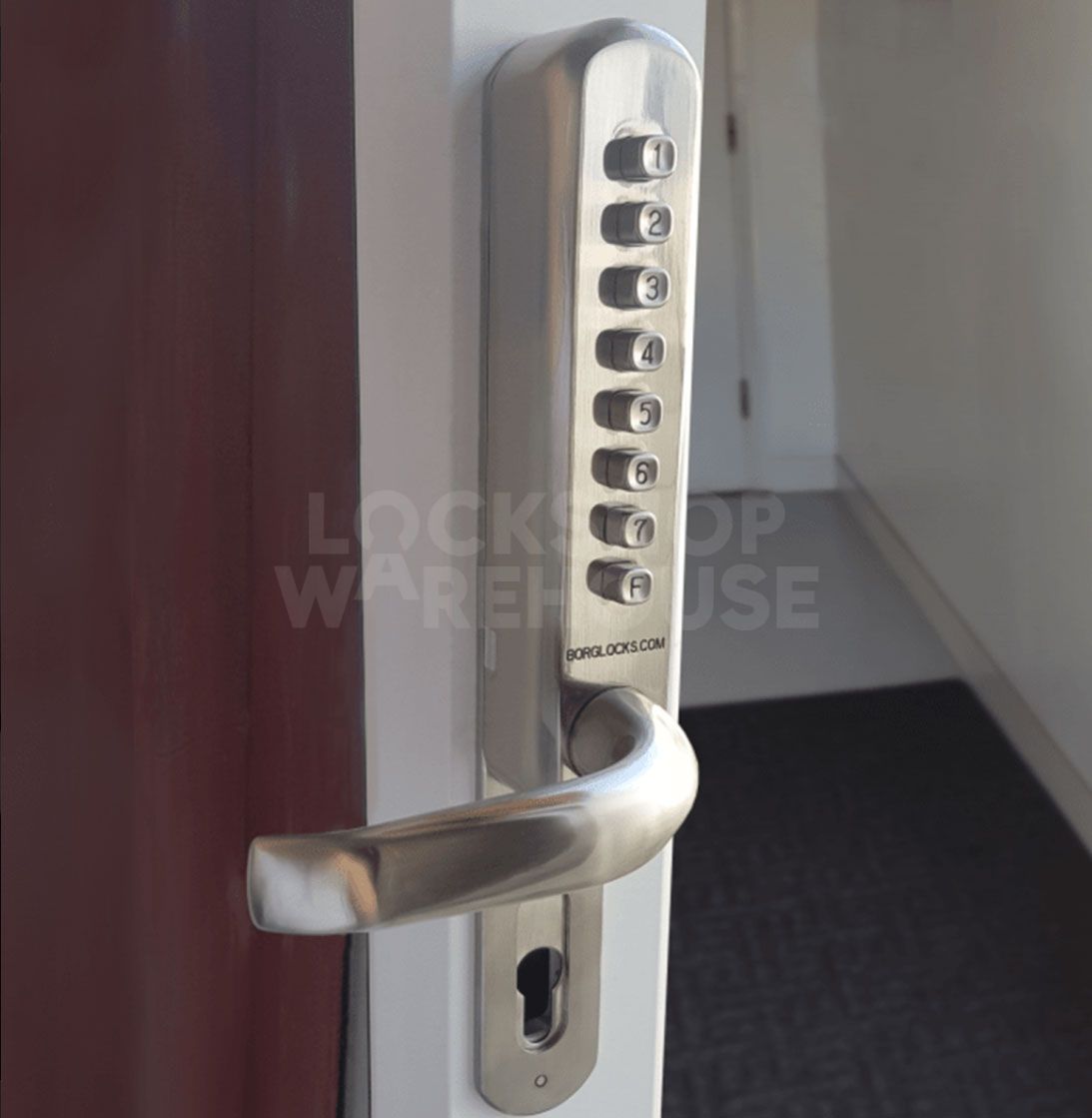

Narrow stile UPVC, aluminium, composite, and timber doors
-
Internal use and sheltered external applications
-
Retrofitting onto doors with existing holes or multi-point systems
