Bramah Rola R104 Extended Sash Stop (pair without keys)

£17.99

(£14.99 ex VAT)

sku: R104
  • Threaded stop design restricts sliding sash movement for enhanced security.
  • Prevents windows from passing each other to ensure property safety.
  • Allows sashes to be locked in a fully closed or partially open position.
  • Provides secure ventilation without compromising window integrity.
  • Supplied as a pair of stops with matching inserts.
  • Designed for use with standard M6 threaded window systems.
  • Requires a compatible Rola key for installation and adjustment.
Document Icon product info Document Icon product info

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

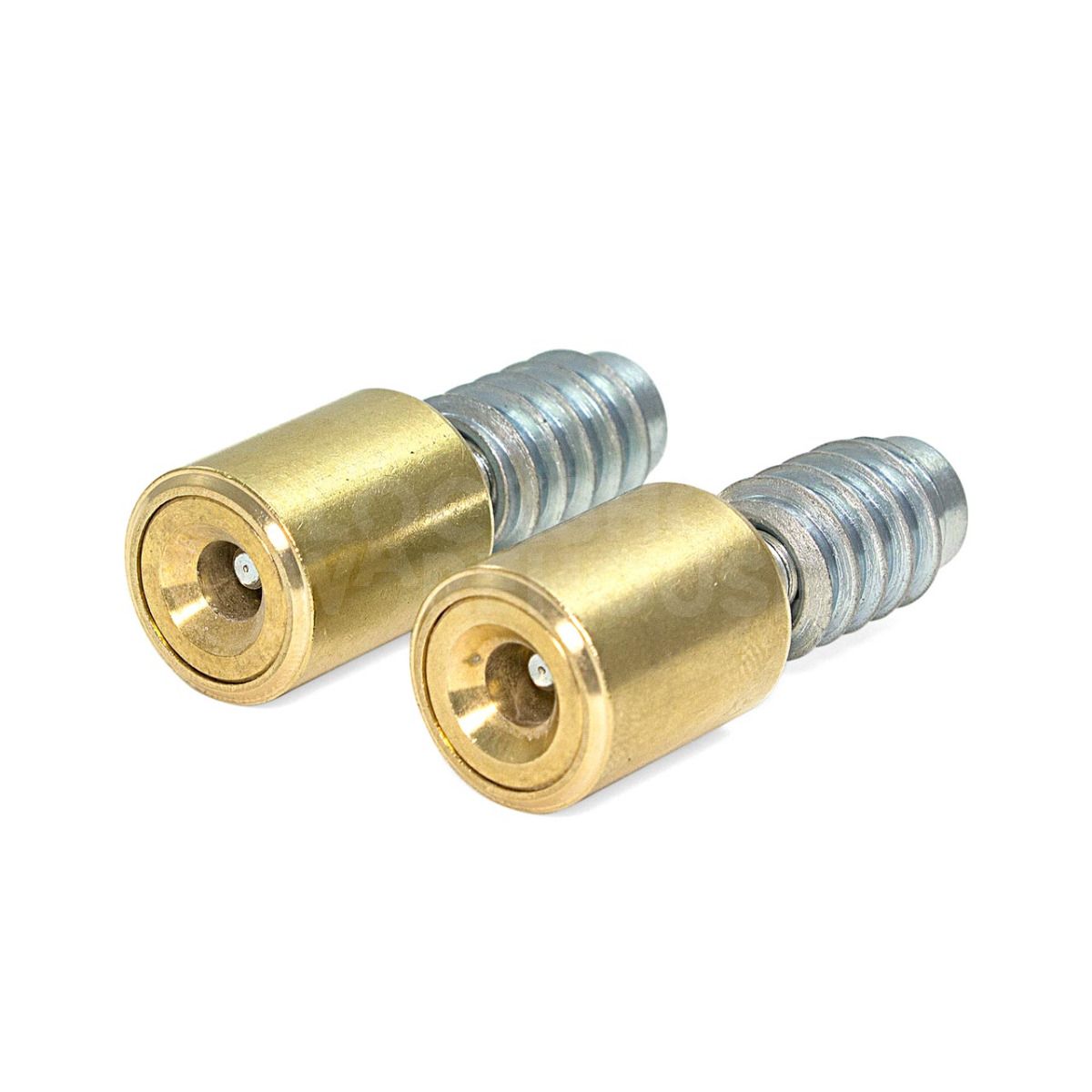

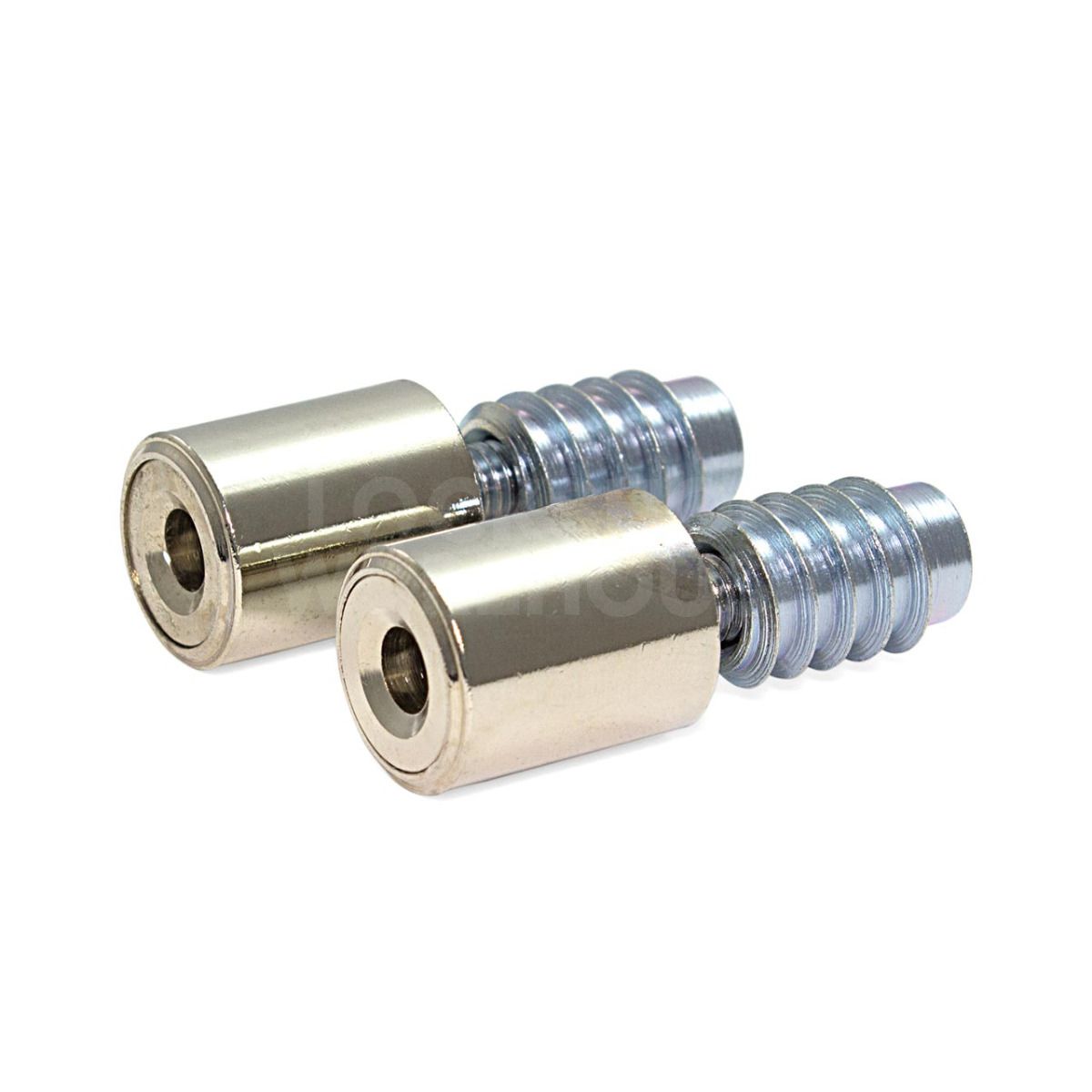

The Bramah Rola R104 Extended Sash Stop is a technical security solution for timber sliding sash windows. This system operates by installing a threaded insert into the top sash; the stop is then screwed into this insert using a specific key. Once in place, the extended body of the stop prevents the two sashes from sliding past one another, effectively locking the window.

These stops are primarily used to provide secure ventilation. By installing inserts at multiple points, users can fix the window in a slightly open position, allowing air to circulate while maintaining a high level of physical security. They are also frequently used as a primary locking mechanism to secure windows in the fully closed position.

Typical applications include:

  • Upgrading security on traditional vertical sliding sash windows.
  • Residential properties requiring child-safe window restrictors.
  • Ground floor windows where tamper-resistant locking is essential.
  • Retrofitting to existing frames or installation during new window manufacture.

Please note that these units are supplied without keys, allowing them to be integrated into existing Rola keyed-alike systems or paired with a separately purchased key.

Brand

SKU

R104

Box Contents

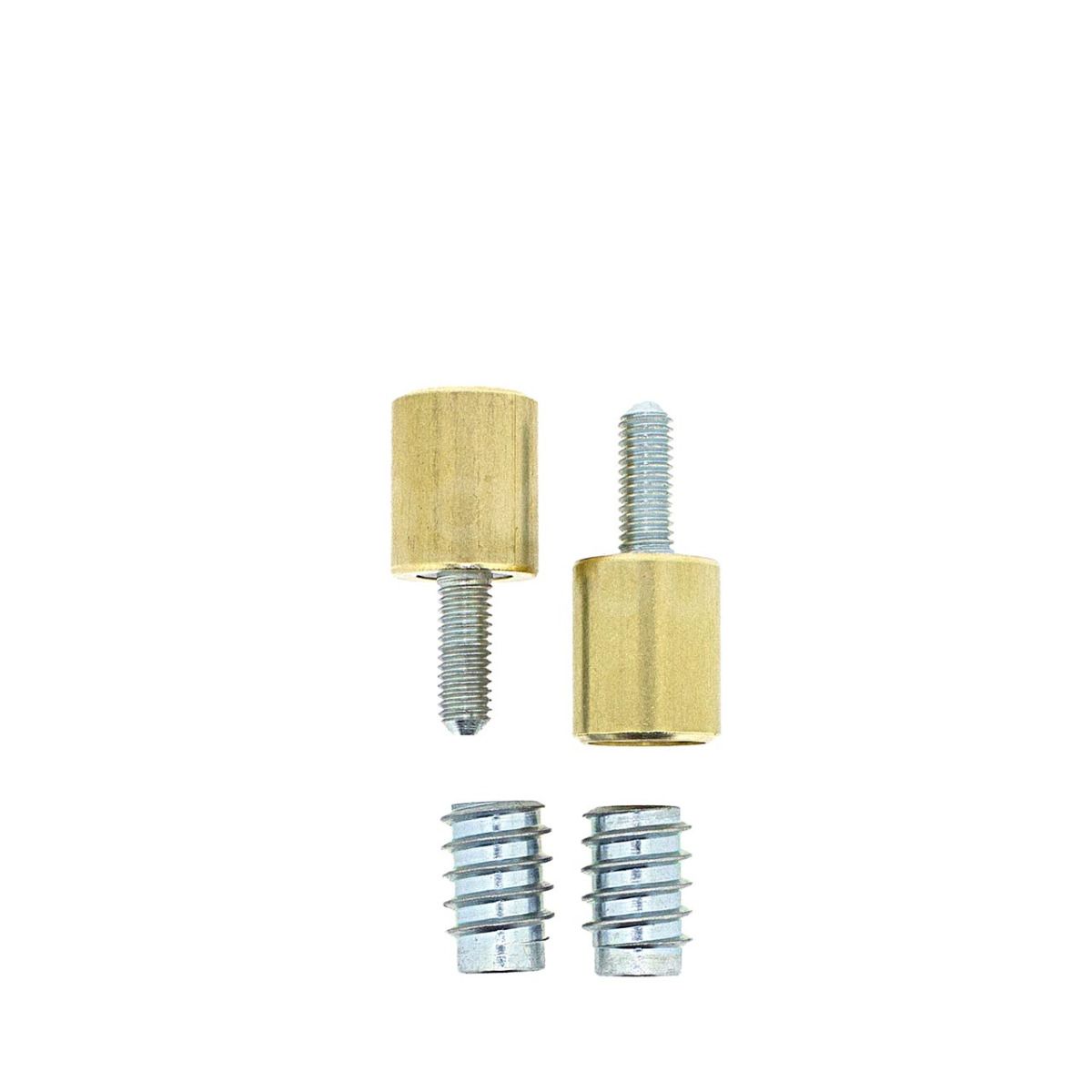

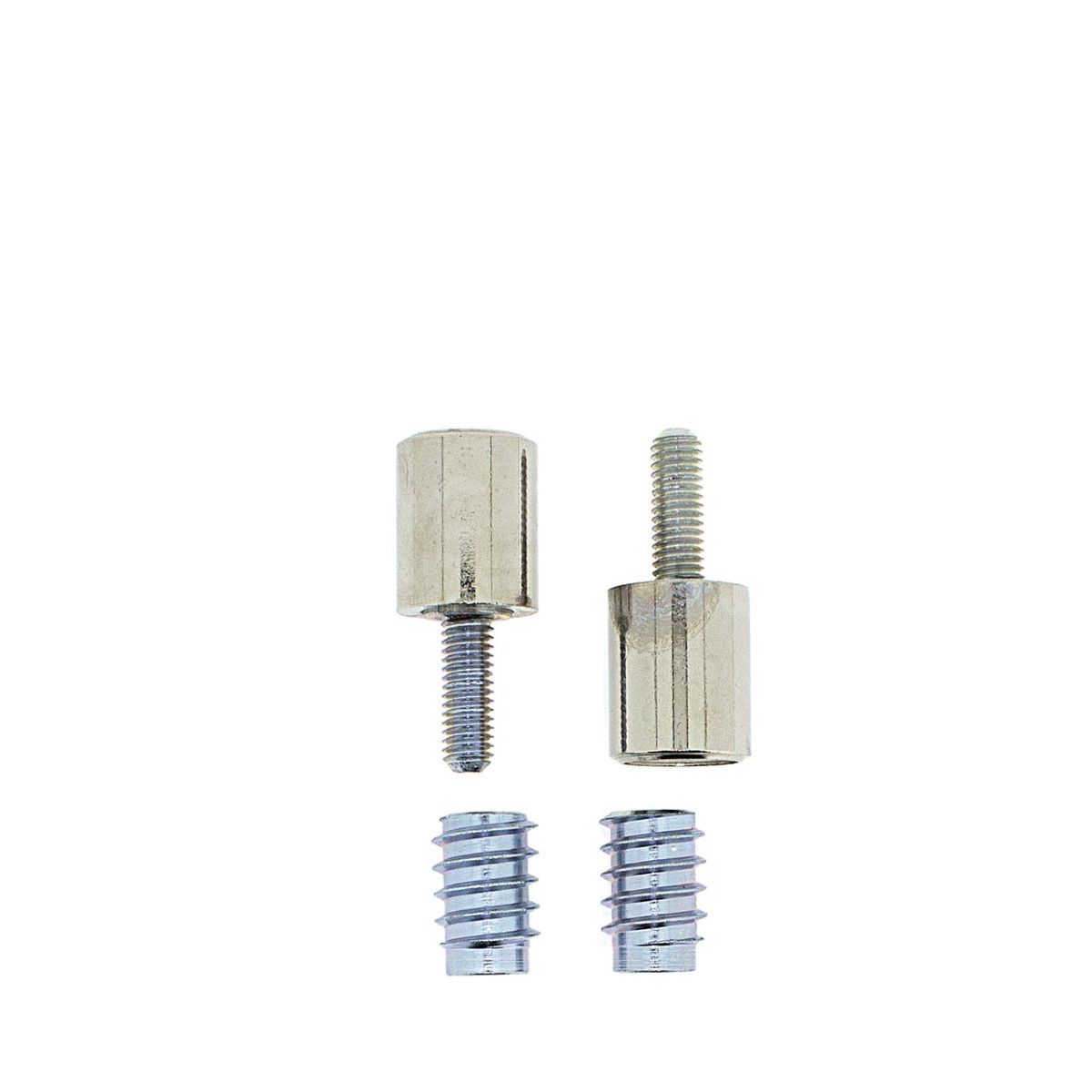

2 X Sash Window Stops

2 X Inserts

FAQs

These stops are designed for sliding sash windows. The threaded stop is screwed into a metal insert installed in the top sash. Once in place, it prevents the sashes from passing each other, effectively locking the window.

No, this pair of R104 sash stops is supplied without keys. If you do not already have a compatible Bramah Rola key, you will need to purchase one separately to operate and install the stops.

Yes, these sash stops are versatile. They can be used to lock the window fully closed for maximum security or positioned to allow the window to stay partially open for ventilation while still preventing it from being opened further from the outside.

Each sash stop has a body length of 31mm and a diameter of 16mm. They utilize a standard M6 thread for securing into the provided inserts.

Related Products

skip to R6/01 Pair of Keys for Bramah Sash Stops R101 - 108

R6/01 Pair of Keys for Bramah Sash Stops R101 - 108

£8.39

(£6.99 ex VAT)

sku: 2204x
  • Specifically designed to operate Bramah R101 to R108 sash window stops
  • Enables secure locking and unlocking of threaded sash bolts
  • Knurled handle design provides superior grip and manual torque during use
  • Extended shaft length ensures easy access to recessed bolts in deep timber frames
  • Essential tool for the maintenance and operation of traditional sash window security
  • Functional replacement for lost or damaged original sash stop keys
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

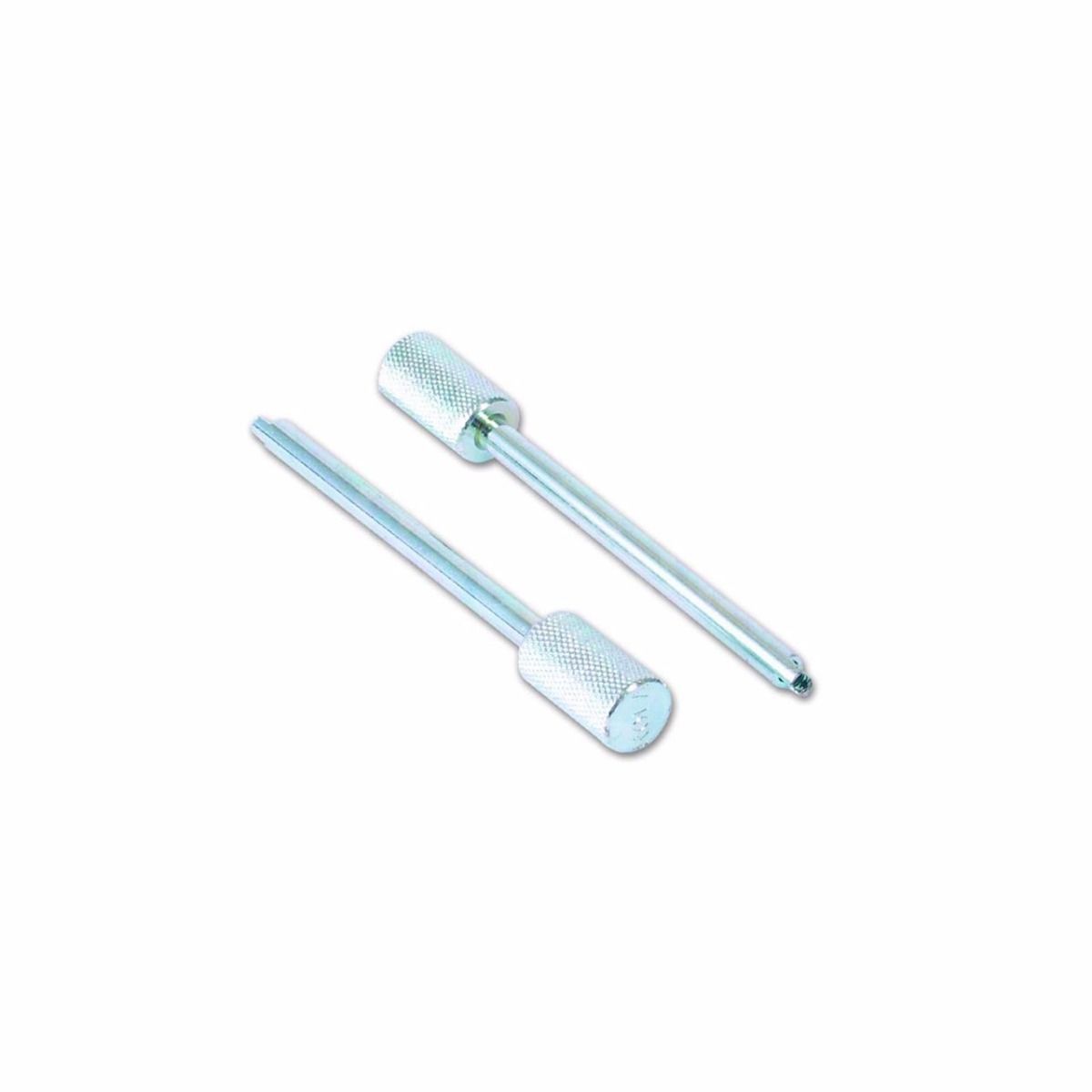

The Bramah R6/01 is a pair of specialised keys engineered specifically for the operation of the R101 to R108 series of sash window stops. These stops are a common security solution for traditional timber sliding sash windows, utilising a threaded bolt mechanism to restrict window movement and enhance property security.

Each key features a knurled head, providing the user with a textured surface for improved grip and leverage when tightening or loosening the internal bolts. The elongated shaft design is a critical feature, allowing the key to reach stops that may be installed deep within the window frame or sash rail, ensuring smooth operation without obstruction.

These keys are typically used as replacements for lost originals or as additional sets for property managers and homeowners. They are compatible with the following Bramah window stop models:

  • R101 and R102
  • R103 and R104
  • R105 and R106
  • R107 and R108

Brand

SKU

2204x

Box Contents

2 keys
