skip to Bramah Rola R101 Sash Stop (pair without keys)

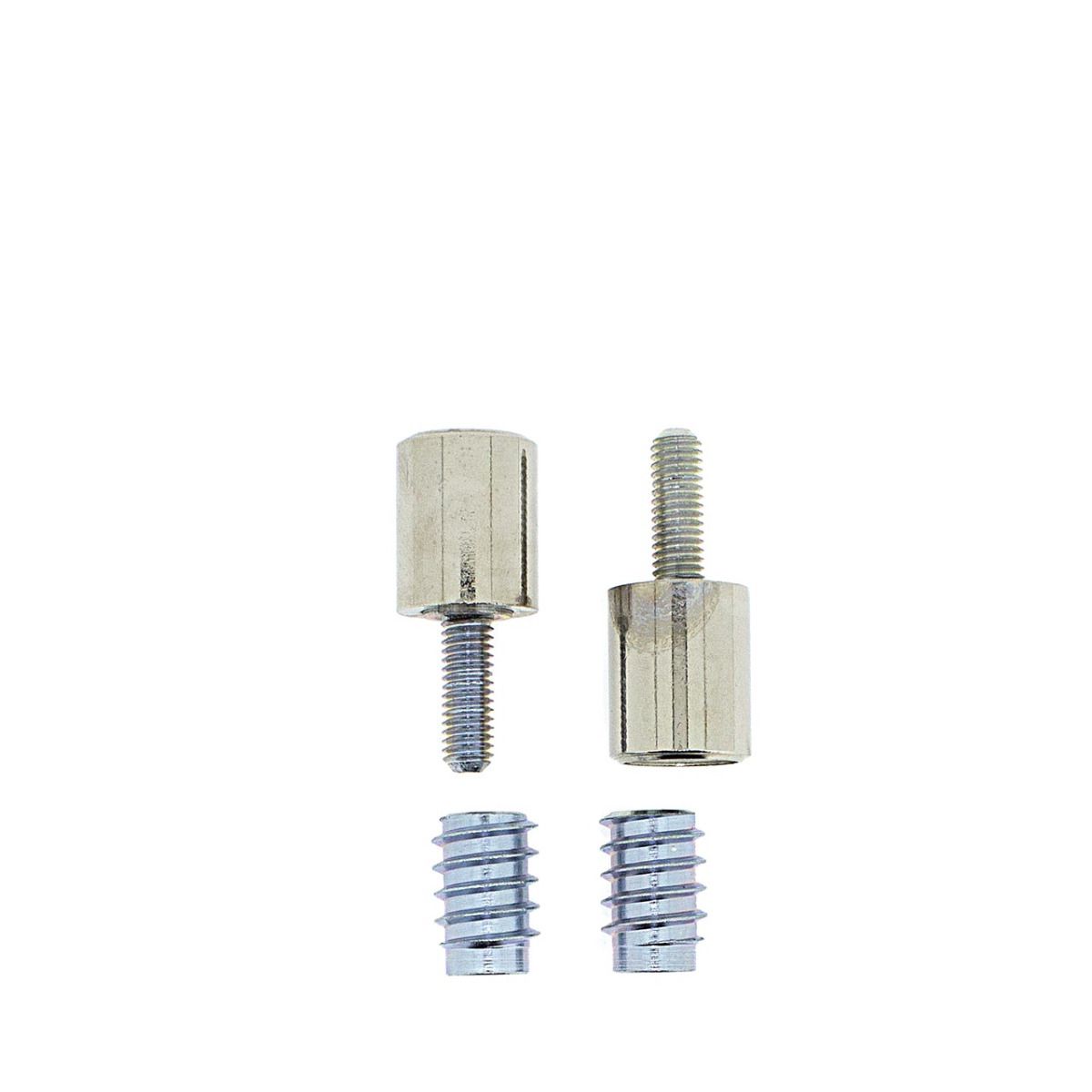

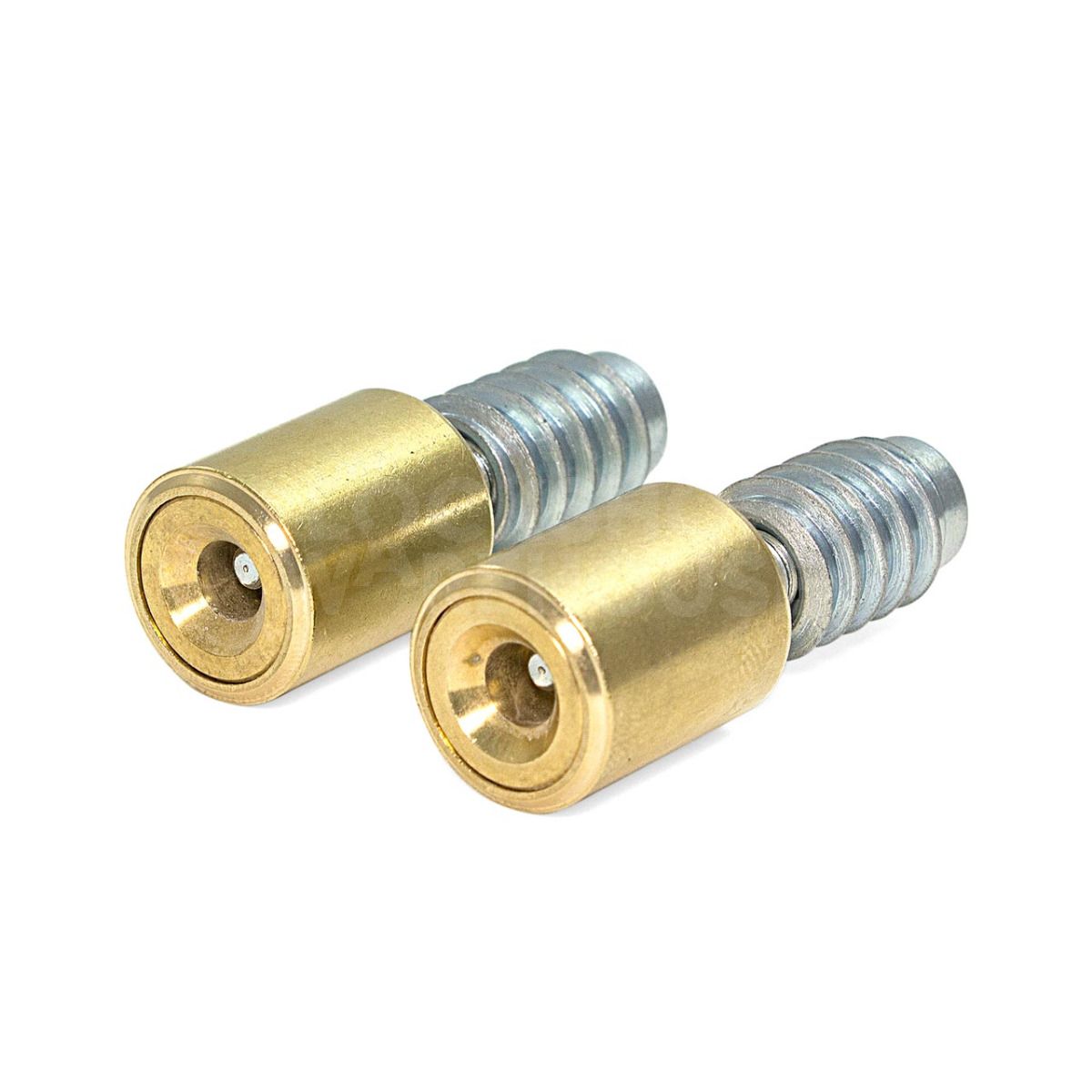

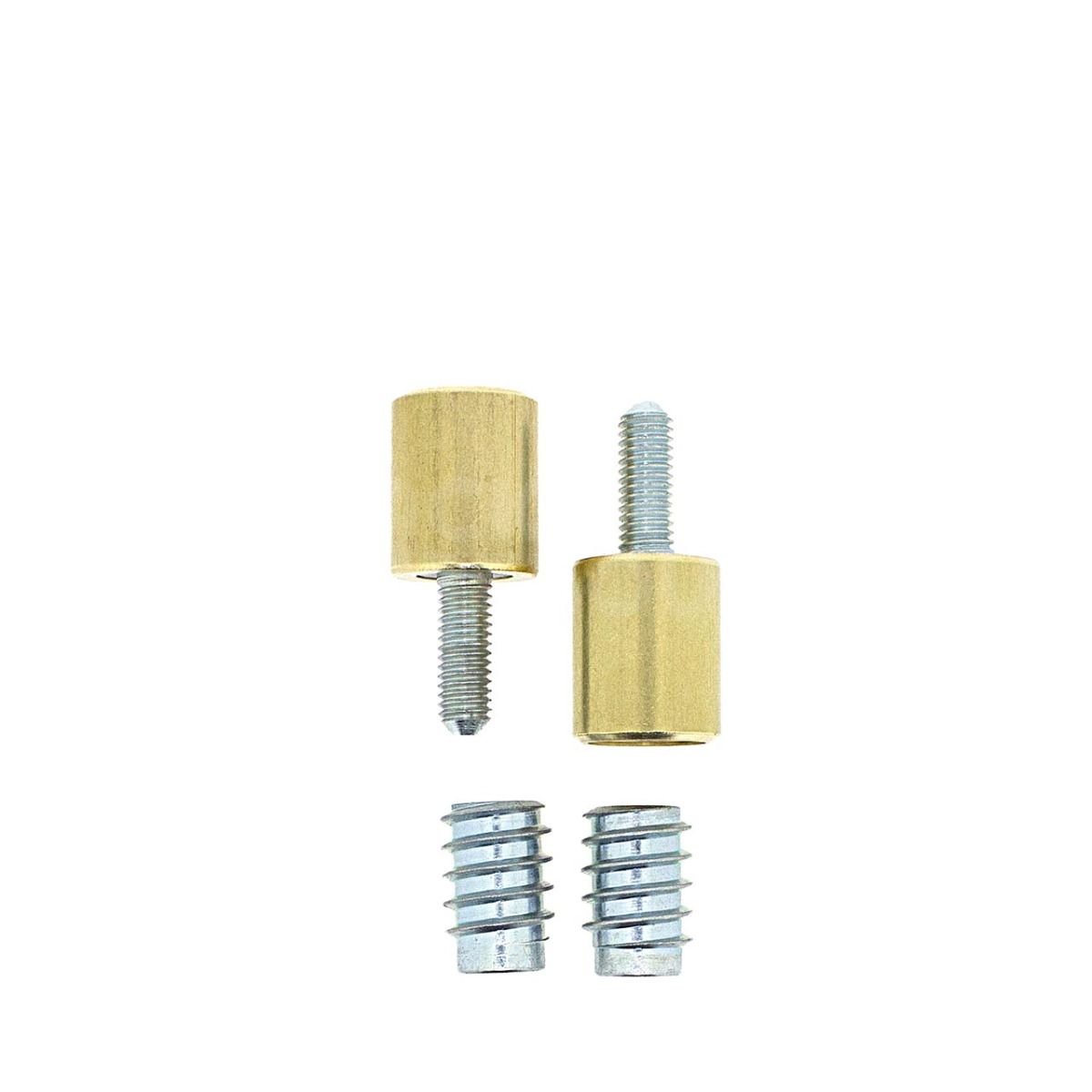

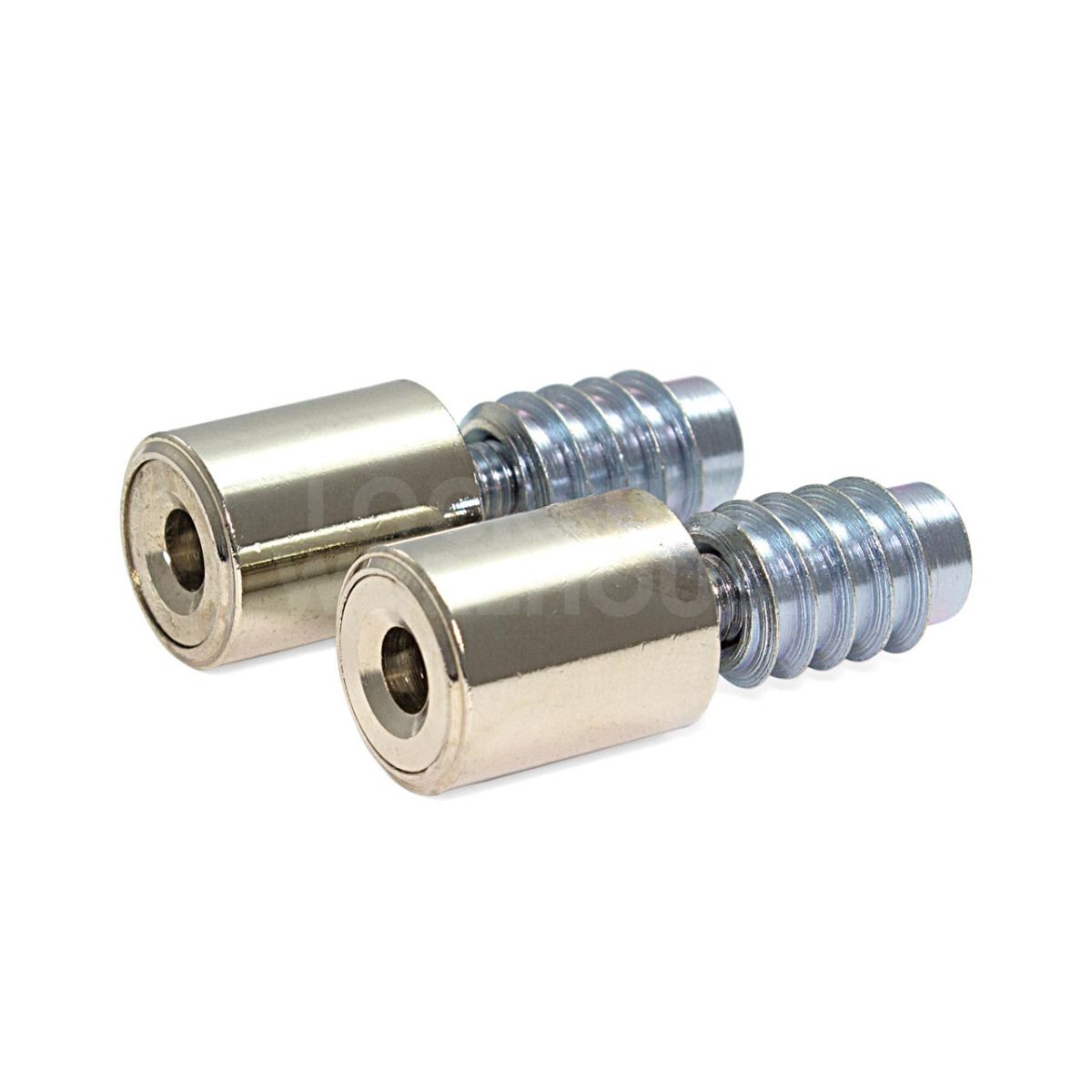

Bramah Rola R101 Sash Stop (pair without keys)

£16.79

(£13.99 ex VAT)

sku: R101
  • Designed for sliding sash windows to restrict movement and improve security.
  • Threaded stop screws into a dedicated insert fitted into the top sash.
  • Prevents sashes from passing one another when engaged.
  • Allows windows to be locked in either a fully closed or partially open position for ventilation.
  • Compatible with standard M6 threaded inserts for straightforward installation.
  • Supplied as a pair of stops with matching inserts for comprehensive sash window protection.
  • Ideal as a replacement part for existing Rola R101 security systems.
Document Icon product info Document Icon product info

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

The Bramah Rola R101 Sash Stop is a robust security solution specifically designed for timber sliding sash windows. It functions by means of a threaded stop that is screwed into a metal insert located in the upper sash. When the stop is in place, it prevents the sashes from sliding past each other, providing a reliable method of securing the window.

Typical applications include retrofitting to traditional windows where secondary security is required. By installing the inserts at specific intervals, the window can be locked firmly shut or secured in a partially open position, allowing for safe airflow without compromising building security. This makes them a preferred choice for ground-floor windows or areas requiring restricted opening for safety.

These stops are often used as direct replacements for worn or lost components in existing Rola installations. They feature a standard M6 thread and are designed to be operated with a specific Rola key (available separately). As they are supplied as a pair, they are intended for installation on both sides of the window frame to ensure even pressure and maximum resistance against forced entry.

Brand

SKU

R101

Box Contents

2 X Sash Window Stops

2 X Inserts

FAQs

These locks work by screwing a threaded stop into a metal insert that is permanently installed in the top sash of your window. When the stop is in place, it prevents the sashes from sliding past each other, effectively locking the window.

No, this specific pack includes two stops and two inserts only. A compatible Rola key must be purchased separately if you do not already have one to operate the threaded stops.

Yes, these sash stops are highly versatile. By choosing where you install the inserts, you can secure your windows in a fully closed position or in a slightly open position to allow for safe ventilation.

Each sash stop has a body length of 19mm and a diameter of 16mm. They utilize a standard M6 thread to screw into the matching window inserts provided in the pack.

Related Products

skip to R6/01 Pair of Keys for Bramah Sash Stops R101 - 108

R6/01 Pair of Keys for Bramah Sash Stops R101 - 108

£8.39

(£6.99 ex VAT)

sku: 2204x
  • Specifically designed to operate Bramah R101 to R108 sash window stops
  • Enables secure locking and unlocking of threaded sash bolts
  • Knurled handle design provides superior grip and manual torque during use
  • Extended shaft length ensures easy access to recessed bolts in deep timber frames
  • Essential tool for the maintenance and operation of traditional sash window security
  • Functional replacement for lost or damaged original sash stop keys
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Bramah R6/01 is a pair of specialised keys engineered specifically for the operation of the R101 to R108 series of sash window stops. These stops are a common security solution for traditional timber sliding sash windows, utilising a threaded bolt mechanism to restrict window movement and enhance property security.

Each key features a knurled head, providing the user with a textured surface for improved grip and leverage when tightening or loosening the internal bolts. The elongated shaft design is a critical feature, allowing the key to reach stops that may be installed deep within the window frame or sash rail, ensuring smooth operation without obstruction.

These keys are typically used as replacements for lost originals or as additional sets for property managers and homeowners. They are compatible with the following Bramah window stop models:

  • R101 and R102
  • R103 and R104
  • R105 and R106
  • R107 and R108

Brand

SKU

2204x

Box Contents

2 keys
