CEGO Surelock Lever Operated Latch & Deadbolt Centre Case - 35/92-70

£43.91

(£36.59 ex VAT)

sku: 21-05013
  • 35mm backset with 92mm and 70mm centres
  • Twin spindle configuration for versatile handle operation
  • Cost-effective replacement for failed Surelock multipoint gearboxes
  • Features both a latch and a deadbolt for robust security
  • Reversible latch allows for easy adjustment to suit any door handing
  • Compact 234mm case height and 47mm width for specific fitment
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The CEGO Surelock Lever Operated Latch & Deadbolt Centre Case is a precision-engineered replacement gearbox designed for use with full-length Surelock multipoint locking systems. This unit is the ideal solution for repairing a lock where only the central mechanism has failed, avoiding the expense of a complete replacement strip.

Technical specifications include a 35mm backset and a twin spindle setup with dual 92mm and 70mm centres. The case is 234mm high and 47mm wide. A distinct feature for identification is the placement of the Euro profile cut-out, which is unusually situated between the latch and the deadbolt.

  • Reversible Handing: The latch can be easily reversed to accommodate both left and right-handed doors. This is done by unscrewing the cover plate, removing the Y-shaped internal plate, and adjusting the latch retaining spring.
  • Smooth Operation: To lock the mechanism, simply lift the lever to engage the locking points and turn the cylinder one full turn. Unlocking is achieved by turning the key and pushing the lever down.

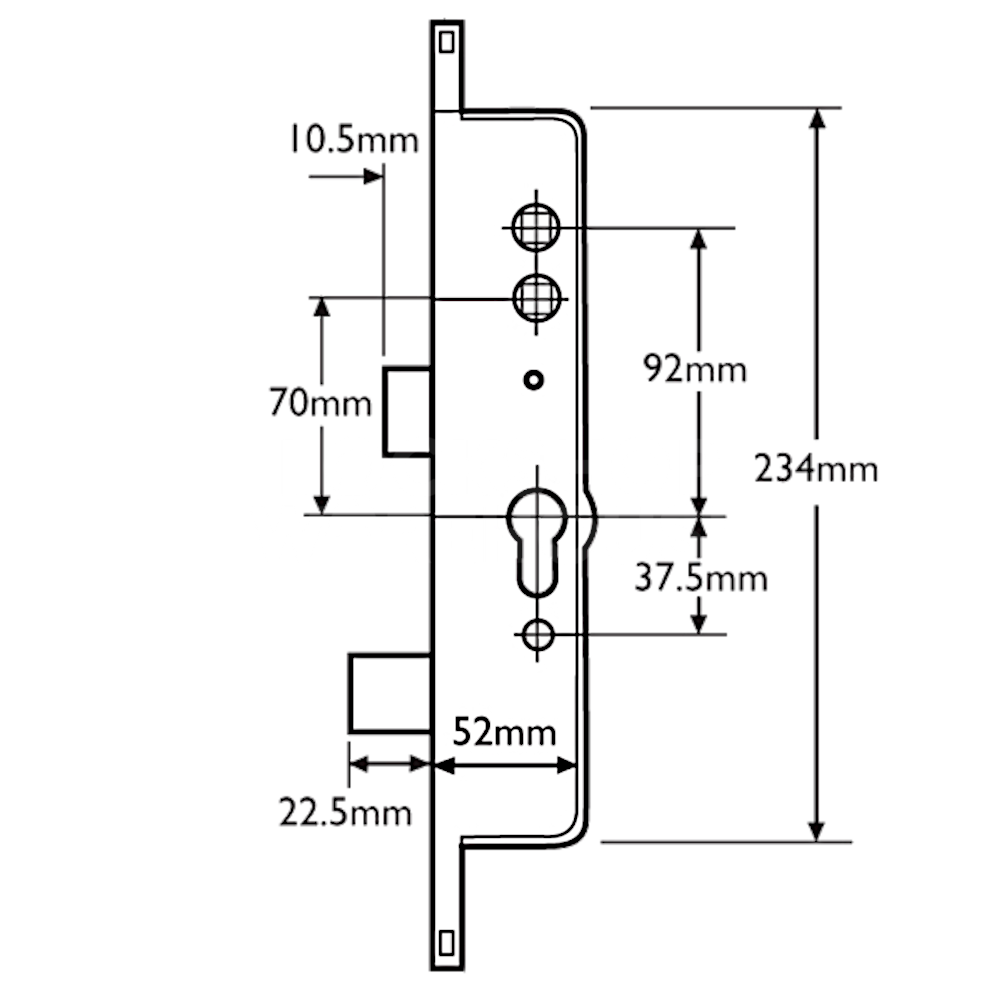

Dimensions Image: CEGO Surelock Lever Operated Latch & Deadbolt Centre Case - 35/92-70
Part Size (mm)
Backset 35
Case Width 47
Case Height 234

FAQs

A key identifying feature of this CEGO Surelock case is the Euro profile cylinder cut-out, which is uniquely positioned between the latch and the deadbolt. To ensure a perfect fit, verify your current lock has a 35mm backset and that the case dimensions match (234mm height and 47mm width).

Yes, the gearbox features a reversible latch designed to accommodate any door handing. You can easily adjust it by unscrewing the cover plate, removing the internal Y-shaped plate, and repositioning the latch retaining spring to suit your specific door opening direction.

The twin spindle setup provides versatile handle operation by offering two different centres at 92mm and 70mm. This allows the gearbox to be compatible with a wider range of multipoint door handles and operation styles.

No, this centre case is specifically designed as a cost-effective repair solution. If the rest of your Surelock multipoint system is in good condition but the central mechanism has failed, you can simply replace this gearbox rather than purchasing a complete new full-length locking strip.
