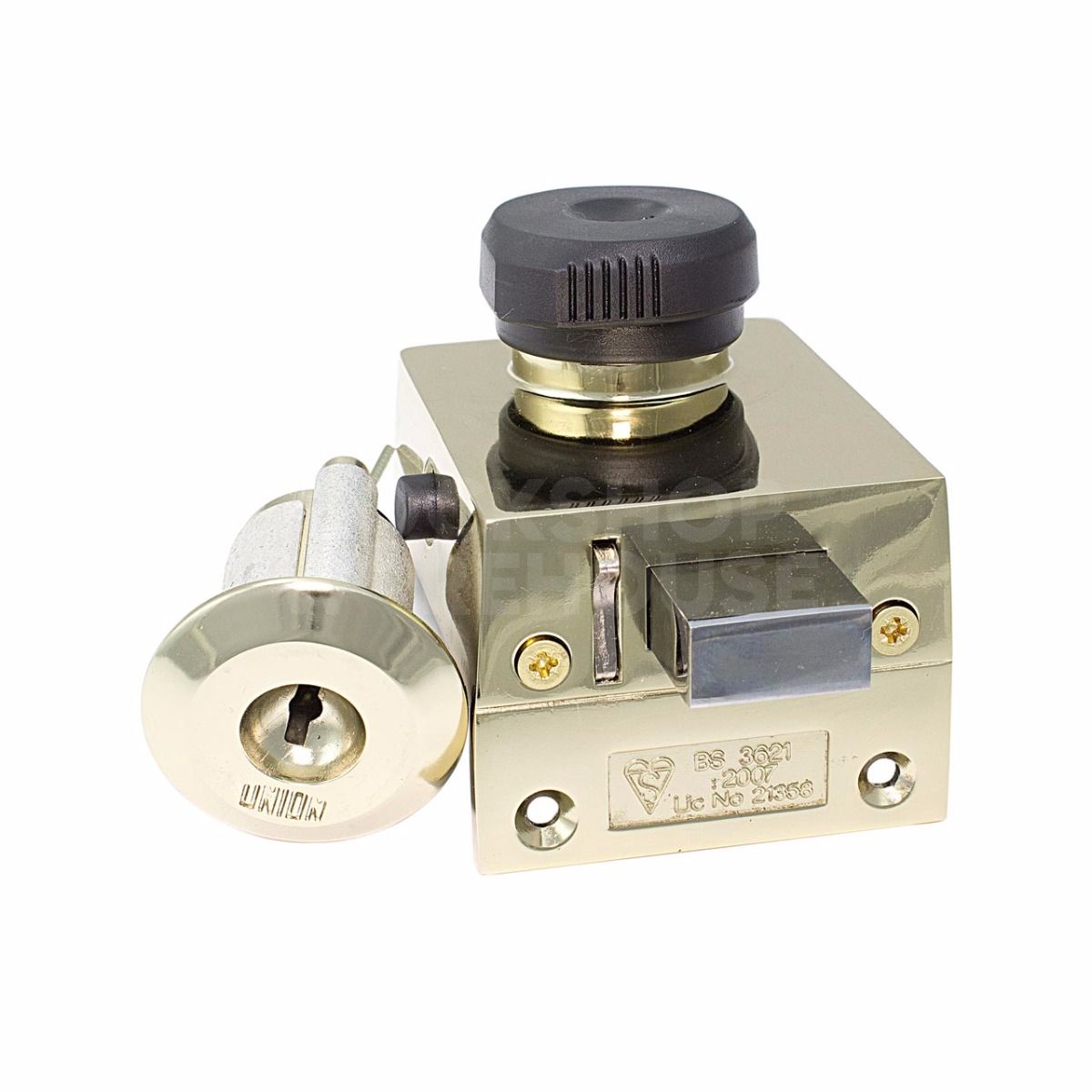

Union 4L67E Brass

£299.99

(£249.99 ex VAT)

sku: U4L67E

Tested and certified to BS3621: 2007 the Union 4L67 has a backset of 60mm and is designed for use on inward opening doors. Incorporating a slam action square hardened steel bolt which automatically deadlocks.

Kitemarked to BS3621. Recommended by Insurance companies and the police. For timber doors from 38 to 57mm thick, hinged on the left or right and opening inwards only. Suitable for glass panelled doors only

Operation:
Automatic internal and external deadlocking
Key operation from the outside. Key lockable knob operation from the inside

Specification:
Reference 4L67E
Backset 60mm
Cylinder 10 disc Ava mechanism
Keys supplied 3 keys

Hardened steel 20mm deadbolt which automatically deadlocks on closing the door
High security cylinder
hardened steel plates and pins protect from drill attack
resists torque attack
high level of protection against picking and manipulation
Drill resistant
Saw resistant
Force resistant


This is the old Chubb 4L67E lock. The Chubb brand has been replaced with Union. The lock is manufactured in the same way as the old Chubb but has the Union brand on instead.

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Recommended
Heavy Duty
9/10 Security Rating
tick British Standard - BS3621

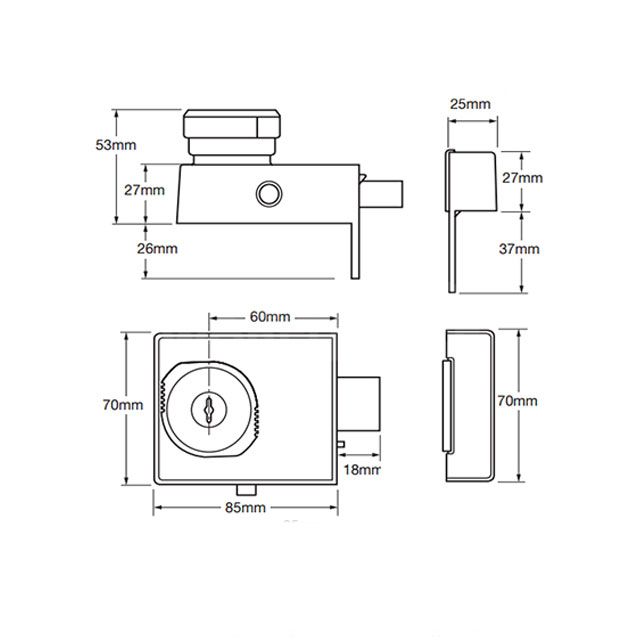

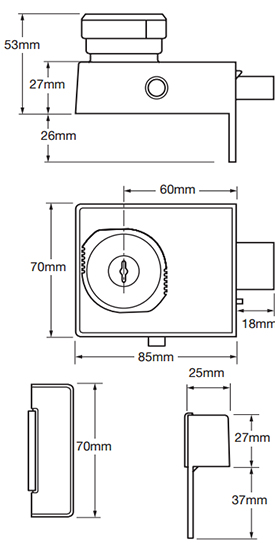

Dimensions Image: Union 4L67E Brass
Dimensions Image: Union 4L67E Brass

Brand

SKU

U4L67E

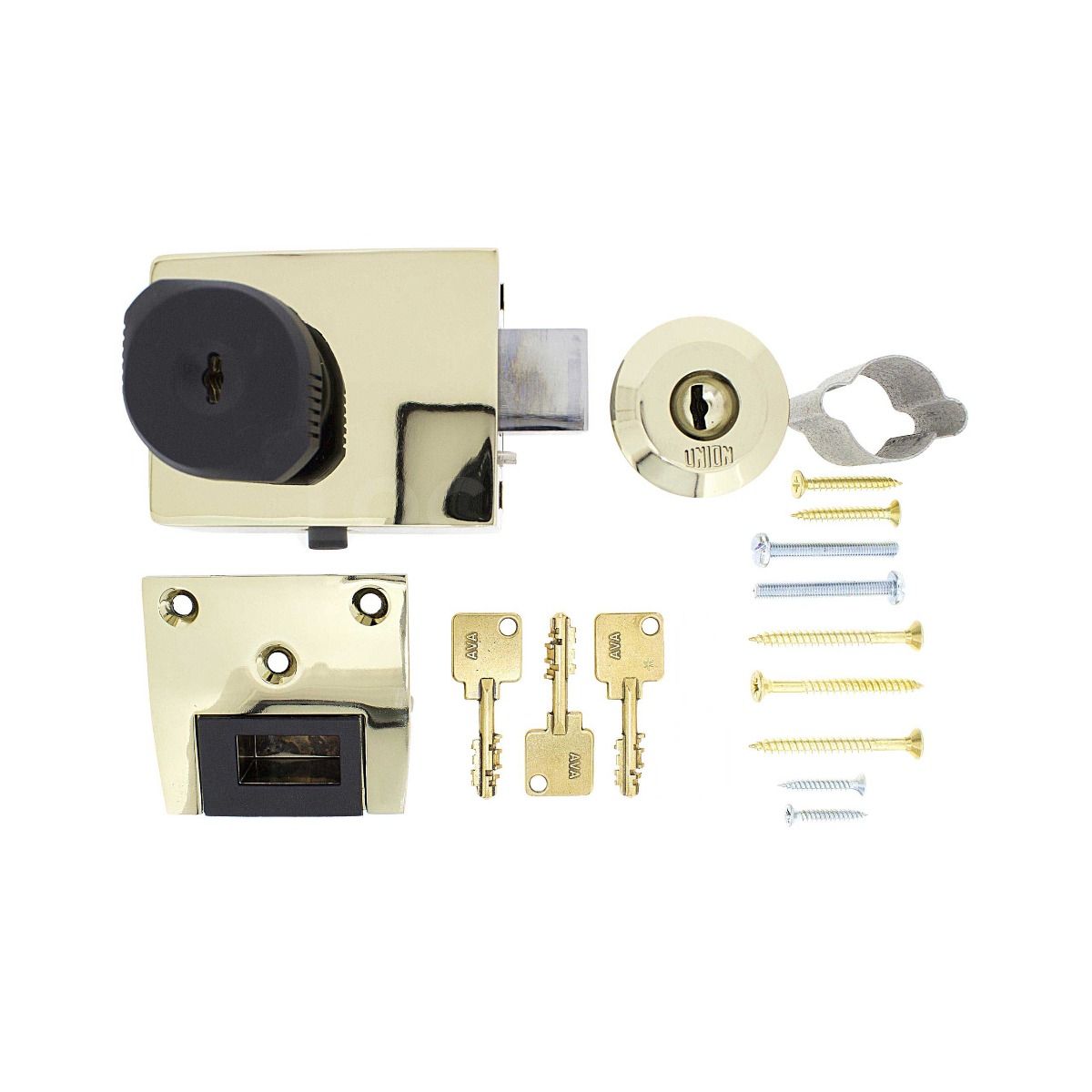

Box Contents

3 keys

strike plate

fixing screws

instructions

cylinder screw

rim cylinder

nightlatch

Certifications

tick British Standard - BS3621

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Related Products

skip to Extra Key for Union 4L67

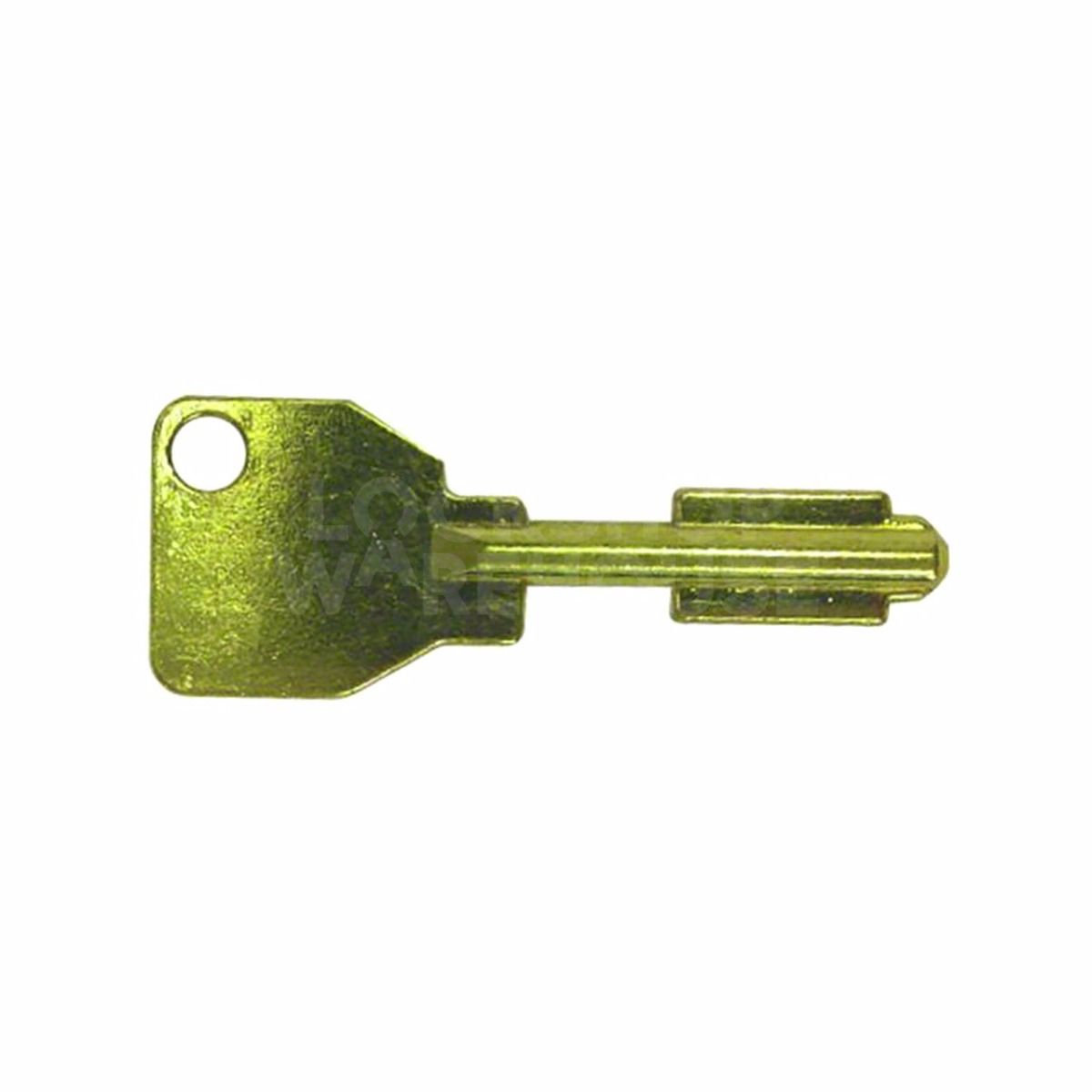

Extra Key for Union 4L67
